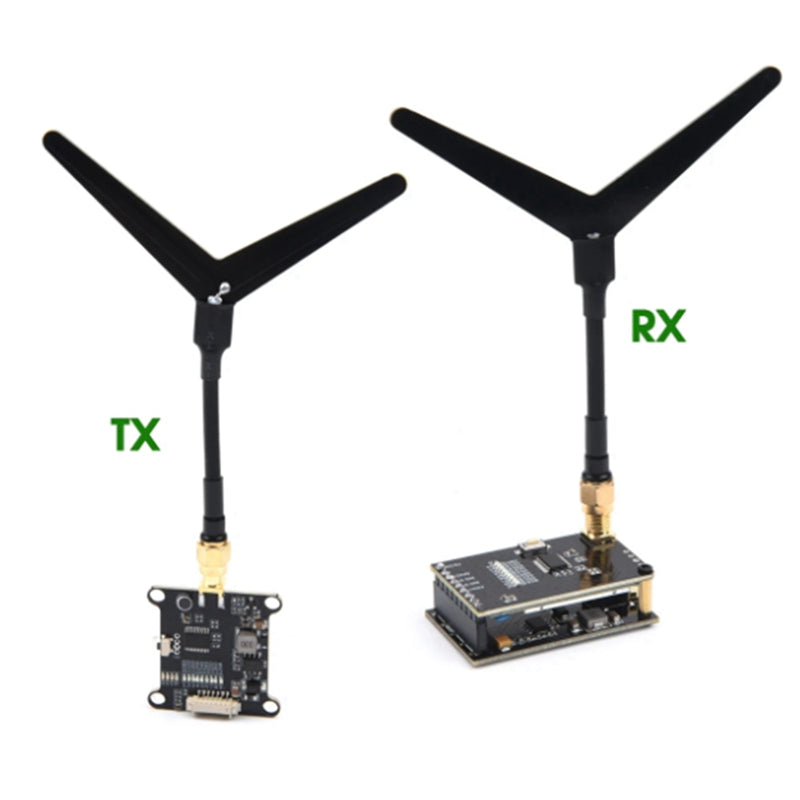

type: A: Transmitter/B: Receiver/C: Transmitter+ Receiver
I. Button control and LED indicators
1. Green indicator 4pcs are power indicators, they are: 0.1mW(0)/25mW(D)/200mW(C)/800mW(H).
(D)/200mW(C)/800mW(H), the default is 0.1mW when the power is on.
to the next power level. This operation can be cycled and the corresponding power indicator will light up every time you press and hold the button.
The corresponding power indicator will light up each time you press and hold the button. Note: The transmitting power must be readjusted after each power failure.
II. The 9 red LEDs are frequency indicators.
This operation can be cycled, each short press on the corresponding frequency point indicator will light up.
Note: The operating system has a memory function, the system will save the current frequency point after power failure. II. Interface definition:

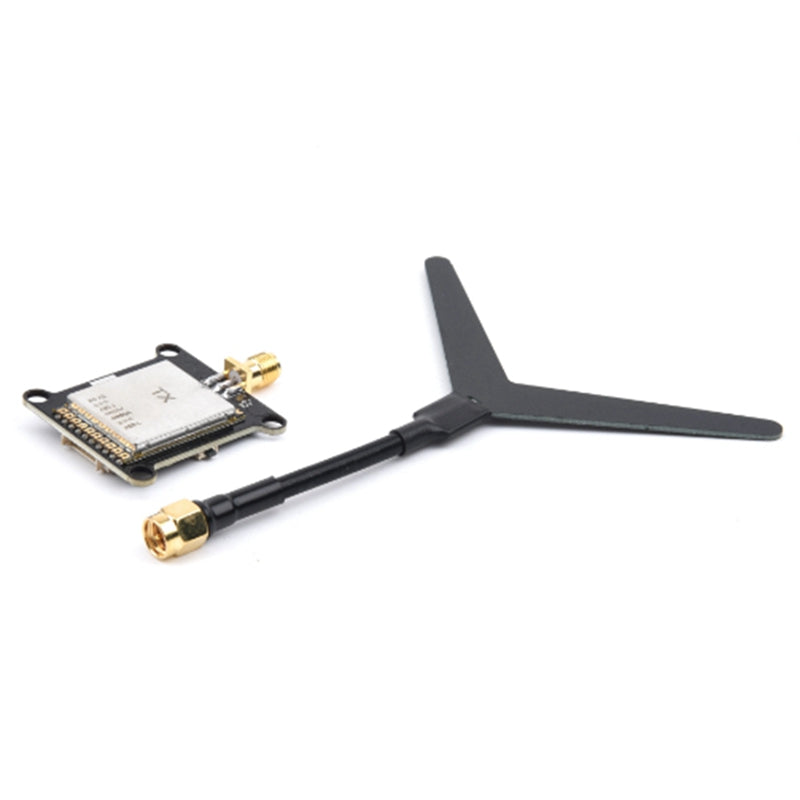

The antenna is SMA interface; the antenna head is "male thread + hole" and the antenna pole is "female thread + pin".
"Pin" configuration 1.2G special customized "Y" type antenna.
2.7P1.25

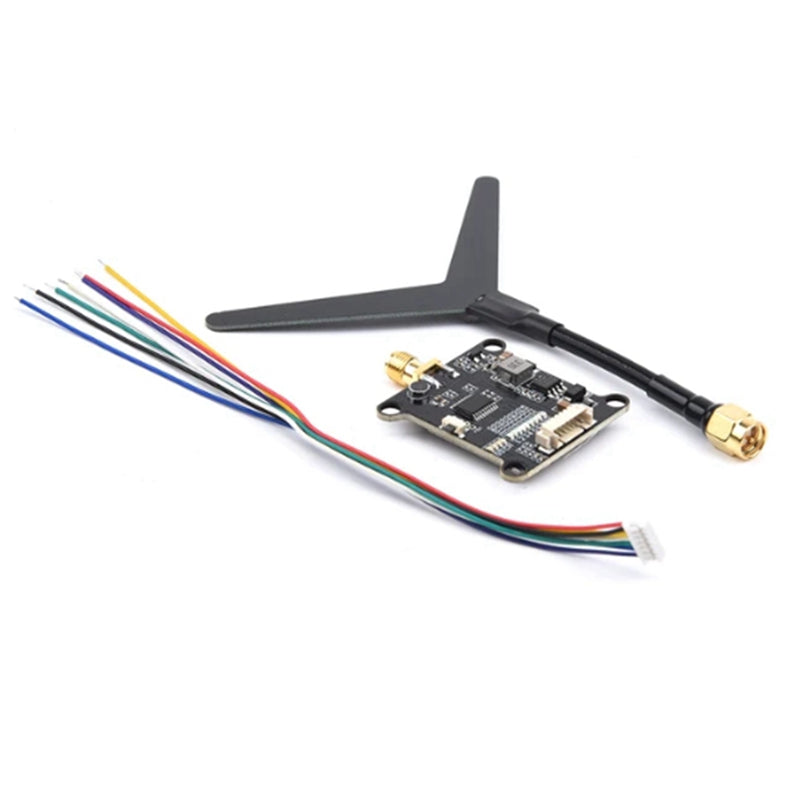

The sequence of the socket connection is:
1. power input DC 7-28V;
2. input ground;
3. video input;
4. 6.5M audio input;
5. DC output 7-28V;
6. DC output ground;
7. DC output 5V.
Package Contents:
1 x Receiver
/
1 x Transmitter
1 x Receiver
/
1 x Transmitter
Due to different product batches, the appearance may be different, which does not affect use.
|
|
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
