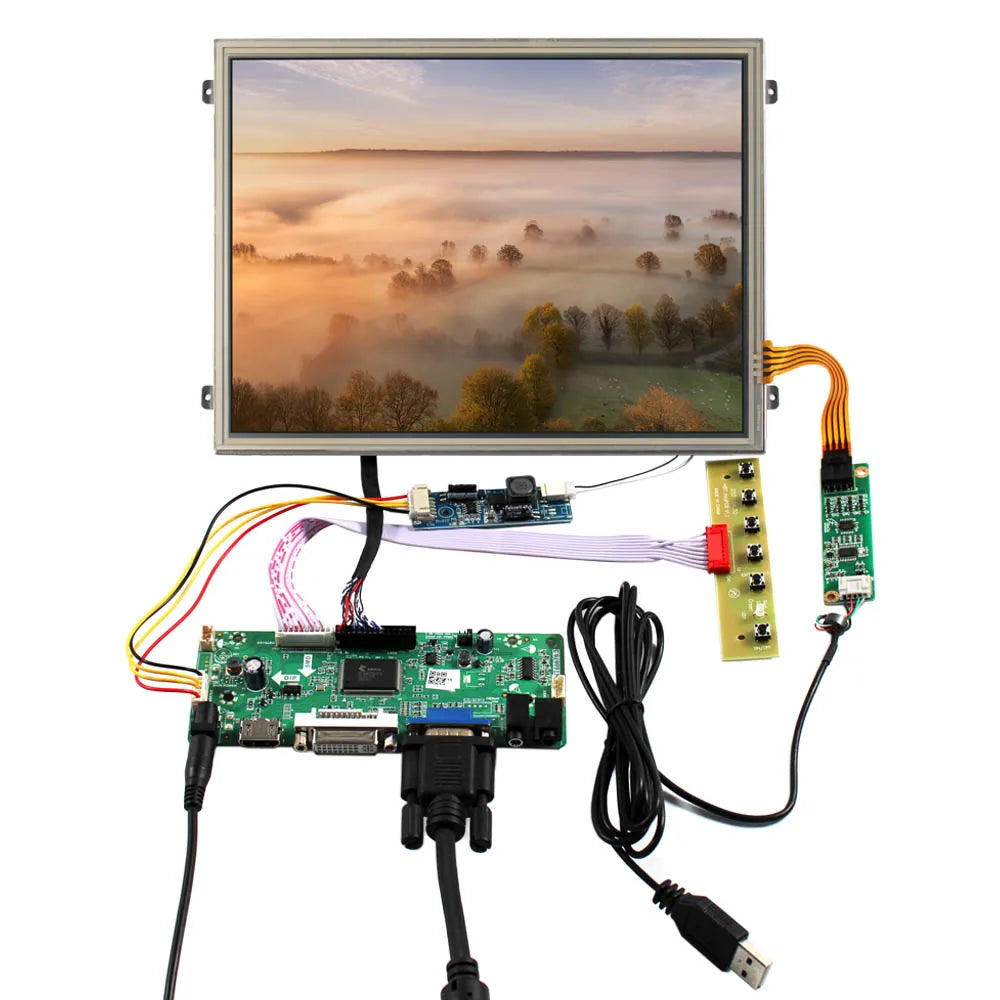

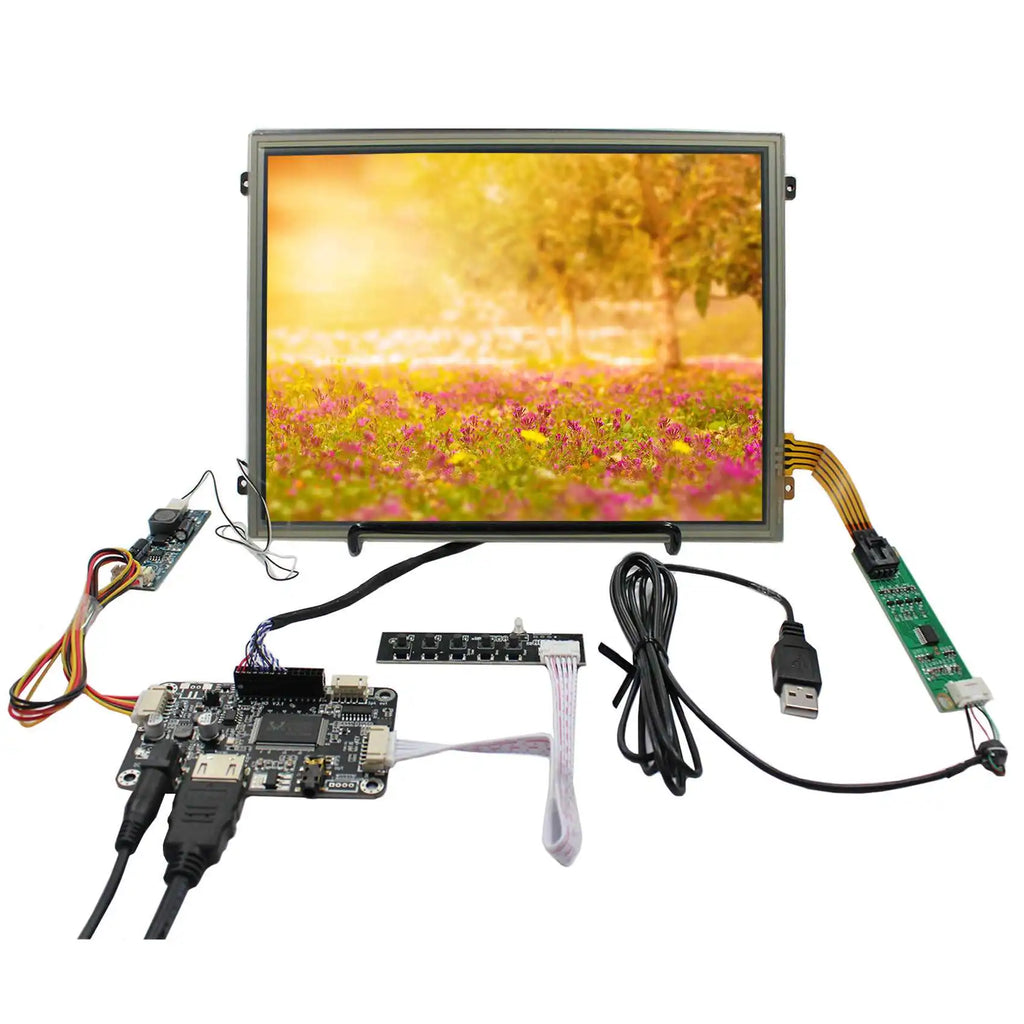

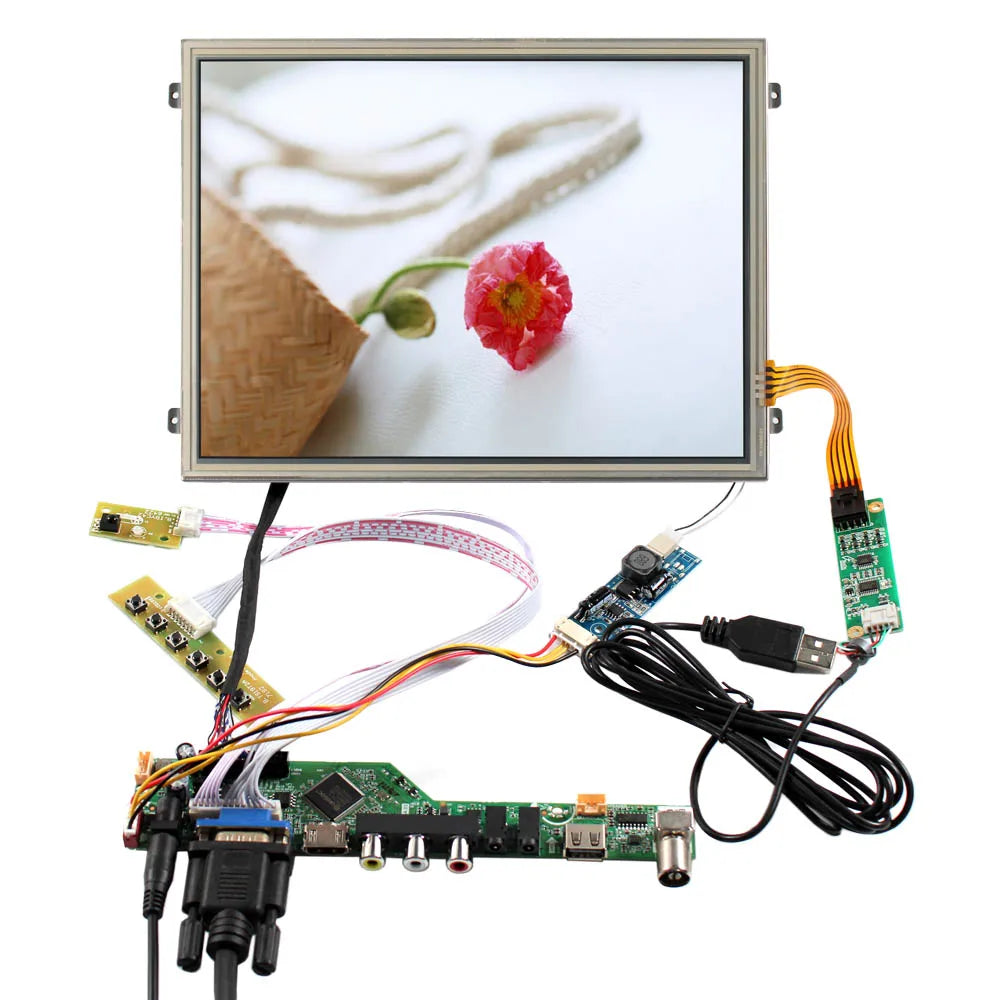

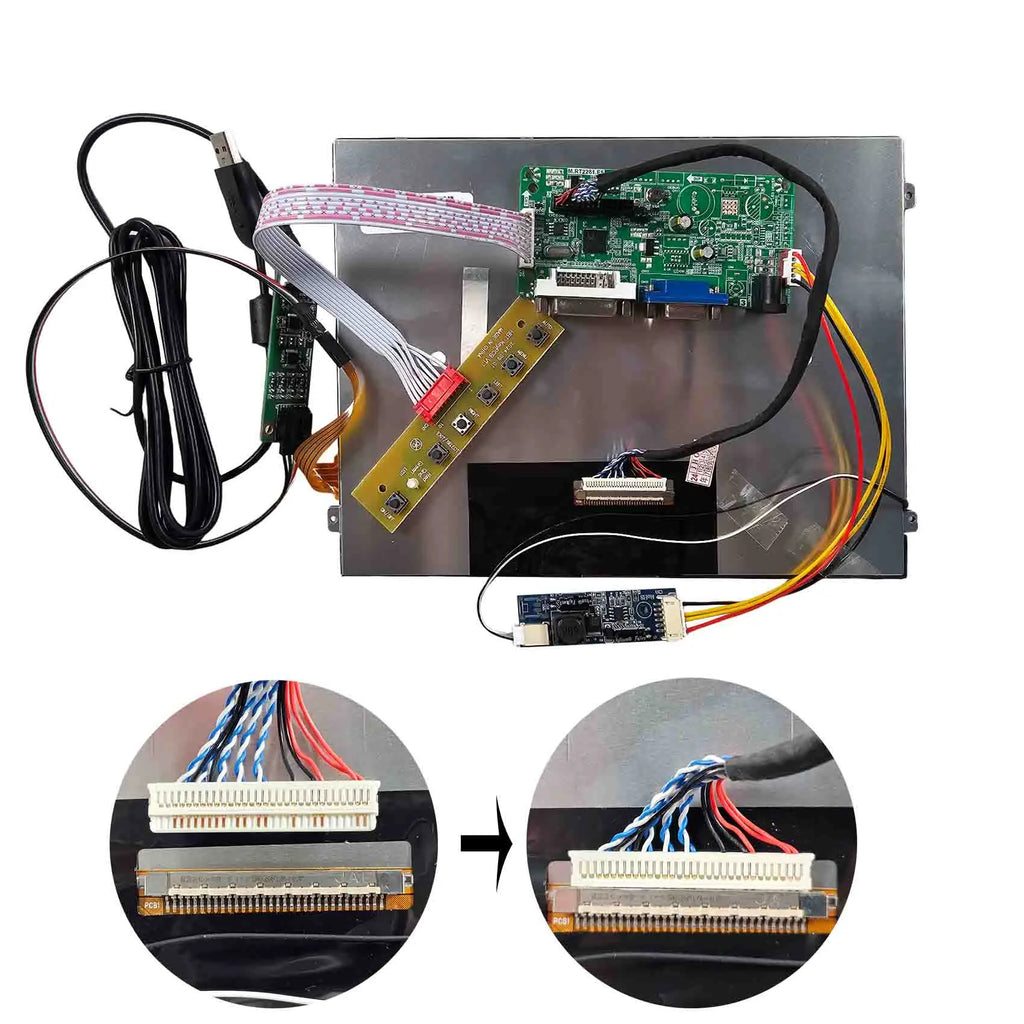

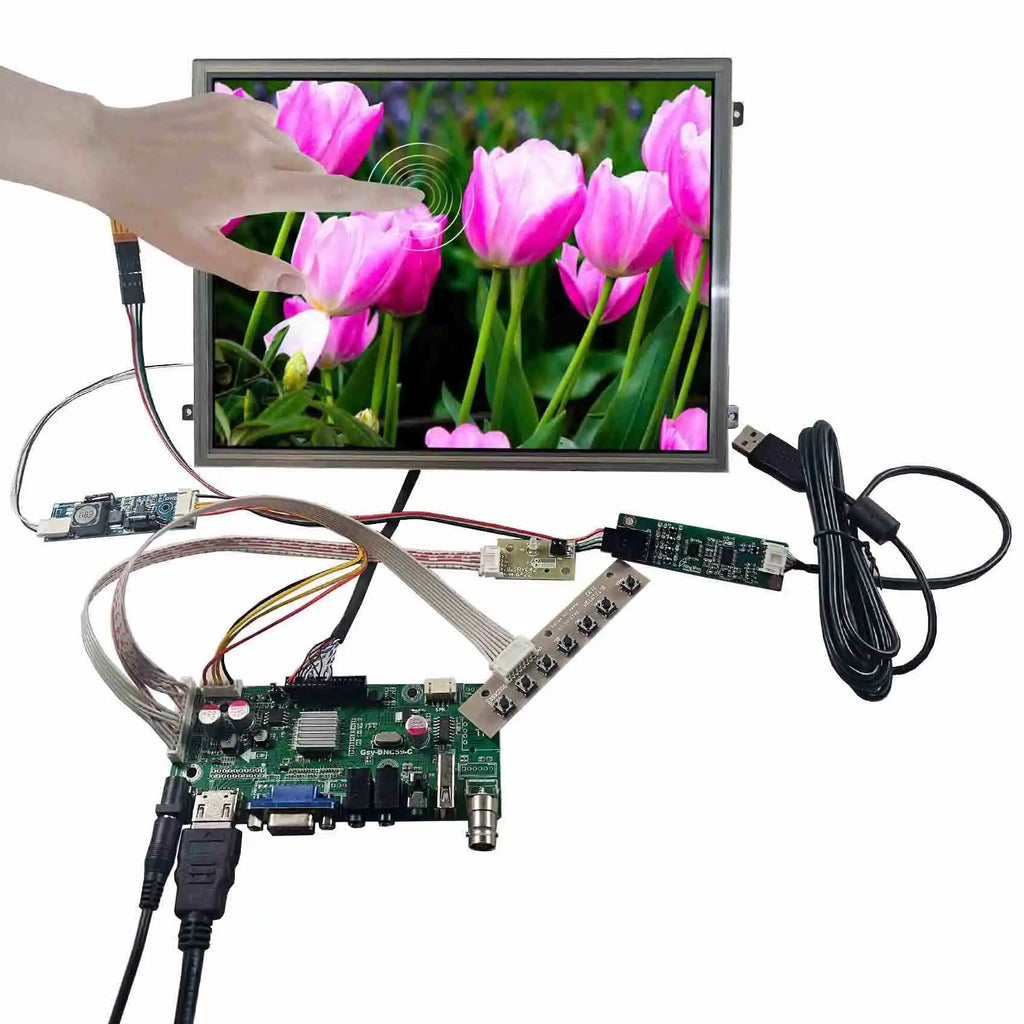

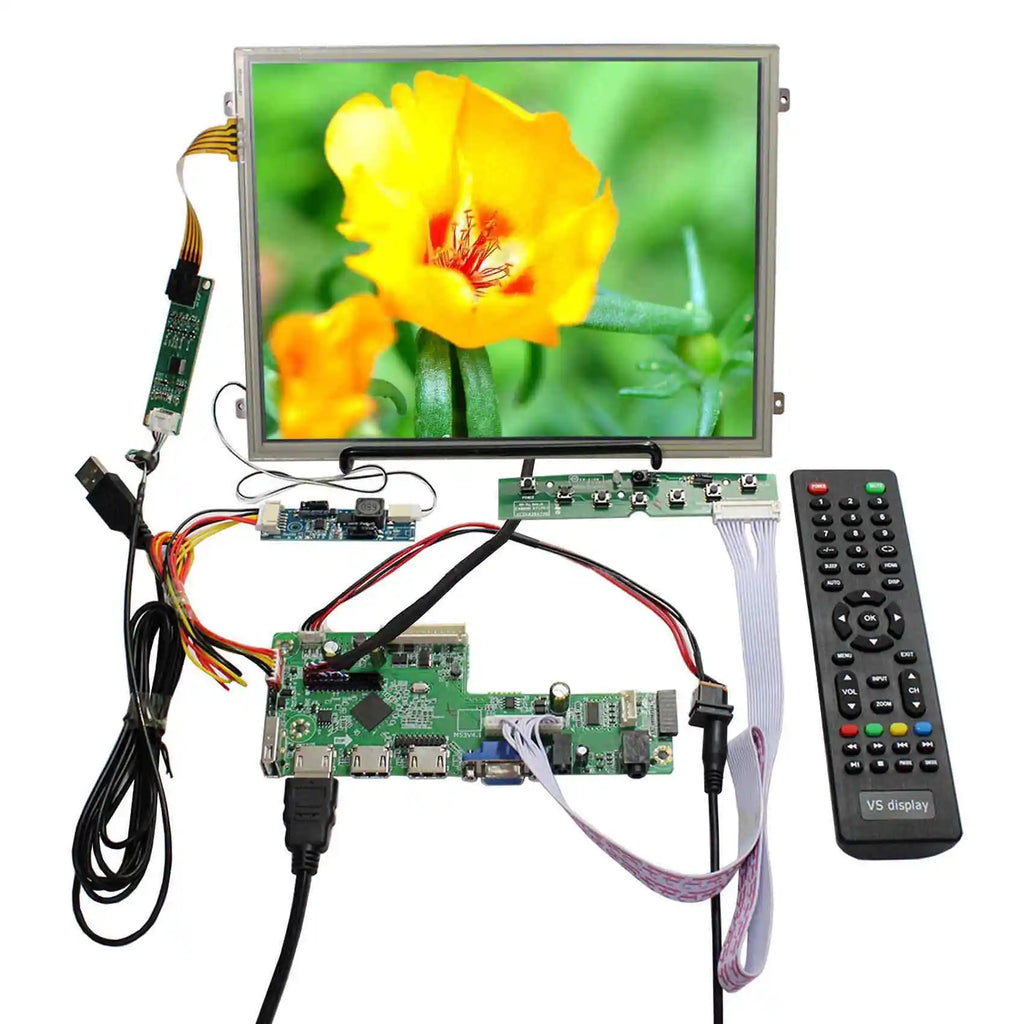

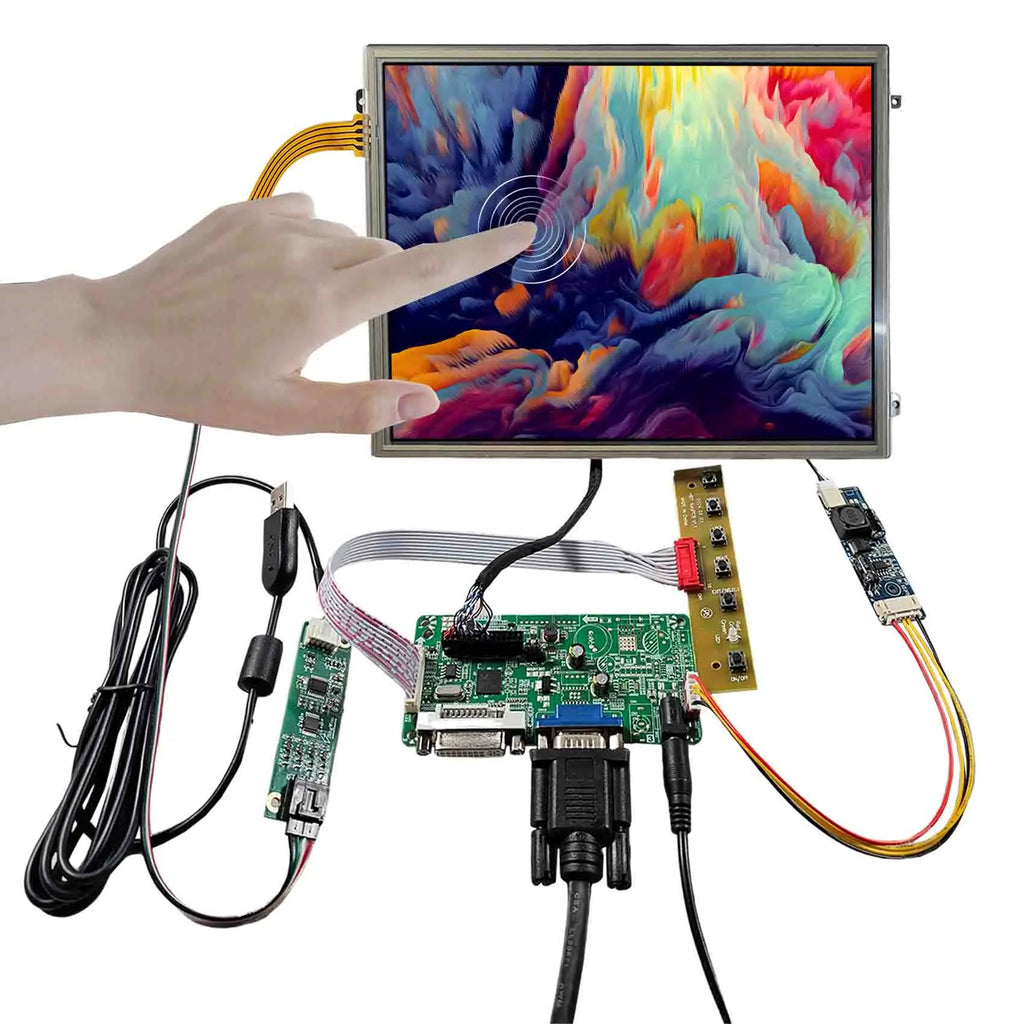

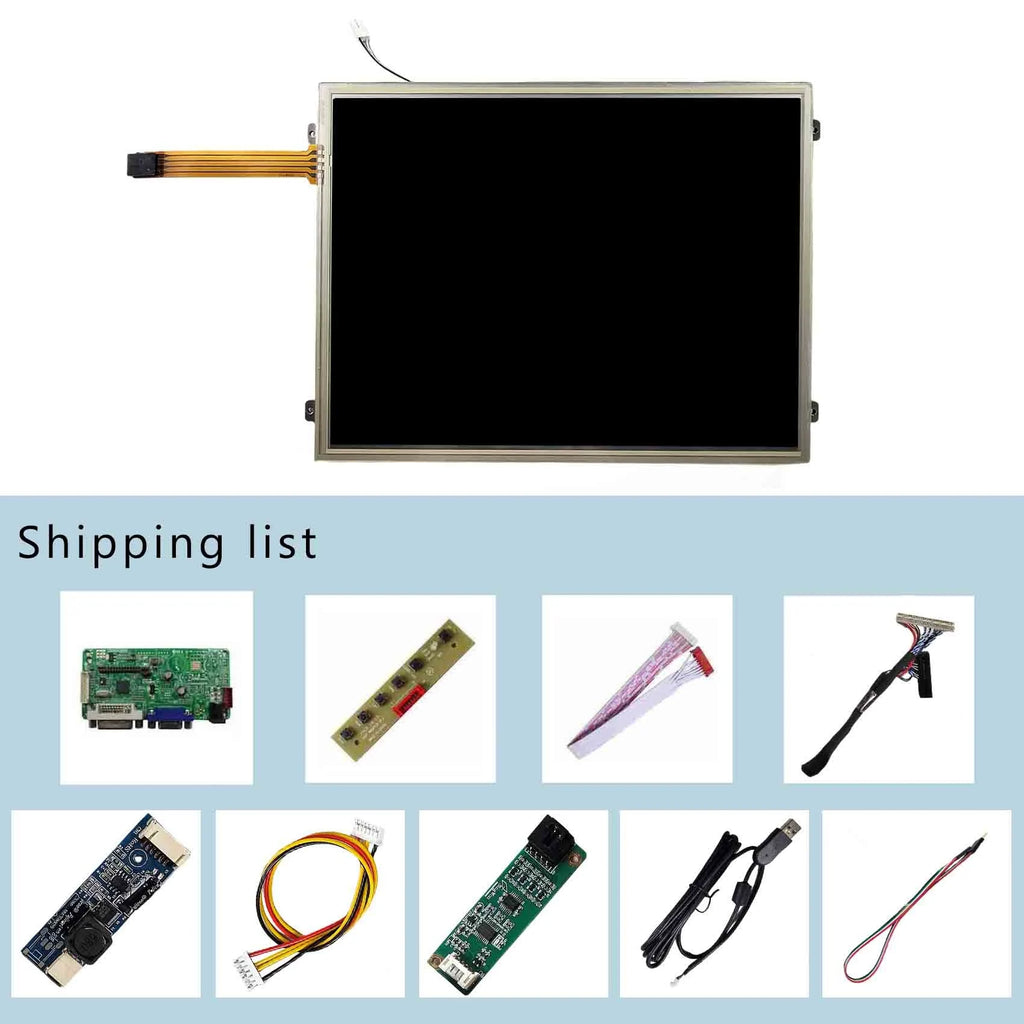

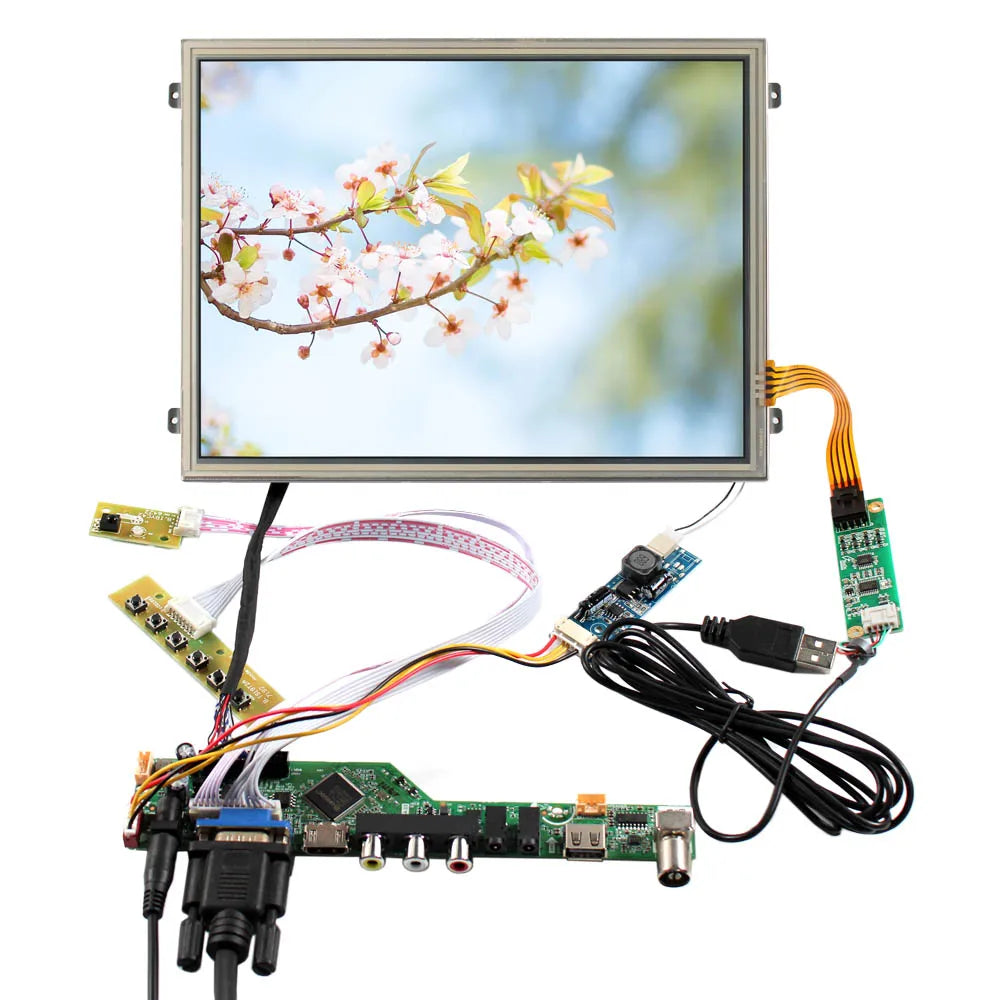

10.4"VS104T-003A 1024X768 Resistive Touch LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024(RGB)×768[XGA]
Outline Size 225.8 × 174.3×5.6(H×V×D)
Display Area 211.2× 158.48 (H×V)
Brightness 500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

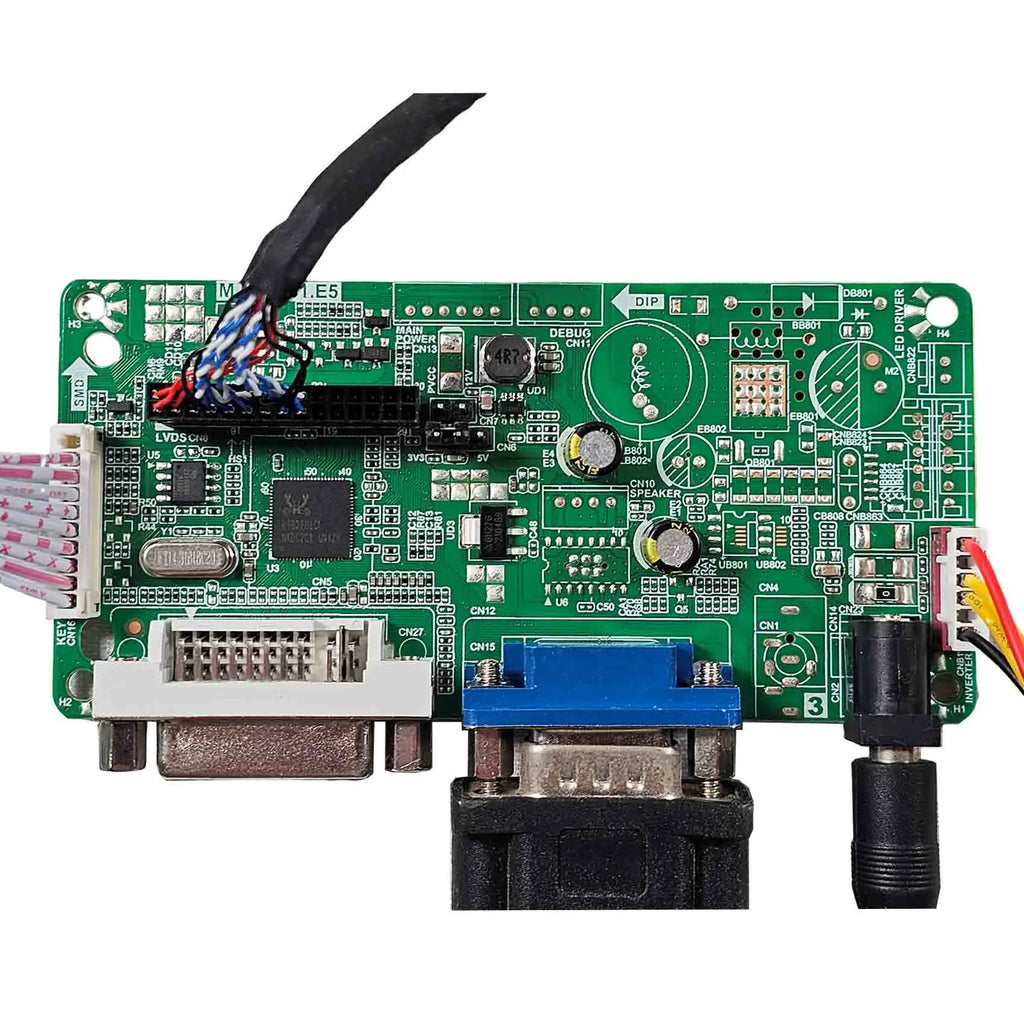

K001944-RT2281 LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
K001952-VS-V59AV-V1 LCD Controller Board:
H/D-MI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
H/D Port Support Transform Audio Compatible With H/D 1.3/1.4，H/D CP 1.2
USB Support Video
AV1 AV2 Compatible With PAL And NTSC
Video Input: H /D VGA AV1 AV2 USB
Audio Input: H/D PC-Audio
Audio Output: Speaker Connector
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 118mm x 54mm x 17mm
K002786-VS-N5V3.1H LCD Controller Board:
H/D LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H/D
Audio Input: H/D
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm
K002890-VS-M5V4.1 LCD Controller Board:
3X H/D VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H/D USB VGA
Audio Input: H/D
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese
Board Size: 160mm x 63mm x 17mm
K002905-M.NT68676.3 LCD Controller Board:
H/D DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H/D DVI VGA
Audio Input: H/D
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
K002907-T.SK105A.03 LCD Controller Board:
H/D VGA AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
H/D Port Support Transform Audio Compatible With H/D 1.3/1.4，H/DCP 1.2
USB Support Video
AV Compatible With PAL
Video Input: H/D VGA AV USB
Audio Input: H/D PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:188mm x 43mm x 17mm
