Feature:

 1. The soil comprehensive sensor creatively measures the seven parameters of conductivity, moisture, temperature, ph, and nitrogen, phosphorus and potassium, which greatly facilitates your systematic assessment of soil conditions.

 2. The sensor has high accuracy, quick response, stable output, and is less affected by the salt content of the soil. It is suitable for all kinds of soil.

 3. It can be buried in the soil for a long time, is resistant to long‑term electrolysis and corrosion, and uses high‑density epoxy resin for vacuum potting, which can prevent moisture from entering the inner of the fuselage and has good sealing performance.

 4. The probe is made of special metal material, which is resistant to rust, electrolysis, and salt‑alkali corrosion, ensuring the long‑term operation of the probe part.

 5. It is suitable for scientific experiments, water‑saving irrigation, greenhouses, flowers and vegetables, grassland pastures, soil rapid testing, plant cultivation, sewage treatment, grain storage, and measurement of various particulate water content and temperature.

   Specification:

      Condition: 100% Brand New

 Item Type: Soil Sensor

 Material: Plastic+Steel+Epoxy

 Color: As shown in the picture

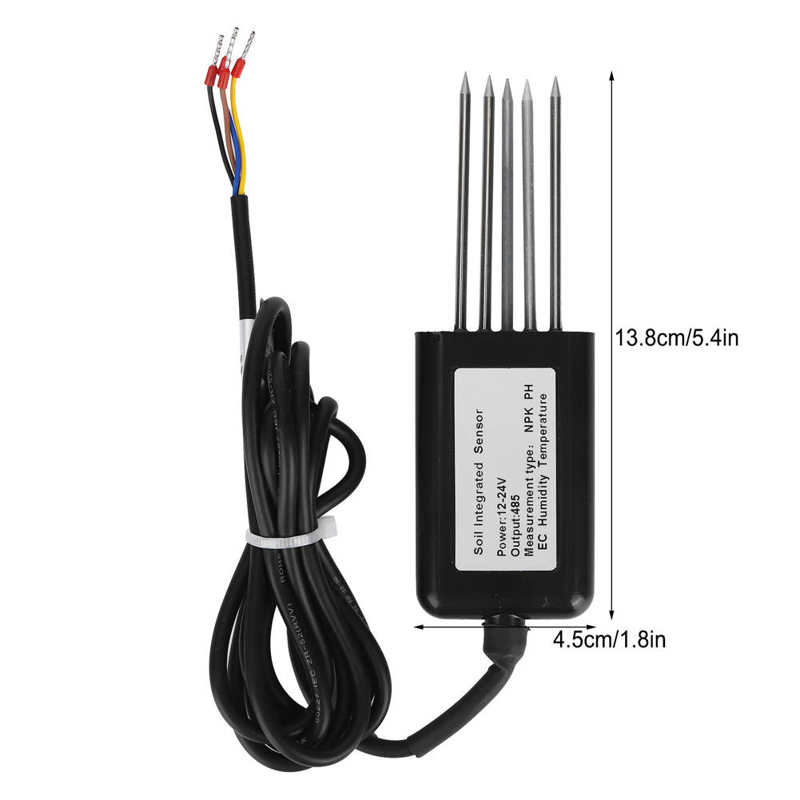

 Size: Approx.13.8x4.5cm/5.4x1.8in

 Weight: Approx.290g/10.2oz

 Power Supply: 12-24V DC

 Output Signal: RS485

 Temperature Measurement Range: -40℃-80℃

 Temperature Accuracy: ±0.5℃

 Temperature Resolution: 0.1℃

 Moisture Measurement Range: 0-100%

 Moisture Accuracy: ±3% within the range of 0-53%; ±5% within the range of 53-100%

 Moisture Resolution: 0.10%

 Conductivity Measurement Range: 0-10000us/cm

 Conductivity Resolution: 10us/cm

 pH Measurement Range: 3-9pH

 pH Measurement Accuracy: ±0.3pH

 pH Resolution: 0.01pH

 Measuring Range of Nitrogen, Phosphorus and Potassium: 0-1999mg/kg

 NPK Measurement Accuracy: ±2%F.s

 Resolution of NPK: 1mg/kg (mg/l)

 Storage Environment: -20℃-60℃

 Working Pressure Range: 0.9-1.1atm

 Response Time: <1s

 Protection Level: IP68

 Installation Method: All buried or all probes inserted into the measured medium

 Precautions:

 1. All steel needles must be inserted into the soil during measurement.

 2. Avoid strong sunlight directly shining on the sensor and cause excessive temperature. Pay attention to lightning protection in the field.

 3. Do not bend the steel needle violently, pull the lead wire of the sensor forcefully, and do not hit or hit the sensor violently.

 4. The sensor's protection grade is IP68, so the entire sensor can be soaked in water.

 5. Due to the existence of radio frequency electromagnetic radiation in the air, it is not suitable to stay in the air for a long time with electricity.

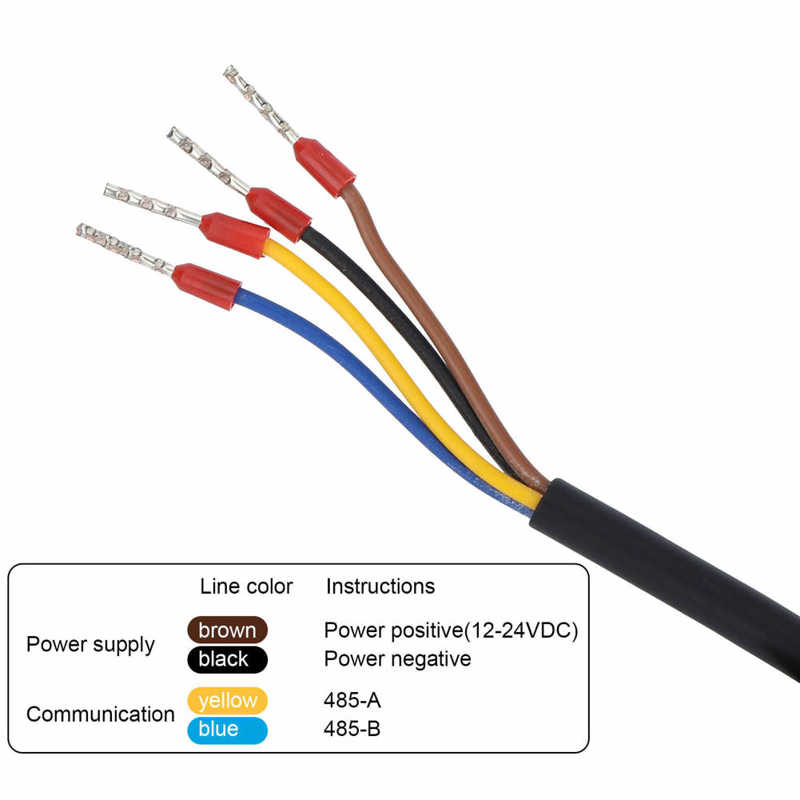

 6. Please be careful not to connect the wrong wiring sequence, the wrong wiring will cause the equipment to burn.

   Package List:

     1 x Soil Sensor

     1 x Manual
