Feature:
This fuel gauge is suitable for 12V, 24V, 36V, 48V, 60V, 72V 84V battery cars (common for batteries below 96V), and can also measure lithium batteries, polymer batteries, and nickel-metal hydride batteries.
It can also be used for other power/voltage measurement purposes.

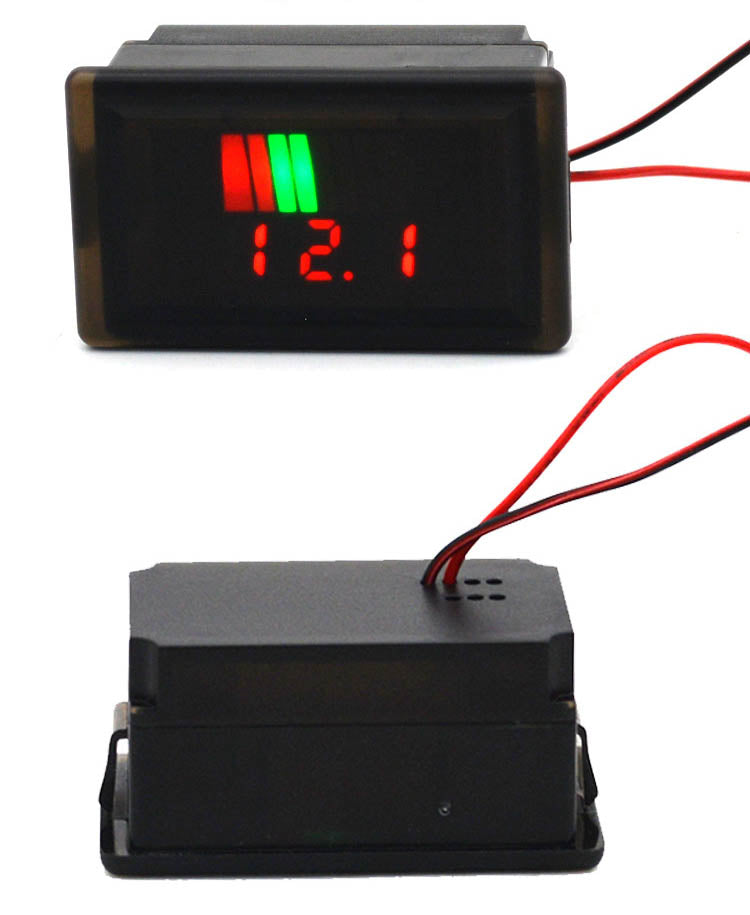

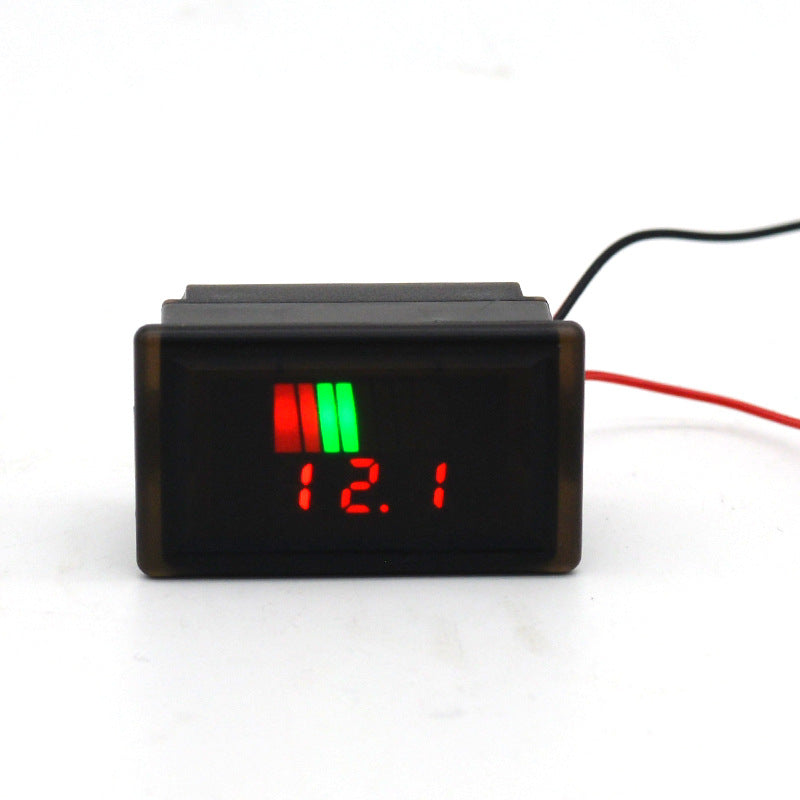

Double display battery + voltage at a glance.
The display is more intuitive.
The upper 8 bars show the battery power (2 red and 6 green).
Downlink voltmeter (display battery voltage), voltmeter decimal point automatic shift accuracy is higher.
It has a wide range of applications, including lithium battery packs, lead-acid batteries, car batteries, electric car batteries, and many other types of batteries and electric equipment.
The calculation of the existing voltage is the same as that of the power display meter of an electric vehicle.
The meter head automatically recognizes the voltage and electricity, and has a reverse connection protection function (reverse connection will not burn).
Instructions for use:
The two-wire system of the meter head can directly test the battery.
Parameter:
Voltage tolerance: ±1%;
8 levels of power: 10% 25% 40% 50% 60% 75% 90% 100%full
Working current: 5-15 ma
Refresh speed: 300mS once
Display mode: three-digit 0.56" LED digital tube
Voltage color: red, blue

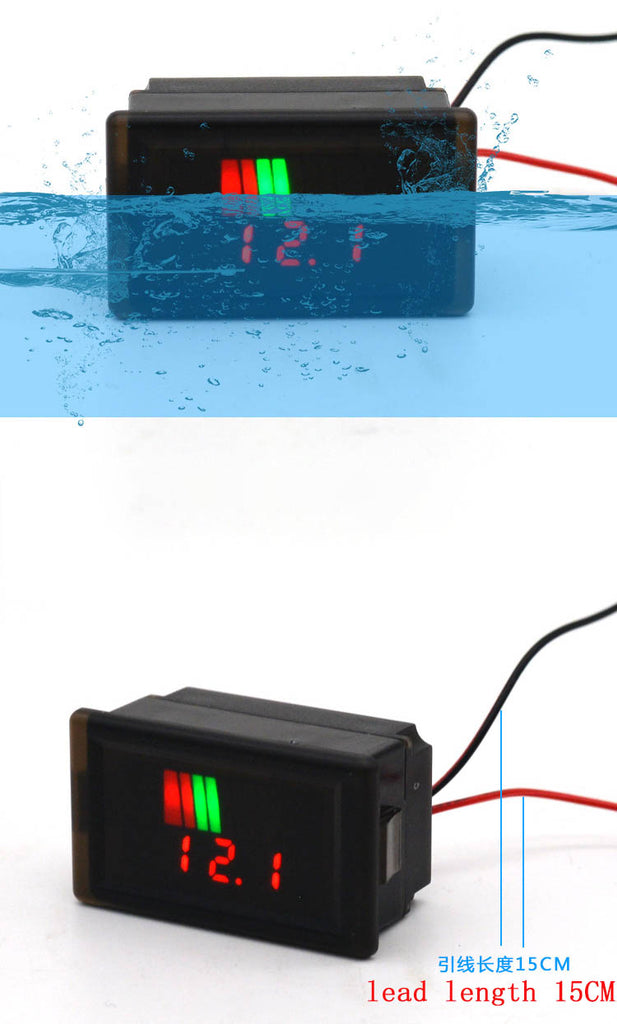

Lead length: about 20cm
no waterproof: Dimensions: 48 x 29 x 22 mm,Mounting hole: 46 x 27 mm
waterproof: Dimensions:57 x 33 x 27mm,Mounting hole:55 x 31mm
Working temperature: -10℃~65℃
Cable length:15cm
Application range:
6V 12V 24V 36V 48V 60V 72V 84V lead-acid battery.
Suitable for 36V, 48V, 60V lithium batteries
Lithium batteries, polymer batteries, nickel-metal hydride batteries, lead-acid batteries.
Cars, motorcycles, bicycles, trucks, etc.
The Sun can generate system
