Note: The power supply is the disassembled power supply

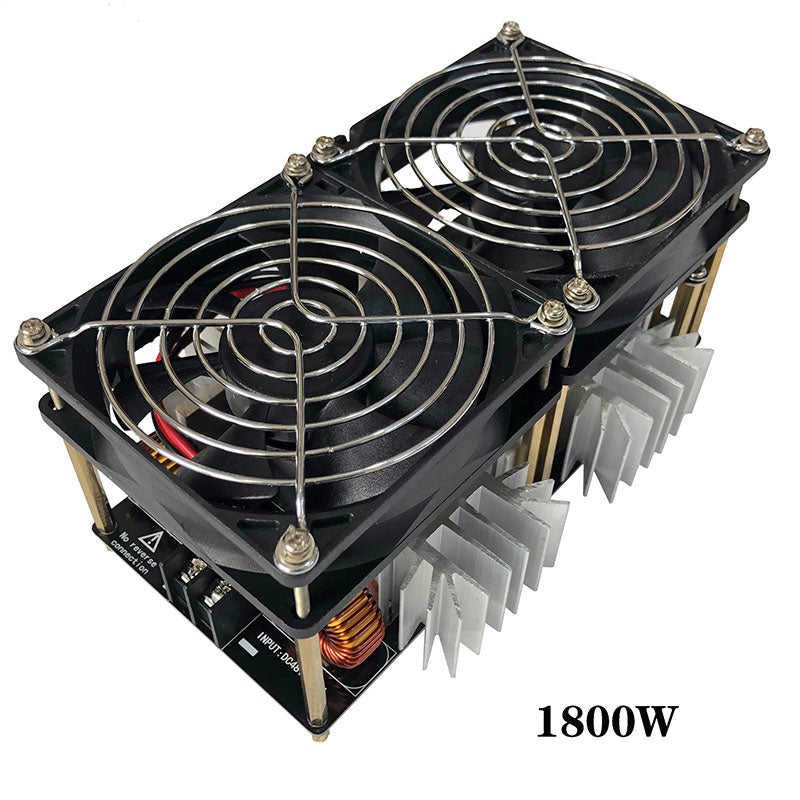

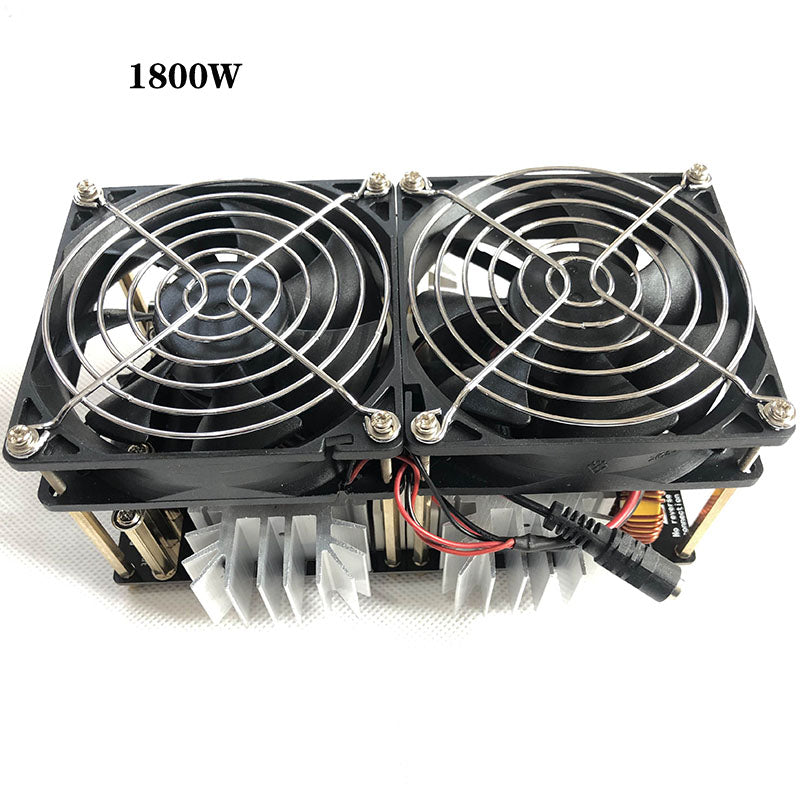

1: Product features and functions
1. Adopt 1.6mm thickness military grade PCB design, copper thickness 2OZ, large current and good heat dissipation;
2. 900mm dual cooling fans;
3. Use custom oversized high-power heat sink to ensure the heat dissipation of the MOS tube;
4. The output end uses three M4 copper columns in parallel, which can be connected to a high-voltage package or a high-frequency transformer in addition to the heating coil;
5. Using four original IRFP260 and nine original BM capacitors in parallel resonance, high power and high efficiency;
6. This product can work continuously for a long time when the heat dissipation conditions meet the standard.
Two: product parameters
1. Dimensions: length, width and height 180*900*85 (unit: mm);

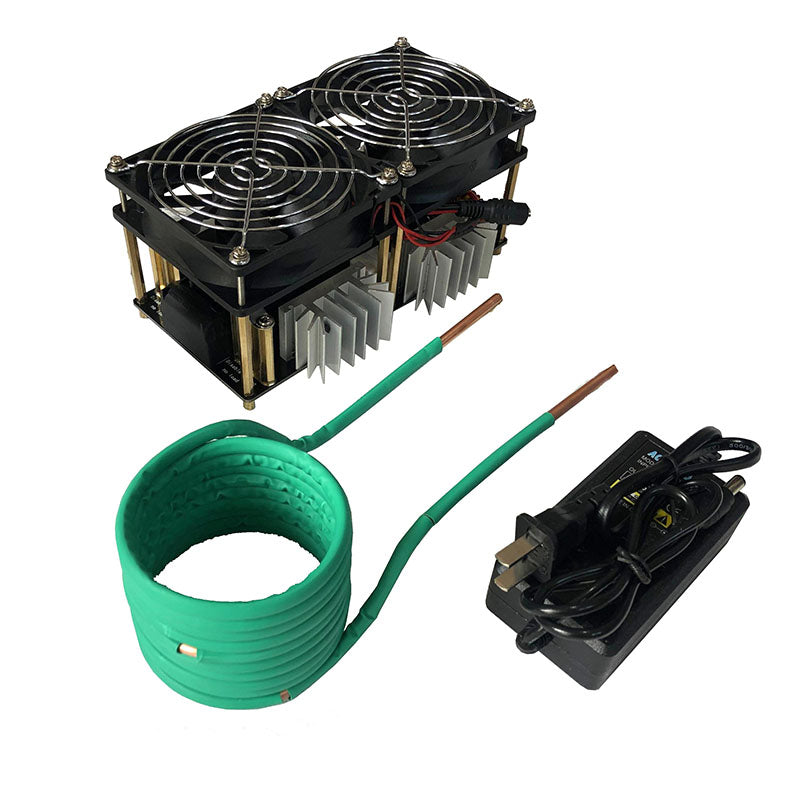

2. Heating ring size: 80*60*73 (outer diameter*inner diameter*height);
3. Input voltage: DC12-48V;
4. Maximum power: 1800W;
5. Maximum DC working current: 40A
6. The maximum temperature of direct heating of metal iron is 800-900 degrees Celsius

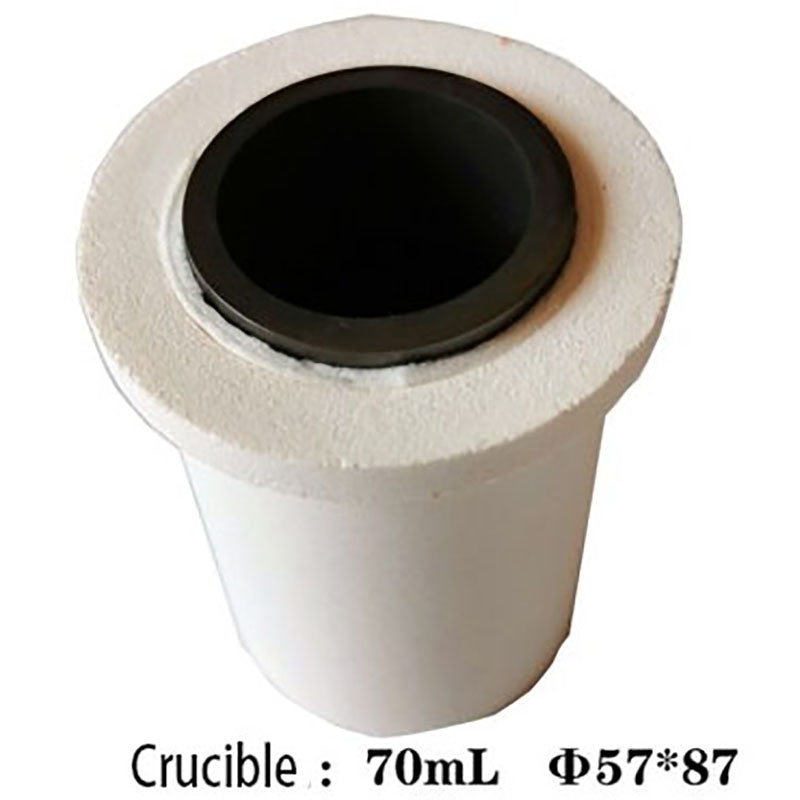

7. The maximum temperature of the crucible is 1600 degrees Celsius
8. Product net weight:
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
