Specification

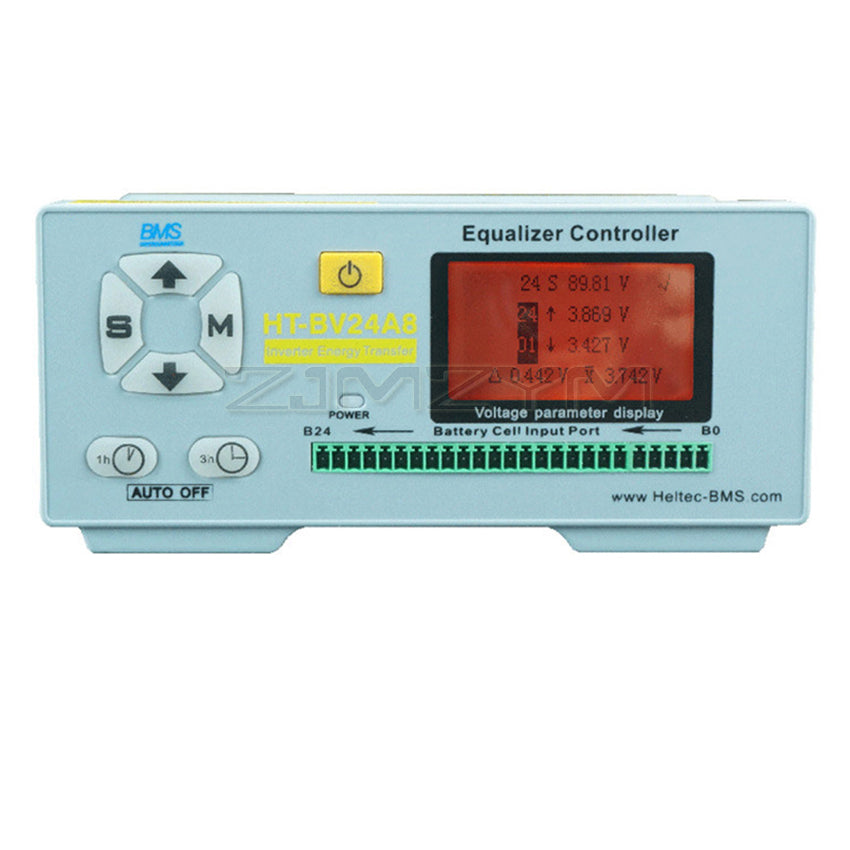

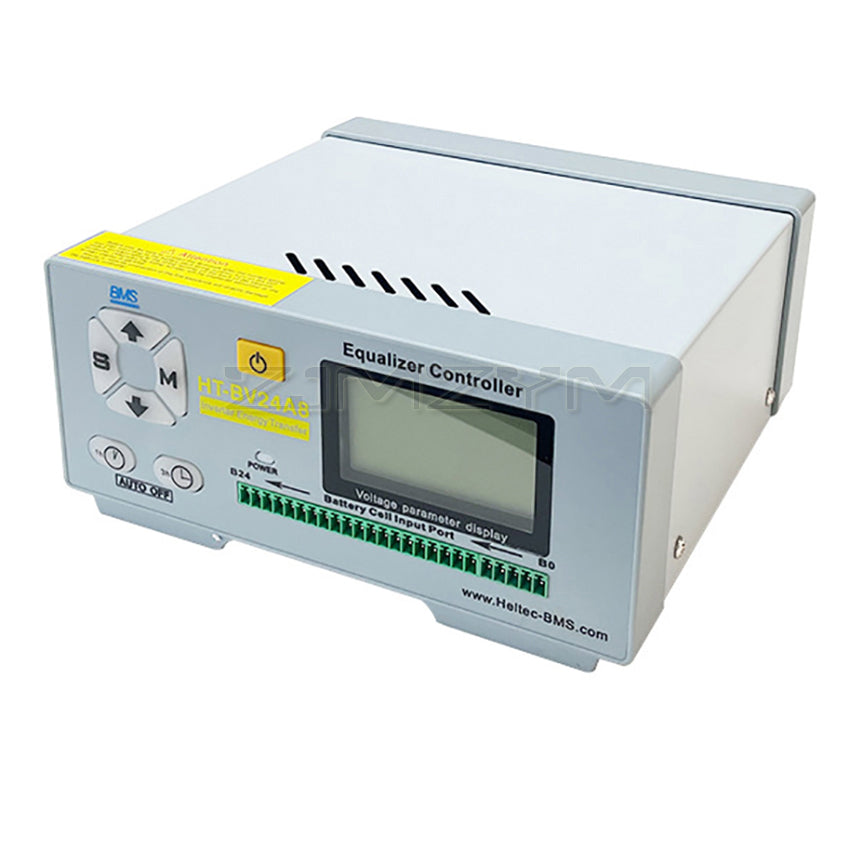

     Name: 2-24 series 8A battery Active Equalizer

   Model: HT-BV24A8

   Voltage: 100-240V

   Weight: 1.6kg

   Package size: 33*23*13cm

   Instructions:

   HT-BV24A8 equalizer controller adopts adopts high-frequency transformer inversion and

   equipotential isolation coupling energy technology to realize the parallel connection of each

   series of batteries through equipotential isolation coupling. Based on the parallel connection

   state, each series of batteries with different high and low voltages realize energy

   transmission and distribution, and finally realize the high-efficiency and precise balance

   of the battery pack.The Taiwan main control chip MCU combines with the ultra-low

   dynamic impedance inverter to obtain the more than 5A balanced current. The precise

   transformer process and fully symmetrical circuit design can achieve the balanced effect of ≤ 30mV

   And the analyzer adopts latest large-scale high-speed MCU chip of American microchip to

   carry out real-time precision detection of each unit of lithium battery pack. The voltage information

   collected by the chip is stored and calculated and compared, and the data is processed and

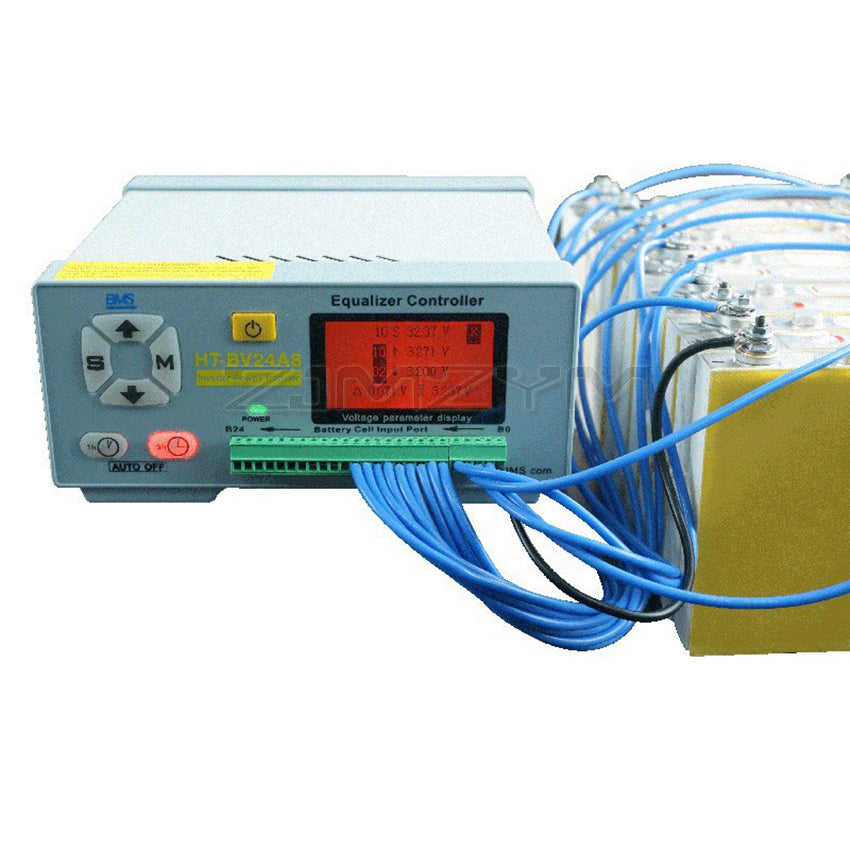

   displayed on the LCD screen. This detector can detect the voltage of up to 24 series of lithium

   batteries at the same time, and automatically analyze and compare the voltage.Real-time

   monitoring equalizing voltage

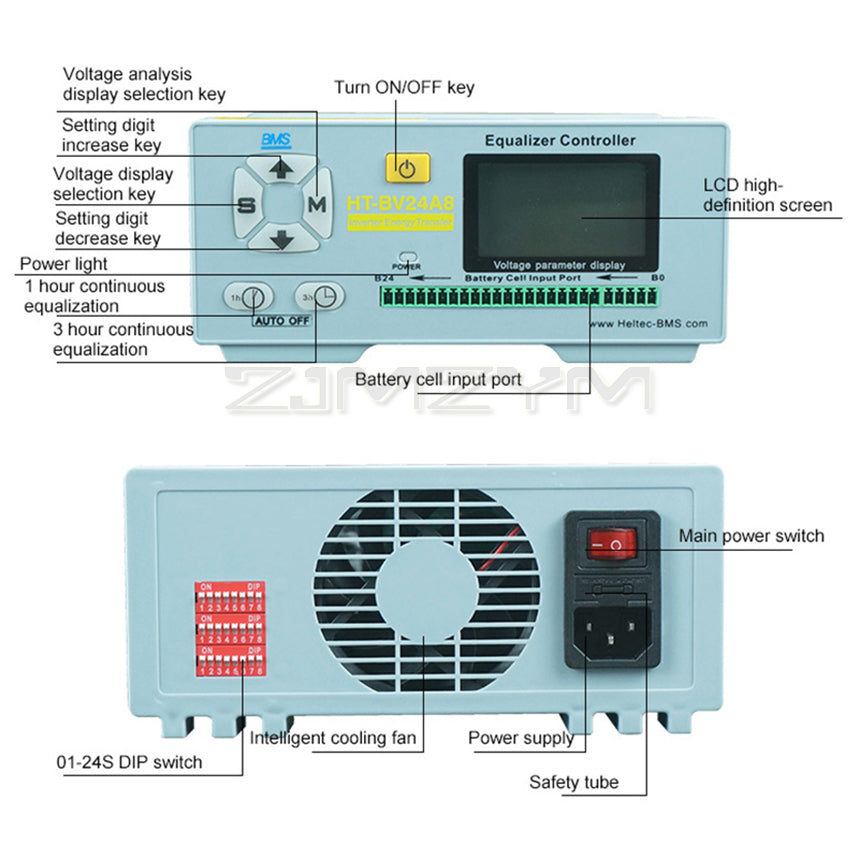

   Fetures:

   1. Automatically analyzing the maximum voltage difference value and the average voltage

    value of the battery pack.When balancing, it can quickly detect the voltage of each string

    of the battery pack.

   2. Voltage difference analysis and equalizing voltage dual function.

   3. Equipped with multi-mode intelligent voltage detection display, it can monitor the working

    progress of battery pack repair in real time.

   4. Nano amorphous isolated fully symmetrical transformer ensures the minimum voltage

    difference

   5.American ultra-low internal resistance MOS devices constitute an ultra-low dynamic

    impedance inverter circuit. Achieve high power balance.

   6.The control and management of intelligent MCU chip realize automatic self balancing;

   7. Automatically detect the minimum voltage of the battery, stop working when the battery

    energy is low, and protect the battery from power loss;

   8. Overcurrent fuse resistance at each series input end to ensure safety;

   9. 1h/3h/4h time-limited equalization time adjustable;

   10. Heat dissipation design of inverter under extreme equilibrium state of high voltage difference
