2 Part LS110A Split Transmission Meter for Automotive Window Film Windshield VL Transmittance Measurement

 Overview

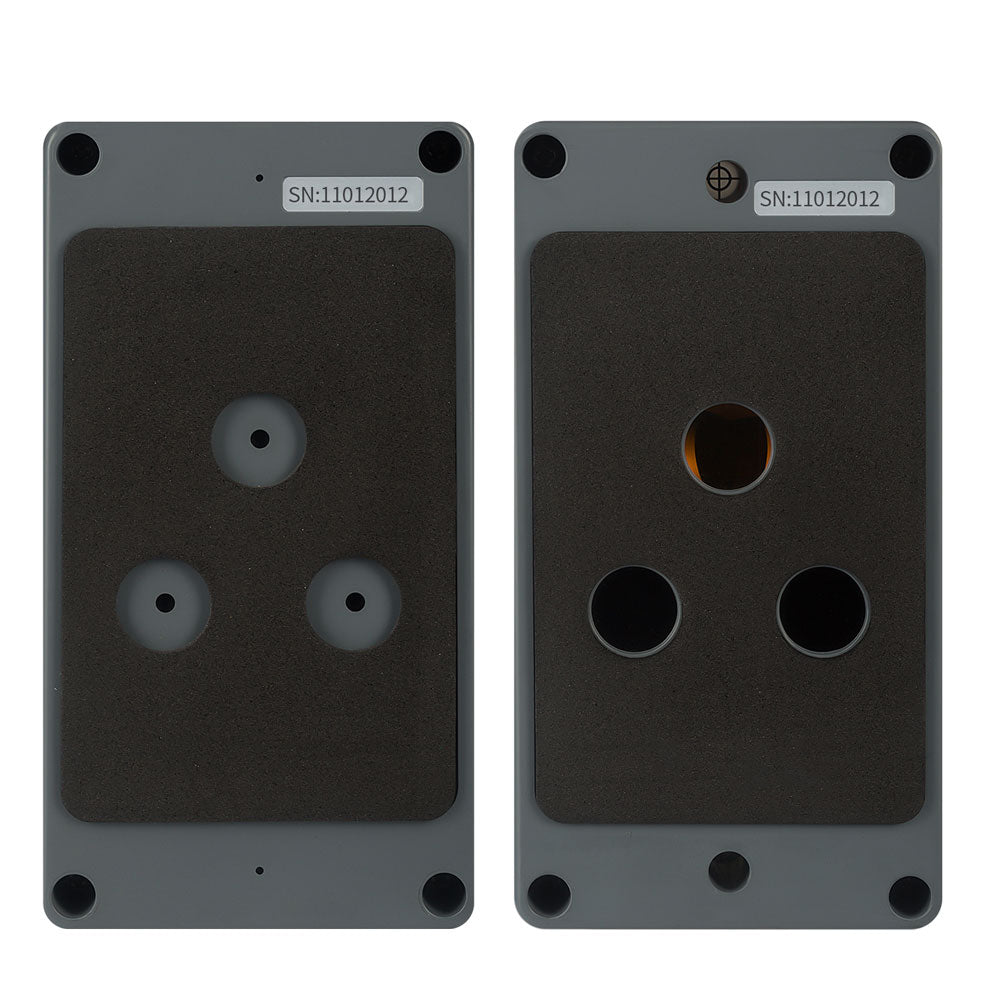

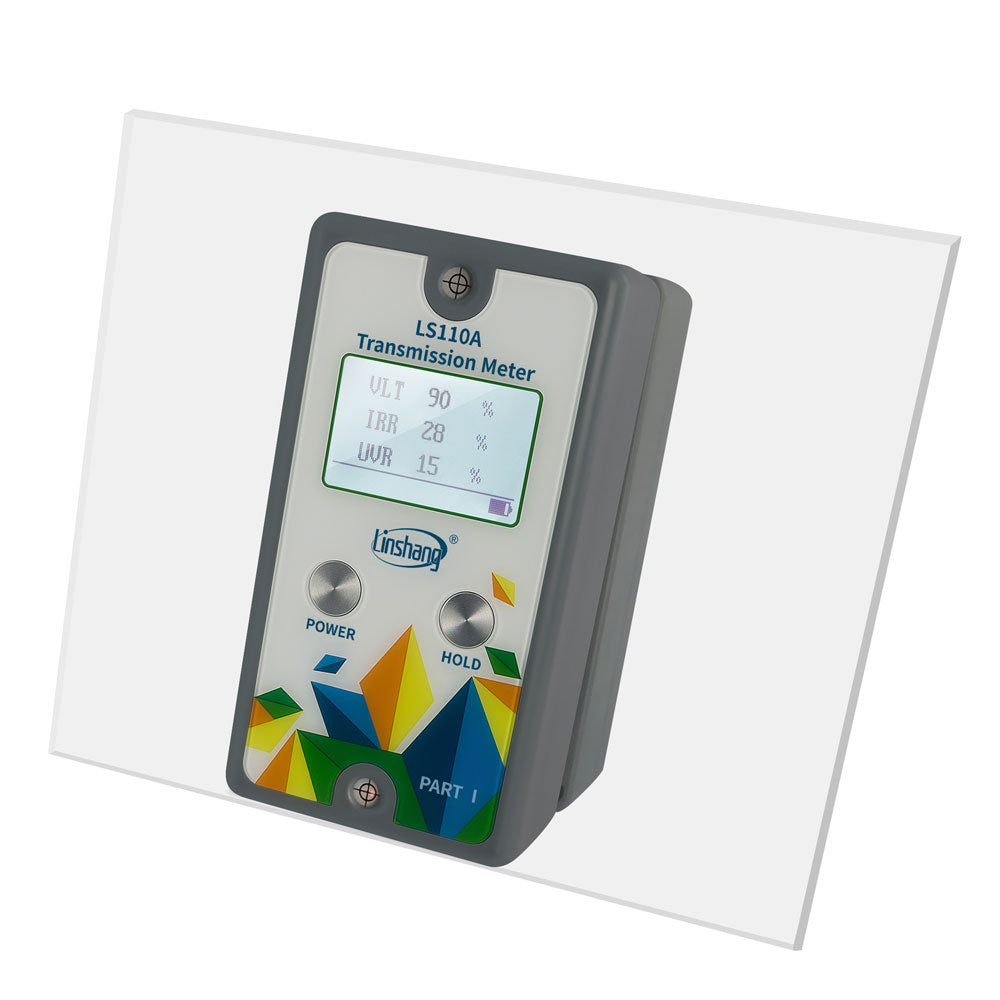

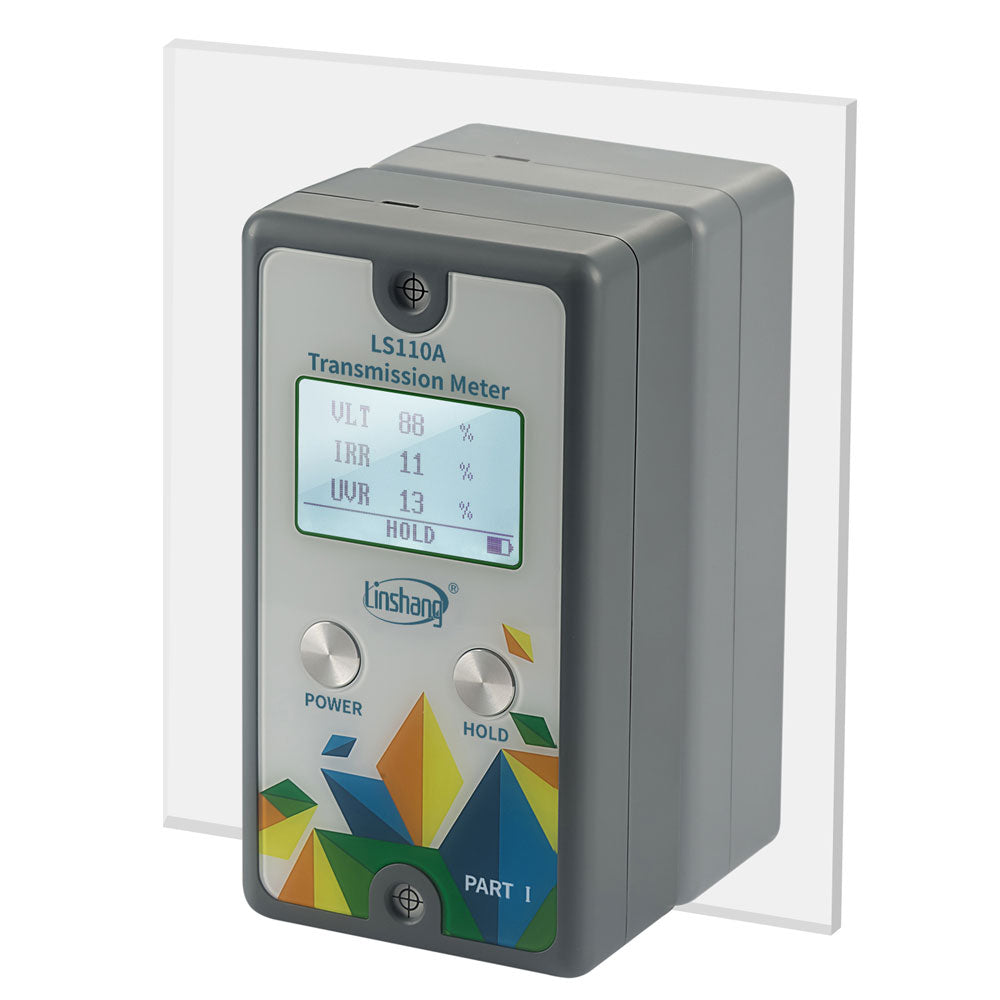

                             LS110A split automotive window tint meter is an instrument that can simultaneously test the transmittance, infrared rejection rate and ultraviolet rejection rate. The tint meter is suitable for testing materials such as automotive solar film, automotive glass and architectural glass. The instrument is composed of two parts: the main part (PARTⅠ) and the auxiliary part (PARTⅡ). It adopts a split structure, which is especially suitable for testing installed glass or large-sized materials.

              Application

              Features

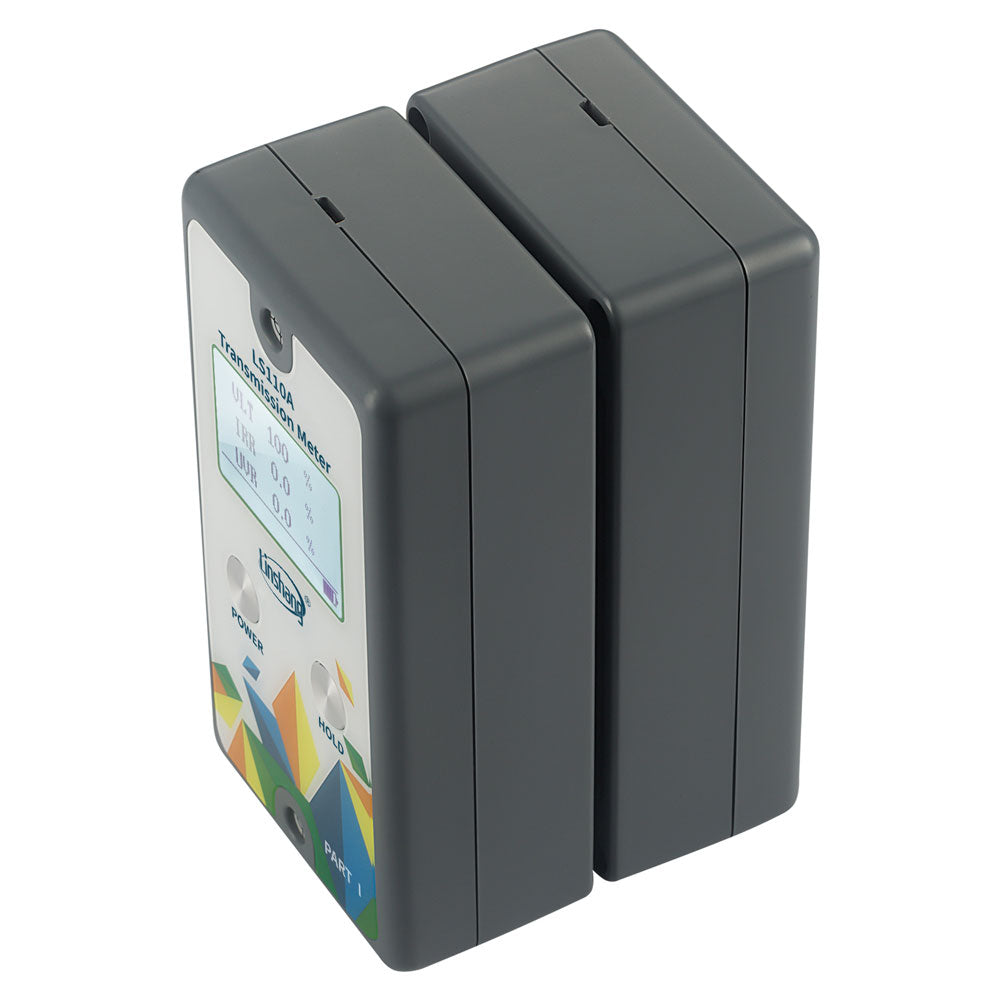

                                                           1. The tint meter adopts a split design, with super strong magnetic force between the main machine and the auxiliary machine. It is convenient for on-site testing of the optical transmission of automobile front glass, building glass and large-sized materials.

                                                            2. The LS110A split tint meter can test the transmittance, ultraviolet and infrared rejection rate at the same time. With data

 lock function, the data remain on the interface after taking away the materials.

                    3. The automotive window tint meter uses a parallel light path design, which can test large thickness glass and ensure the

 accuracy of test data. 4. Built-in rechargeable lithium battery, there is no need to replace the battery, you can use one to two USB charging cable to charge the main and auxiliary machines at the same time.

                                                5. The laser alignment function can ensure the precise alignment of the main and auxiliary machines during the measurement process. The accuracy of the instrument can be ensured.

 Paramenters

                                                                 LS110A        LS110H                                        UV peak wavelength

                           365nm

                           365nm

                                         IR peak wavelength

                           940nm

                           1400nm

                                         Visible light

                           380-760nm, conform to CIE photopic luminosity function

                           380-760nm, conform to CIE photopic luminosity function

                                         Resolution

                           0.1% (0-10%); 1% (10%-100%)

                           0.1% (0-10%); 1% (10%-100%)

                                         Measurement accuracy

                           ± 2% (colorless and uniform transparent materials)

                           ± 2% (colorless and uniform transparent materials)

                                         Test sample size

                           > 40mm × 40mm

                           > 40mm × 40mm

                                         Weight

                           630 g

                           630 g

                                         Dimension

                           130mm x 70mm x 84mm

                           130mm x 70mm x 84mm

                                         Power supply

                           Built-in lithium rechargeable battery

                           Built-in lithium rechargeable battery
