Special  Note Kit 15 The package does not contain a power transformer

  For the motor, it is24V, anyhow, it holds transformer inside, change220V or 110V into 24Vfor motor, that's to say, it works with 220V or 110V.When you order, it's advised you to leave amessage on voultage needed, 110V or 220V. thanks

  Description

  1.Durebale and silence in motor operation.

  2.Clutch device for power failure,use a special key release clutch,operate the gate manually.

  3.Stop working when gate meets obstacle.

  4.Soft start and soft stop ,avoid some accidents

  5.Adjustable opening/closing interval between master and slave gate.

  6.Adjusting residence sensitivity

  7.24VDC Swing gate opener can work for solar power system and back up battery

  8.Low temperature minus 40 ° normal work

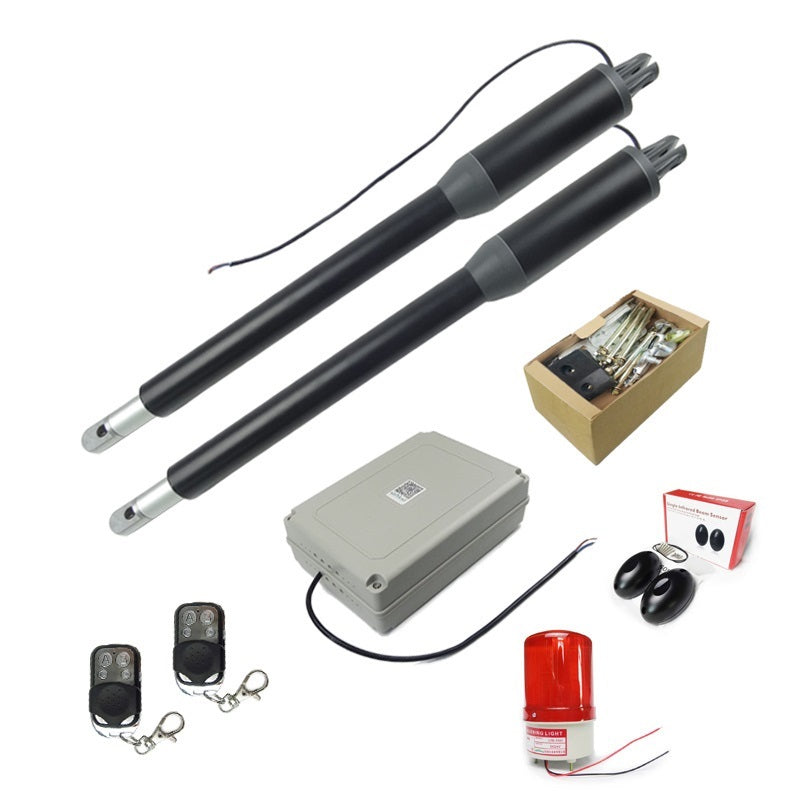

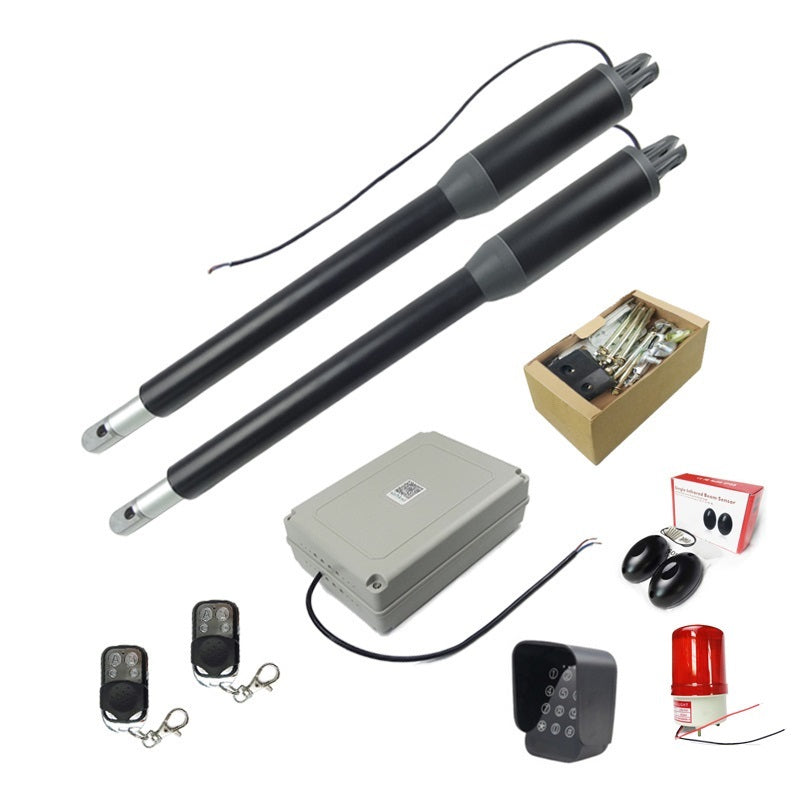

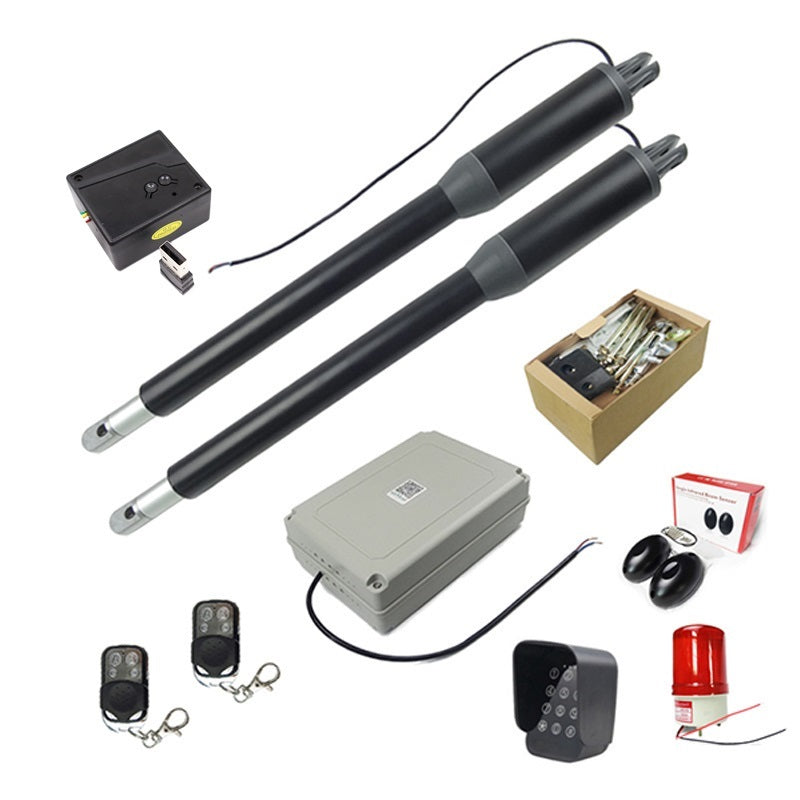

  Basic Automatic arms swing gate motor kit includes:

  2 x DC gate motor that are pre-wired with motor cables

  2 x Override spanners

  N x Remote controls

  1 x Control panel

  2 x Post mounting bracket

  2 x Gate mounting bracket

  1 x Rubber Gate Stop

  1 x Instruction manual

  Product Name

  Swing gate opener C05

  Material

  aluminium tube

  Motor power

  24VDC 40W

  Max single-leaf length

  2.5M

  Max single-leaf weight

  200kg

  Rod's max travel

  300mm

  Protection class

  IP55

  Noise

  50dB

  1. 2 SIDE terminal is used for connecting any external device that operates single gate

  2. COM terminal is COMMON used for connecting the "ground" of external devices

  3. 1 SIDE terminal is used for connecting any external device that operates double gate

  4. Swipe Card terminal is used for connecting any external devices that will operate to open the gate

  5. COM terminal is COMMON used for connecting the "ground" of external devices

  6. Infrared terminal is used for connecting photo electric sensor

  7. 12V DC output is used for connecting photo electric sensor (Continuous output current <;=200mA)

  8. 24V battery output is used for connecting the back up battery +

  9. 24V battery output is used for connecting the back up battery -

  10. 24V DC output is used for connecting external device. (such as photo electric sensor, max current output 1A)

  11. GND is used for connecting the "ground" of external devices

  12. 24V DC lamp output is used for connecting flash light +.

  13. 24V DC lamp output is used for connecting flash light -.

  14. 24V DC lock output-the NF terminal which used for connecting the electromechanical lock

  15. COM is COMMON used for connecting the "ground" of lock

  16. 24V DC lock output-the NA terminal which used for connecting the magnetic lock

  17. 24V DC alarm output

  18. 24V DC alarm output

  19. Motor1 terminal is used for connecting the motor 1 installed on the gate that opens later and close first. This terminal connect 1stred wire (counted from your left hand side to right hand side)

  20. Motor1 terminal is used for connecting the motor 1 installed on the gate that opens later and close first. This terminal connect 2ndblue wire (counted from your left hand side to right hand side)

  21. Motor2 Delay terminal is used for connecting the motor 2 installed on the gate that opens first and close later. This terminal connect 1stblue wire (counted from your left hand side to right hand side). NOTE! If for single gate, the gate motor just can connect the Motor2 Delay terminal.

  22. Motor2 Delay terminal is used for connecting the motor 2 installed on the gate that opens first and close later. This terminal connect 2ndred wire (counted from your left hand side to right hand side).

  23. AC24V input is used for connecting the transformer

  24. AC24V input is used for connecting the transformer

  25. digital display is used for showing you the setting data

  26. INC+ is used for figure increase when setting the data

  27. FUN is used for store the data

  28. DEC- is used for figure decrease when setting the data

  29. Learning button is used for program/remove remote
