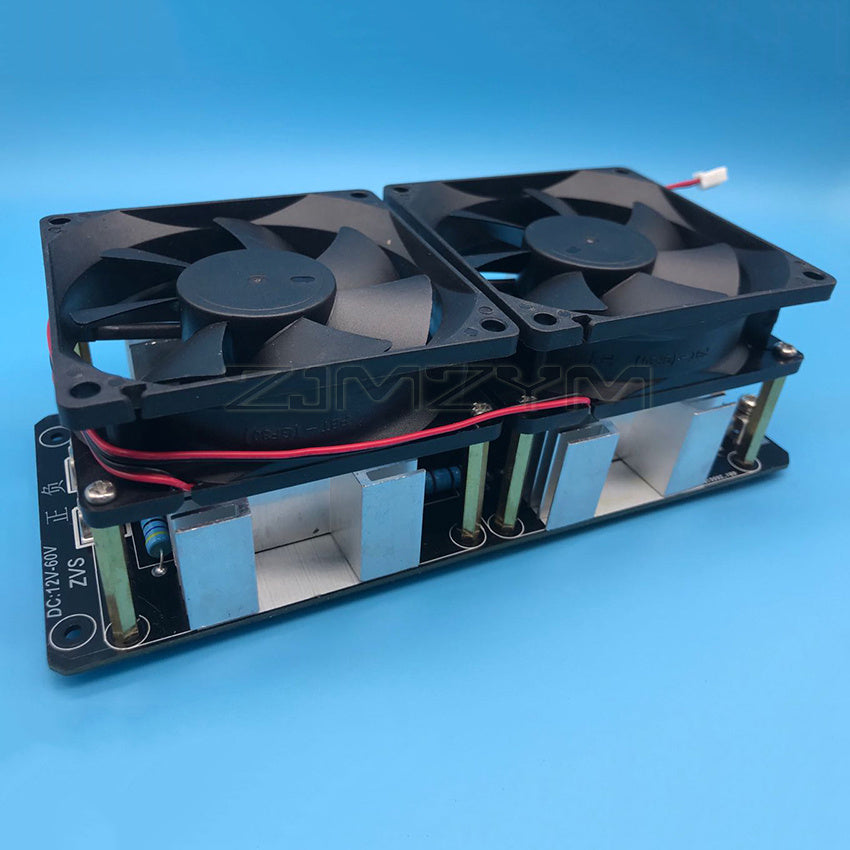

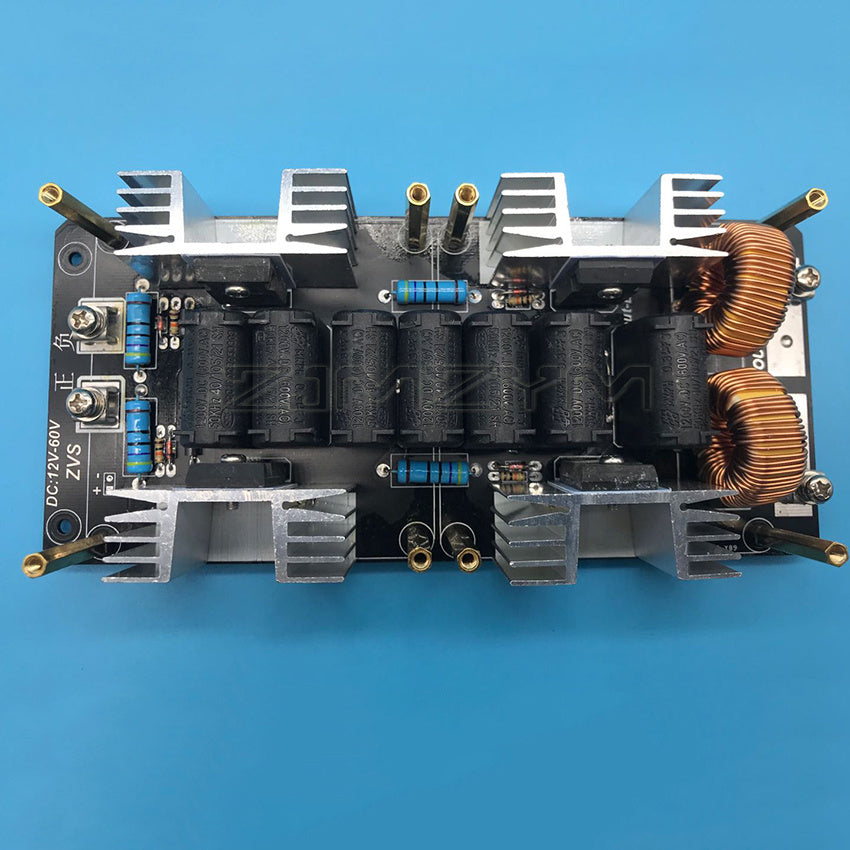

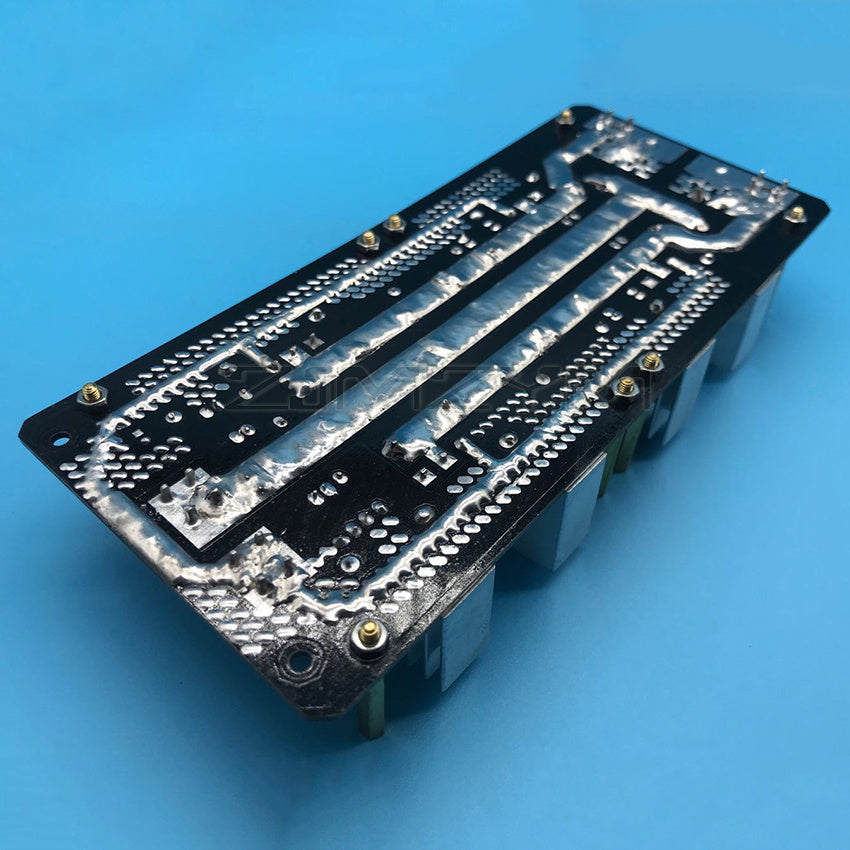

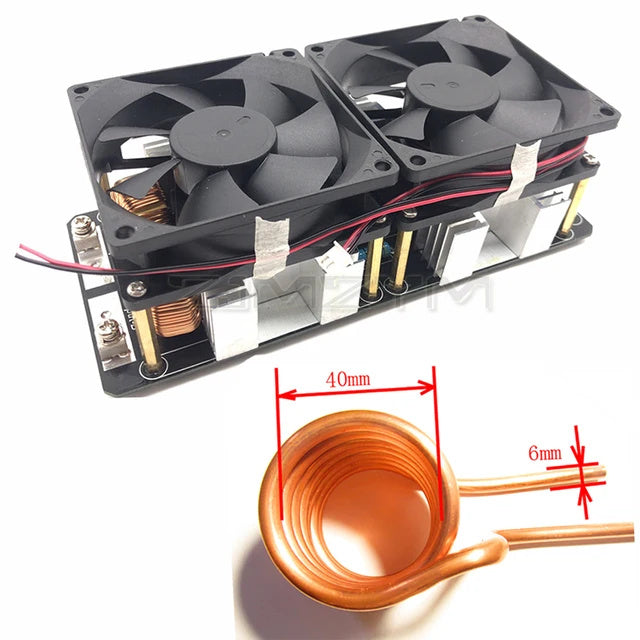

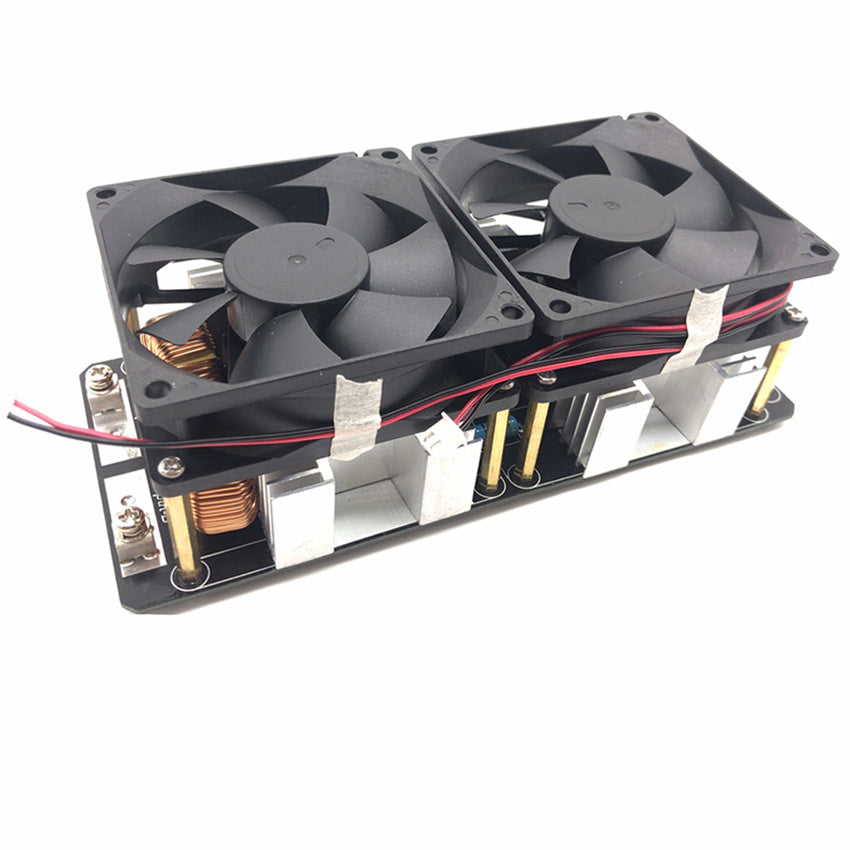

Name: 2000W ZVS Heating Module
(1) Voltage
Voltage: DC voltage 12-48V
Size: 185*83mm
Current: 6-8A (standby)
(2) Fan
Power: 2000W
Fan: DC voltage 24V
Protection: None
VCC: power positive (24V10A or more, 48V50A do not use lead-acid batteries)
GND: power negative
Fan: single 24V, 48V after series connection

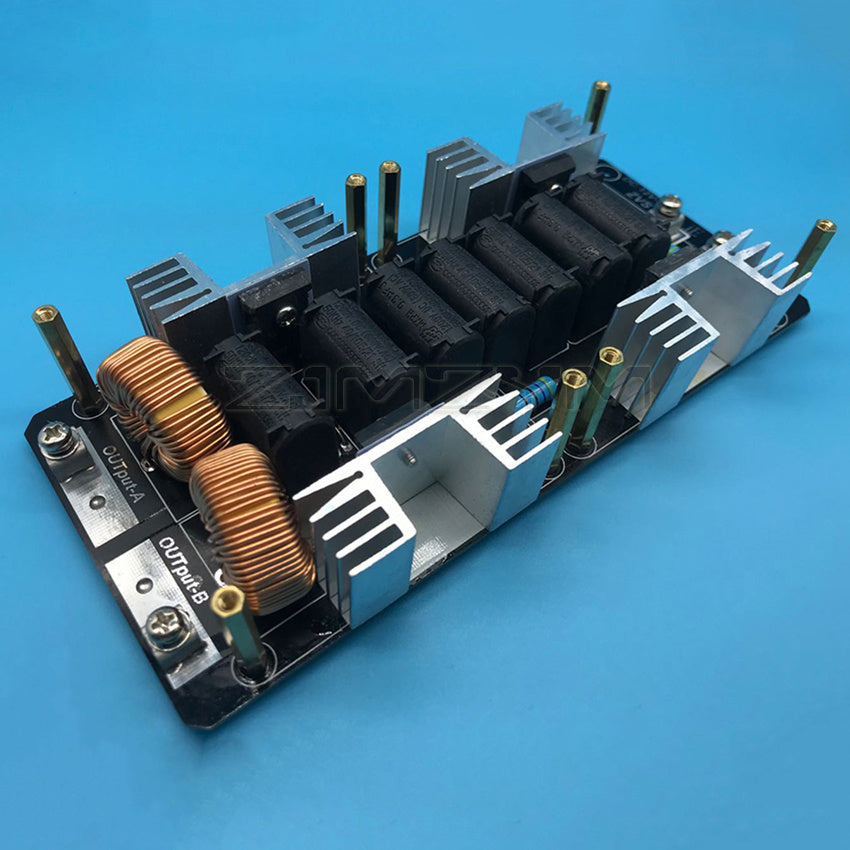

Driver output: OUT put_A , OUT put_B
Gross weight: 0.6kg

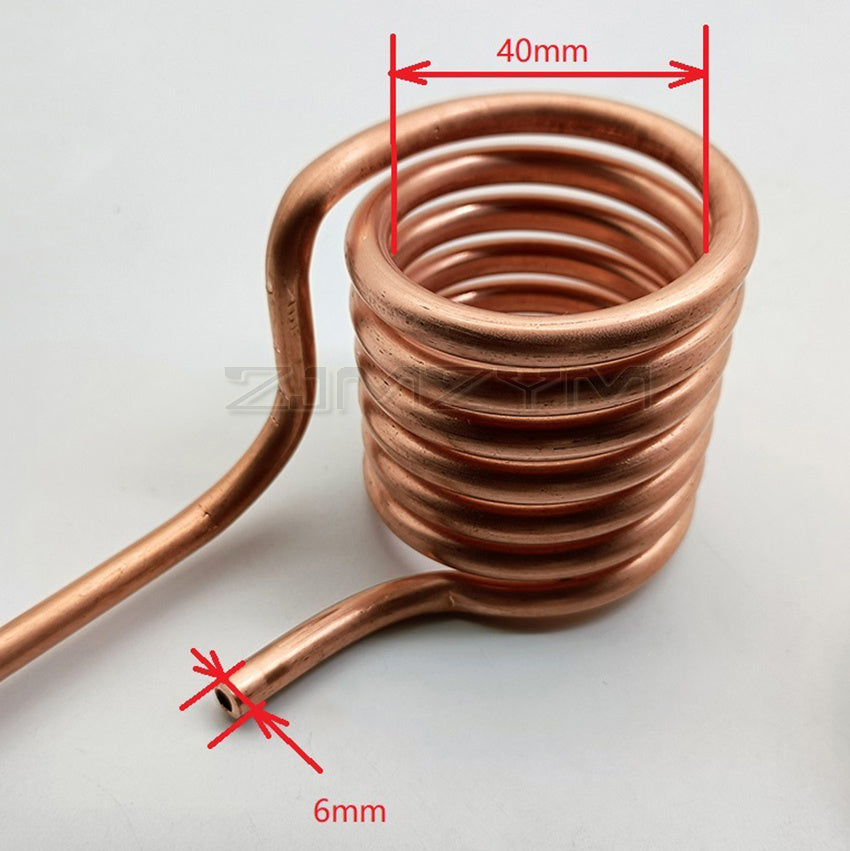

Name: Heating Coil (optional)
Number of turns: 7 turns
Inner diameter of coil: 40mm
Outer diameter of coil: 50mm
Coil height: about 53mm
Copper tube: diameter 6mm, thickness 1mm
Weight: 0.15kg
Package Included:
2000W ZVS Heating Module*1
Heating Coil*1 (optional)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
