Specification:

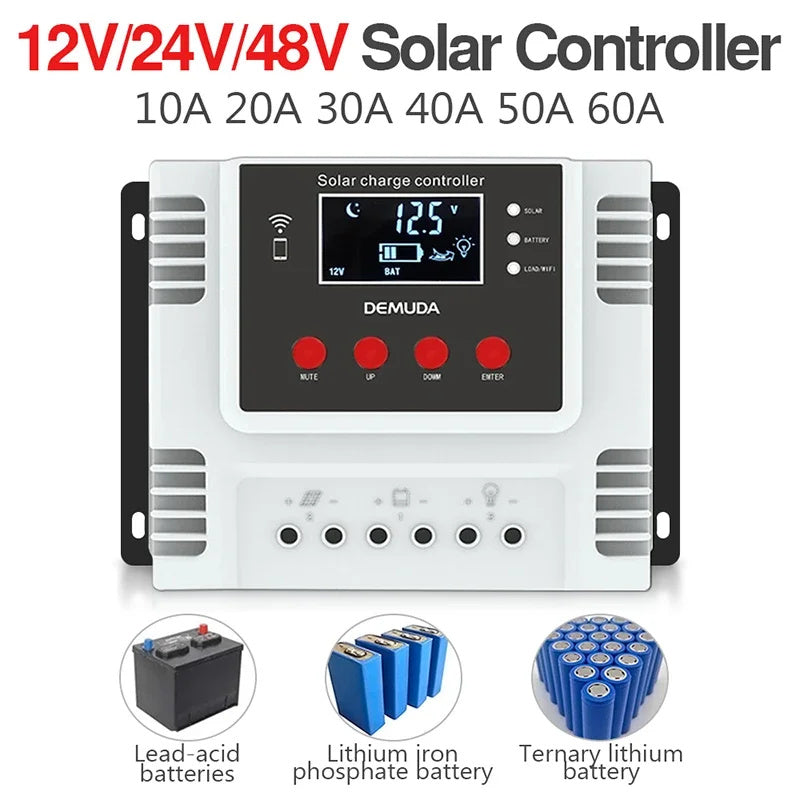

Name: Solar Controller
Material: ABS
Rated charging current: 10A-60A
Rated discharging current: 10A-60A
Max PV Volt: 12V system 25V/24Vsystem 50V/48Vsystem 100V
The USB output: 5V/2A Max
Stand-by current: 12V150ma, 24V80ma,48V50ma
Work temperature: -20℃~+50℃
Size: 155 * 197 * 86mm
Lead-acid batteries
System voltage: 48V system
Float voltage: default value 57.6V, adjustable value 52-60V
Discharge cut-off voltage: default value 42.8V, adjustable value 38-44V
Discharge recovery voltage: default value 50.4V, adjustable value 46-52V
Ternary lithium battery
System voltage: 48V system 13 strings
Float voltage: default 54.6V, not adjustable
Discharge cut-off voltage: default value 39V, adjustable value 39-45.4V
Discharge recovery voltage: default value 45.4V, adjustable value 45.5-50.7V
Lithium iron phosphate battery
System voltage: 48V system 16 strings
Float voltage: default 58.4V, not adjustable
Discharge cut-off voltage: default value 47.2V, adjustable value 47.2-50V
Discharge recovery voltage: default value 50V, adjustable value 50-54V
Packing included:
1 * Solar Controller
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
