1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / machine / LED / electronic equipment.
4. torque output in some cases can simplify the complexity of the machine.

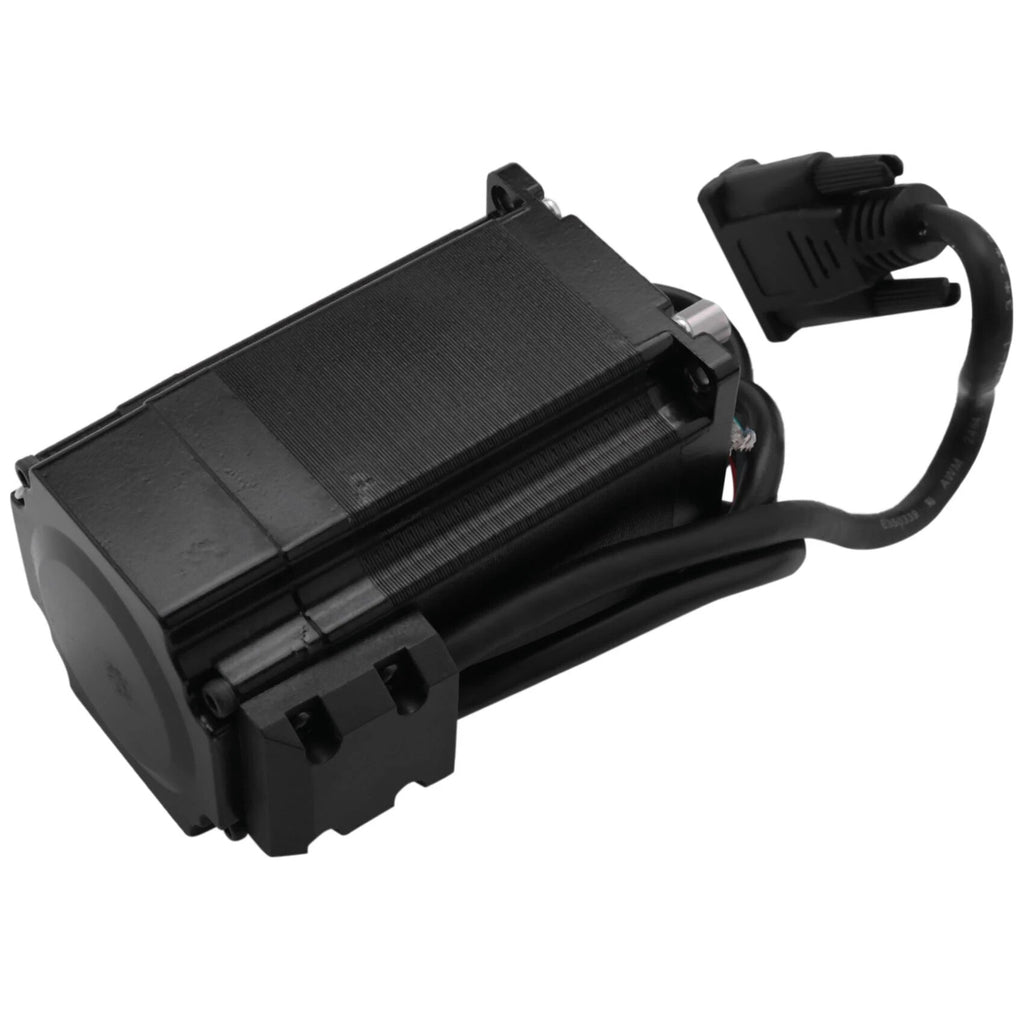

Details of Motor:
Motor model: 57HSE2.2N
Motor current: 4A
Output torque: 2.2N.m
Body length: about 99MM
Shaft diameter: 8MM, no keyway
Outlet mode: single output shaft
Rated speed: 1000 rpm (no-load speed: 2000 rpm)
Outlet mode: two-phase four-wire (must be wired according to motor label)

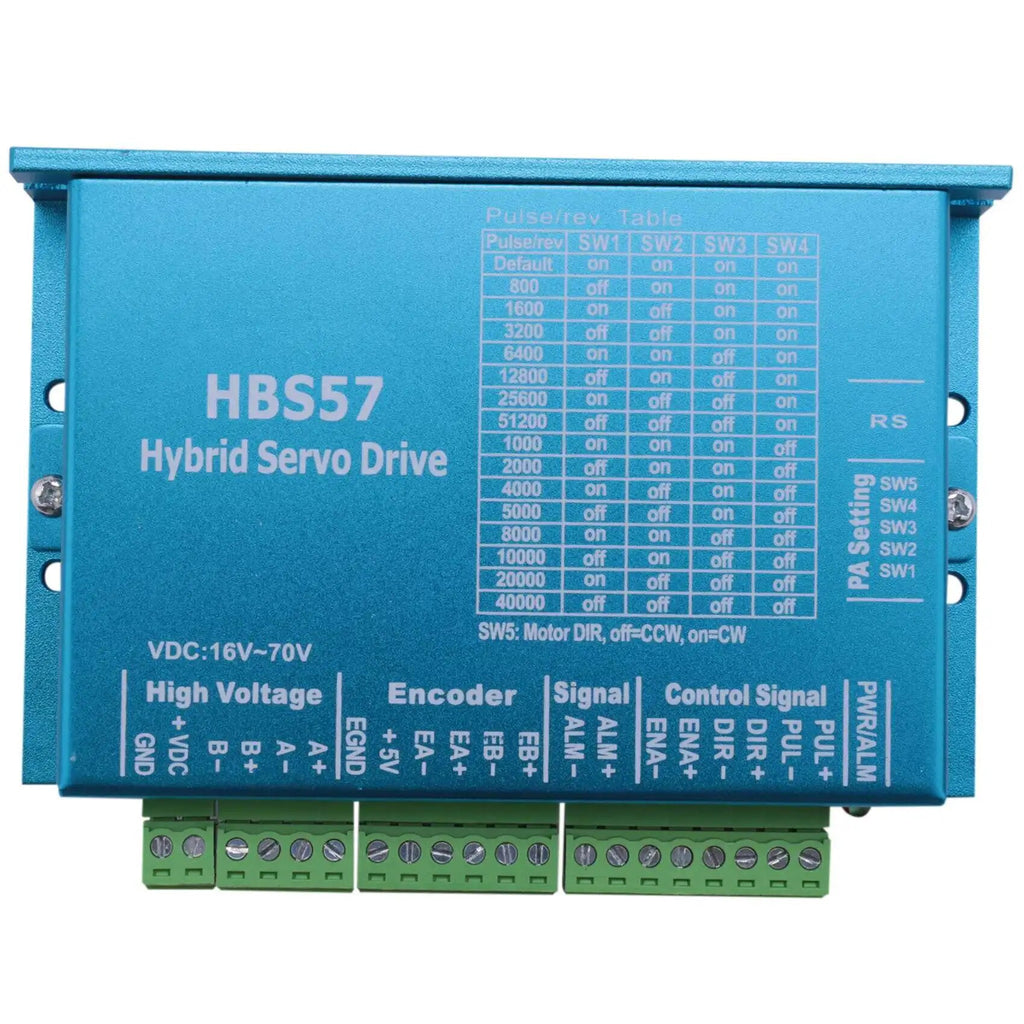

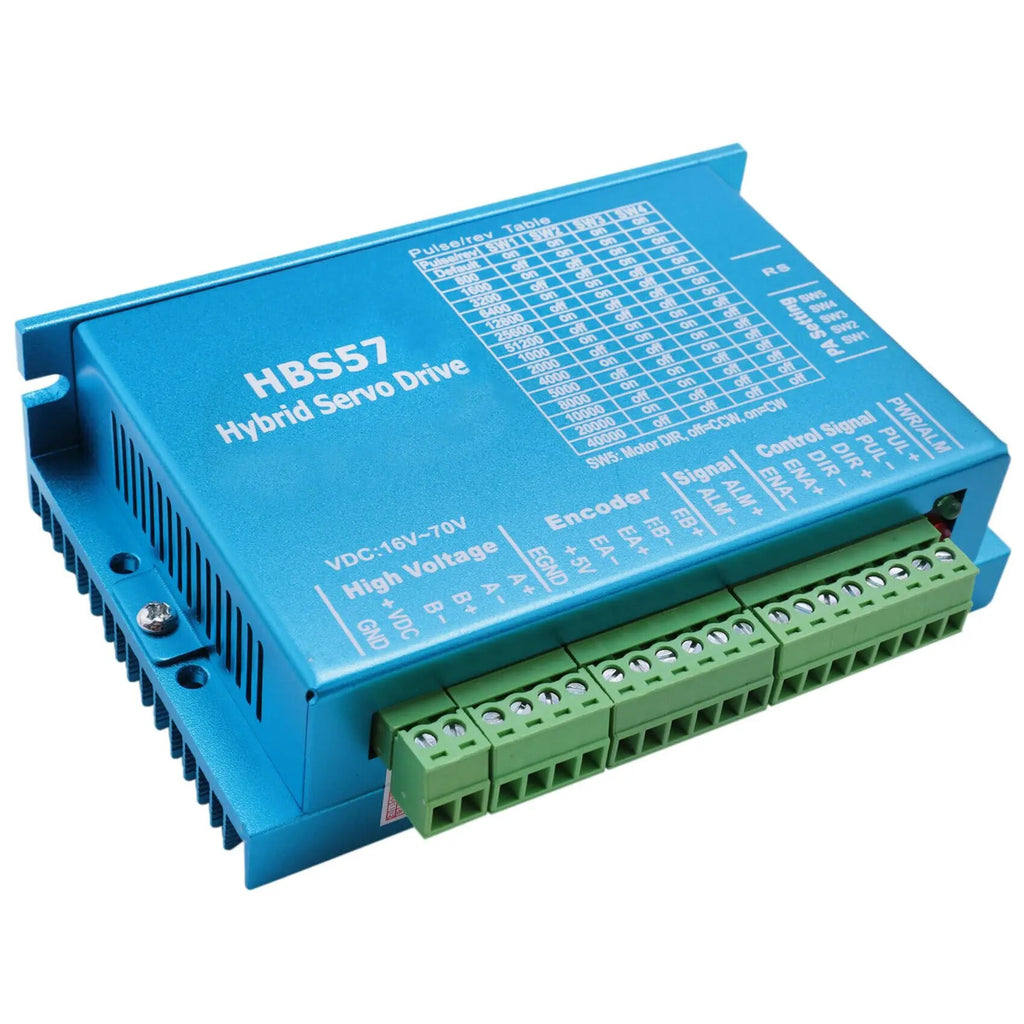

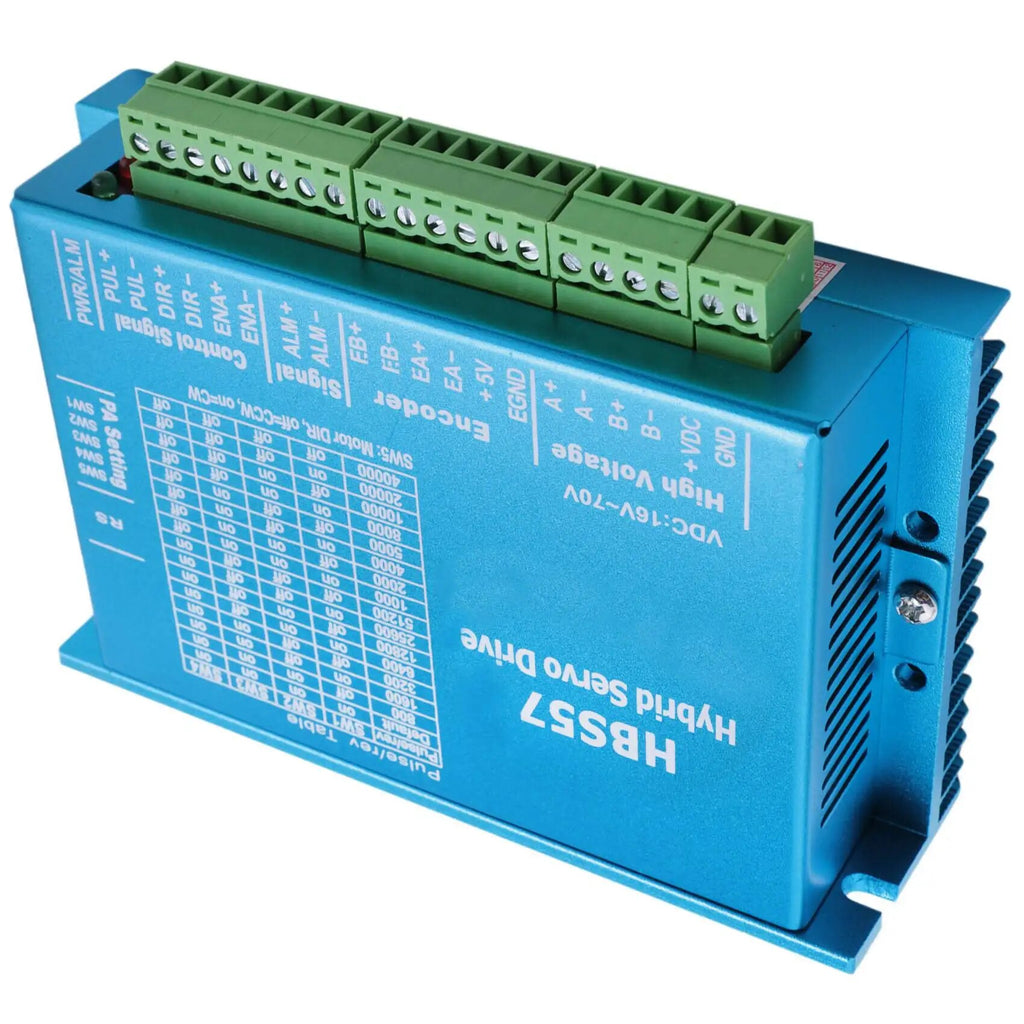

Details of Stepper Drive:
Drive Model: for HBS57 (Nema 23, for 57 stepper motor)
Pulse Signal: 3.3V/5V/24V compatible. No string resistor required
Voltage Range: DC16-70V (New Version: DC24-80, send in random)
Subdivision Setting: 800-51200 subdivision
The new 32-bit DSP digital 57 closed-loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, low noise, high speed torque is 40% larger than ordinary drives.
Colour:blue
Material:metal

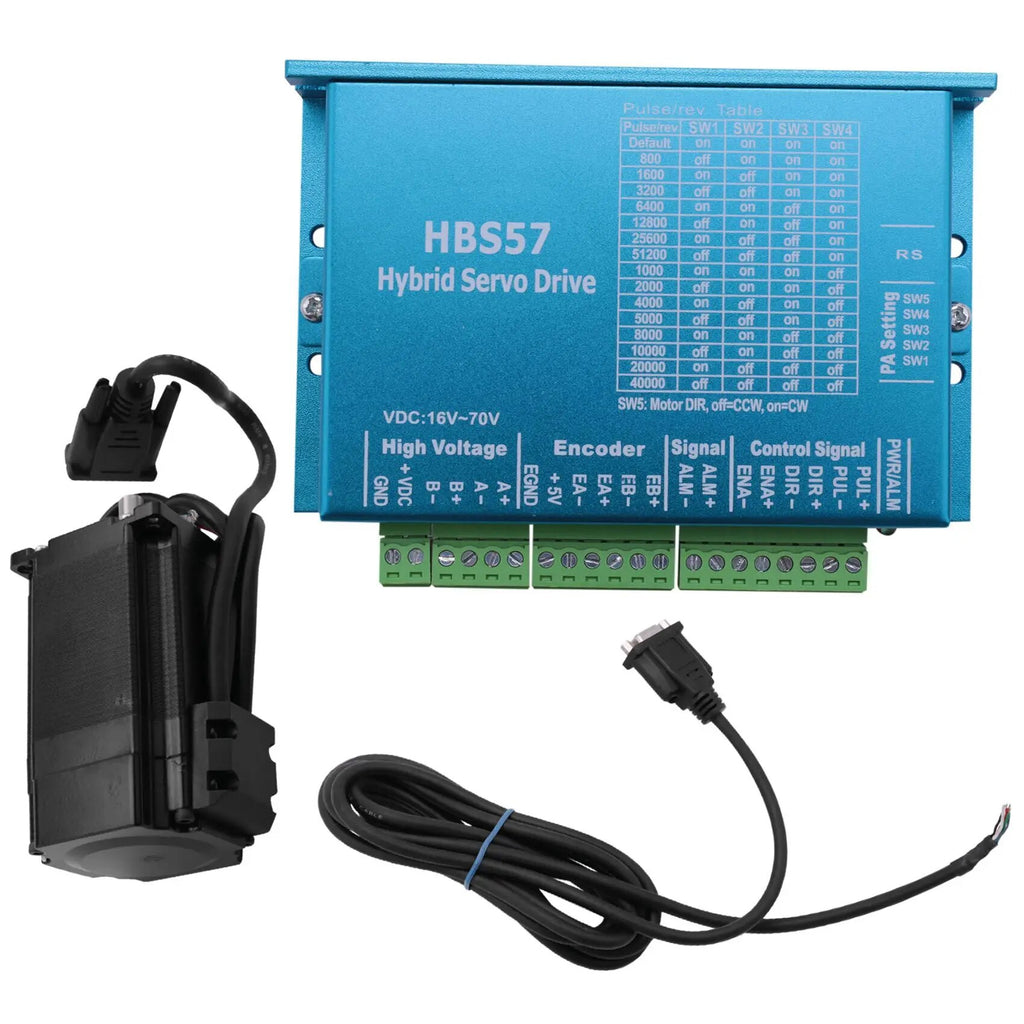

Package Contents:
1 x for HBS57 Stepper Motor Drive
1 x 57HSE2.2N 2.2N.M. Motor

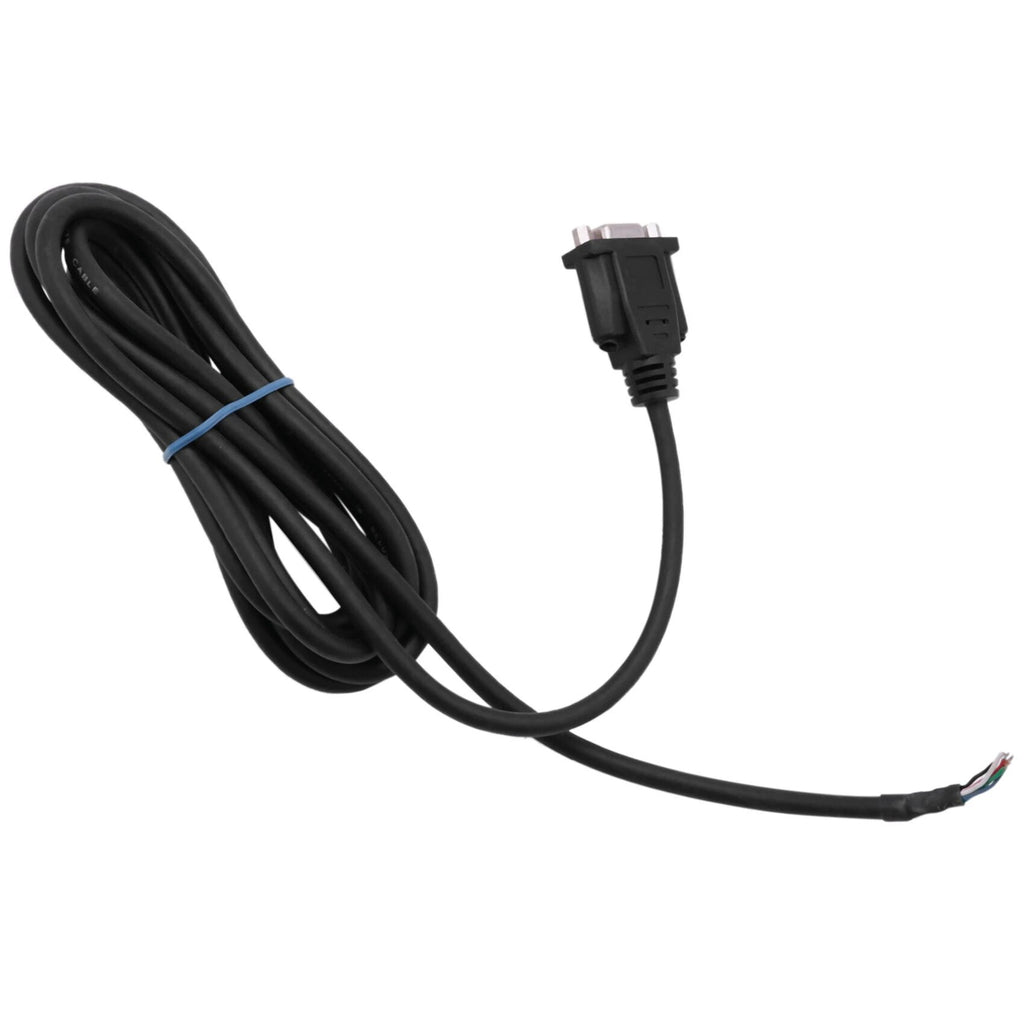

1 x 30cm Encoder Cable (with port)
1 x 30cm Motor Cable
1 x Gift: Encoder Cable
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
