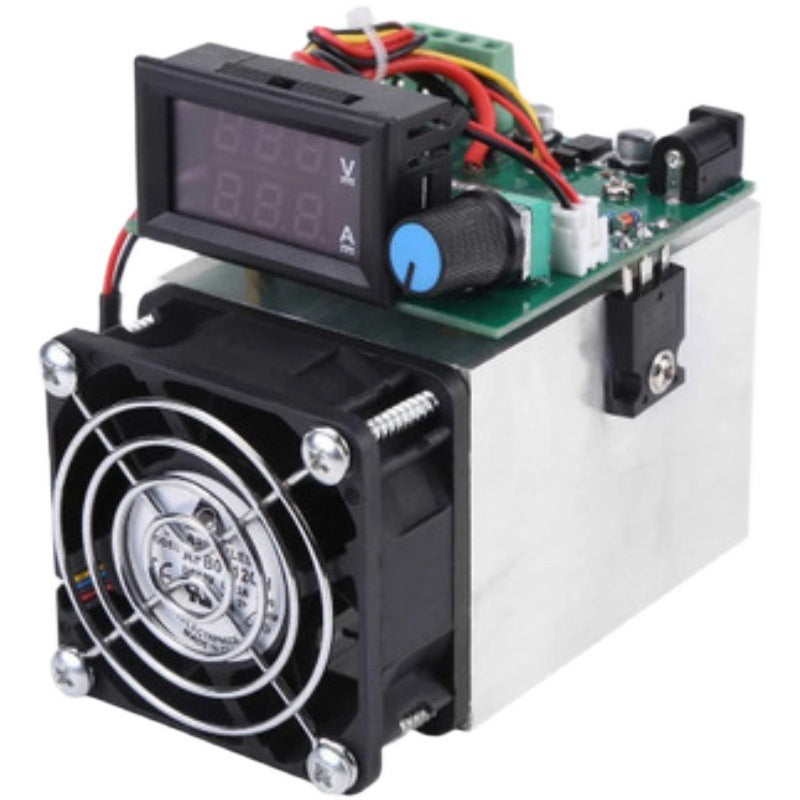

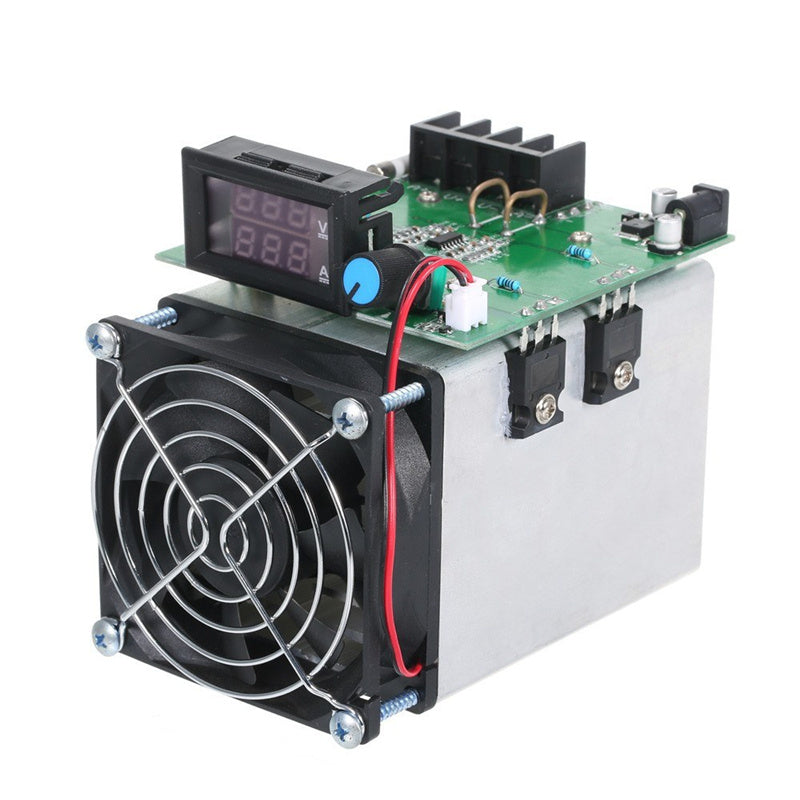

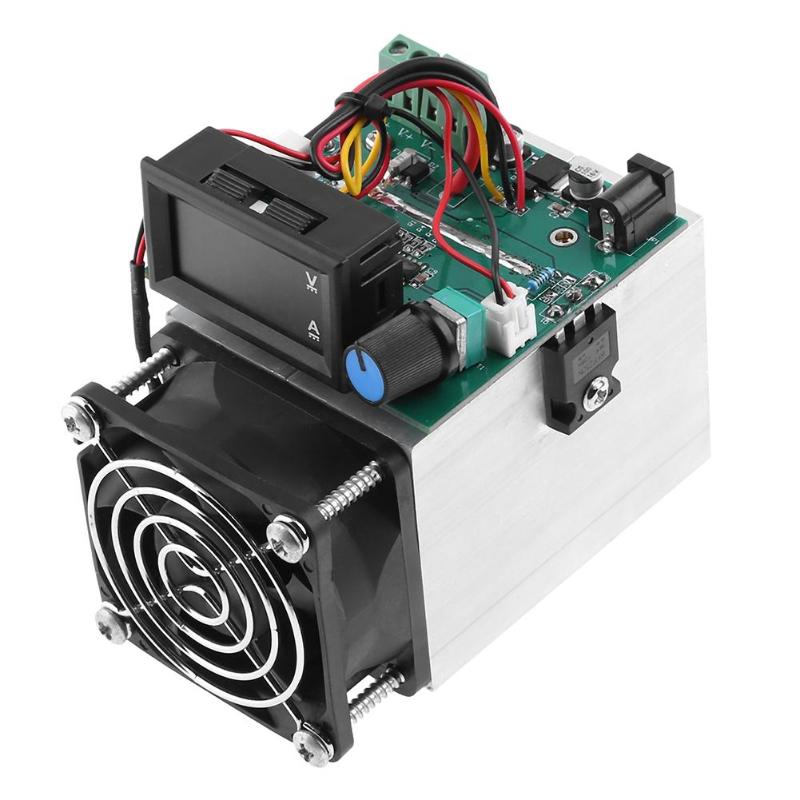

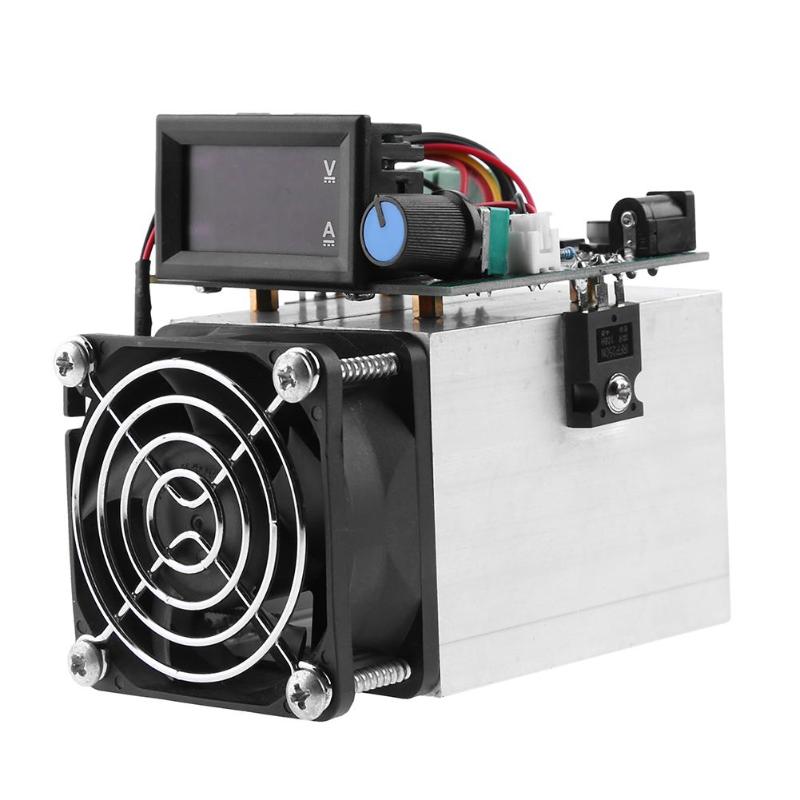

DC 12V 250W Electronic Load 0-20A Battery Capacity Tester Discharge Board Burn-In Module
0-20A 250W 12V
Features:
This electronic load uses IR power tube and double high- ball bearing fan, with fin heat sink, which is not afraid of dust and can guarantee the stability for a long time use, power redundancy is no less than 50% (25℃).
Classical digital tube display, intuitive and durable, compared to LCD, it is more resistant to high temperature.
It can display voltage and current when discharging constant current, visually reflecting the discharge conditions.
Voltage and current wiring connectors are separated, with appropriate connection, it can eliminate the influence of wire resistance to voltage.
100% power burn-in in factory, suitable for assembly of power adapter -automatic burn-in cabinet
Specifications:
Power Supply Voltage: DC12V(±5%)(equipment supply voltage)
Maximum Load Voltage: 100V
Constant Current Discharge Adjusting Range: 0-20A
Work Mode: Constant current mode ()
Maximum Discharge Current Error: 0.7%-0.01A
Maximum Discharge Power: 250W

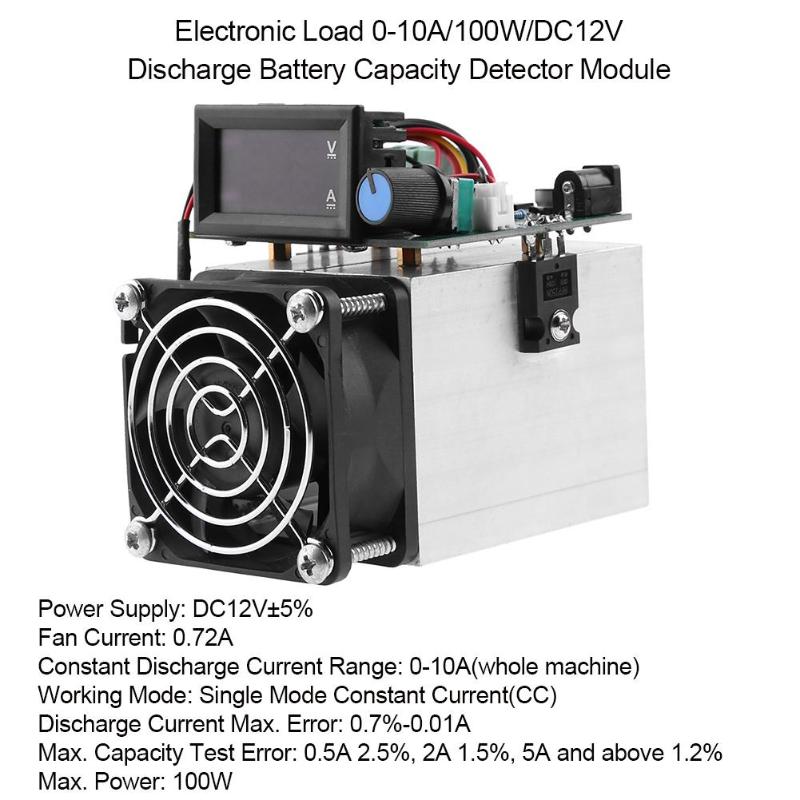

0-10A 100W 12V
