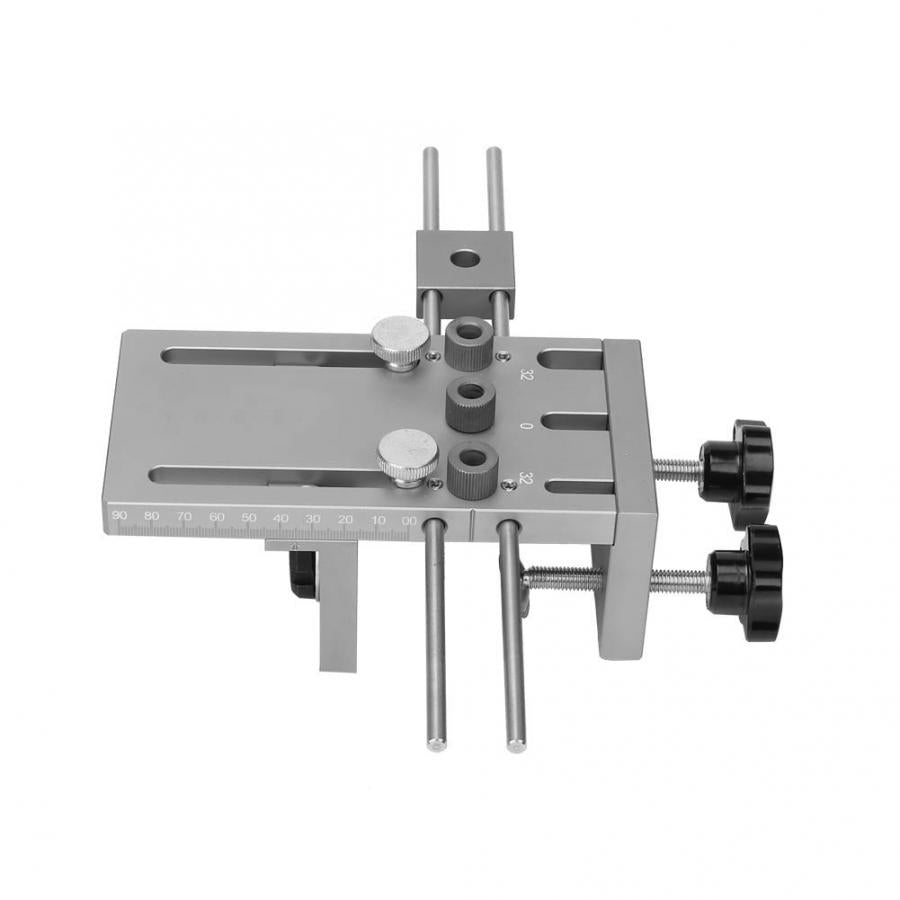

Features:
The positioning extension rod is extended to 600mm, which greatly extends the positioning distance between the two holes. The extension rod is detachable and the long hole positioning is more convenient. Wide range of process thickness from 10~180mm. The stroke length of the sliding block is 5~90mm,enough for many needs. Made of fine aluminum alloy material,durable and has long service life.
Specification:
Tool Material:Aluminum Alloy
Drill Bushings Material:Nitride Tool Steel
Process Thickness:10~180mm/0.39~7.09in
Side Hole Diameter: 15mm
Frontal Hole Diameter:6/8/10m
Sliding Block Stroking Distance:5~90mm/0.2~3.54in
Side Hole Stroke Distance:23~43mm/0.91~1.69in
Size:As shown in the picture
Package List:

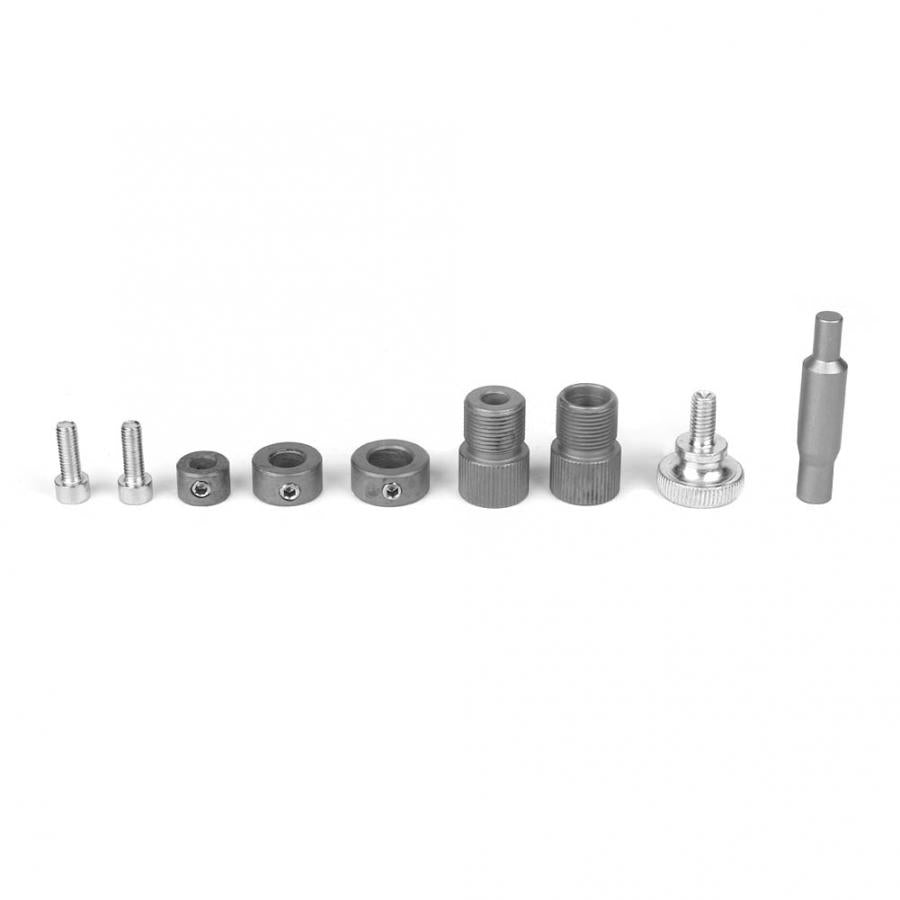

1 * Extended Locator
9 * Drill Bushings (3pcs 6mm, 3pcs 8mm, 3pcs 10mm)
2 * Knurled Bolts
4 * Limit Ring (1pc 6mm, 1pc 8mm, 2pcs 10mm)

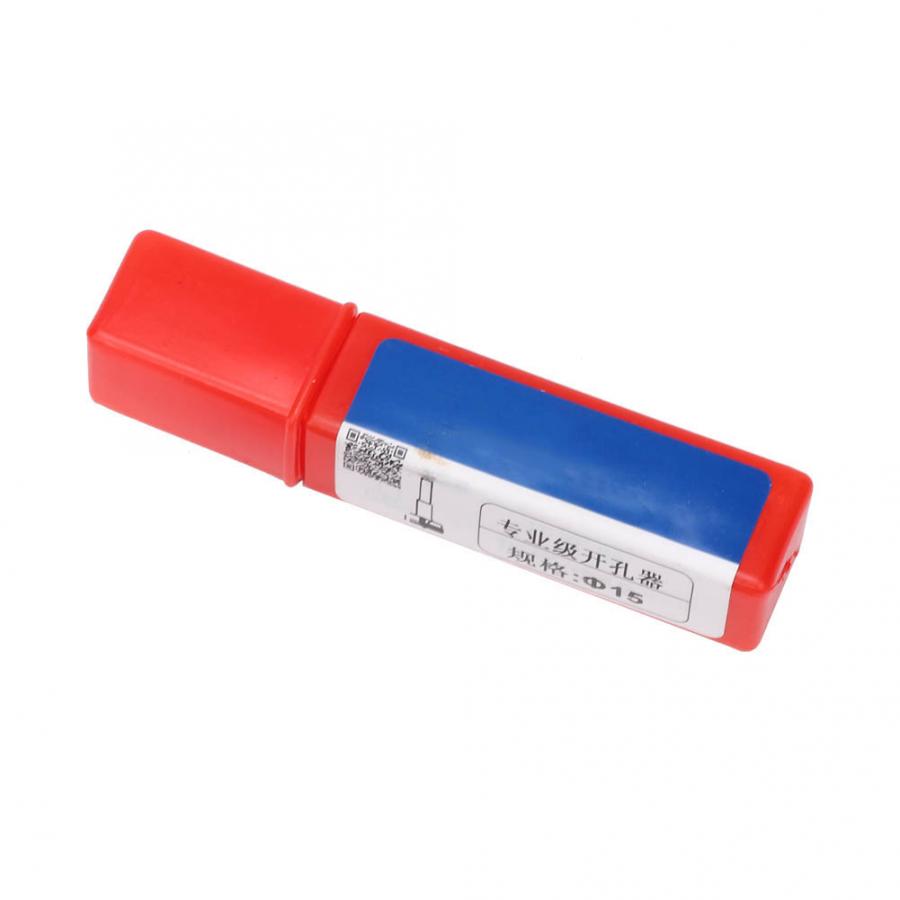

1 * 15mm Tapper

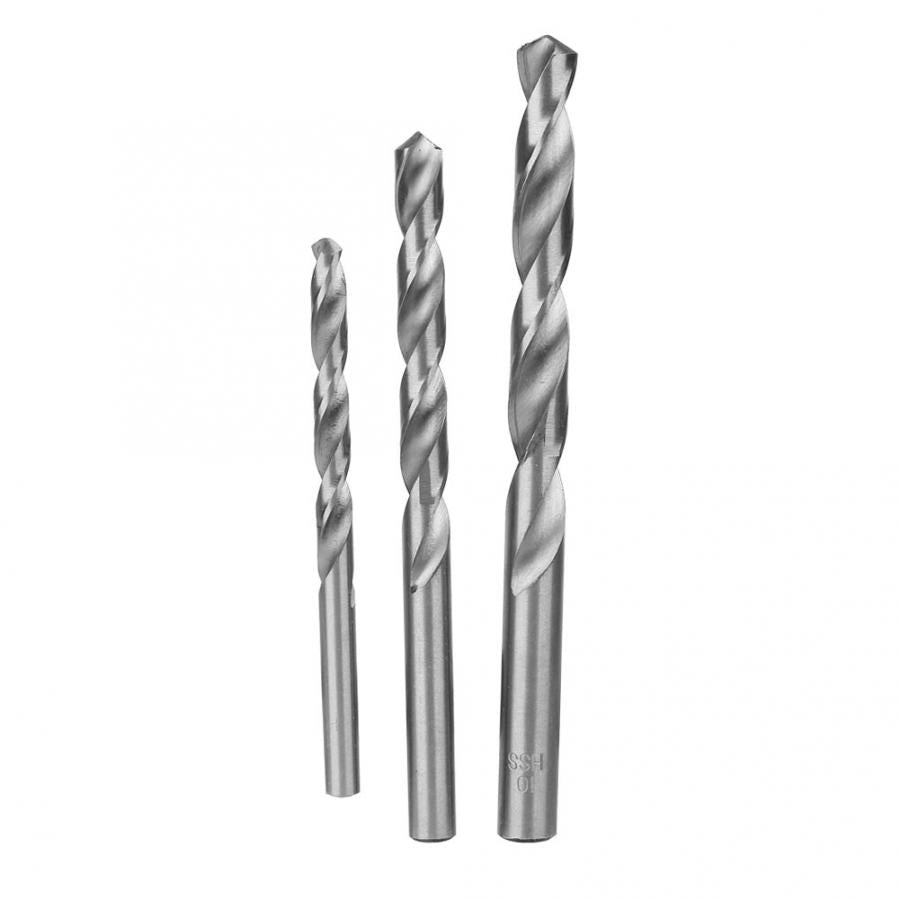

3 * Drill Bits (6mm/8mm/10mm)
1 * Hook Spanner

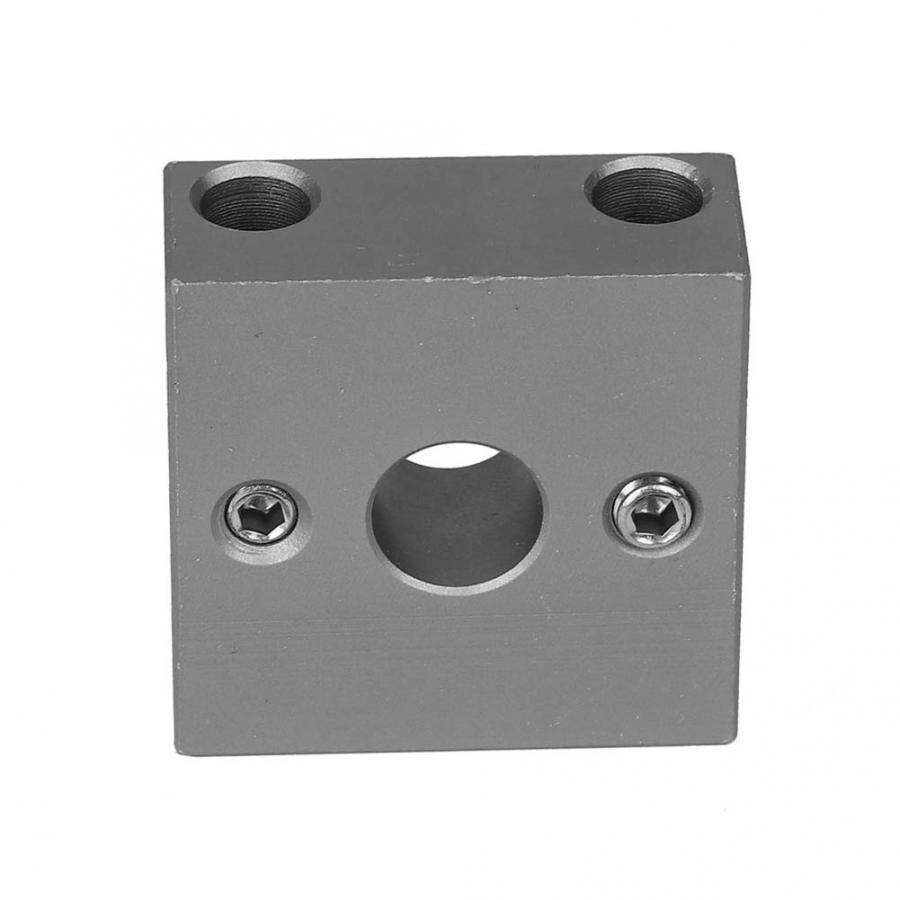

1 * Slider Set

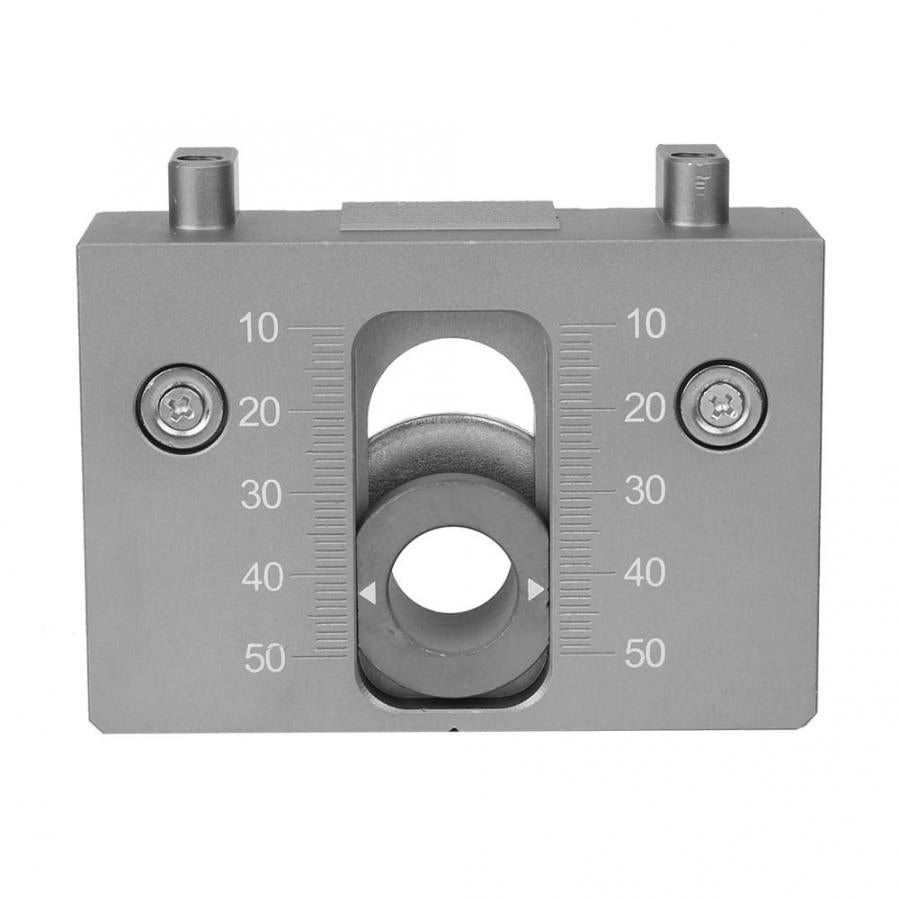

1 * Main Board(Including 3 Pcs 8mm Drill Bushings)
2 * Gasket(0.5mm/1mm)
2* Hex Socket Wrench
1 * Users Manual
2 * Star Screw Rod
1 * Clamping Plate
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
