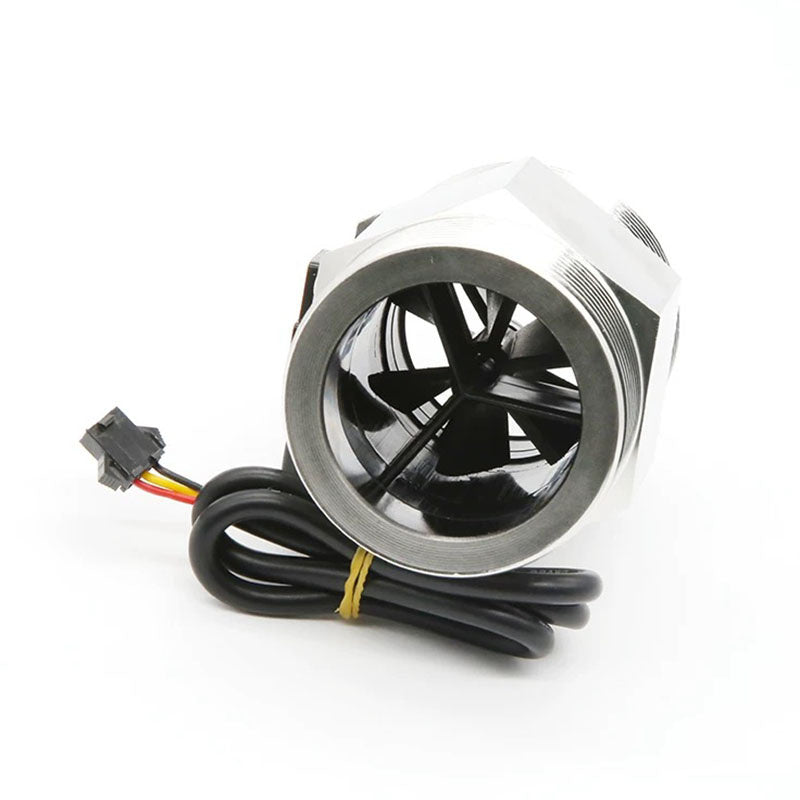

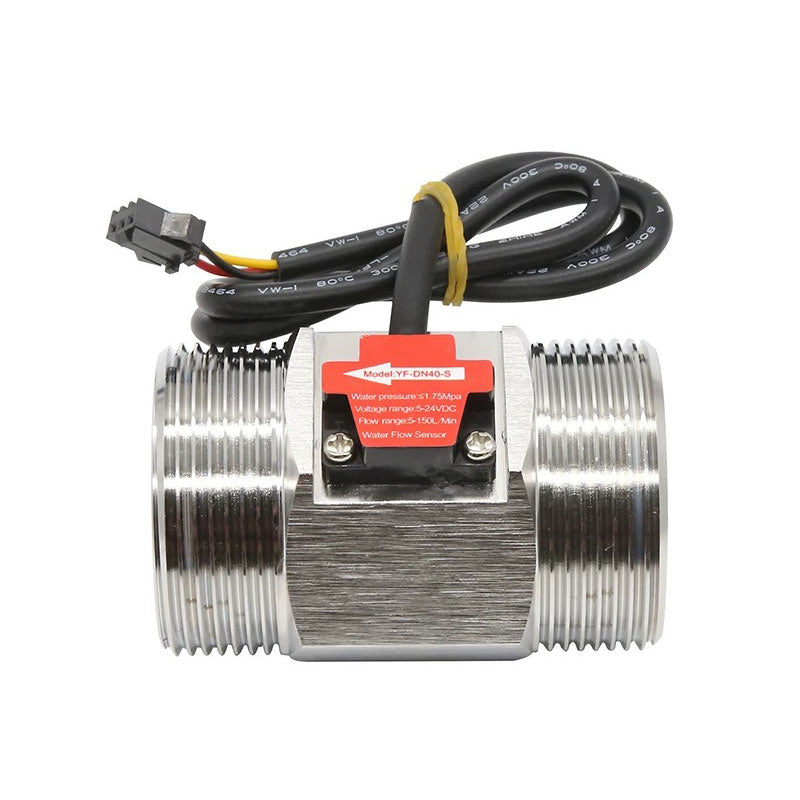

Model: YF-DN40-S
Interface size: 1.5 inches
Rated voltage: DC=5V
Inner diameter/outer diameter: inner diameter water inlet 36.5mm, water outlet 33.9mm/outer diameter 47.5mm
Thread length: 19mm
Material: 304 stainless steel
Water pressure resistance: ≤1.75MPa
Working voltage range: DC3.5~24V
Insulation resistance:100MΩ
Flow range: 5-150L\MIN]±3%

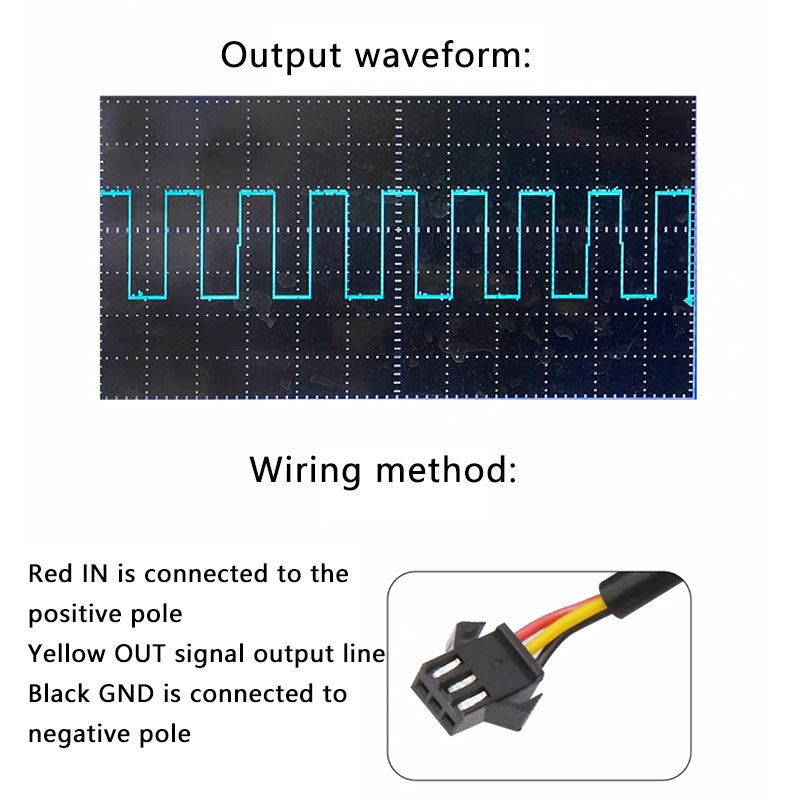

Flow pulse characteristics: f=(0.45*Q) Q=L/Min
That is 27 pulses per liter of water
Low temperature test: After being placed at -20°C for 72 hours, then placed at room temperature for 1 hour. The accuracy is within ±5% of the first measurement value.
