Feature:

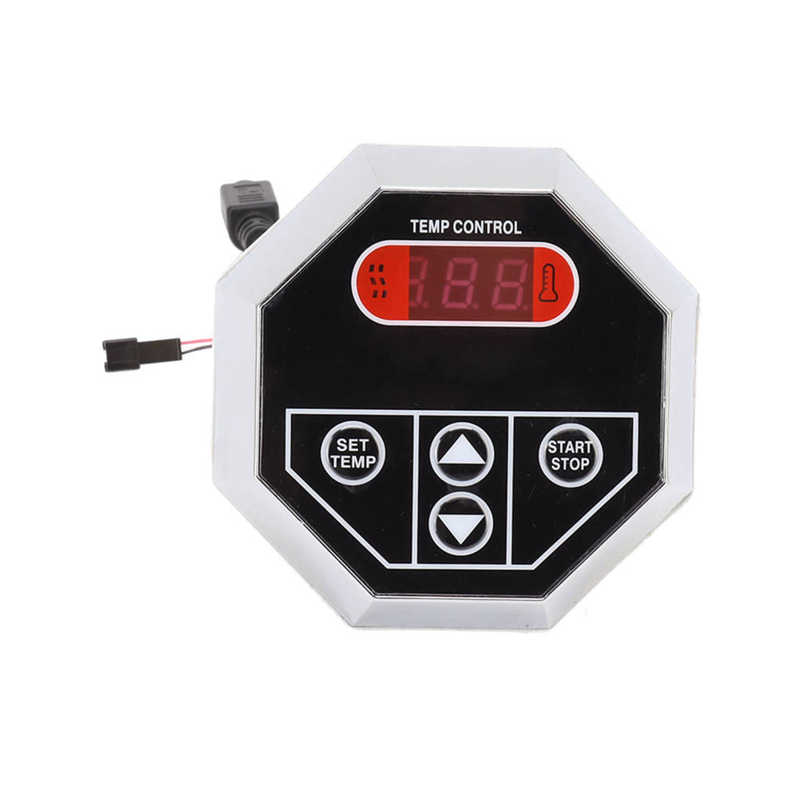

 1. Excellent Material: Made of excellent stainless steel material, equipped with controller, with temperature and time LED display.

 2. Advanced Technology: Can realize automatic temperature setting in the range of 35‑55°C(95‑131°F), and can also realize the time to set automatic shutdown time in 1‑60 minutes.

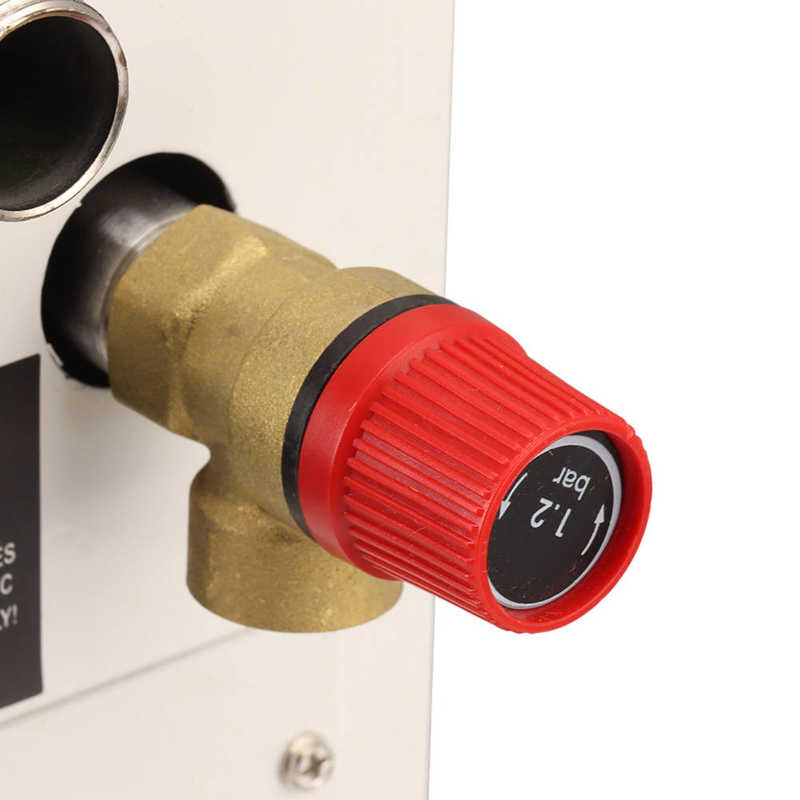

 3. Safer to Use: Protection of water shortage and over high temperature protection to prevent dry burning , Over high pressure protection, pressure safe valve prevents the steam outlet from being blocked and the inner tank expansion.

 4. Perfect Performance: Designed with a pressuer reducing valve. Produce a consistent and soft steam while minimizing any distracting operational noises.

 5. Easy to Install and Operate: Long distance control signal transmission, the controller can control the operation of the machine within 50m range.

     Specification:

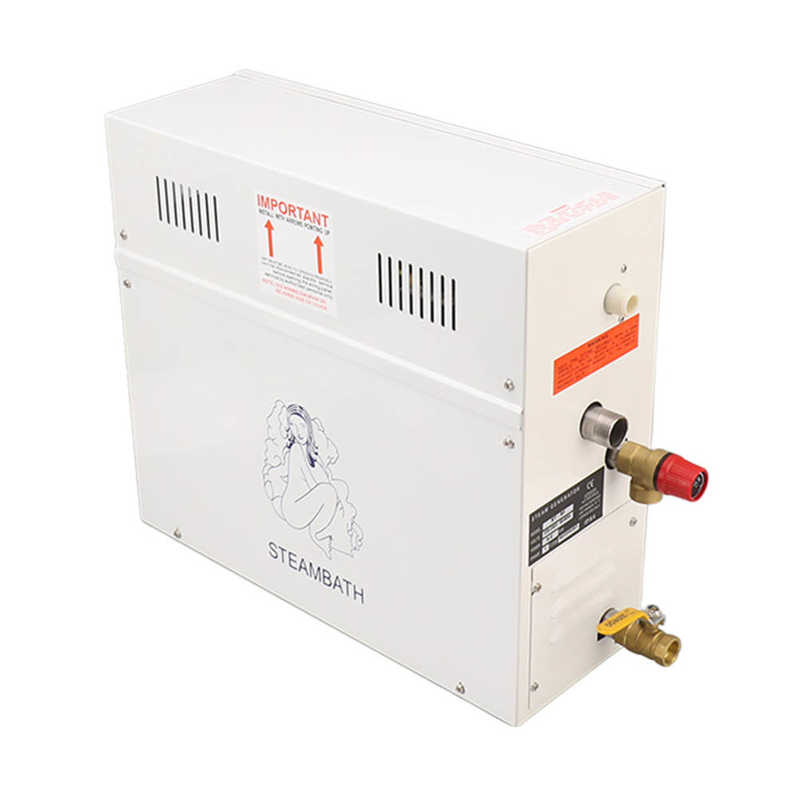

     Item Type: Steam Shower Generator

 Material: Stainless Steel

 Weight: Approx. 10750g/ 379.2oz

 Power: 9KW

 Voltage: 380-415V, 50HZ, 60HZ

 Suitable for: steam room

 Mounting Hole Distance: Approx. 32.3cm/ 12.7in

 Product Size: Approx. 44.5x39.3x16.3cm/ 17.5x15.5x6.4in

 Warning: 1. If the machine is installed in a place where the user cannot access the operation, the water supply valve must be installed where it is easy to operate in case of emergency.

 2. The pressure of the solenoid valve is 2Kg/cm2. If the water pressure is too high, in order to avoid damage to the solenoid valve, it can be appropriate to close the water inlet valve or install the water inlet reducing valve.

 3. Do not use saddle or needle valves on the inlet pipe. Before the final pipe should be dredged and flushed.

 4. Do not install blocking valves in the steam pipe. No blocking or bending "U" channel is allowed. Otherwise, condensation will be generated to prevent the steam. The steam pipe should be tilted at a certain Angle when it is distributed horizontally so that the condensate can back to the steam generator or to the steam nozzle.

 5. Steam generator can not be installed outside to prevent icing inside the machine. And must be installed in a place easy to maintain, the machine should be installed horizontally and the arrowhead direction upward, otherwise can not be started.

 6. Pipe installation must be made of copper pipe material, it is strictly prohibited to use plastic, acrylic, aluminum plastic pipe or other similar materials as steam pipe. Because the allowable temperature of these materials does not up to 150℃ or higher.

 7. Steam pipe inlet, all other inlet and crevice should be sealed to prevent steam leakage and damage to the machine and other objects.

 8. Drainage of water from the tank into the steam room may cause burns and damage to building materials used in the steam room.

 Before Use, Please Check in Accordance with The Following Terms:

 1. The machine is correctly grounded, the grounding wire diameter is greater than 4mm2.

 2. Whether the machine model is selected appropriately, if not properly selected, it may make the supporting steam room not up to the preset temperature.

 3. Steam generator connection voltage selection is great (380V). If the 380V steam generator is connected to 220V voltage, the power of the machine will be reduced by 25%. The connection of the neutral line of 380V steam generator can not be mistaken, that is, the neutral line can not be connected to the phase line. Otherwise, the circuit board and electric heat pipe will be damaged.

 4. The steam generator must be installed vertically and horizontally.

 5. Select the correct line number of the cable and circuit cutout.

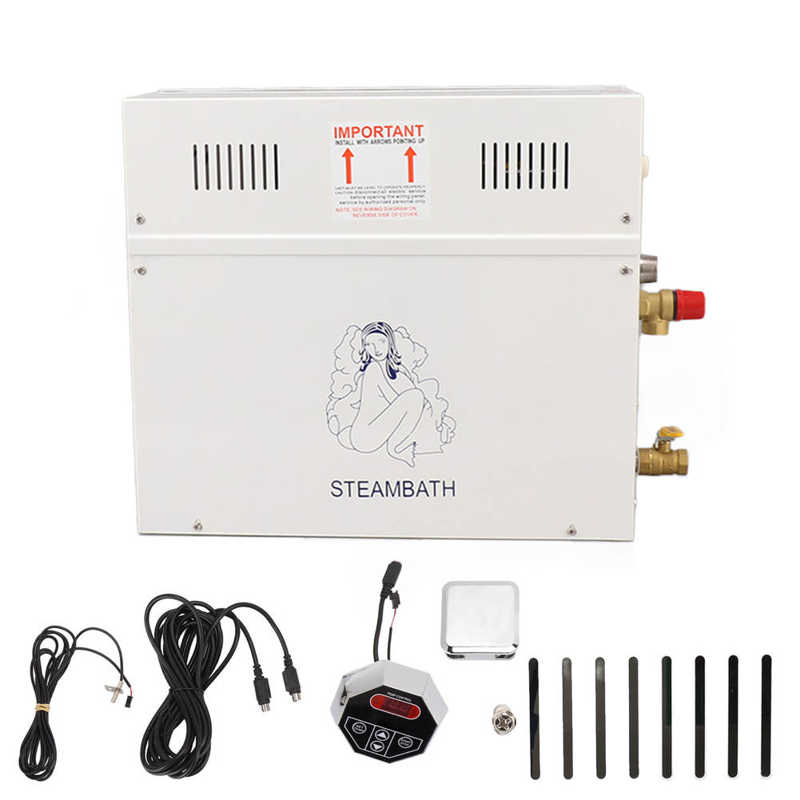

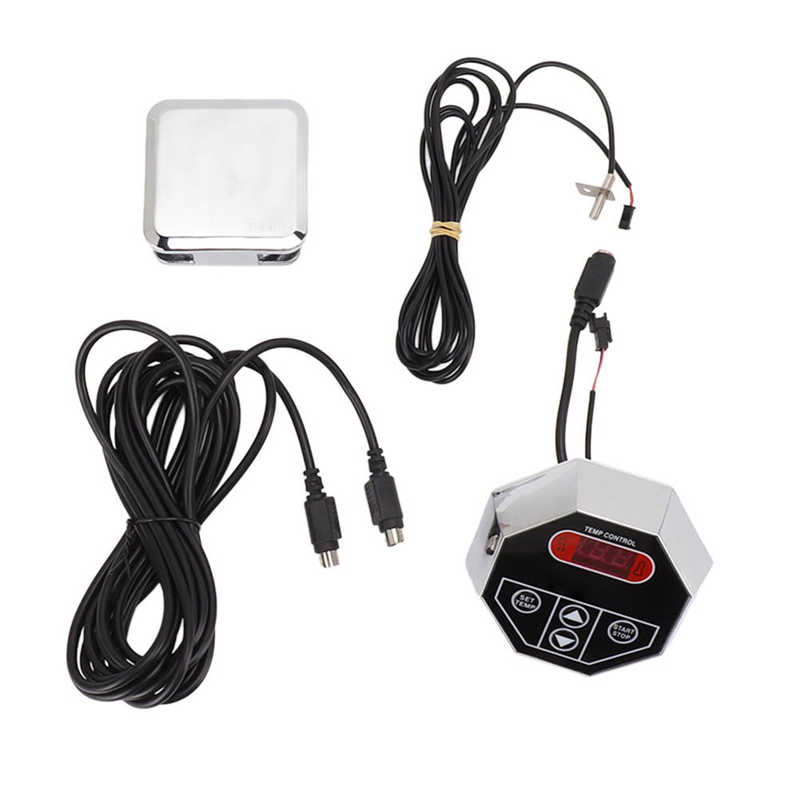

     Package List:

 1 x Sensor Wire     1 x Connecting Wire

     1 x Panel Controller

     1 x Accessory

     1 x Steam Engine

     1 x Specification
