Features:
Made of fine quality material, practical, has a long service time, you do not need to change it often.
Portable and compact, easy to operate and carry, also easy to storage.

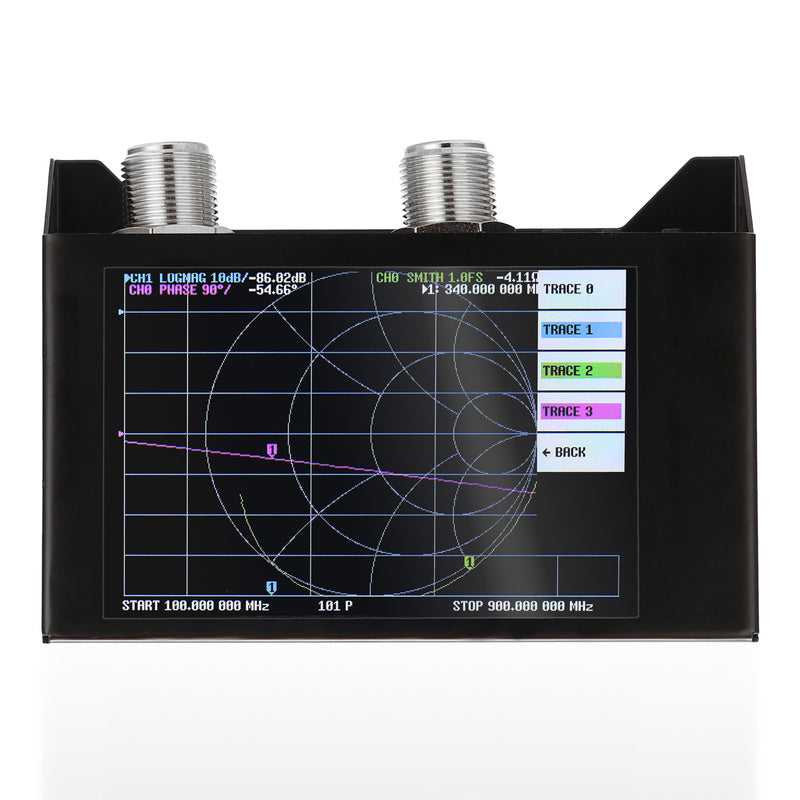

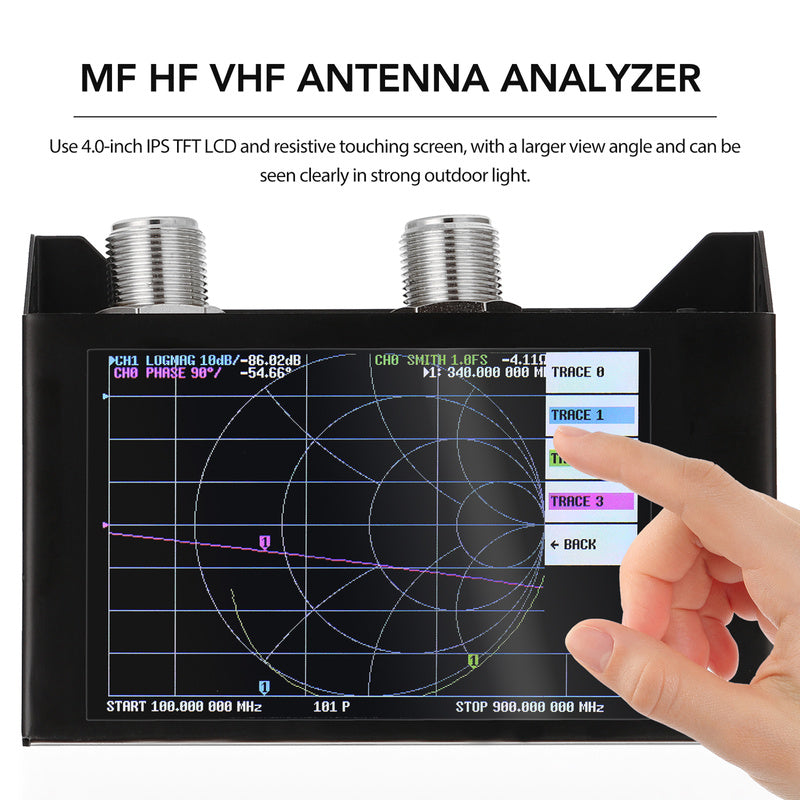

4.0 inch TFT LCD touching screen display. let you see the data more clearly.
Measurement frequency ranges is 50KHz~3GHz, has a wide applications.
High stability, high sensitivity and high accuracy, greatly improved performance.

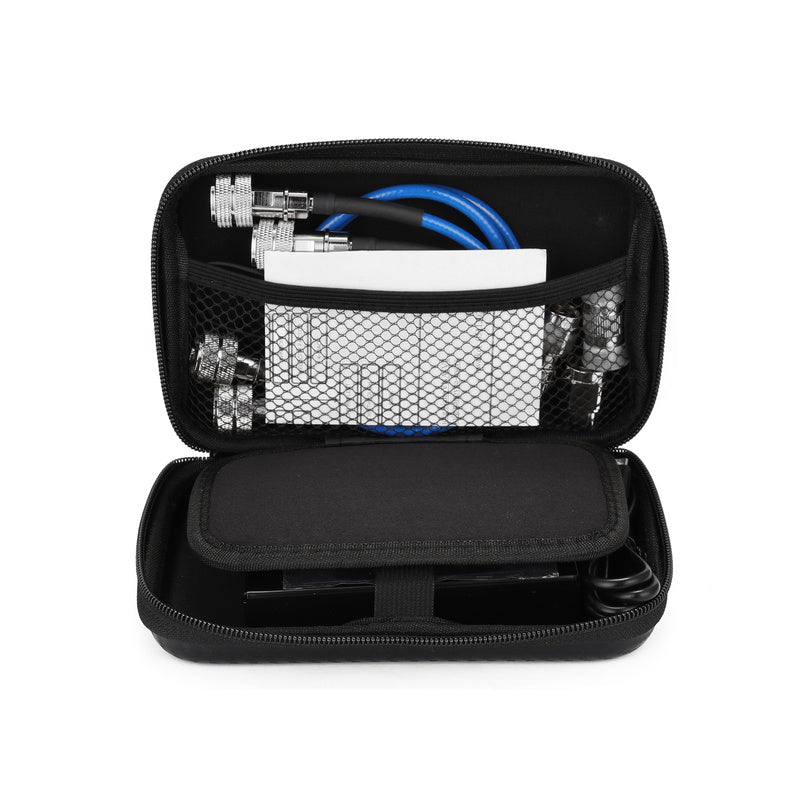

EVA storage bag is convenient for storage and carrying.

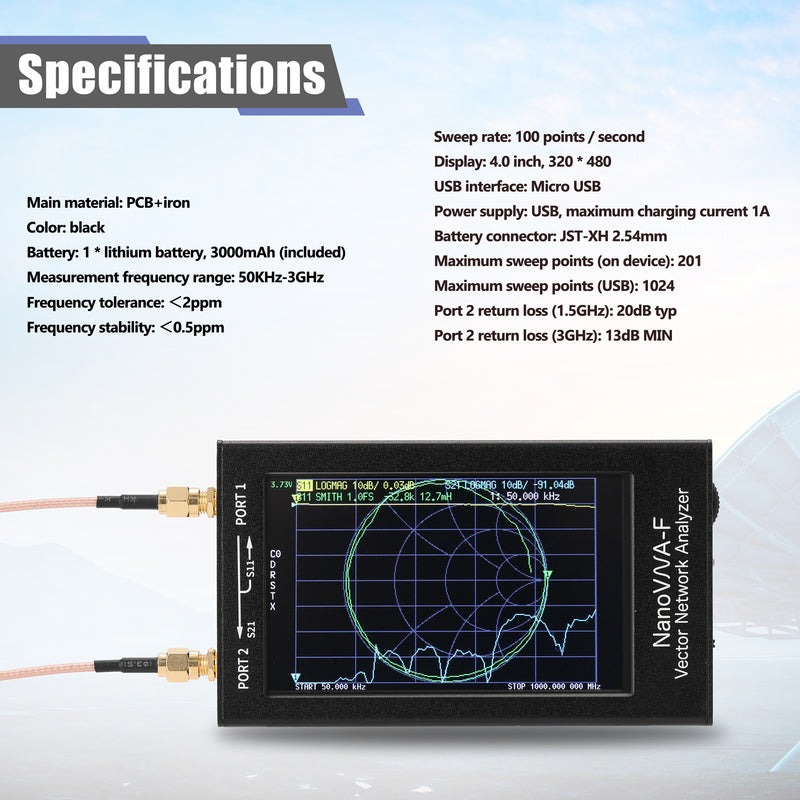

Specifications:
Main material: PCB+iron
Color: black
Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: 2ppm
Frequency stability: 0.5ppm
System dynamic ranges (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
Sweeping rate: 100 points / second
Display: 4.0 inch, 320 * 480
USB interface: Micro USB
Power supply: USB, maximum recharging current 1A
Battery connector: JST-XH 2.54mm
Maximum sweeping points (on device): 201
Maximum sweeping points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN

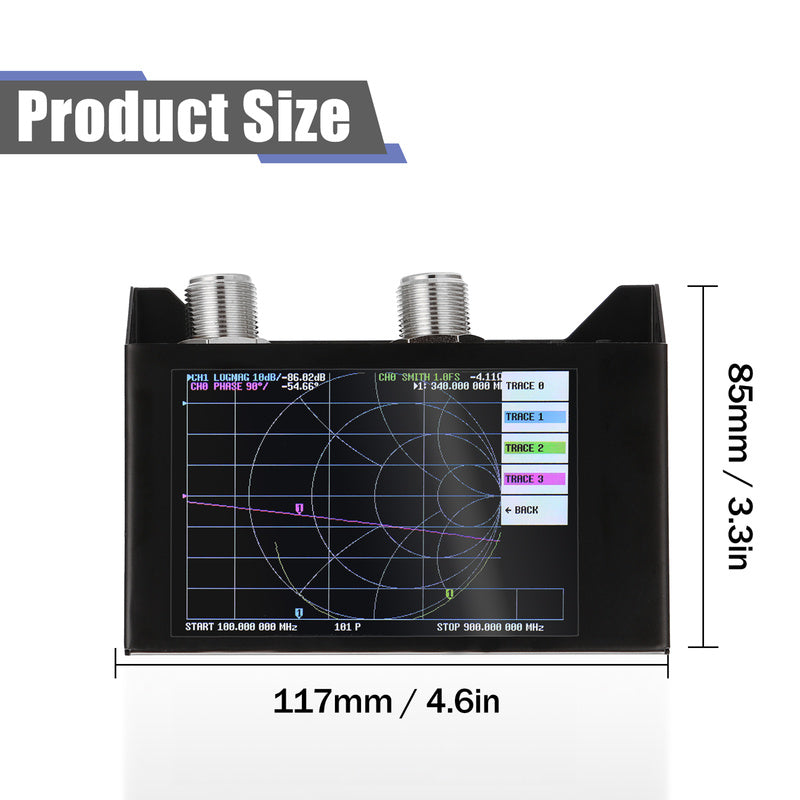

Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in
Item weight: 368g / 13.0ounce
Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in
Package weight: 972g / 2.1lb
Note:
VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases

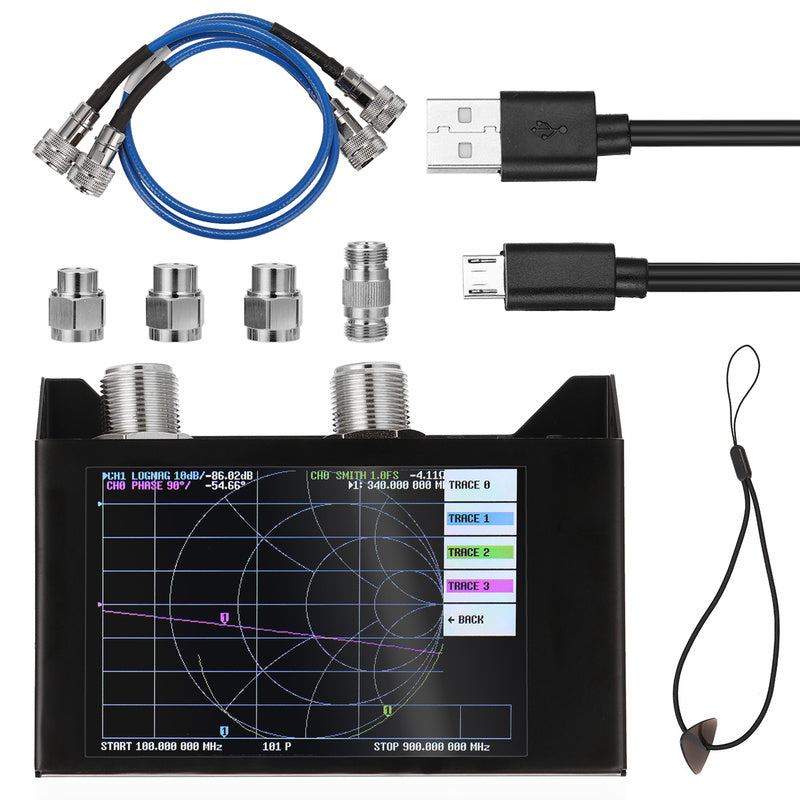

Packing List:
1 * SAA-2N Host
1 * Micro USB Data Cable
2 * 500mm N-type Male to Male RG142-PUR RF Cable
1 * N-type Male Calibration Kit-OPEN
1 * N-type Male Calibration Kit-SHORT
1 * N-type Male Calibration Kit-LOAD
1 * N-type Female to Female Connector
1 * EVA Storage Bag
1 * Touching Screen Paddle and Lanyard
