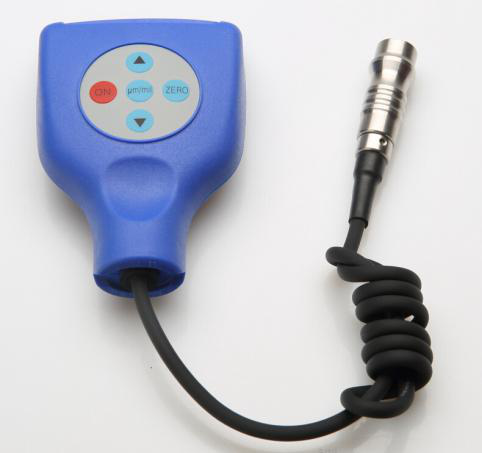

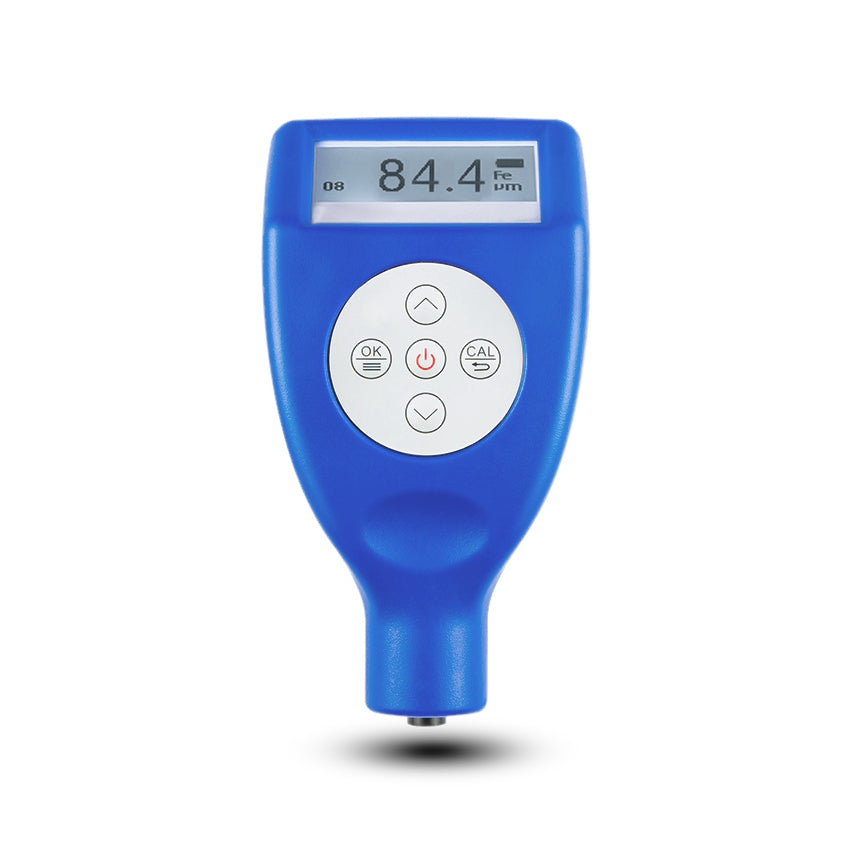

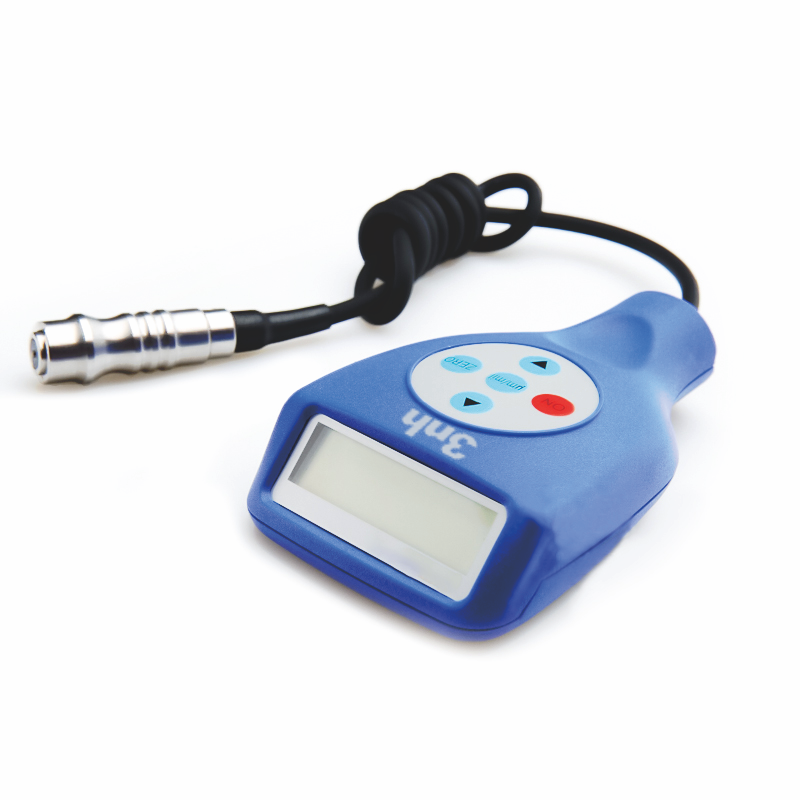

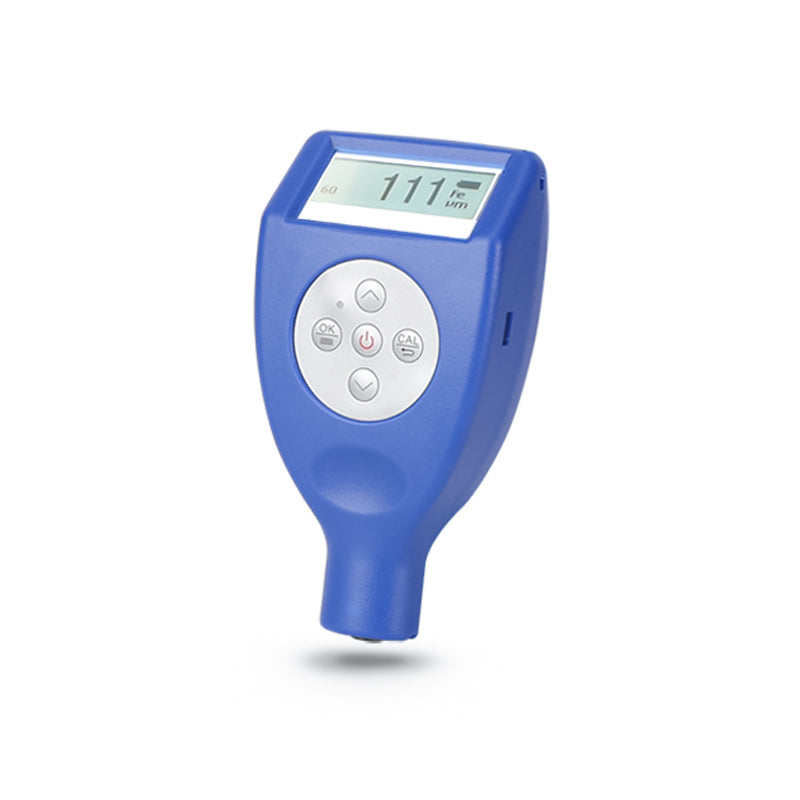

YT4200 is a domestic coating thickness gauge manufactured by 3nh company. It can detect the thickness of various non-magnetic coatings on the magnetic metal substrate quickly and accurately. The instrument fully conforms to the magnetic test principle specified in ISO 2178, GB / T 4956, ASTM b499 and other standards. The instrument is stable, accurate and powerful. It is widely used in the manufacturing industry, metal processing industry, chemical industry and other surface engineering detection fields.

 It is the basic equipment of coating surface treatment industry.

 Fe based probe can detect the thickness of various non-magnetic coatings sprayed on various magnetic substrates (such as steel), such as the paint layer, powder spraying layer, porcelain coating, chromium coating, copper coating, zinc coating, etc.

    Specification

                                  Model

                     YT4200-P3

                               What's in the Box?YT4200-P3

                     YT4200-P3 Gauge (Ready to Use), 1 x Calibration Checkpieces (Aluminium and Steel) &

 5 x Thickness Check Foils

                               Typical Users include

                     Vehicle Appraisers & Buyers, Panel Beaters / Motor Body Repairers, Painting Contractors, Galvanizers,Anodisers, Powder Coaters,

 Metal Fabricators,Chromers, Motor Vehicle Manufacturers, Vehicle Detailers, Zinc Platers etc

                               Ferrous Metal Mode (Fe)

 (Typical Applications)

                     Technology - Magnetic Induction - (enables measurement of non magnetic coatings on magnetic substrates such as Steel, Mild Steel,

 Cast Iron &Magnetic Stainless Steel). Example coatings:- Paint,Zinc / Galvanising, Chrome, Copper, Enamel, Rubber, Paint, Varnish,

 Powder Coating, Plastic etc.

                               Measuring Range

                     0-1250µm (0-1.25mm) or 0-50mil

                               Resolution

                     0.1µm (0-99.9 µm) and 1µm (over 100 µm)

                               Accuracy

                     ±1-3% (±2.5µm or 0.1mil - whichever the greater)

                               Power Supply

                     2 x 1.5V AA Batteries

                               Minimum Measurement Area

                     5mm

                               Minimum Sample Thickness

                     0.3mm

                               Operating Conditions

                     Temp: 0 - 50ºC and Humidity: < 80%

                               Weight

                     99g ( including batteries)

                               Dimensions

                     102 x 66 x 24mm

                               Meets Standards Including

                     ISO-2178, ISO-2360, DIN, ASTM & BS

                     (suitable for laboratory and harsh field conditions)

                               Units of Measurement

 (Microns & Mils)

                     Metric Measurement:-

 Micrometre (µm) – also known as Micron 1 µm = 1/1000mm

 Imperial Measurement:-

 Mil – also known as Thou 1 Mil = 1/1000 Inch

 Conversion:-

 1 Mil / Thou = 25.4 Microns / Micrometre (µm)

                               Additional Functionality

                     Gauge auto adjusts between Ferrous (Steel) and Non-Ferrous (Aluminium etc) Modes, Low Battery Indicator, Metric (Microns µm) or

 Imperial (Mils)

 measurement settings, Auto Power Off, Easy Reset to Factory Settings.
