4-Wire YR1035+ High Precision Fast Lithium Battery Internal Resistance Test Instrument Electric Vehicle Group 18650 DC 0-100V

Explain:

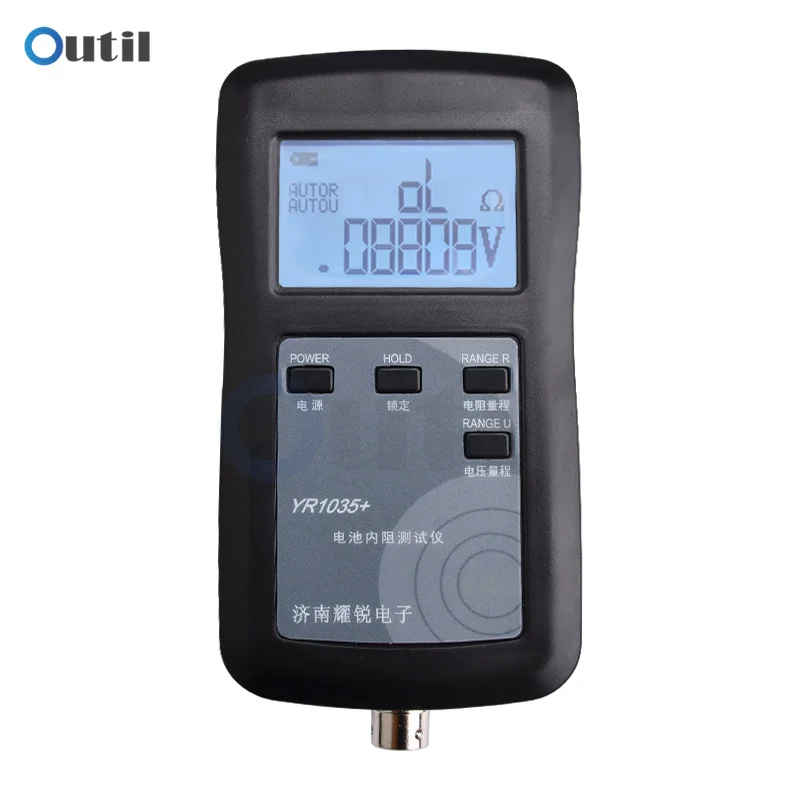

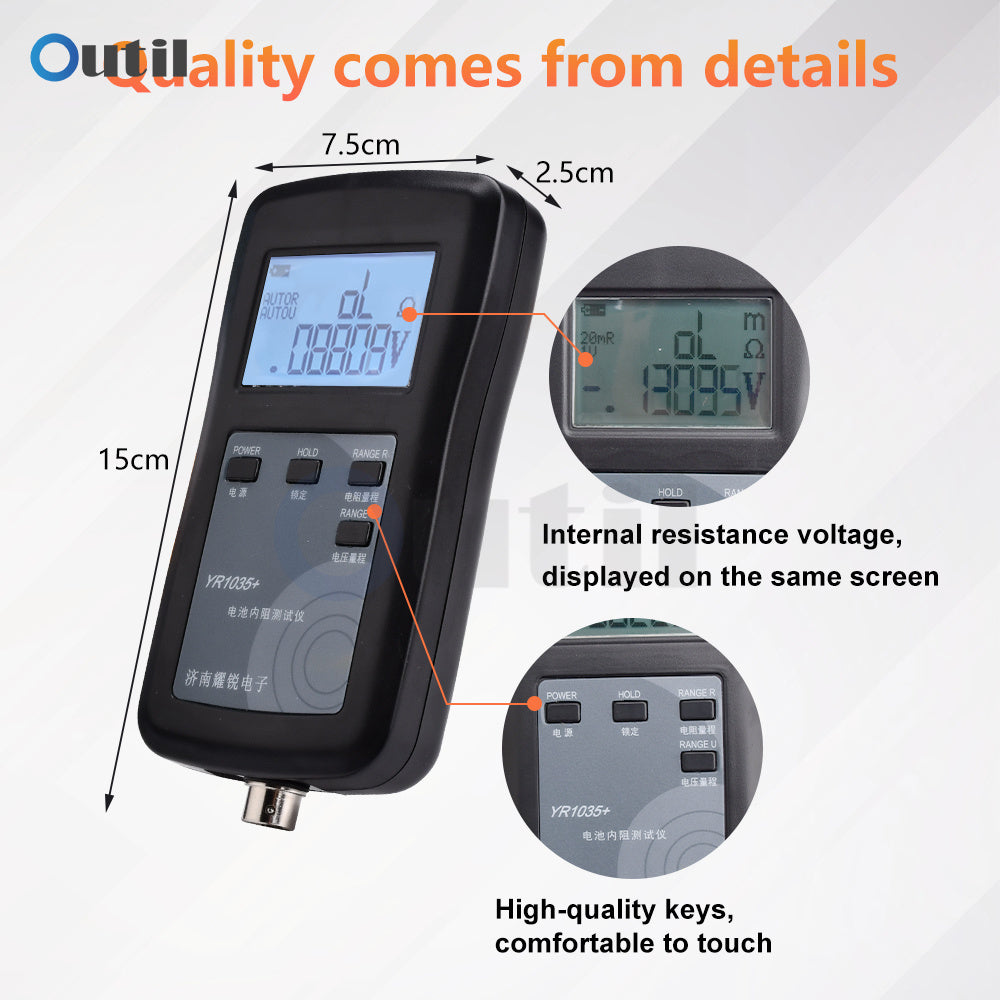

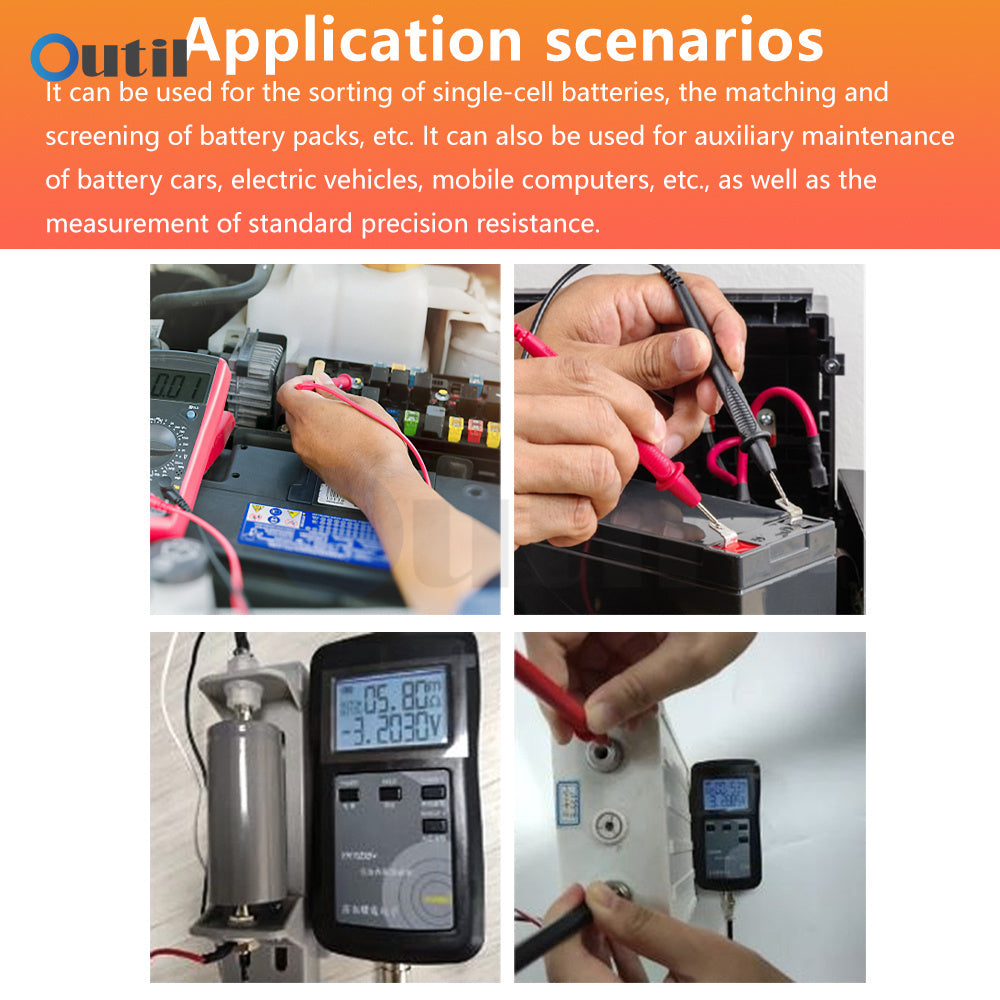

YR1035+ battery internal resistance tester is a true four-wire internal resistance tester, which can measure the internal resistance and voltage at the same time. It can also be used to measure the resistance. The measurement results are displayed on the same screen. This product is suitable for battery configuration, battery performance testing, battery screening and other aspects.The machine structure exquisite, easy to carry, is your ideal electrician, electronic testing machine.

Note:

The machine shall not input DC voltage greater than 100V. No AC voltage can be input under any conditions. MicroUSB port is used for charging and 4.5V-5.5V voltage is input.

Button function:

【POWER】 key (Power /Set/Cancel)

1. Short press to start up in shutdown state.

2. From the menu options, click the 【POWER】 key to unset and return to the menu list.

3. In normal mode and sorting mode, click 【POWER】 to enter the menu list.

4. Under the menu list, click 【POWER】 to enter the selected menu options.

5. In normal mode and sorting mode, long press 【POWER】 key to enter the shutdown interface, and use【HOLD】key and 【RANGE R】 key to determine whether shutdown is required.

【HOLD】 key (Save/confirm)

1. Under the Power Off? interface, click【HOLD】to confirm shutdown.

2. In normal mode and sorting mode, short press【HOLD】on the left side of the screen will display HOLD, indicating that the screen is locked. Click to unlock again.

3. Under the menu list, short press【HOLD】to exit directly from the menu list.

4. From the menu options, click【HOLD】to save the Settings and return to the menu list. Click 【HOLD】 again to save the Settings and return to the measurement interface.

5. In parameter setting, click【HOLD】to switch 【RANGE R】 and 【RANGE U】.

【RANGE R】key (Move up/add)

1. Under the Power Off? interface, click 【RANGE R】key to cancel the shutdown.

2. In normal mode and sorting mode, click 【RANGE R】key to switch the RANGE of internal resistance.

3. Under the menu list, click the 【RANGE R】 key to move up menu options.Long press ultra-3s.

4. From the menu options, click the 【RANGE R】 key to move up to select the parameter, or change the parameter value.Long press more than 3S will continuous motion.

【RANGE U】key (Move down/reduce )

1. In normal mode and sorting mode, click 【RANGE U】key to switch the voltage range.

2. Under the menu list, click the 【RANGE U】 key to move down menu options.Long press ultra-3s.

3. From the menu options, click the 【RANGE U】 key to move down to select the parameter, or change the parameter value.Long press more than 3S will continuous motion.
