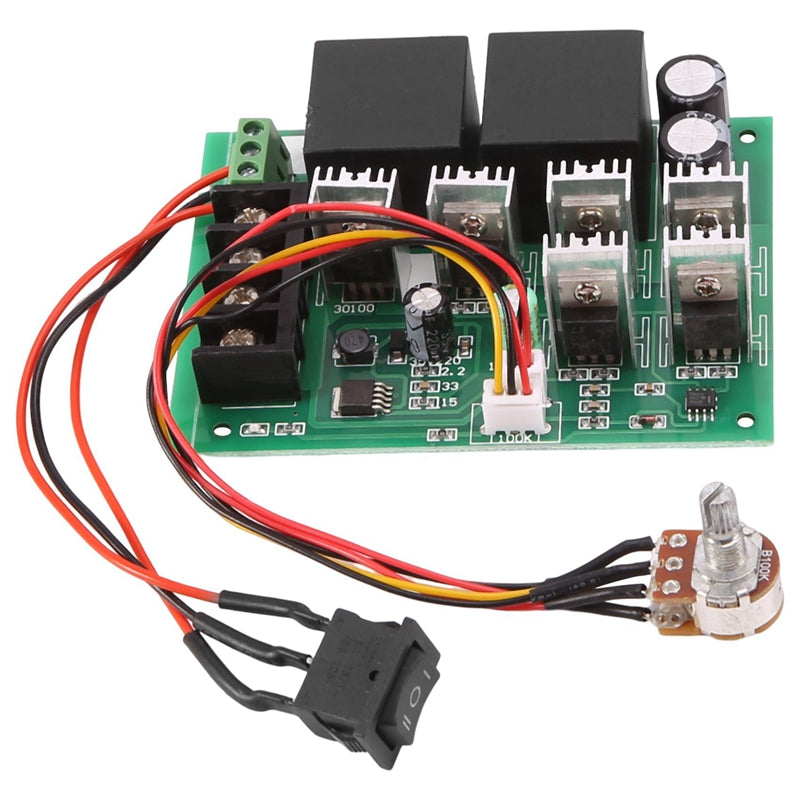

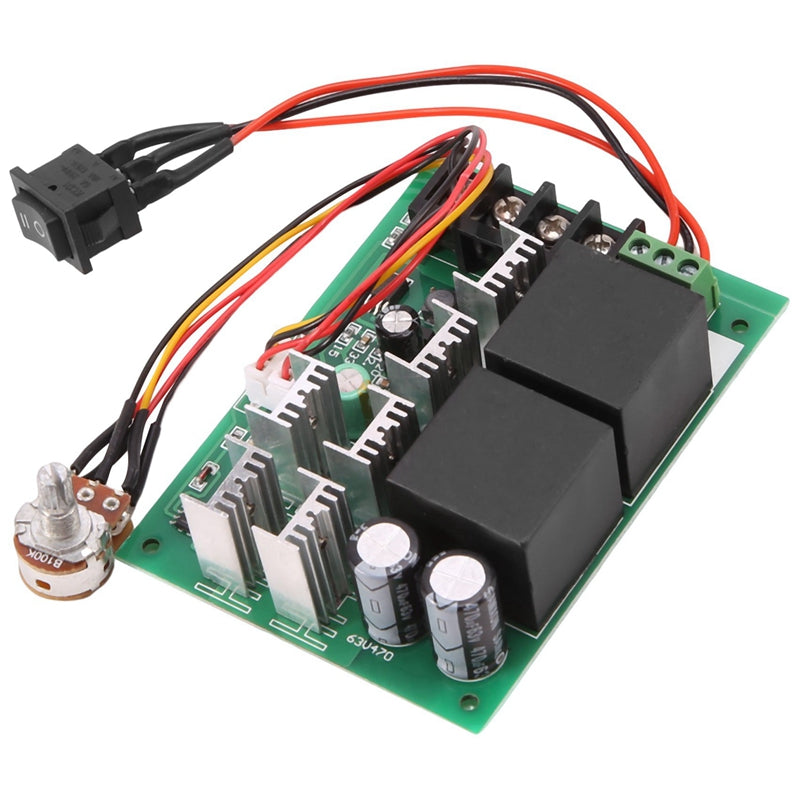

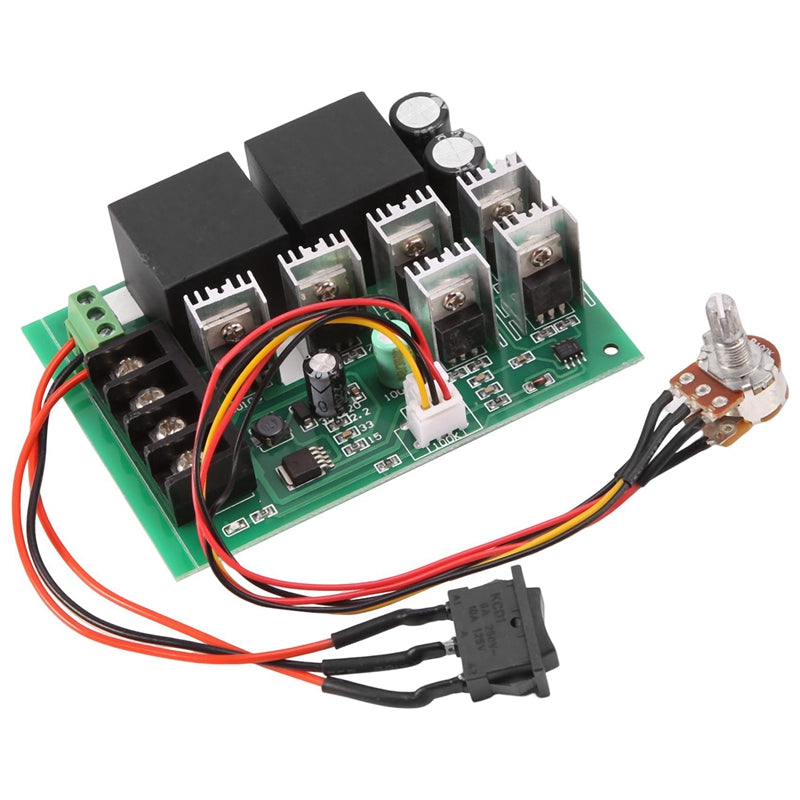

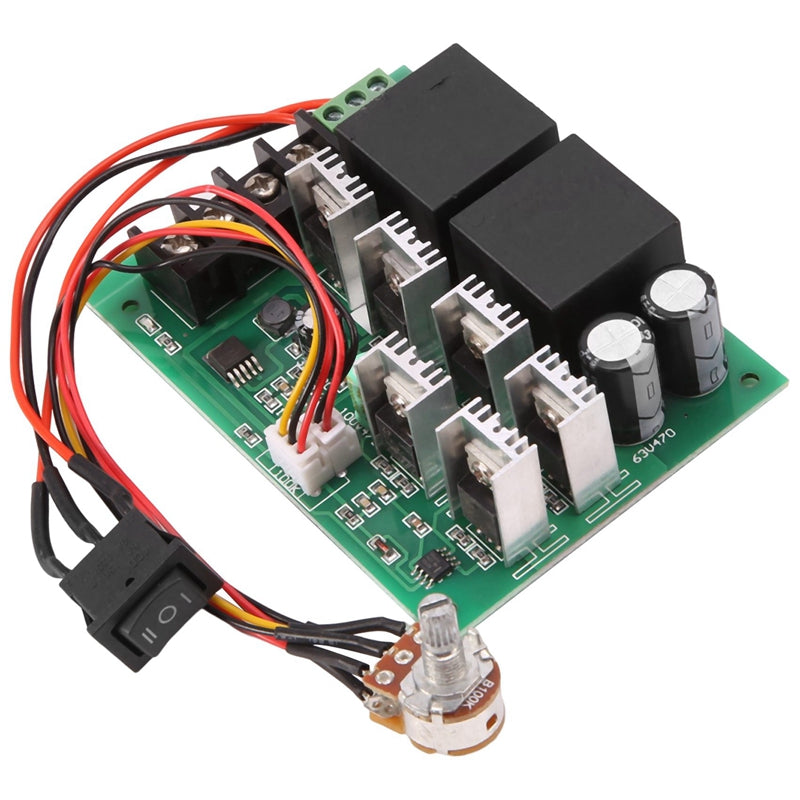

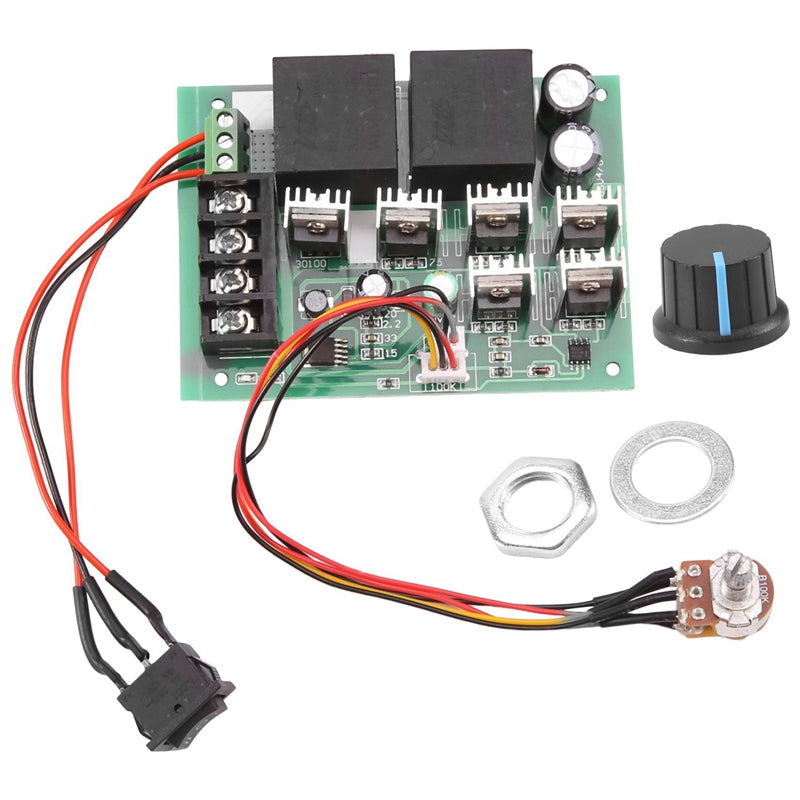

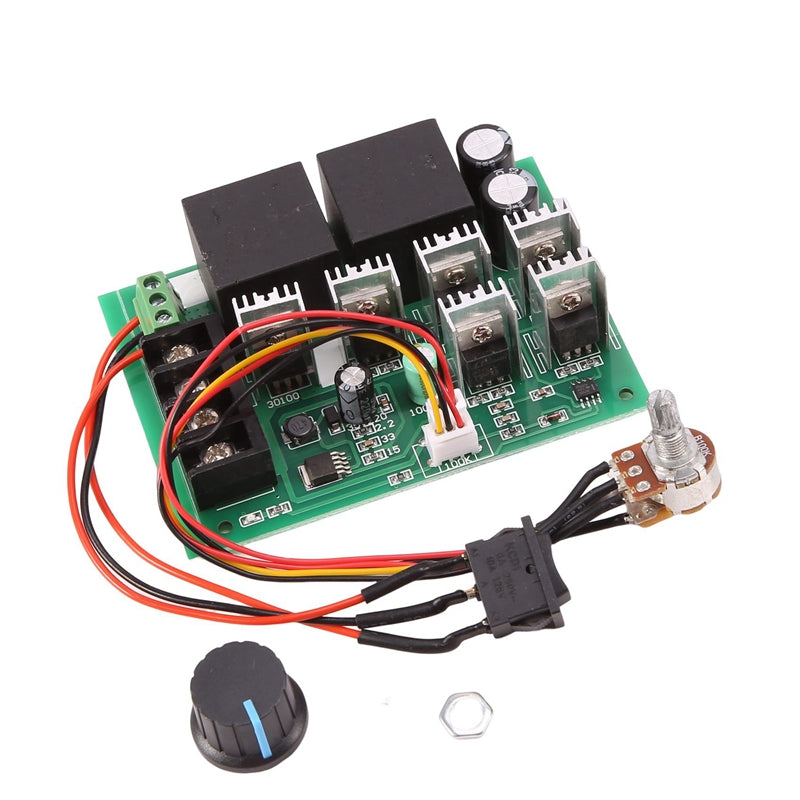

40A DC 10-50V DC Motor Controller Reversible PWM Controller 12V 24V 36V 2000W Forward Reverse Switch
With forward and reverse switch, potentiometer knob with switch, can use PLC to control forward and reverse.
Input voltage: DC10-50V
Output Voltage: Linear under load
Output limit current: 40A (20A for long-term use, pay attention to keep the module unobstructed for heat dissipation)
Limit power: 2000W
Speed regulation type: flow regulation
Speed regulation mode: potentiometer (linear)
Speed regulation duty cycle range: 0-100%
Control frequency: 25KHZ
Wiring Type: Barrier Terminal Block
Knob cable length: 20CM
Motherboard according to installation size: (length x width) 100MM x 76MM
Potentiometer according to the installation hole: 7MM
Material: PCB
colour: green + black
Package Contents:
1 x DC motor speed controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
