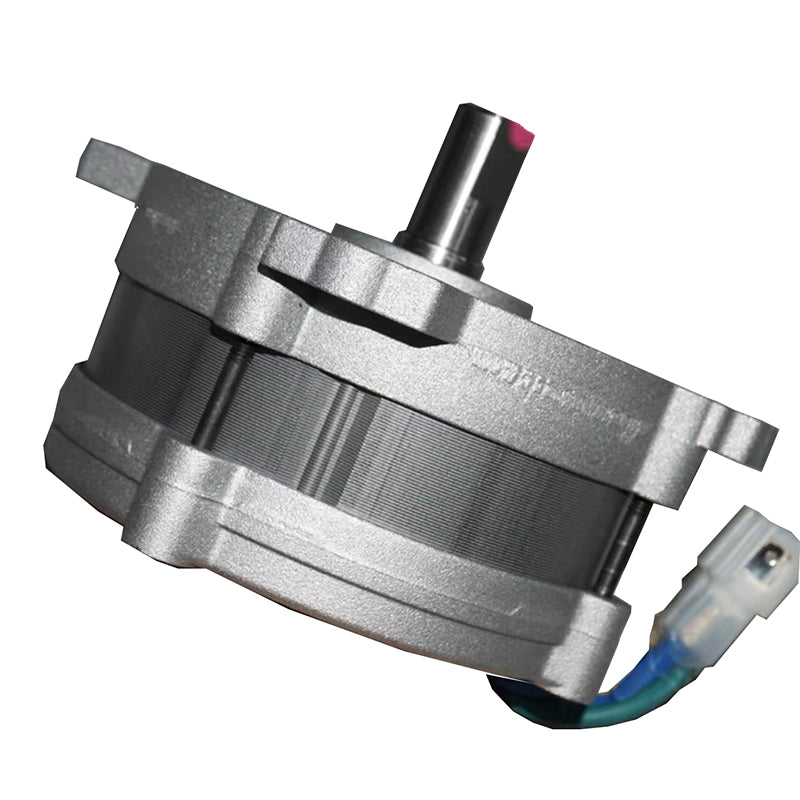

40V550W Neodymium Strong Magnetic High Power Brushless Motor High Torque Brushless Mechanical Power Lawn Mower Motor 12V 24V 36V
Description:

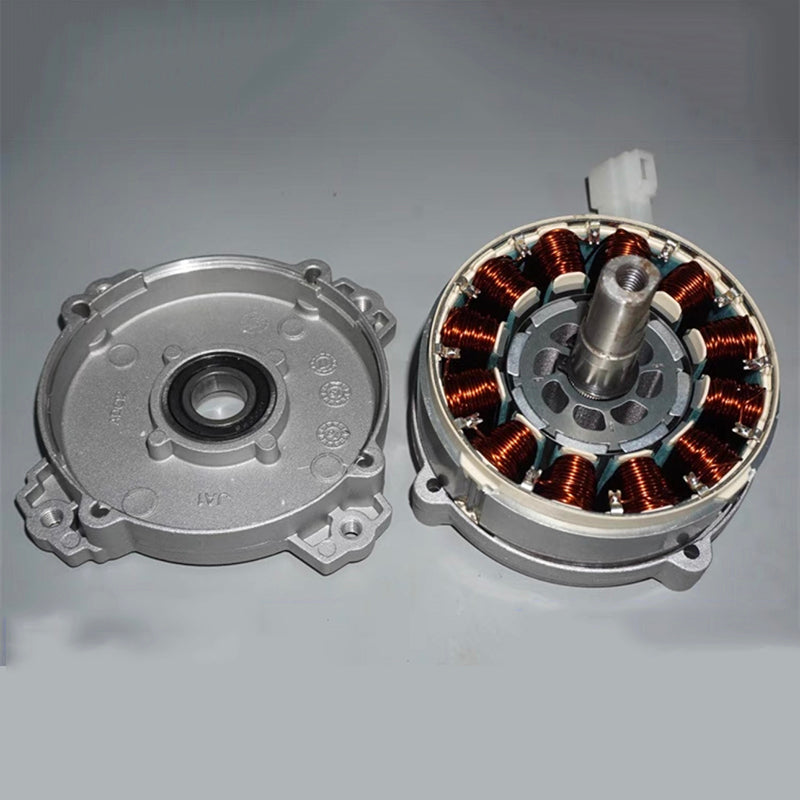

High power low-speed and high torque neodymium strong magnetic brushless motor, nominal 40V 550W, suitable for retrofitting power driven motor. It was originally used on lithium battery garden machinery tools. The torque is very good. The internal magnet is neodymium strong magnetic. The thickness of 3.8mm is thickened neodymium magnet. The front and rear ball bearings of the motor. The output line is 0.9mm four copper wires, working together with high current.
The nominal motor is 40V, 550W, and the rated load speed is 3200 revolutions. The measured 12-36V motor can be operated. The Hall free motor can be operated with the aircraft model brushless electric adjustment or the Hall free electric vehicle controller. The measured no-load speed of the motor under different voltages is as follows:
12V voltage tests no-load current 1A, no-load speed 1300 rpm..
24V voltage test no-load current 1.6A, no-load speed 2800 rpm.
36V voltage test no-load current 1.9A, no-load speed 4200 rpm.

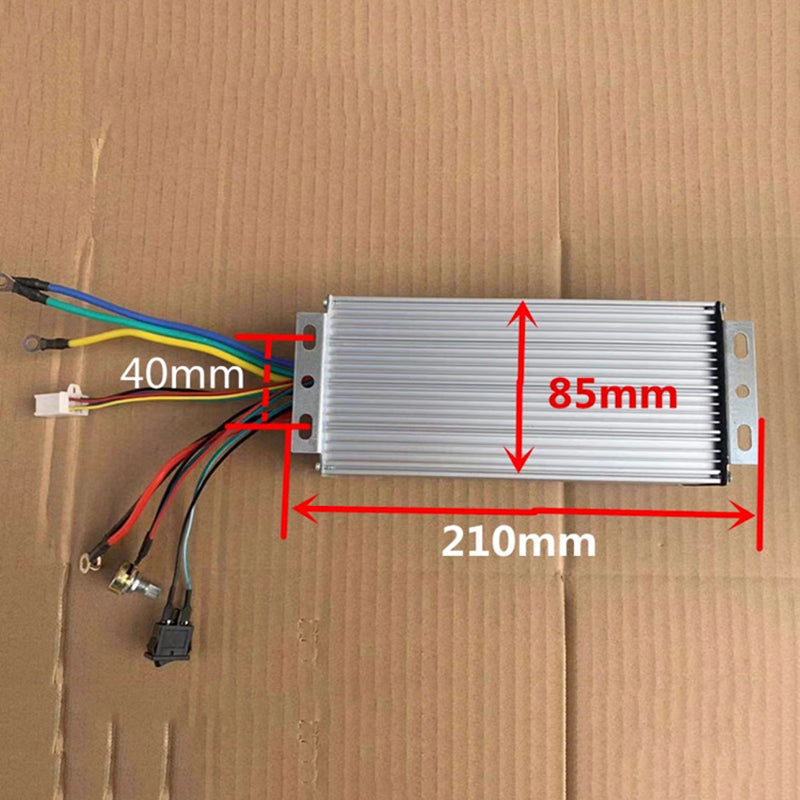

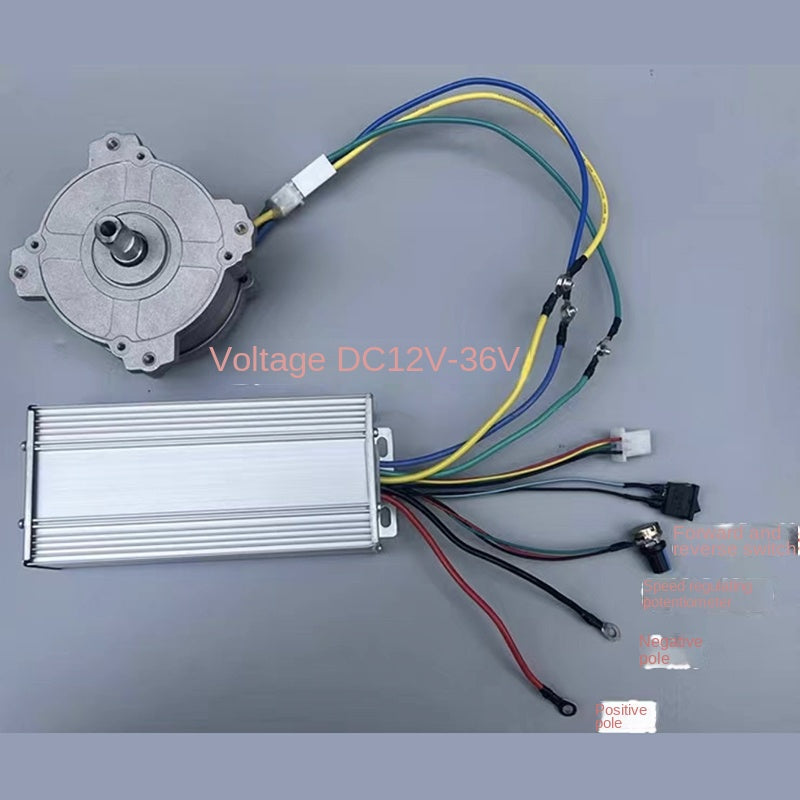

The brushless motor requires a driver to operate, and the driver needs to be purchased by yourself. The most commonly used is the electric vehicle dual mode intelligent brushless controller or aircraft model brushless electric regulator, which can be purchased by yourself.
The motor weighs about 1.65KG.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
