PLS offer the screen model before payment.

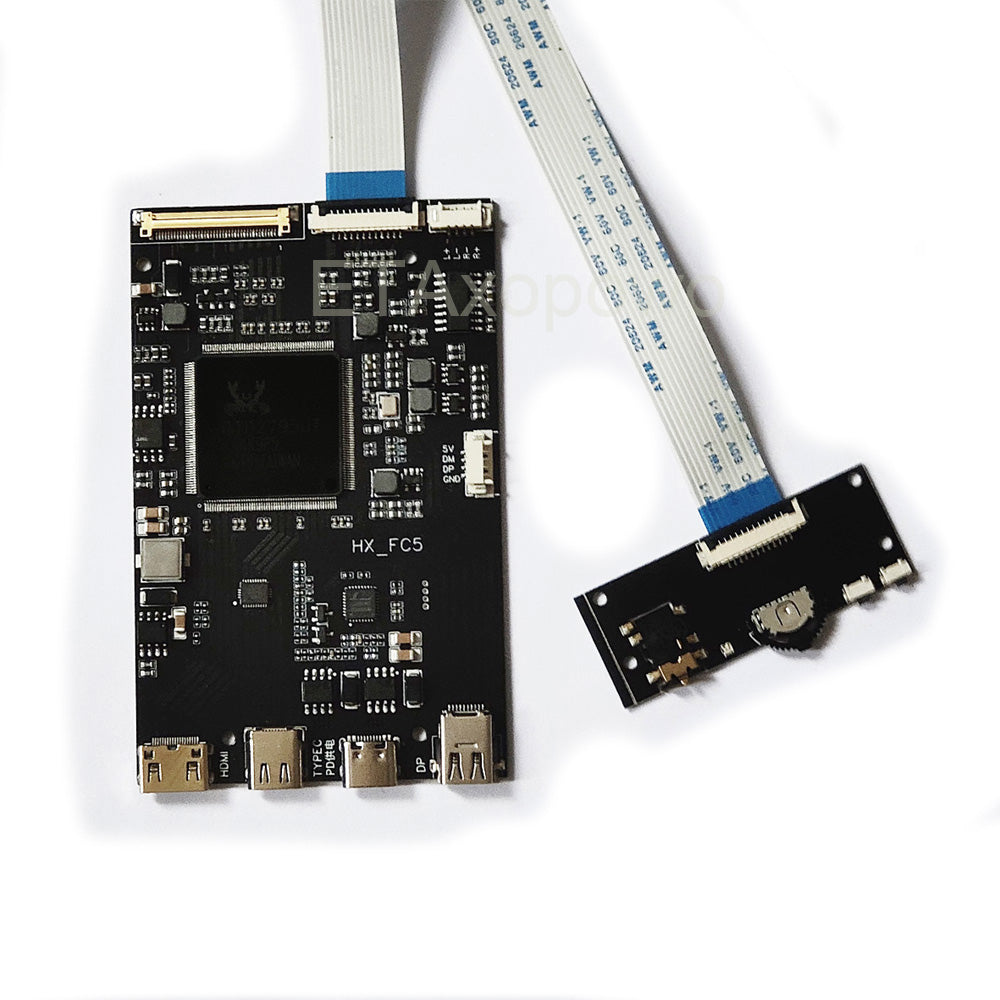

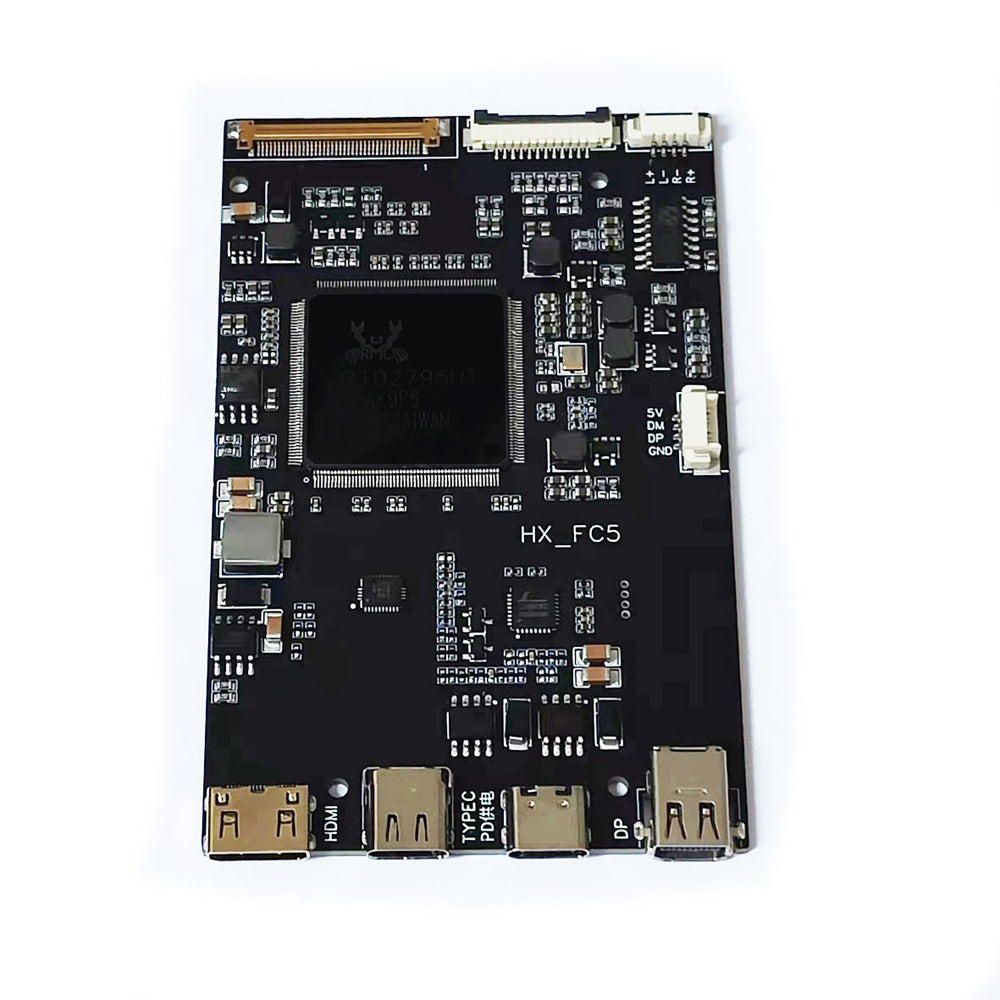

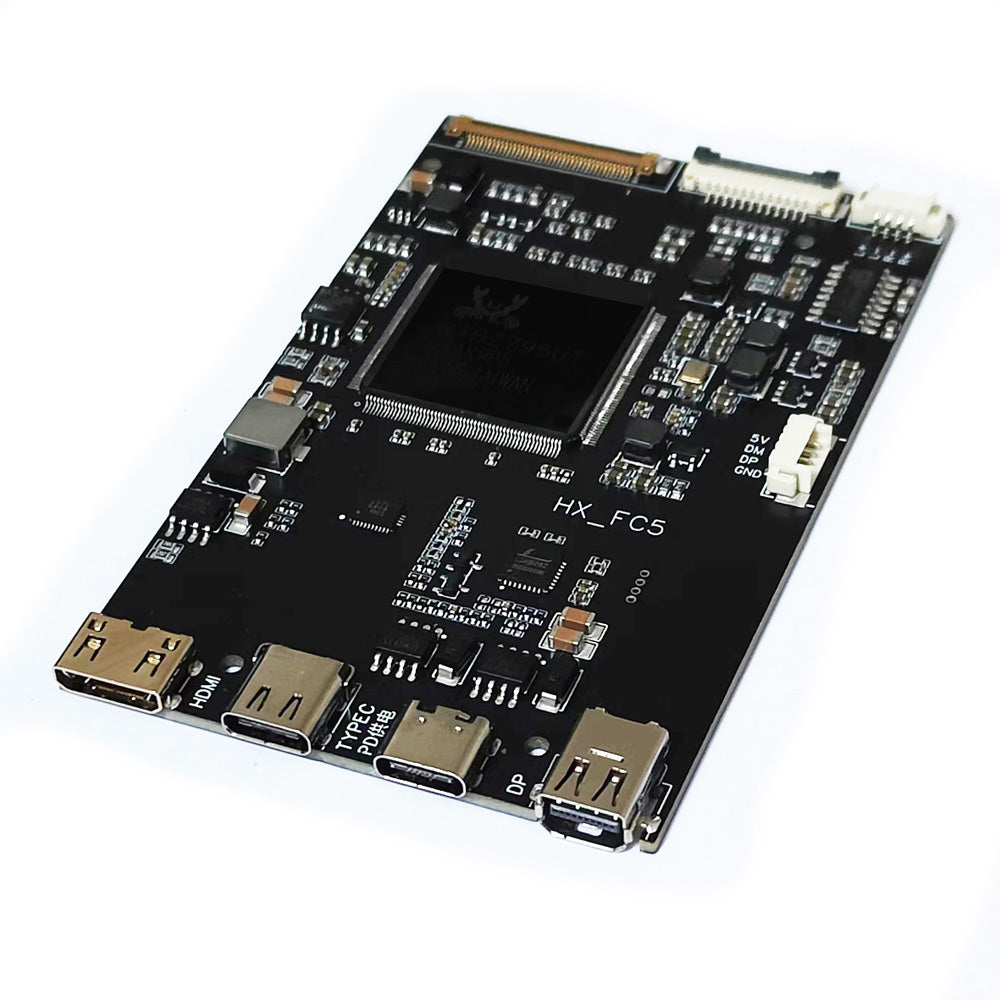

HX_FC5 is a LCD MONITOR driver board that can support UHD.
The product supports VGA, SVGA, XGA, SXGA, UXGA, QHD and UHD resolution TFT LCD screen, such as LG, Philips, SAMSUNG, AUO and other brands of UHD LCD screen.
Provide the screen model to the customer service to confirm whether it is supported before purchasing.
Product Features:
2.0 supports HDR10 high dynamic range images (High-Dynamic Range, referred to as HDR), which can provide more dynamic range and image details than ordinary images. According to LDR (Low-Dynamic Range) images with different exposure times, use Each exposure time corresponds to the LDR image with the best detail to synthesize the final HDR image, which can better reflect the visual effect in the real environment
2.1 Support FreeSync 2 technology of AMD graphics card, improve screen tearing, freeze problems, and improve picture quality
2.2 HDMI interface supports HDMI2.0 protocol, supports hard solution 4K@60HZ signal
2.3 The DP interface supports DP1.1 and DP1.2 protocols, and DP1.2 supports hard-decoding 4K@60HZ signals.
2.4 Support Type-c mobile phone screen projection and reverse charging.
2.5 The screen supports 180 degree rotation
Panel interface type:eDP HRB、eDP HRB2
Product Photograph:78 x78mm
LCD Resolution:Up to 3840x2160

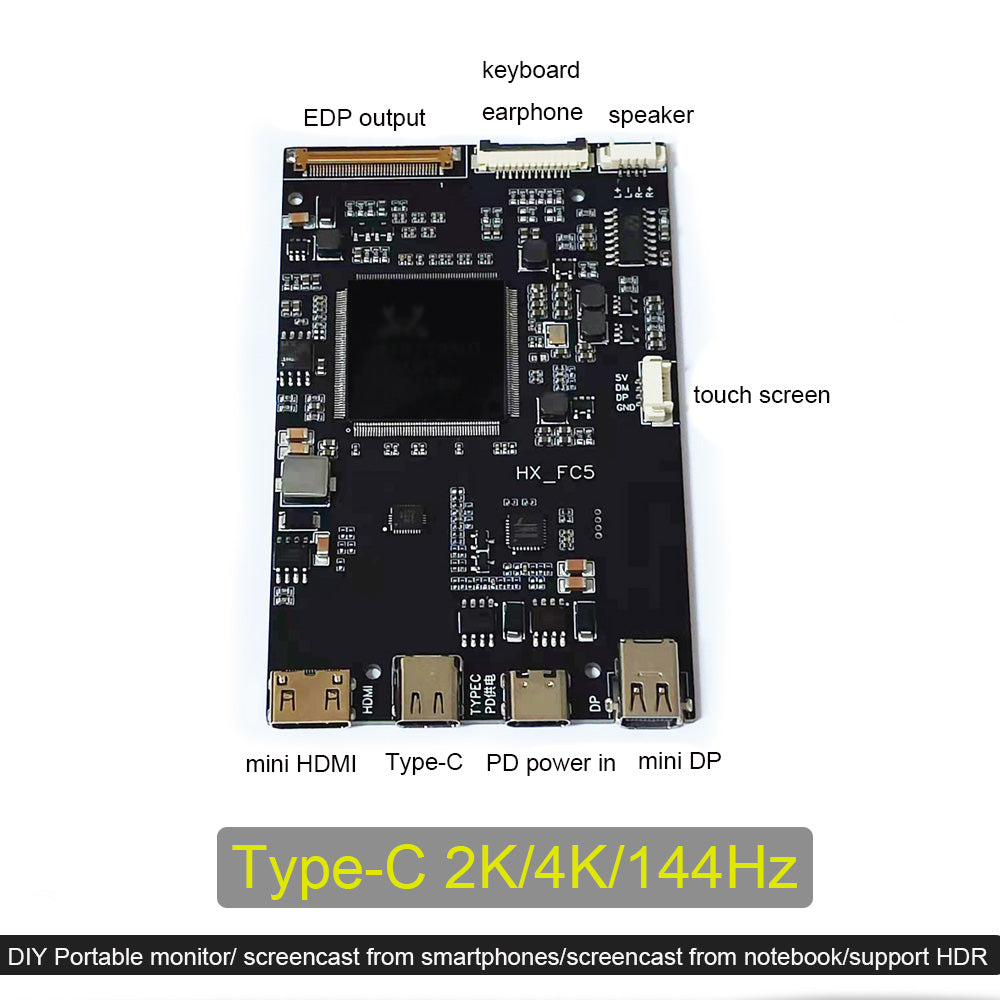

Signal interface:MINI HDMI*1、MINI DP、TYPE-C*1、3.5 Earphone Output
Power Input:5V 4A
Power Control:commonl Working Mode, Low power mode
power management:Standby Power Consumption ≤1W
Picture,Position Adjust:Brightness/Contrast/Saturation/Hue/Position Adjust
OSD Language:Chinese English
Keyboard type:GPIO to GND
Keyboard number:5 key
Key description:Power VOL- VOL+ CH- CH+ Menu Input
Audio output power:2 X 3W（8Ω）
Color temperature mode:Warm/Cool/Standard/User
