is antenna is a dual band antenna optimised for operation at both 868MHz and 915MHz.
High quality,Can be customized,wholsales can get the best price
Frequency:Good performance at 868mhz and 915mhz
Gain :5.8dBi Maximum input power: 50 W
Connector :N-Female Color: Grey
Electrical Specifications
Frequency range（MHz）
824MHz - 960MHz
Bandwidth（MHz）
70
Gain（dBi）
5.8
Half-power beam width（°）
H:360 V:20
VSWR
≤1.5
Input Impedance（Ω）
50
Polarization
Vertical
Maximum input power（W）
50
Lightning protection
DC Ground
Input connector type
N Female
Mechanical Specifications

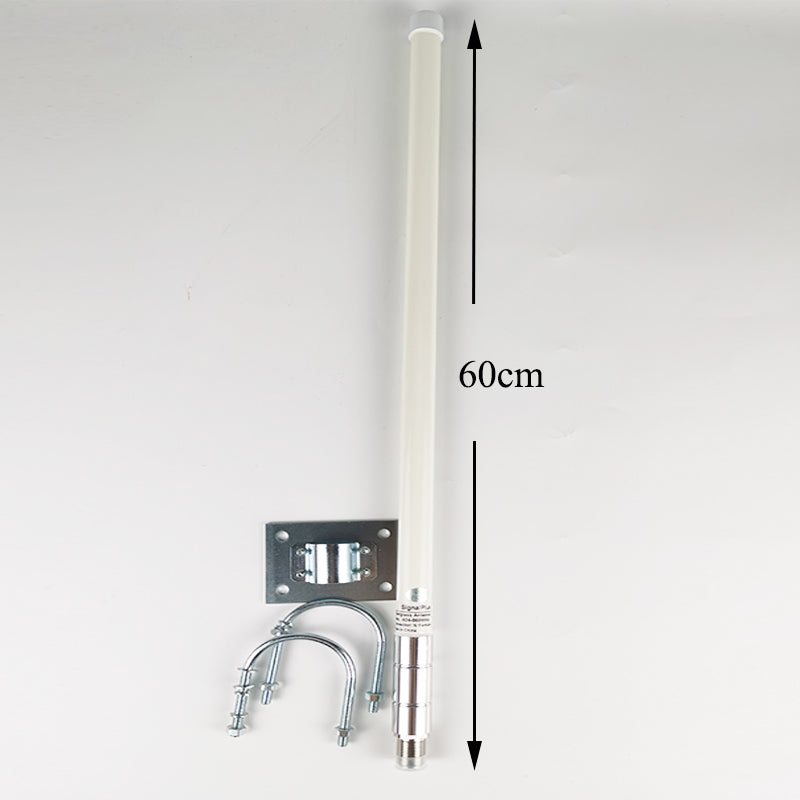

Dimensions (mm)
Φ20*600
Antenna weight（kg）
0.6
Operating temperature（°c）
-40～60
Rated Wind Velocity（m/s）
60
Radome color
White
Mounting way
Pole-holding
Mounting hardware（mm）
￠40-￠60
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
