ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING--Adopt intelligent lithium cell management IC for fast and safe charging
BALANCING CHARGING EXTENDS BATTERY LIFE--With balance charging to balance the characteristic of each battery in battery pack and prolong battery life
MULTI-OVER PROTECTION ENSURES SAFETY USE--Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection

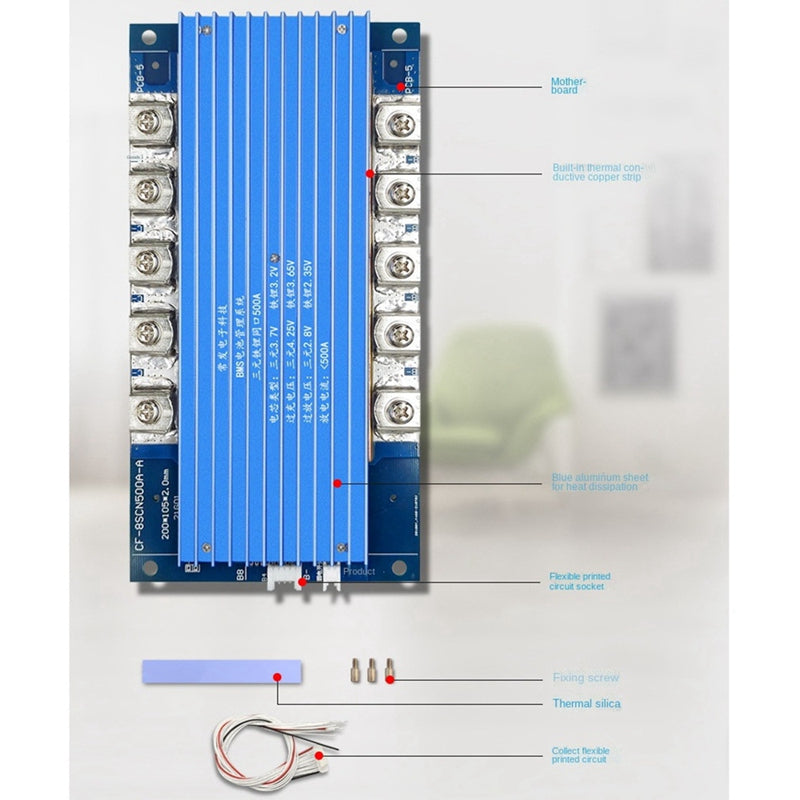

EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION--Equipped with thickened aluminum fin to achieve quick heat dissipation
MANY TIMES TESTING ENSURES HIGH QUALITY--This product has gone through load and aging test for quality assurance
Discharge current: 500A
Charging current (same port): 200a
Overload protection
Detection voltage: 4.25±0.025v
Detection delay: 1000ms 500ms
Release voltage: 4.18±0.05v
Overvoltage discharge protection
Detection voltage: 2.8±0.1v
Detection delay: 1000ms 500ms
Release voltage: 3.0±0.1v
balanced tension
Detection voltage: 4.18±0.025v
Detection delay: 100 50 50ms
Balance current: 42 55ma
Overcurrent protection discharge
Detection voltage: none
Detection delay: none
Current protection: none
External temperature control protection
Charging working temperature: external 75 external
Discharge operating temperature: 75 external external
Release Conditions: Recover within operating temperature
Built-in temperature control protection
Charging working temperature: built-in 75 Celsius
Discharge working temperature: built-in 75Celsius
Release Conditions: Recover within operating temperature
self-consumption
Working power consumption: 45ua
Dormant overdischarge power consumption: 1010ua
Operating temperature range: -20/+80Celsius
Colour:blue
Material:abs+metal

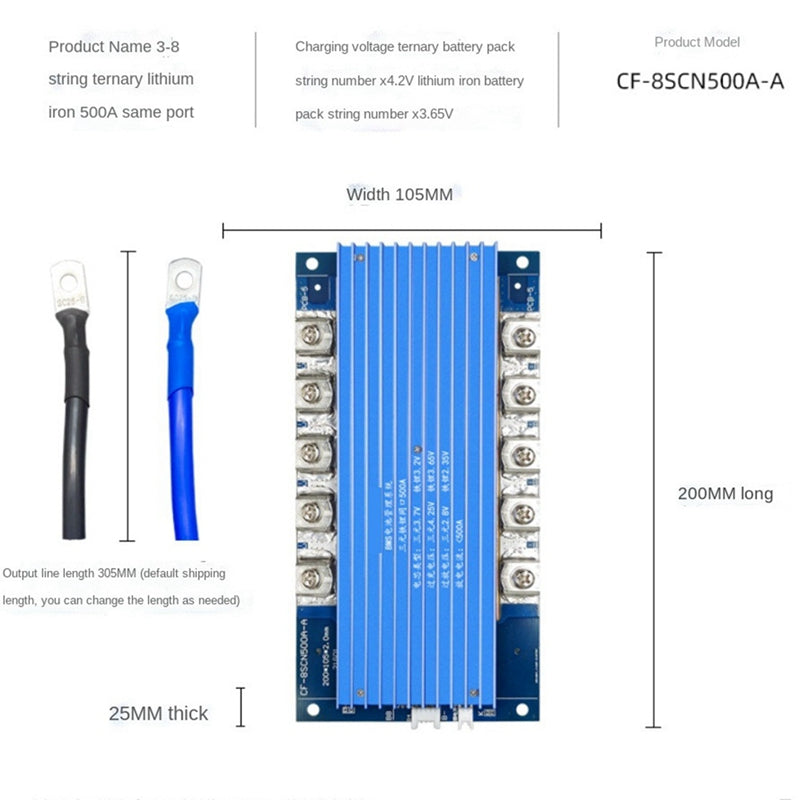

Size:200 x 105 x 25mm
Package Contents:
1 x bms battery charging protection board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
