Product performance:

1. Measuring frequency range: 50KHz-3000MHz;

2. RF output power: - 9dbm (1GHz internal error: plus or minus 1db);

3. Frequency accuracy:<0.5ppm

4. S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)

5. S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)

6.2 Port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)

7. USB interface: USB Type-C Communication mode: CDC (serial)

8. Number of calibration points: 201

9. Number of scanning points: 201

10. Display and tracking: 4 tracks

11. Mark: 4 mark points (mark mark bar can be moved at any position on the screen)

12. Setting saving: 8 (after saving, it can be directly called when the next boot is used, without new calibration, and the saved parameters before the last shutdown will be automatically called when the next boot is started, and the function of automatically storing the start and stop frequency is added to facilitate the next call)

13. Scanning time: about 1.9s/once (50kHz~3000MHz full frequency band)

14. Measurable S parameters, SWR Smith chart phase diagram of voltage standing wave ratio, group delay, TDR function;

15.4.3 inch IPS LCD screen, IPS TFT (800x480) viewing angle close to 180 °, long time use will not hurt eyes;

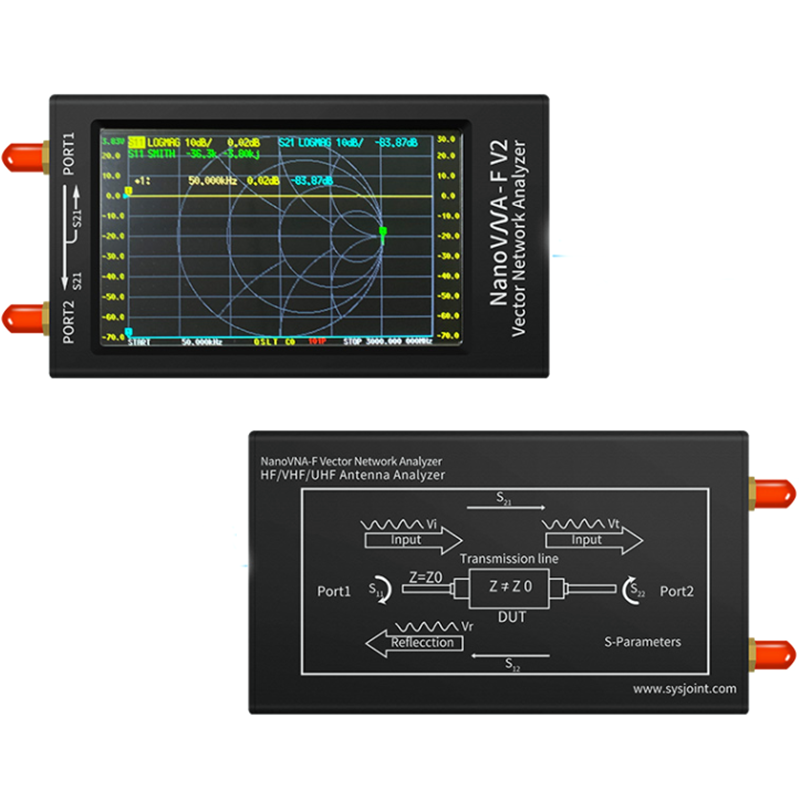

16. Aluminum alloy housing is used to effectively shield electromagnetic interference, making S21 better than 80dB dynamic range in 1GHz

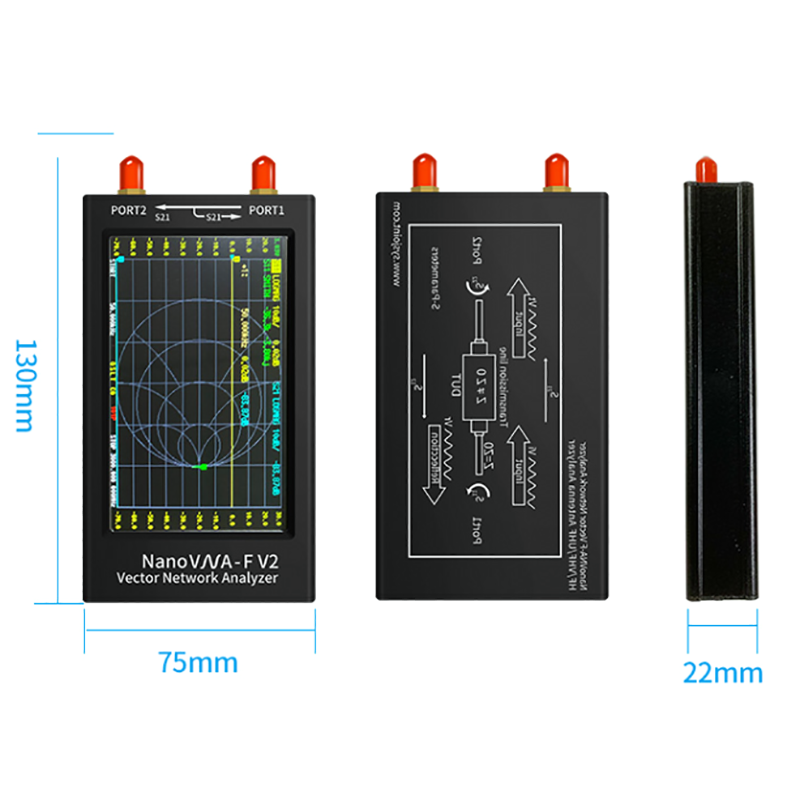

17. Compact design, body size 125mm * 75mm * 20mm, small and portable; Outer package size: 280 * 180 * 75mm

18. RF interface is SMA, which is convenient for connecting various tested parts;

19. Using 5000mAh super capacity lithium battery, the battery life can reach 7 hours;

20. Full touch screen design, supporting 3 side buttons at the same time, flexible and convenient operation;

21. Support Chinese and English menu switching;

22. Support screen brightness adjustment;

23. Firmware can be upgraded through virtual USB disk without programmer, and only one USB cable is needed to upgrade firmware;

22. Expand a USB power output interface, 5V/1A output (can be used as a charging bank);

24. Use high current 2A to charge IC, and the charging time is shorter;

25. Support the upper computer, which can be used as the display operation interface;

26. Weight with plastic packaging box: 400g,

27. Total weight of outer package: 620g.
