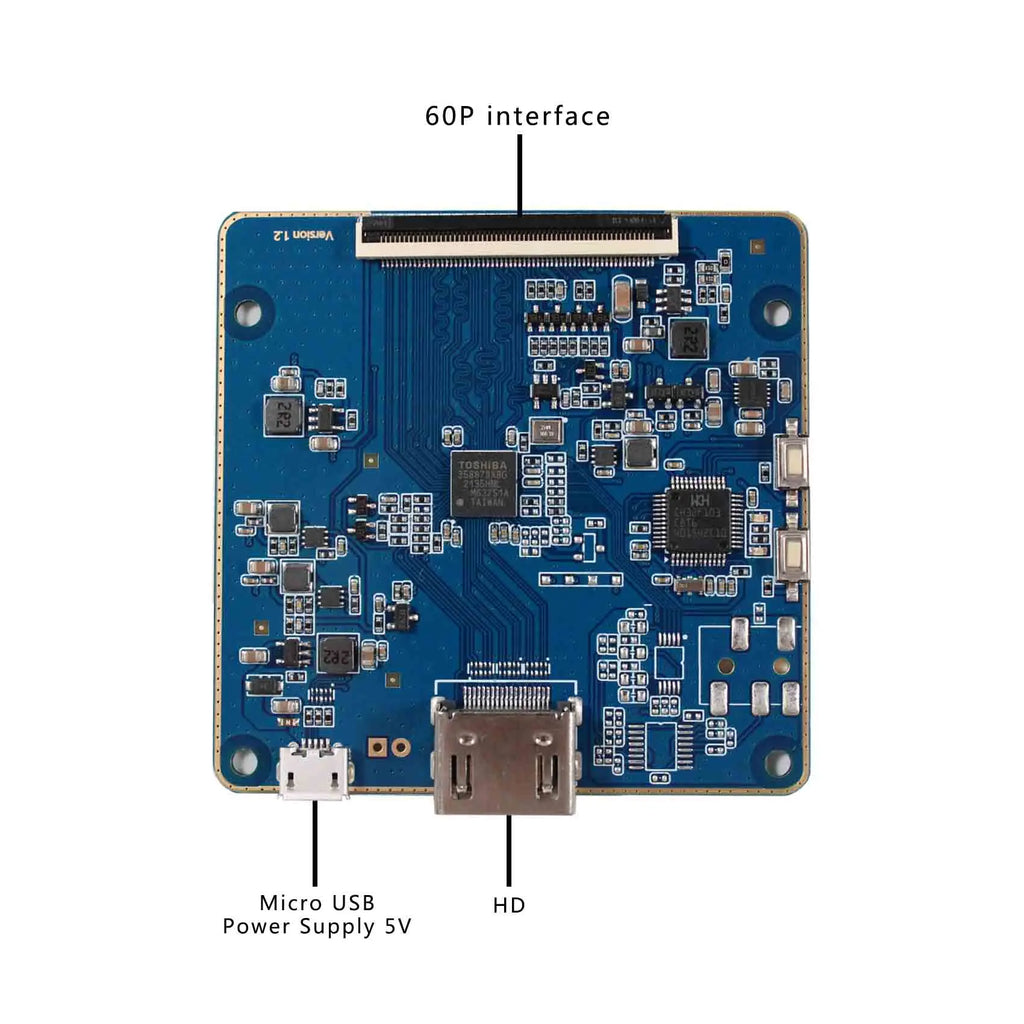

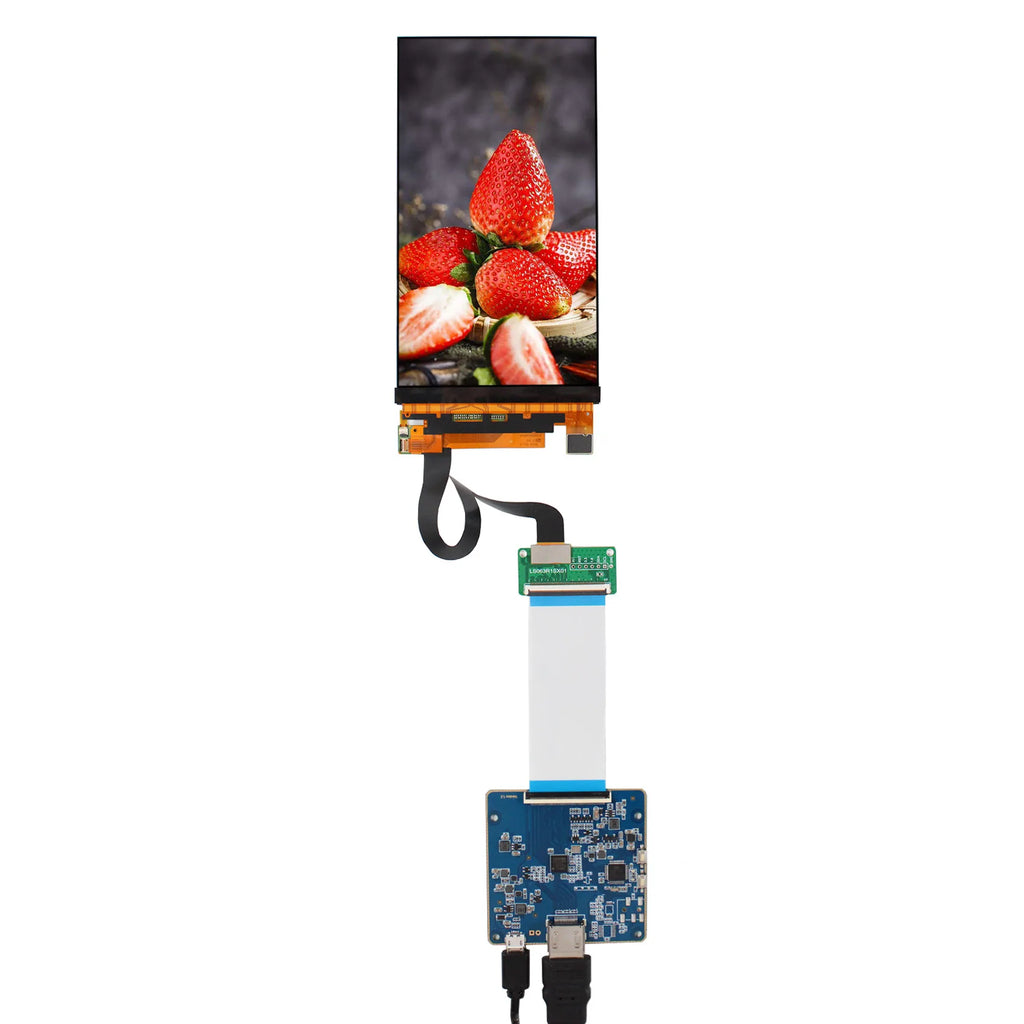

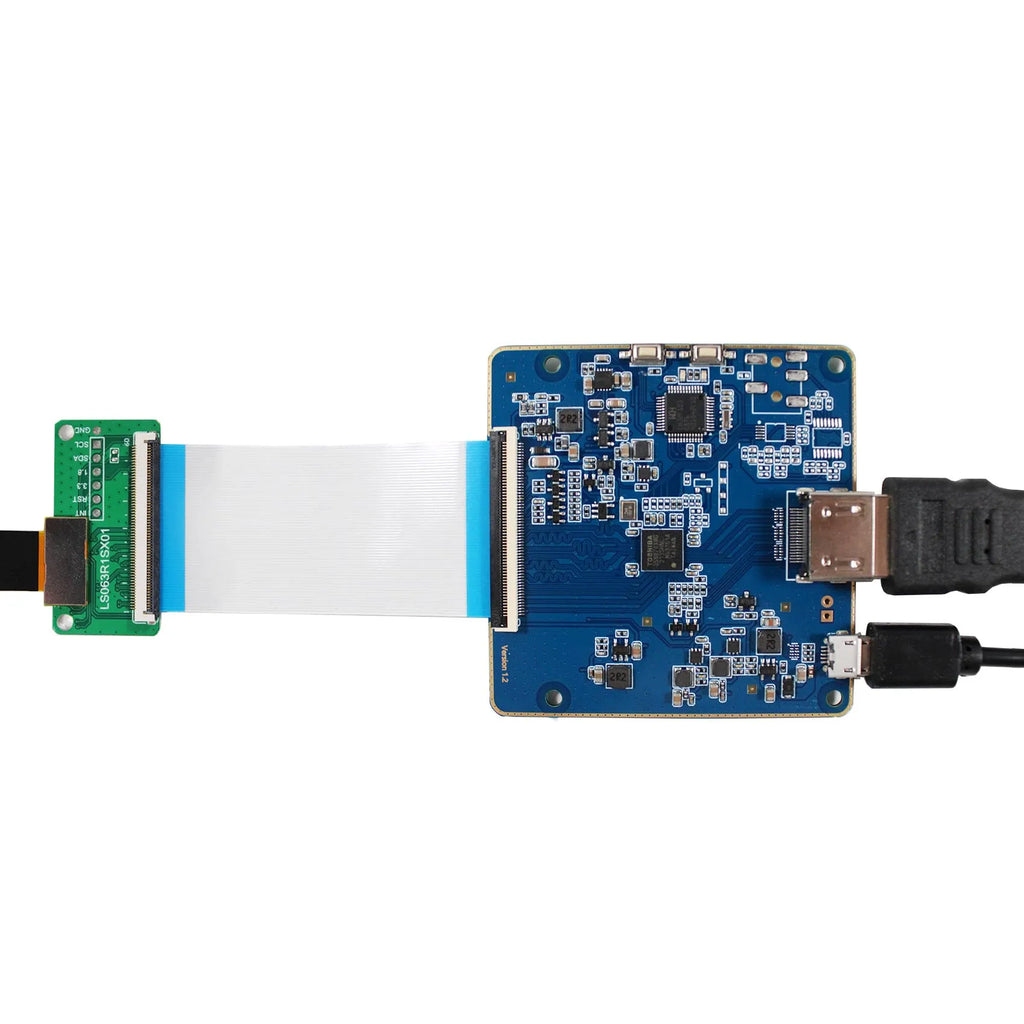

LCD Controller Board:
Driver Board Work for 50Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HD
Board Size: 65mm x 64mm x 3mm

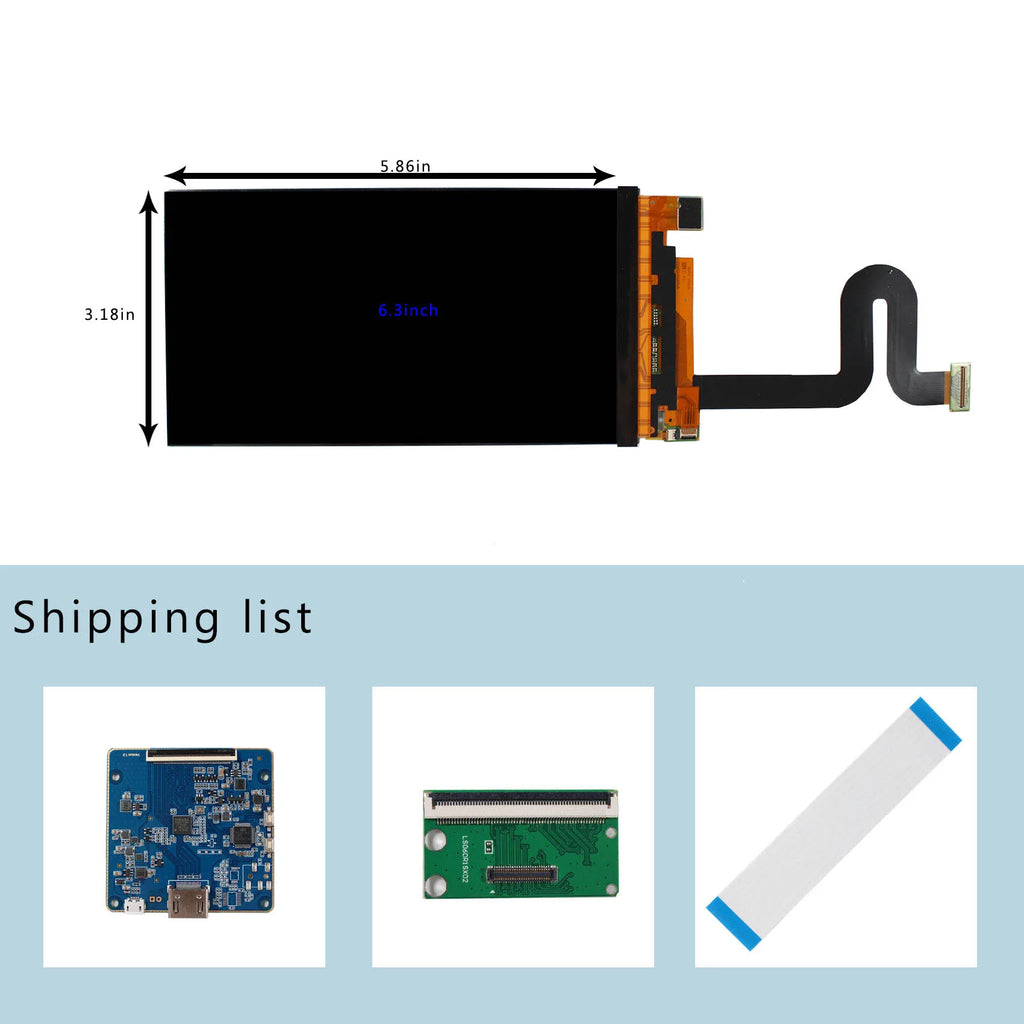

6.3" LS063R1SX01 1440X2560 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1440(RGB)×2560
Outline Size 80.84×148.92×1.58(H×V×D)
Display Area 78.84× 140.16 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) ,60 pins , Connector
Backlight WLED
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
Instruction:
1. When H-D signal is not accept. It shows black Image and LED flashing on main board. Please change H-D source for test.
2. When H-D accept. It shows correct image and LED is blue.
This Board work with PC and Raspberry Pi. The image not support Scaling. It shows image depend on H-D input source.

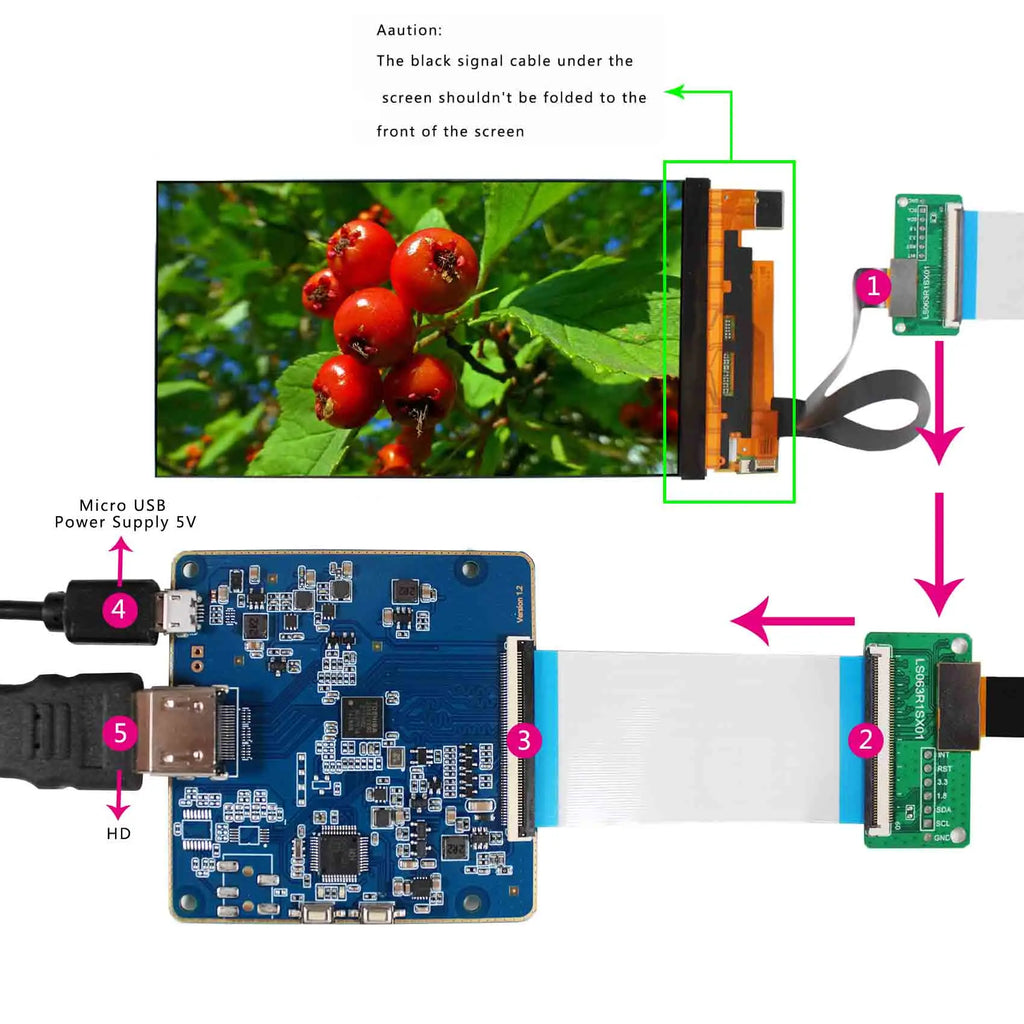

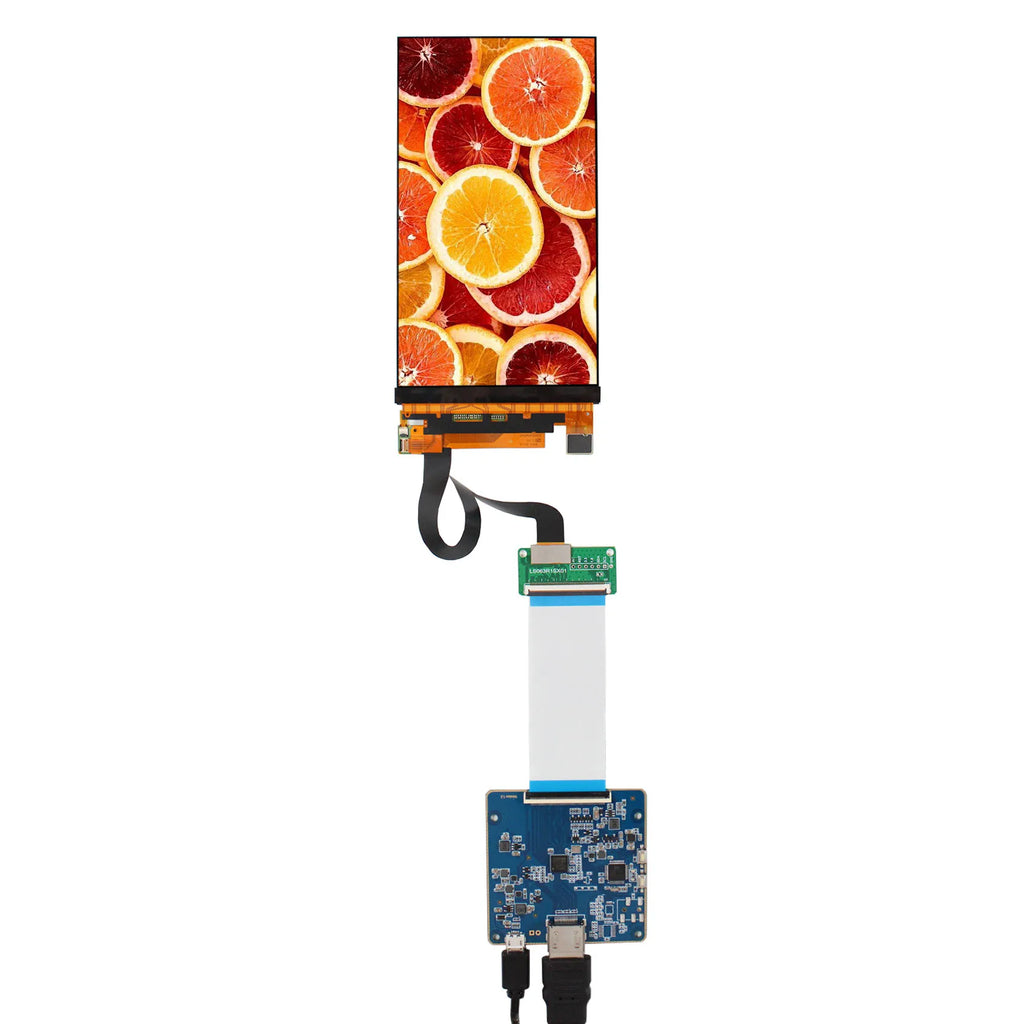

Turn On：
a、Connect Converter Board With LCD Screen Interface
b、Connect Converter Board With 60Pin Cable
c、Connect Main Board With 60Pin Cable
d、Insert H-D Type Cable
e、Turn On 5Vdc or USB as Power Supply
Turn Off：
a、Turn Off 5Vdc or Remove USB Power Adapter
b、Remove H-D Cable
c、Disconnect Main Board With 60Pin Cable
d、Disconnect Converter Board With 60Pin Cable
e、Disconnect 60Pin Cable With LCD Screen
For PC:
1. Most of MIPI screen for vertical display.Need to adjust computer graphics mode.
2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.
For Raspberry Pi
1. The Main Board Four Locating Holes Compatible With Raspberry Pi.
2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.
