6000 Counts Auto/Manual Range Digital Clamp Meter High Precision Voltage Current Capacitance NCV Ohm Hz Tester with Flashlight Lighting

    The new generation of high-performance digital clamp meter makes your work easier, more efficient and safer. Measurable AC/DC voltage, AC/DC current, frequency, duty cycle, resistance, temperature, diode, continuity, NCV, etc.

       Features:

    Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance.

It features hold result and max value buttons that makes it quicker and easier to use.

A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.

LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.

Hold and backlight button:The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.

Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.

Auto power off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.

Multifunctional: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc.

Wide range of applications, ideal for home and professional use, automotive, home and industrial electrical troubleshooting.

       Specifications:

    Brand Name: HABOTEST

Color: Red

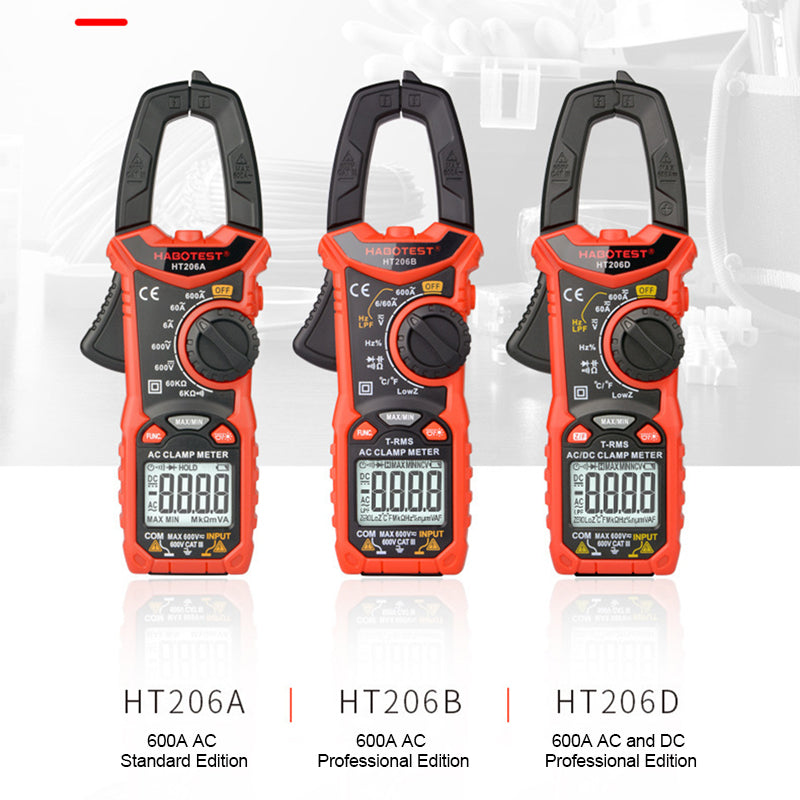

Model: HT206A/HT206B/HT206D(optional)

Material: ABS

Display: LCD Display

Jaw Opening: 25cm

DC voltage: 600mV/6V/60V/600V(±0.5%reading+5)

AC voltage: 6V/60V/600V(±1.0%reading+5)

AC current: 6A/60A/600A(±2.5%reading+8)

Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ(±1.0%reading+5)

Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF

Duty cycle: 1-99%

Frequency (Hz): 10Hz~10MHZ

Maximum count: 6000

Temperature: -40~1000℃ / -40～1832℉

Power Supply: 2* 1.5V AAA Batteries (Not Included)

Operating Temperature & Humidity: 0-40℃ (＜80%RH ,＜10℃ non-condensing)

Storage Temperature & Humidit: -10-60℃ (＜70%RH,remove the battery)

MAX.Voltage between terminals and earth ground: 600V

Over range indication: it displays ''OL''

Continuity: orange backlight on

       NOTE:

    The voltage over 600V can't be measured; otherwise the instrument may be damaged.

Be careful when measuring high voltage to avoid electric shock or personal injury.

Test the known voltage with the meter before use, confirm the instrument function is intact.

Please allow 1-3cm differences due to manual measurement.

       Package list:

    1 * Digital clamp meter

2 * Test Lead

1 * User Manual(English)
