Instruction

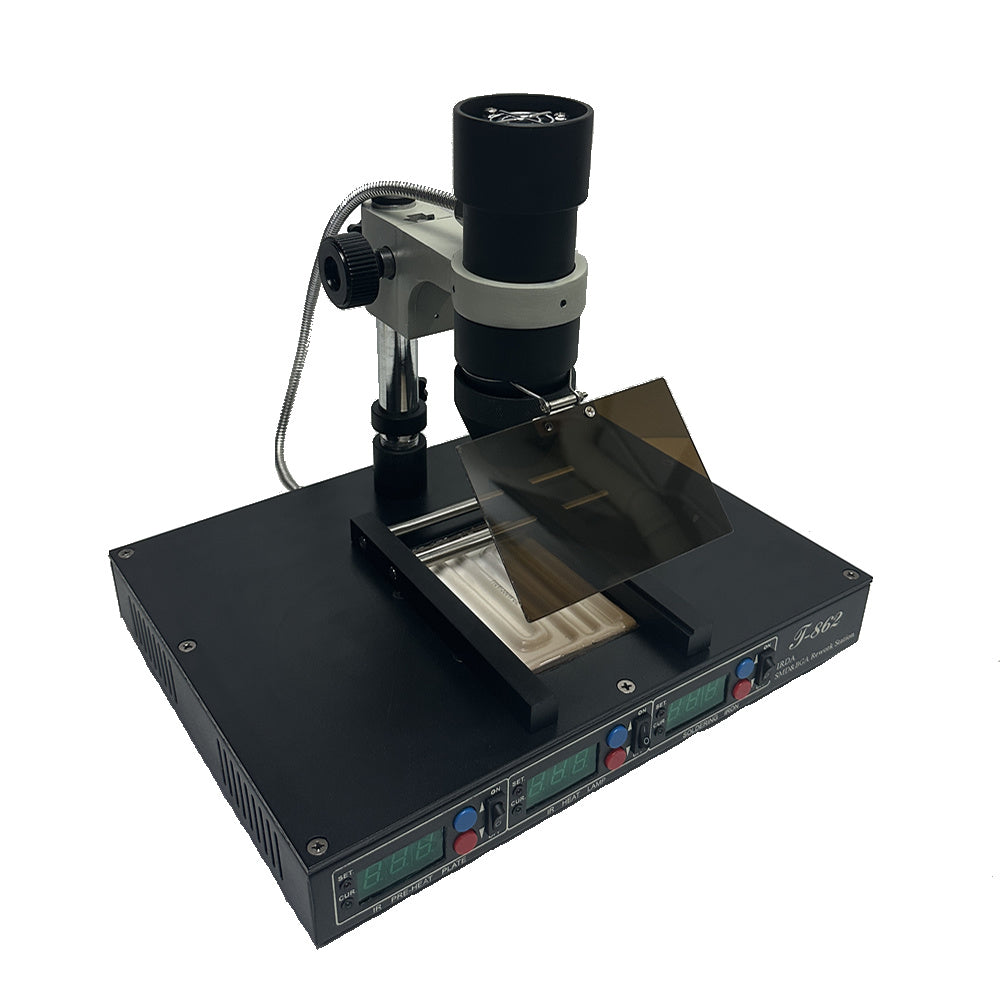

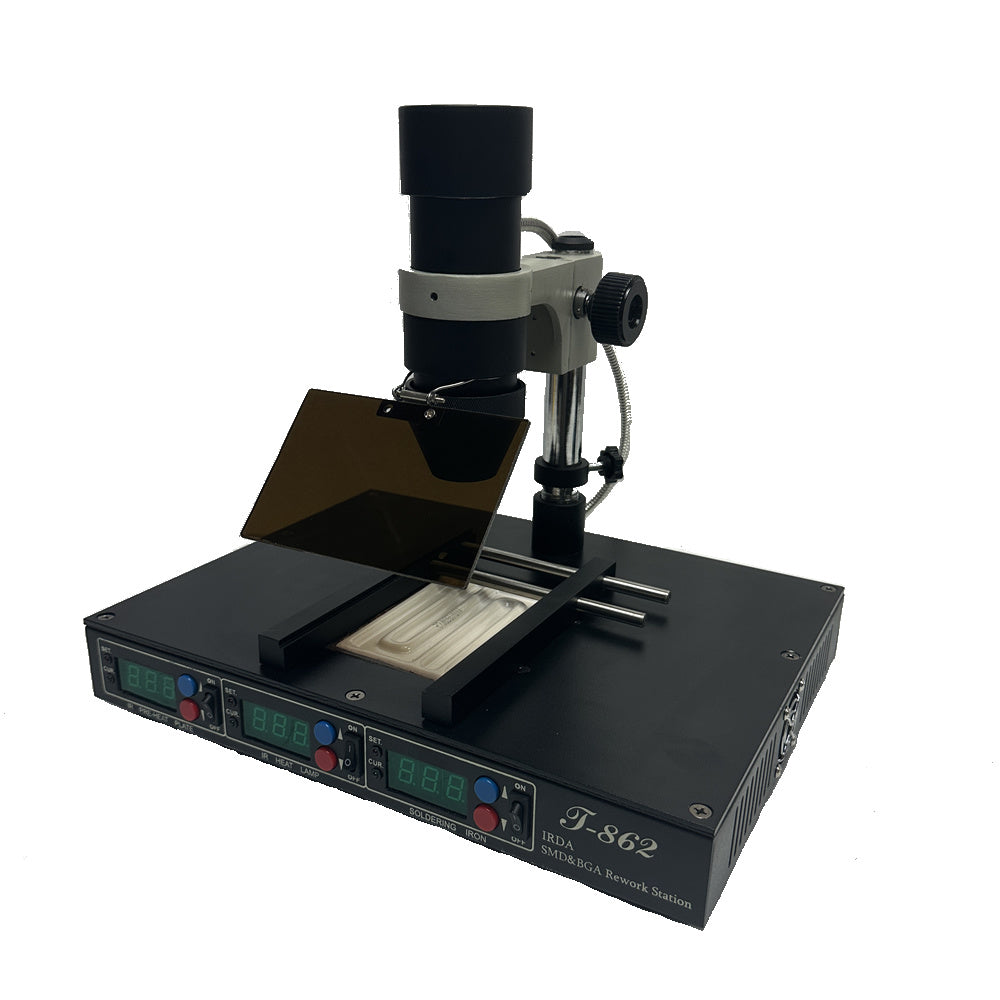

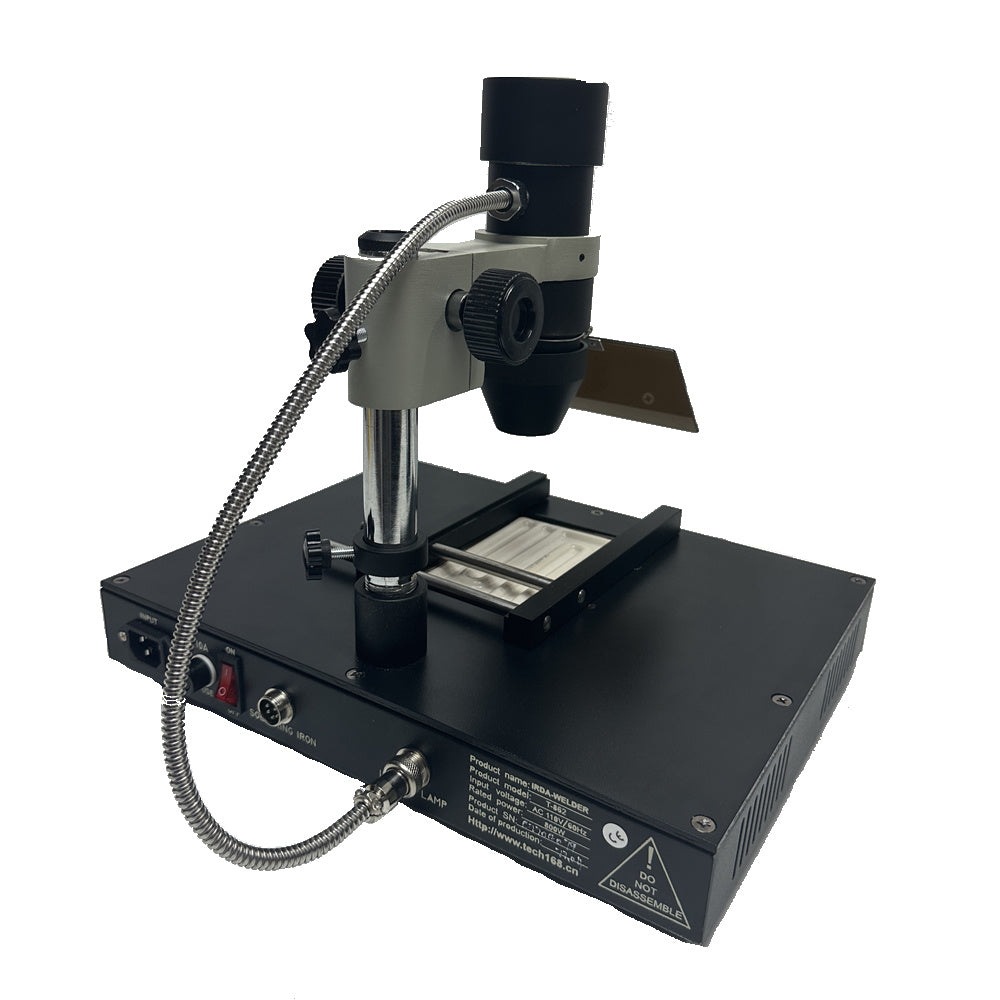

Unlike Air Re-Work systems, The PUHUI T-862 uses an Infrared source and optics to target heat to individual components without dislodging other SMT parts by the way of eddies air currents.
Infrared soldering technology with independent exploration capabilities via the focus lenses which is included in the package.
Technician focused infrared heat is easy to target most component removal/replacement and rework.
Infrared heat source bulbs are long-lived, in-expensive and easily replaced.
Processor controlled set-point regulated temperatures with thermocouple feed-back.
Integrated and adjustable Infrared (IR) eye protection.

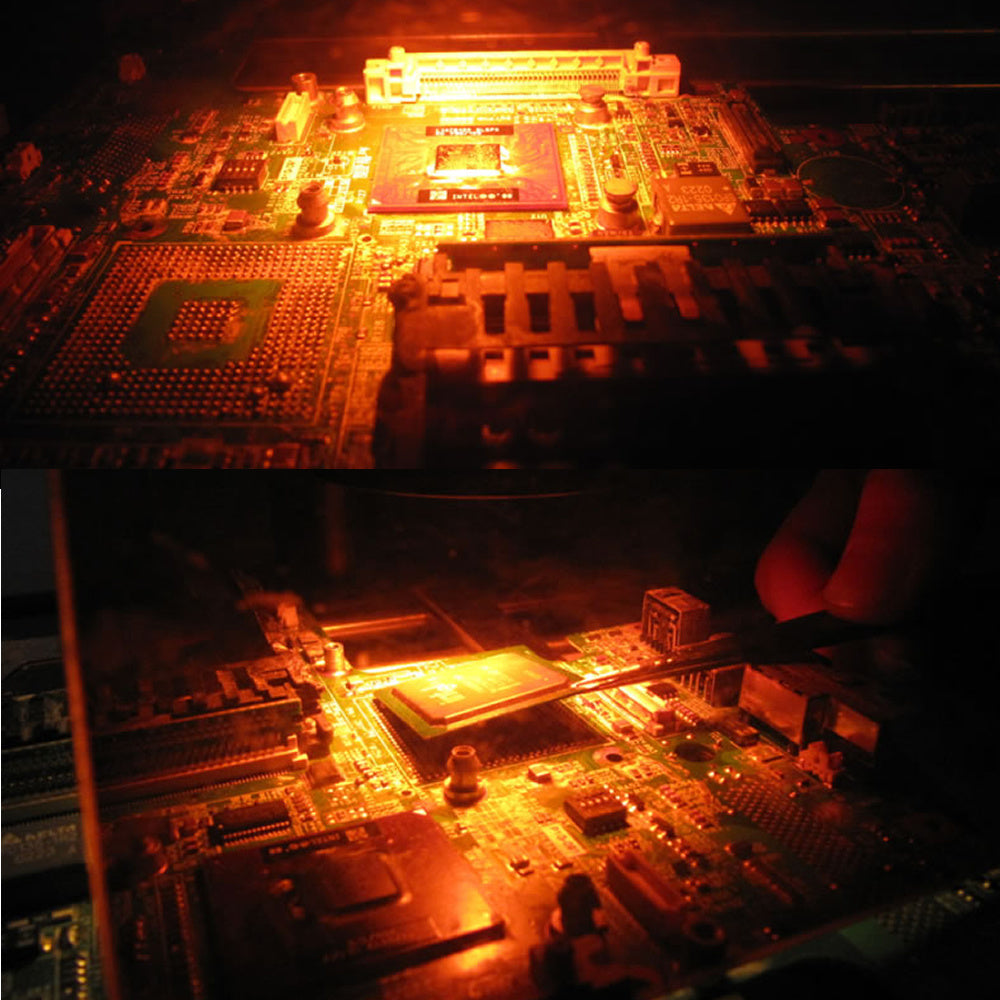

Can suitable for the entire component, especially Micro BGA component.
The T-862 system also contains a temperature controlled touch-up iron and stand.
Extra soldering tools are not necessary to solder/unsolder and re-work Surface Mount Technology (SMT) components18X18cm in size.

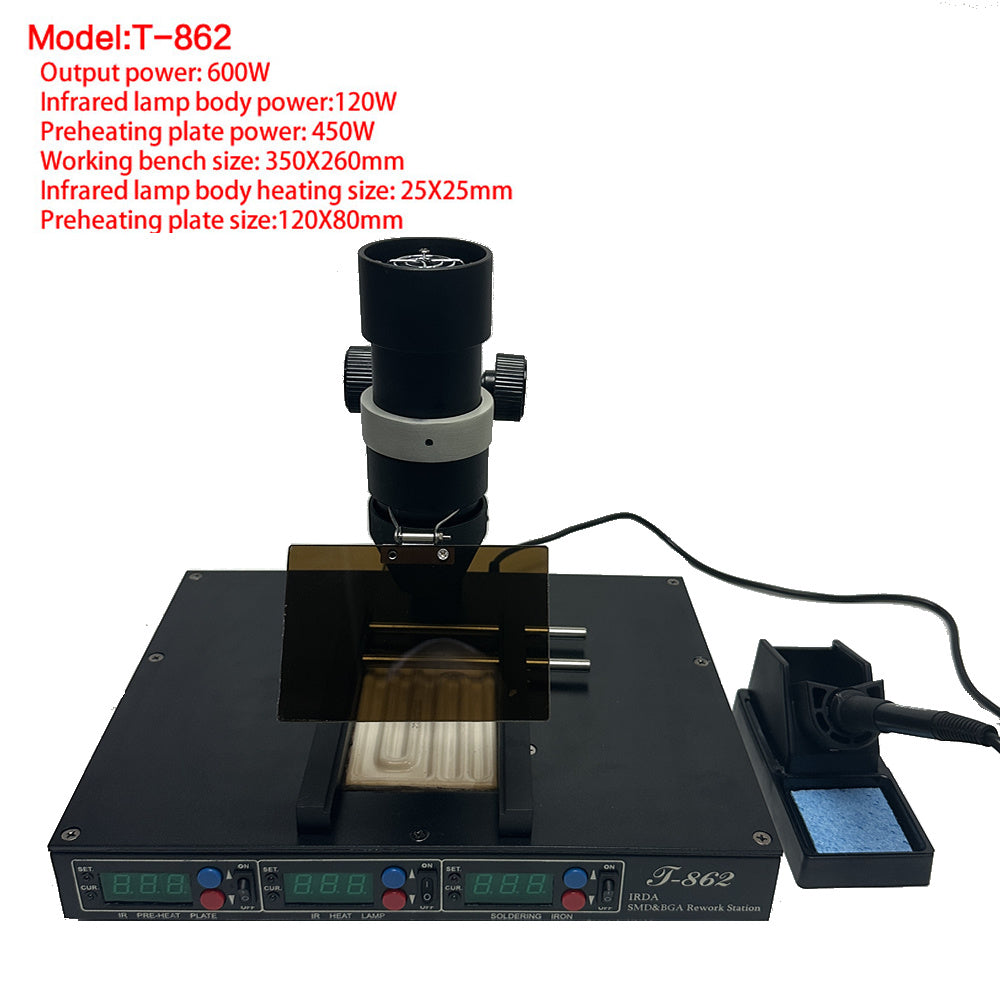

Technical Parameters
Output power: 600W
Infrared lamp body power: 120W
Pre-heating plate power: 450W
Working bench size: 350X260mm
Infrared lamp body heating size: 25X25mm
Pre-heating plate size: 120X80mm
Preheating plate temperature range: 60-200 degrees
Infrared lamp body temperature range: 100-350 degrees

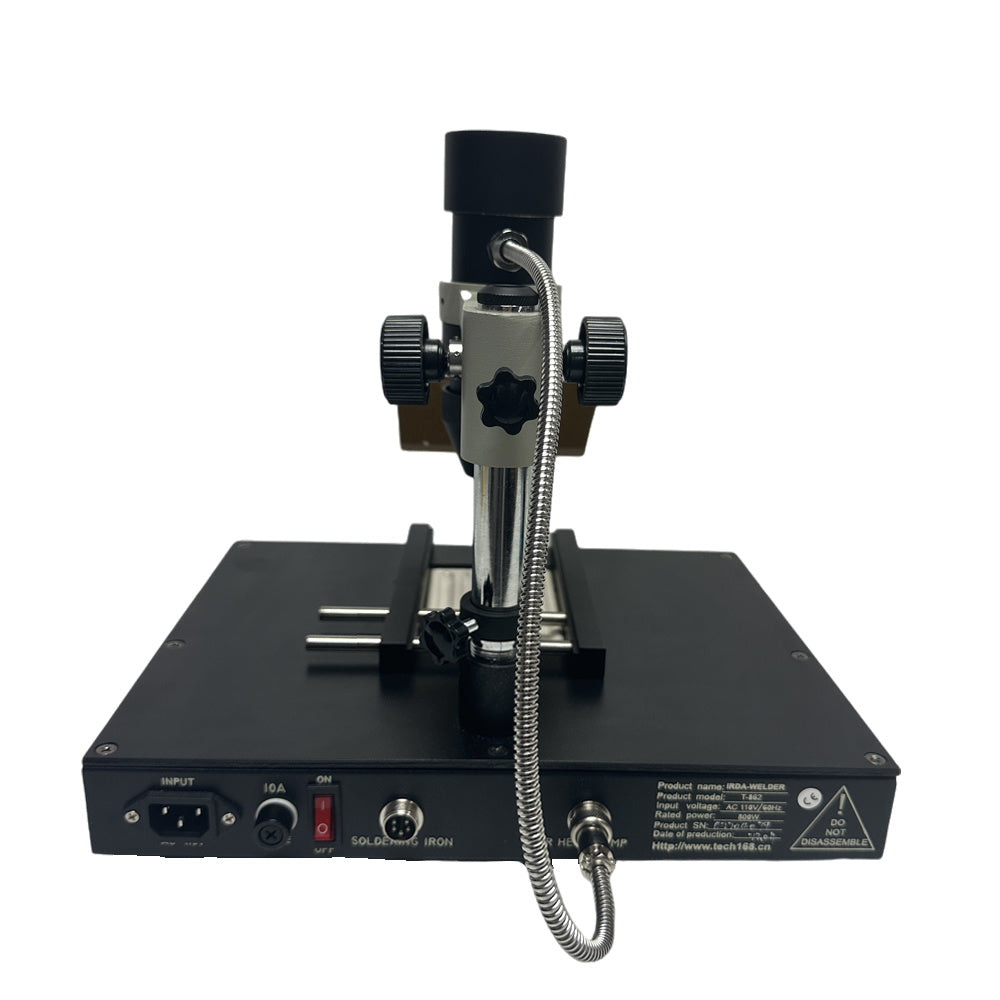

Working Voltage: AC220V/50Hz and AC110V/60Hz
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
