7 inch Video Intercom Door Phone RFID System With HD Doorbell 1000TVL Camera
with Home Stainless Steel Electronic Door Lock
Features:
1.Support 2000 user ID card ,with 2 special cards, one is to delete information in the card and another
is to record information.
2. ID unlocking and electric-controlled unlocking.
3. Outdoor camera with rain shade can avoid direct sunshine.
4. Nano-glass cover promises clear image.
5. Night vision.
6.TFT color screen with low power consumption, no radiation and high definition.

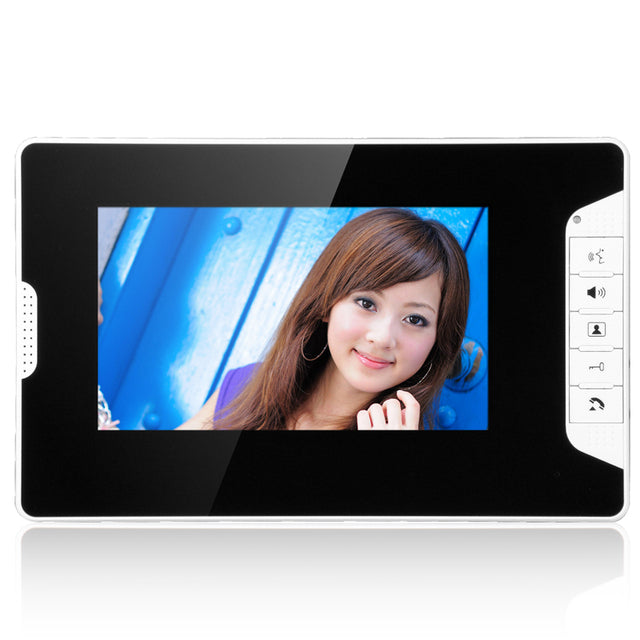

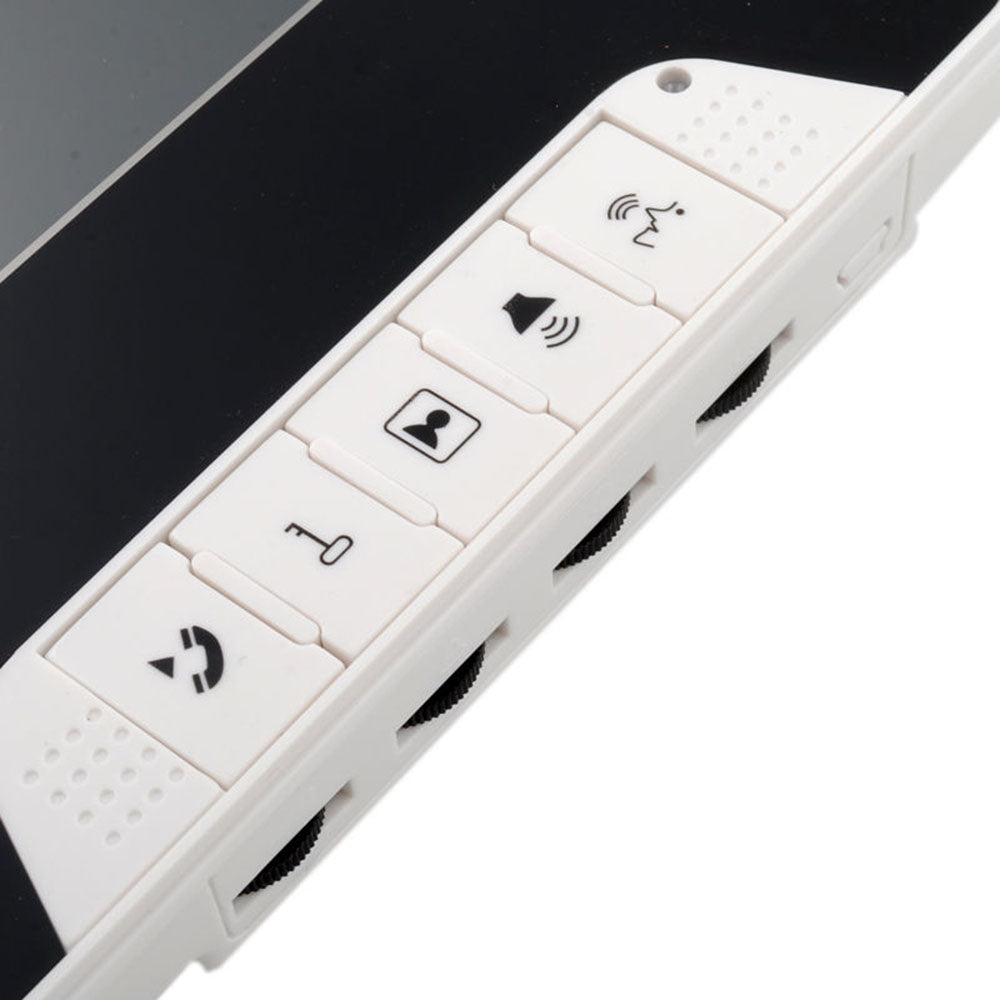

7.Indoor monitor with monitor,intercom,unlock.
8. Brightness, chroma and volume adjustable.
9. 25-chord melody rings for option.
10. Enclosed an adapter and 5m cable for DIY installation
Performance data:
1.Monitor Display:7" TFT LCD(16:9)
2.Resolution:960(H)X480(V)
3.Night vision illumination distance; more than 2 meters
4. Camera angle: 92 C degrees wide-angle 1000TVL Camera
5.Adapter input voltage: AC100-240V 50Hz-60Hz
6. Adapter output voltage current: AC15V 1200mA
7.Talk time delay: 120S
8. Monitor time delay: 60S

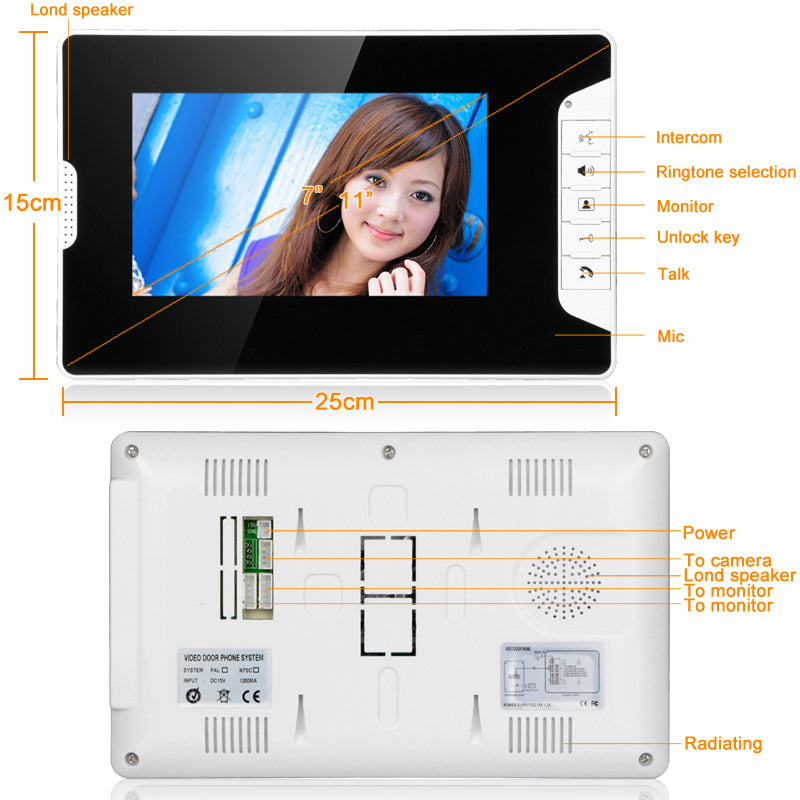

9. Monitor Dimensions: 240*165*30mm

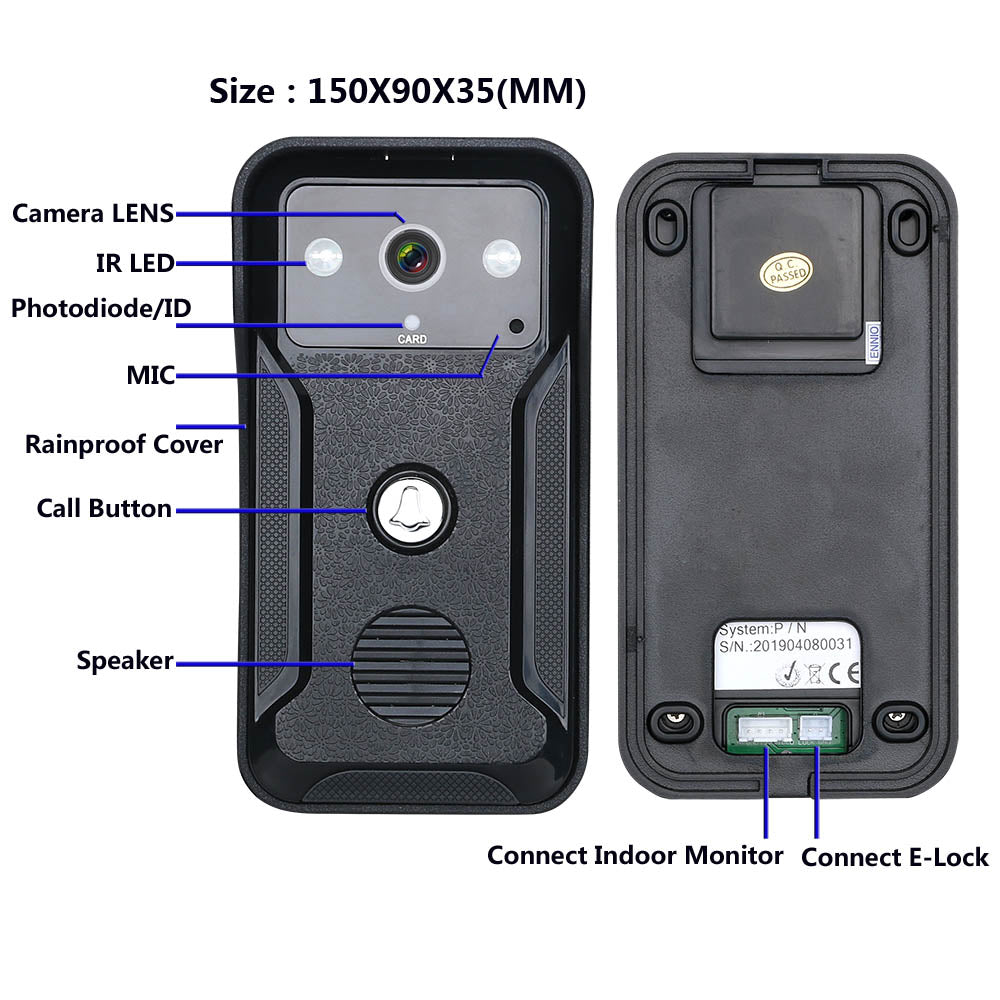

10.Outdoor Dimensions: 150*90*35mm

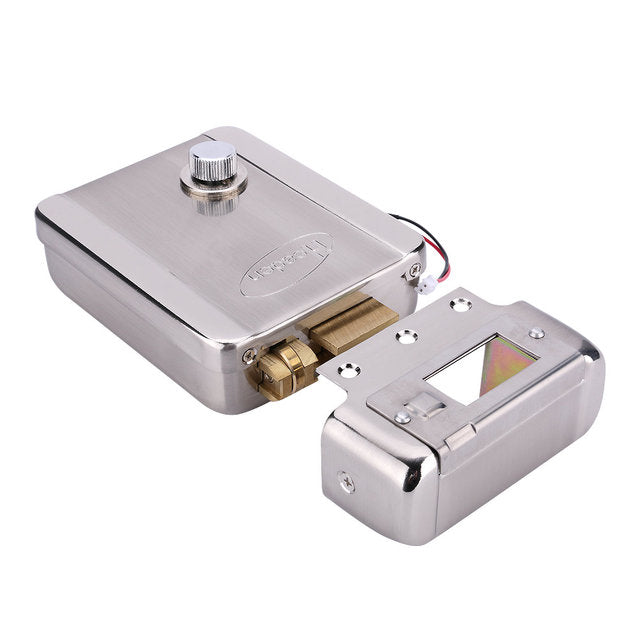

Door Lock Specification
Working voltage: 12VDC
Opening Voltage: 9 to 18V
Working current: 150mA
Material: stainless steel
Dimension: 130mm(L) x 105mm(W) x 37mm(H)
Life time: 500,000 times

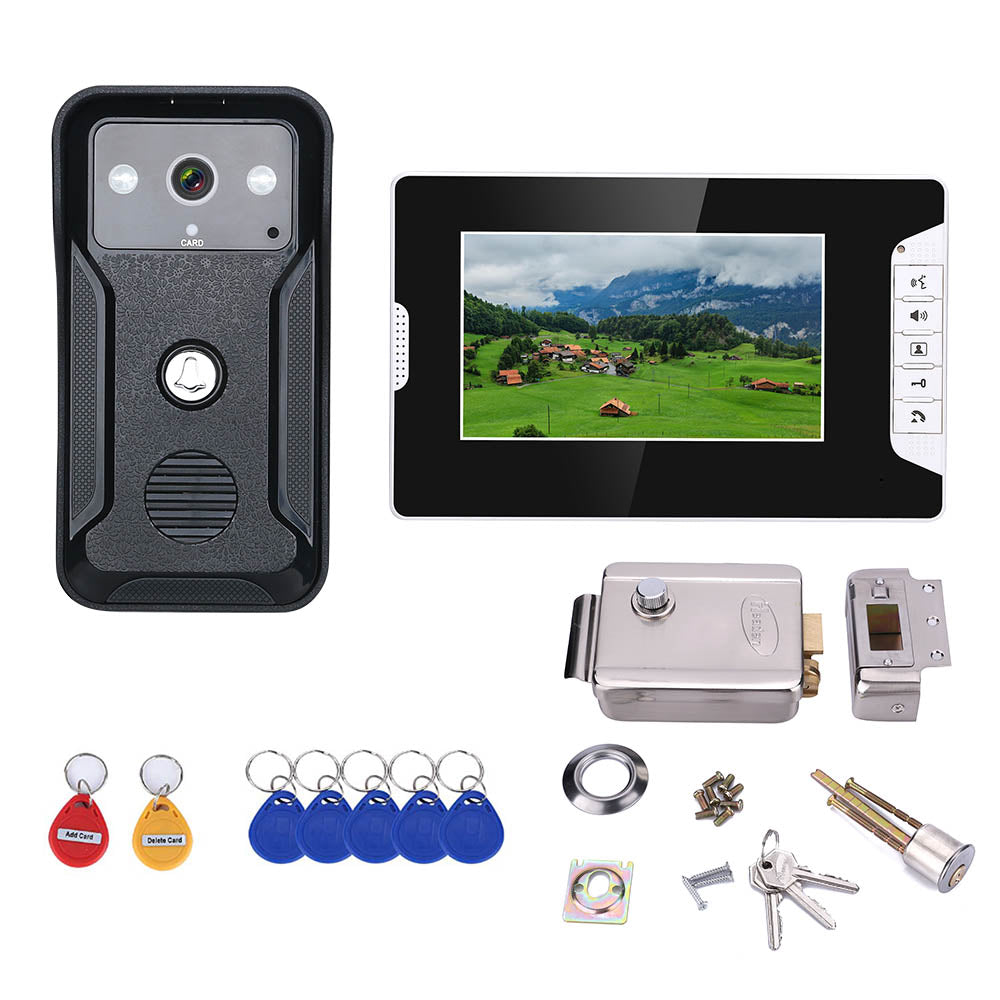

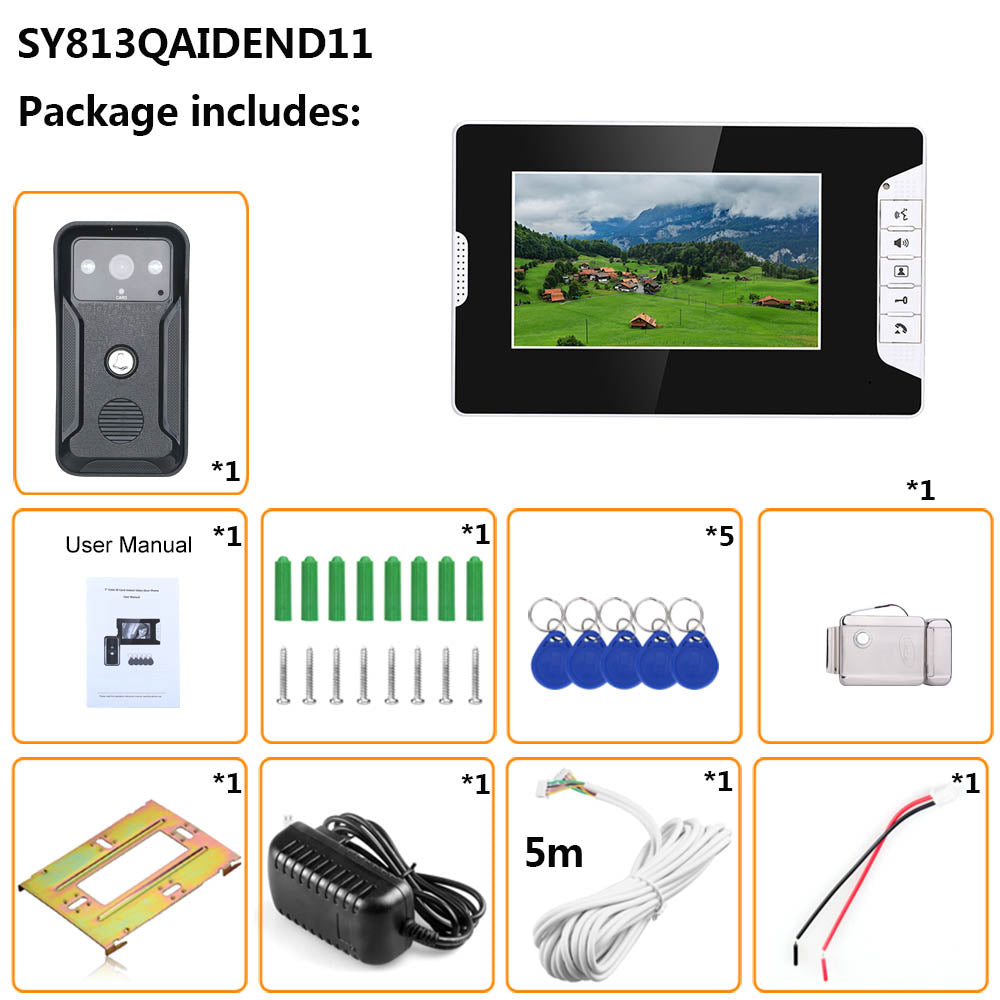

SY813QAIDEND11 Item Includes:
1 x 7 inch TFT LCD Screen
1 x 1000TV Line ID outdoor camera
1 x 15V 1.2A Power Supply
5 x ID Cards
1 x Mounting plate
1 x 5M Cable
1 x Screw bag
1 x Door Lock
1 x Manual

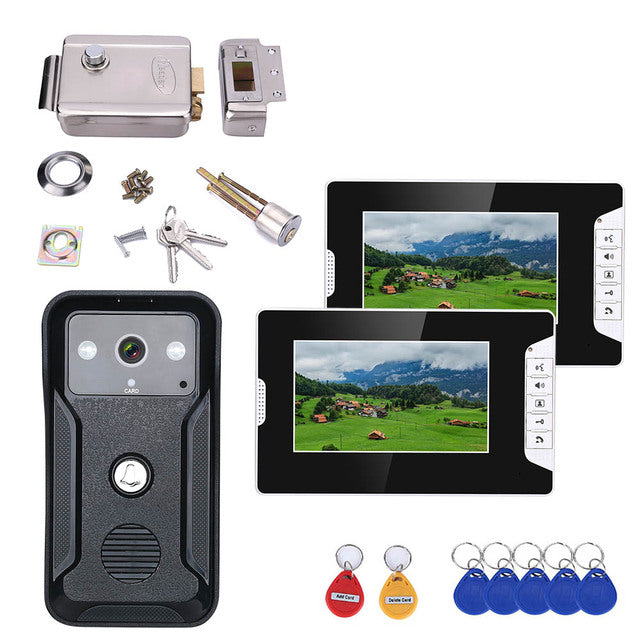

SY813QAIDEND12 Item Includes:
2 x 7 inch TFT LCD Screen
1 x 1000TV Line ID outdoor camera
2 x 15V 1.2A Power Supply
5 x ID Cards
2 x Mounting plate
2 x 5M Cable
1 x Screw bag
1 x Manual
1 x Door Lock
SY813 only monitor Item Includes:
1 x 7 inch TFT LCD Screen
1 x 15V 1.2A Power Supply
1 x Mounting plate
1 x 5M Cable
1 x Manual
QAID outside unit Item Includes:
1 x 1000TV Line ID outdoor camera
5 x ID Cards
1 x Screw bag
1 x Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
