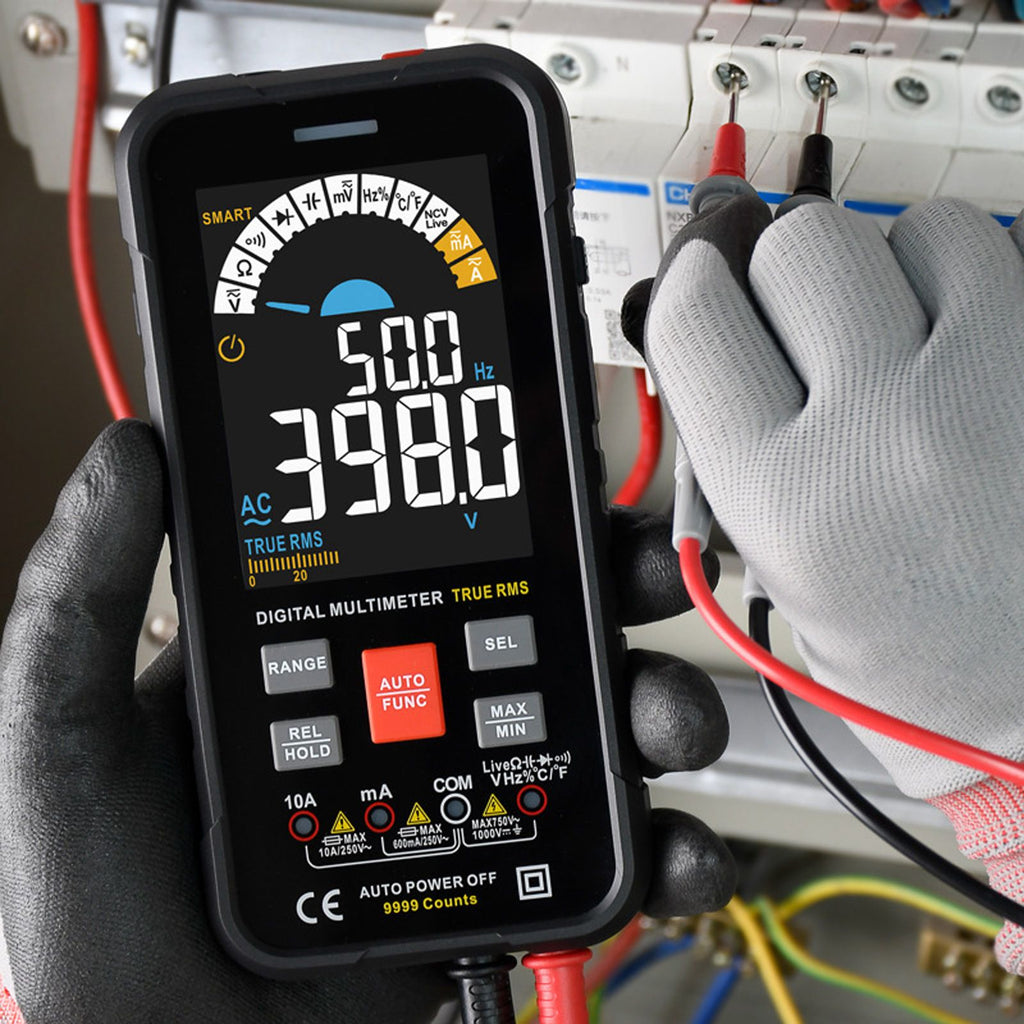

Digital Voltage Meter Capacitance Tester RMS REL Ohm Hz AC DC Range 1000V 10A
Feature
2) Maximum display: Maxium 9999 Counts display
3)Auto range and Manual Range
4) Sampling Rate: About 3 times per second
5) Over range display: the highest position shows "OL"
6) Low voltage display: low battery indication
7) Working environment: (0-40)°C,relative humidity ＜80%
8) Power Supply: 3x1.5V AAA Batteries ( NOT include)
9) Input Jack Led Indication
10) It is a stable performance, high precision, high reliability clear readings, and overload protection.
Specfication
DC Voltage: 99.99mV/999.9mV; 9.999V/99.9V/1000V ±(0.5%+3)
AC Voltage: 99.9mV/999.9/mV; 9.999V/99.9V/750V ±(0.8%+3)
DC Current: 9.999mA/99.99mA/999.9mA ±(0.8%+3);
9.99A ±(1.2%+3)
AC Current: 9.999mA/99.99mA/999.9mA ±(1.0%+3);
9.99A ±(1.5%+3)
Resistance: 99.99/999.9ohm/9.999k/99.99k/999.9kohm ±(0.8%+3);
9.999m/99.99mOhm ±(1.2%+3)
Capacitance: 9.999/99.99/999.9nF/9.999/99.99/999.9uF ±(4.0%+3);
9.999mF/99.99mF ±(5.0%+5)
Frequency: 99.99/999.9/9.999k/99.99k/999.9kHz/9.999mHz ±(1.0%+3)
Duty: 01.%-99.99% ±(1.0%+2)
Temperature :-40~1000°C; -40-1832°F 2°C
Counts: 9999 counts
Display:VA Color Display Screen
Smart Function(AC/DC Voltage,resistance and continuity):yes
Auto Identification of current input:yes
Relative Measurement:yes
Max/Min/Avg.:yes
NCV/Live/Continuity test:yes(sound and light alarm)
Diode test:yes(sound alarm)
Bargraph/Data hold /True RMS:yes
Fuse Burning Prompt:yes
Input Jack LED indication:yes
Low battery indication:yes
Auto power off / Flashlights:yes
Power supply: 3pcs AAA Batteries (not include)
Product Weight: Approx.230g
Product Size: 83x23x165mm
Package Size: 170x95x50mm
Package Weight: 470g
Safety rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V
Packing Contents
1pc Multimeter
1pc pen cable
1pc cloth bag
1pc Thermocouple probe
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
