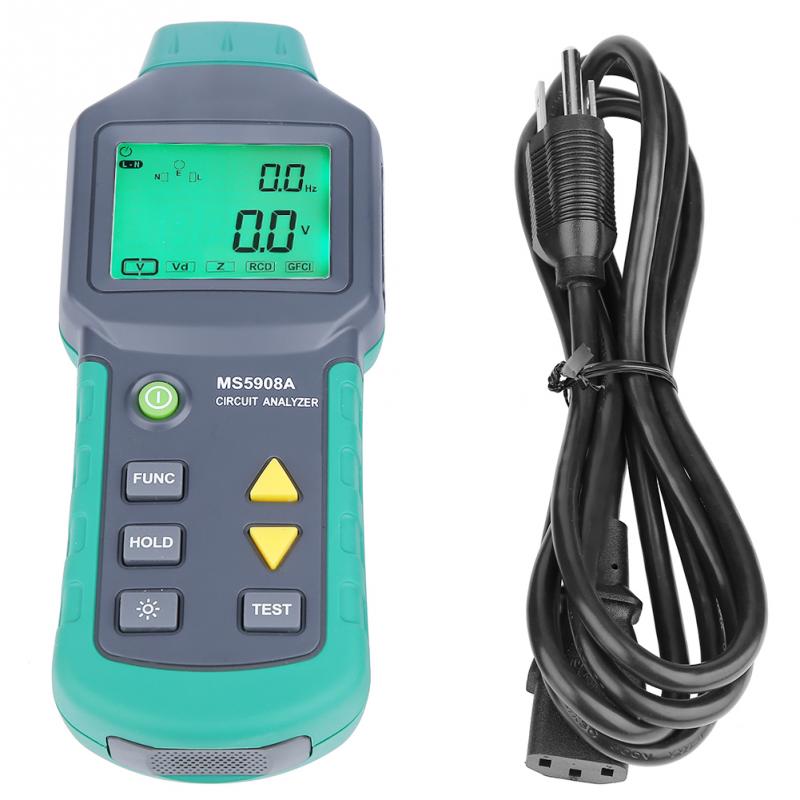

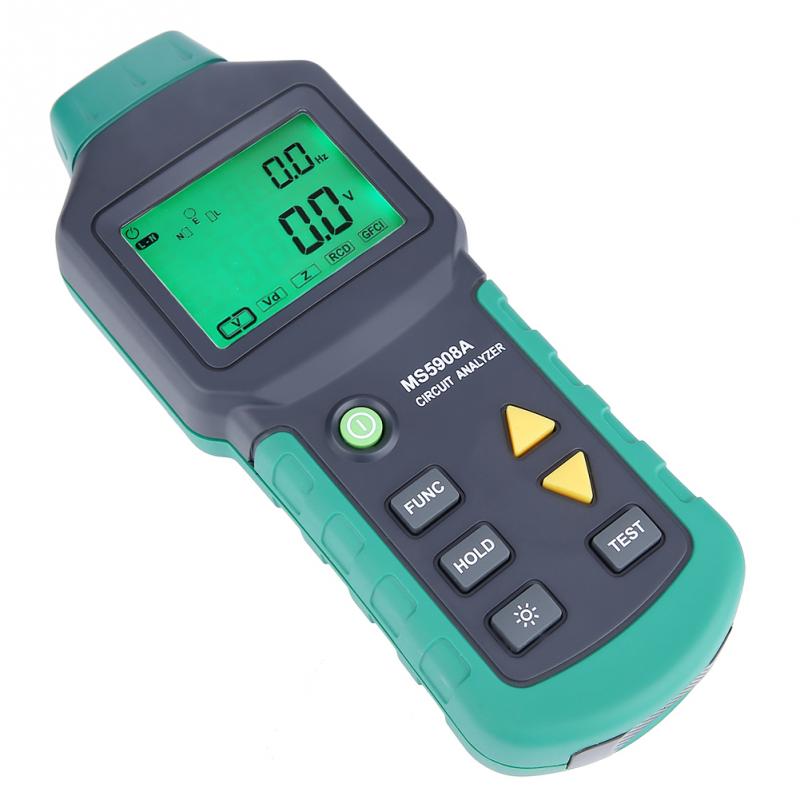

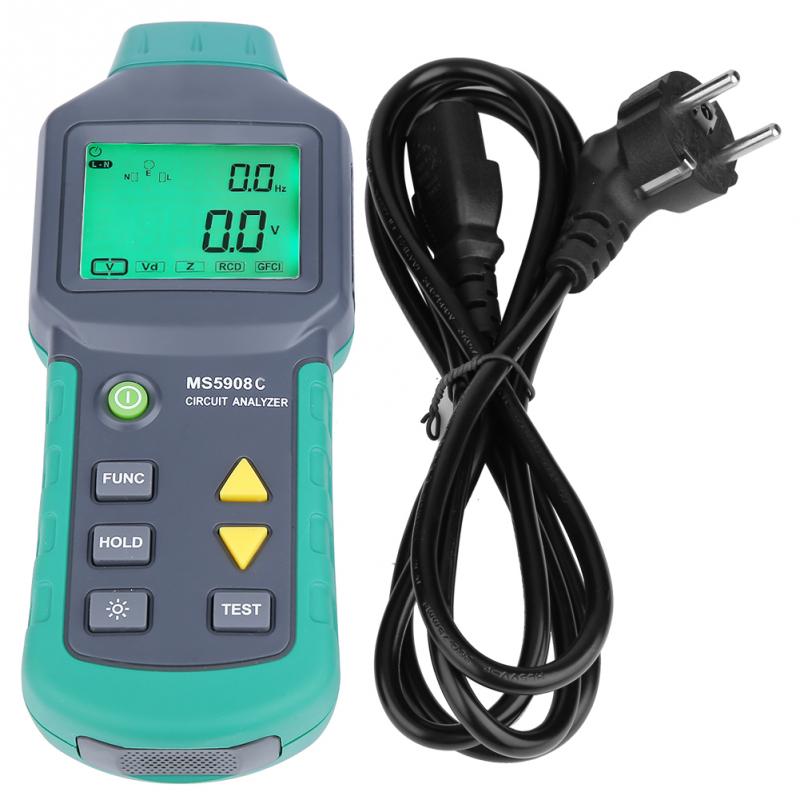

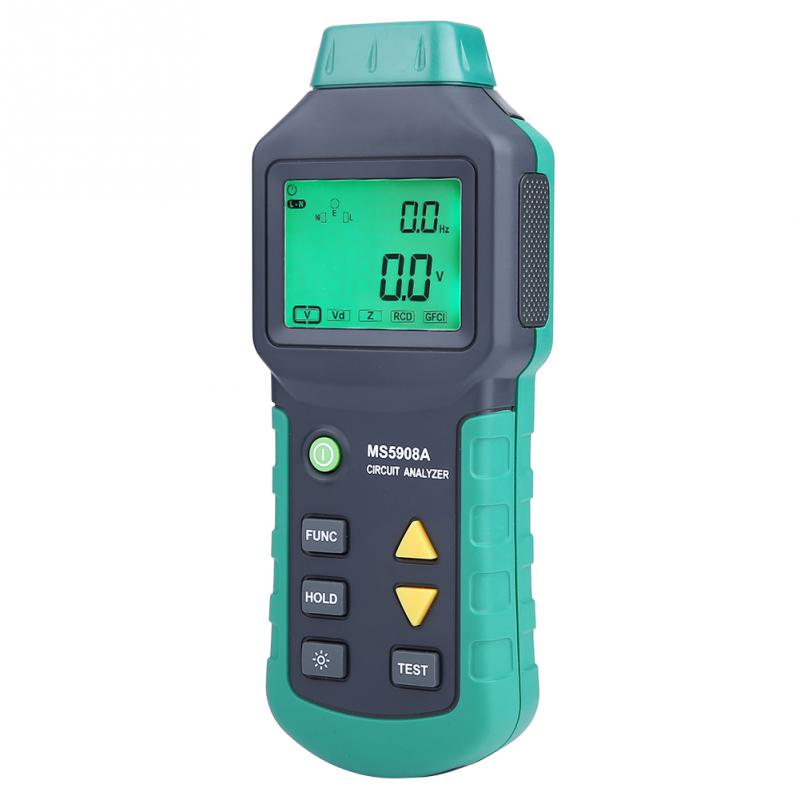

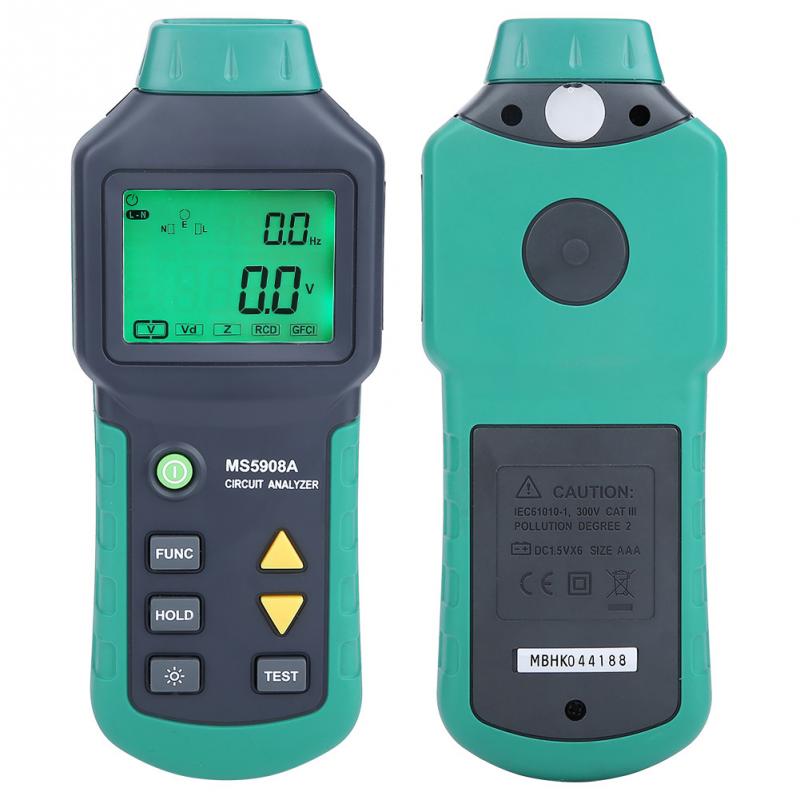

AC100-240V MS5908A/MS5908C LCD Circuit Analyzer With Voltage GFCI RCD Tester
Note:
MS5908A: The input voltage is 110V, US plug
MS5908C:The input voltage is 220V, EU plug
Features:
TRMS measuring AC Voltage
Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C)
Measuring phase voltage, neutral wire, voltage to earth, voltage, frequency
Measuring phase(live wire),neutral wire,earth wire conductor impedance
Identifying 3-wire socket connection mode(neutralfor left and live for right,having earth wire or not)
Test the reliability of residual current device(RCD) and response action time
Test the reliability of GFCI action and response action time
Backlight function and data hold function
Specification:

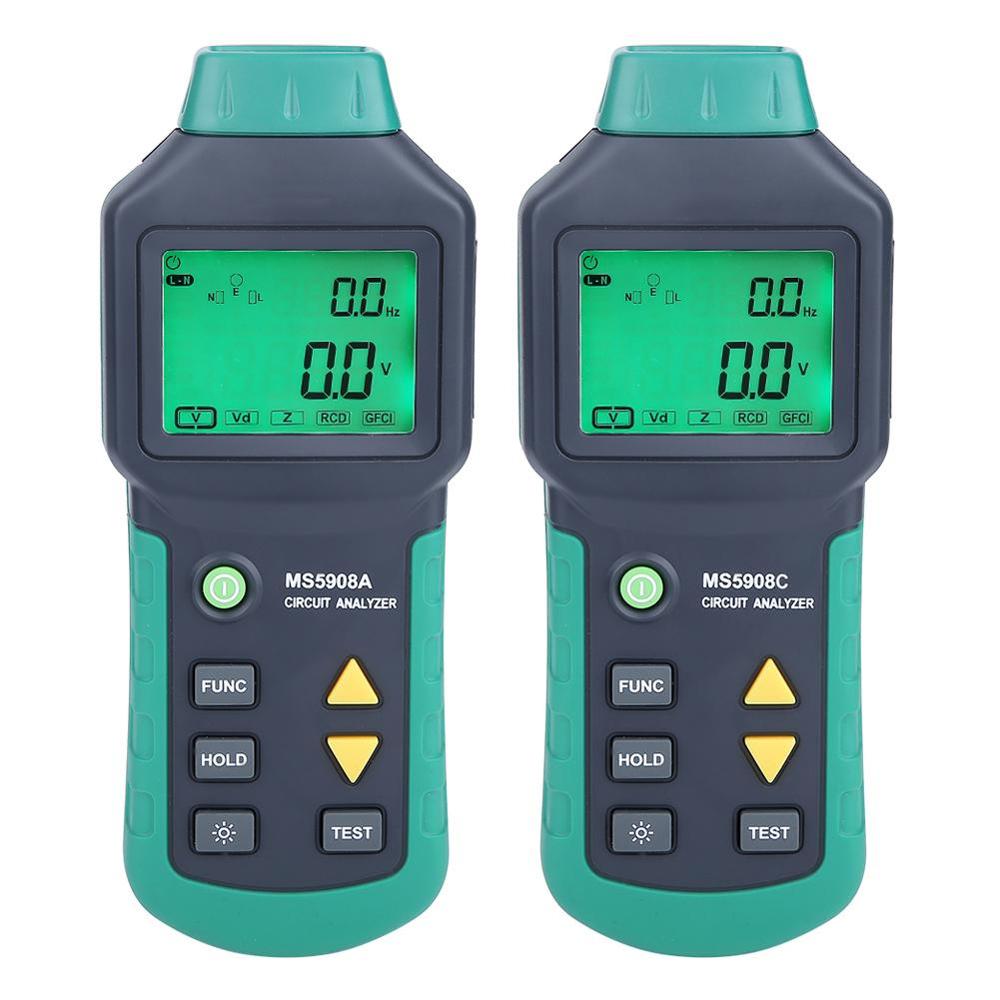

Type(Optional):MS5908A(110V, US plug), MS5908C(220V, EU plug)
Wire Voltage: 85.0~265.0V: 0.1V ±(1.0%+0.2V)
voltage: 121.0~374.0: 0.1V ±(1.0%+0.2V)
Frequency: 45.0~65.0Hz: 0.1Hz ±(1.0%+0.2Hz)
Voltage Drop: 0.1%~99.9%: 0.1% ±(2.5%+0.2%)
Voltage Loaded: 10.0~265.0V: 0.1V ±(2.5%+0.2V)
Voltage to earth ofneutral wire:0.0!10.0V: 0.1V ±(2.5%+0.2%)
Impedance for live wire,neutral wireand earth wire: 0.00~3.00&;: 0.01&; ±(2.5%+0.02&;)
RCD Triggering Time: 1ms~6.500s: 1ms ±(1.0%+2ms)
RCD Triggering Current: 30mA~37mA: 0.1mA ±(1.0%+0.2mA)
GFCI Triggering timer: 1ms~6.500s: 1ms ±(1.0%+2ms)
GFCI Triggering Current: 6mA~9mA: 0.1mA ±(1.0%+0.2mA)
Power Supply: 1.5AAA * 6(not included)
Color: green
Size: 19.5*7.5*3.3cm/7.7*3*1.3in
Weight: Approx.642g~655g/22.6oz~23.1oz
Package List:
1 * MS5908A/ MS5908C TRMS AC Voltag Circuit Analyzer
1 * Power Cable
1 * English Manual
1 * Carrying Box
