38MP HDMI USB Camera Specifications:

Image sensor: Panasonic original 38 million pixel CMOS sensor

Sensitive size: 1/2.3 inches. A larger field of view than the usual 1/3

Pixel size: 1.335μm × 1.335μm

Output interface: HDMI (Type A), USB (Type B), TF Card

Photo output: 38 million pixels (7120*5344)

Video output: 2K@30 frames, 1080p@60 frames

HDMI output: progressive 1920*1080 60 frames. Simultaneous output with USB

HDMI output ratio: support 4:3, 16:9, 16:10 screen, to ensure that the image is not distorted.

USB2.0 output (free drive): 1920*1080@30 1280*720@30 640*480@30. Simultaneous output with HDMI

TF card storage capacity: maximum 64GB

White balance: One-click white balance/automatic/manual, R, G, B can be individually adjusted

Exposure: manual/automatic. Adjustable exposure value

Crosshairs: 8 lines. Adjustable color, thickness and position

Cross tick: 2 lines. Dotted cross: 2 lines. Adjustable color, thickness and position

Sharpness, contrast, saturation, support, adjustable, black and white, negative film, support

Mirror: horizontal and vertical mirror

Language: Chinese/English

Digital zoom: support

Remote control: supported. The remote control takes pictures and videos without shaking.

Input voltage: DC 12V (support 5-19V), 55-21 large mouth

Lens interface: C/CS port

Product size: 74*74*35mm

package includes: camera, power adapter, remote control, paper manual, HDMI cable, 16G TF memory card

120X C-Mount Lens:

Zoom C-Mount Lens

0.35X C-mount adapter

Objective Magnification Power by 0.7X-4.5X

Working distance: 100mm

Maximum field of view: 27mm*15mm

Minimum field of view: 4mm*2.3mm

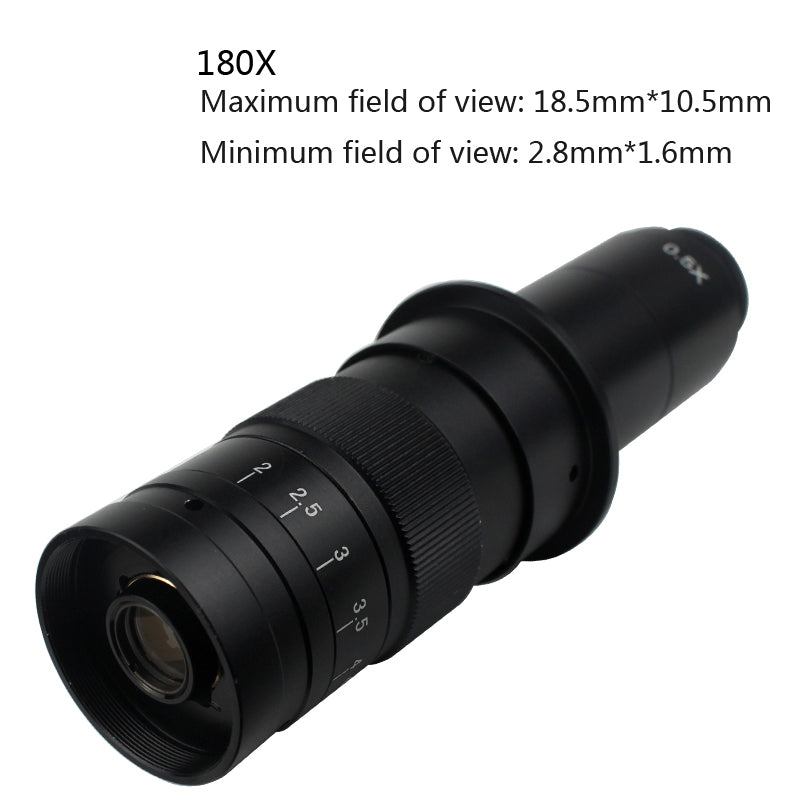

180X C-Mount Lens:

Zoom C-Mount Lens

0.5X C-mount adapter

Objective Magnification Power by 0.7X-4.5X

Workig distance: 100mm

Maximum field of view: 18.5mm*10.5mm

Minimum field of view: 2.8mm*1.6mm

300X C-Mount Lens:

Zoom C-Mount Lens

1X C-mount adapter

Objective Magnification Power by 0.7X-4.5X

Working distance: 100mm

Maximum field of view: 9.5mm*5.5mm

Minimum field of view: 1.5mm*1mm

LED light source:

144 LED bulbs

100,000 hours of life

Strong and concentrated shadowless lighting

Brightness 0-100% adjustable, high brightness

Variable intensity control

Power input: 100-240V AC, 50-60HZ

Suitable lens diameter: 30mm-61mm

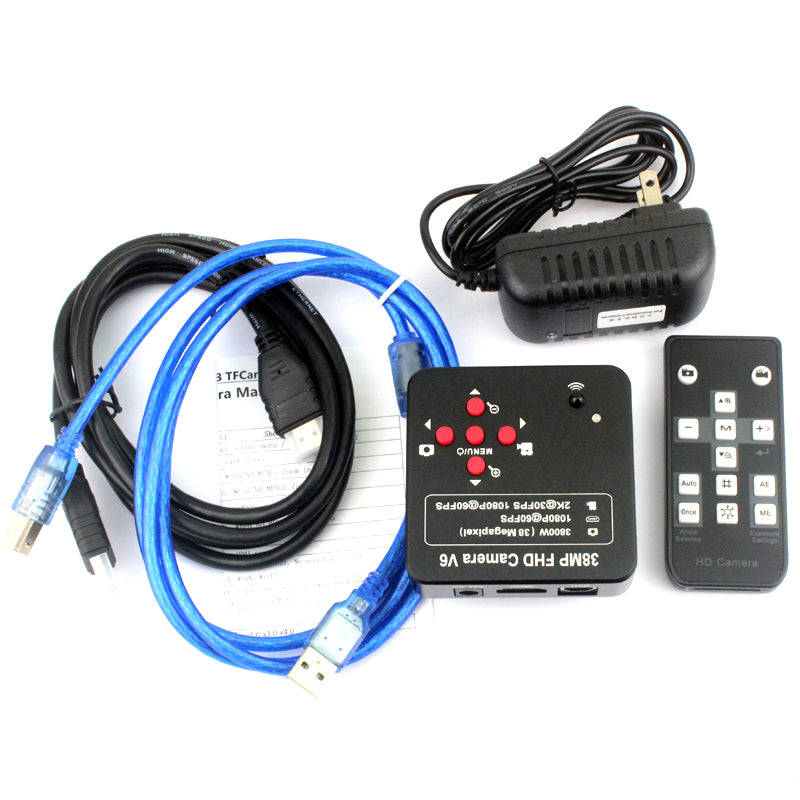

The packaging includes:

1 x HDMI USB Camera

1 x Power Supply

1 x Remote Control

1 x HDMI Cable

1 x8G TF card

1 x paper manual

1 x C mount Lens

1 x Microscope Focusing Bracket

1 x 144 LED Light Source

1 x High temperature resistant working pad

1 x 8GB TF card
