Description:

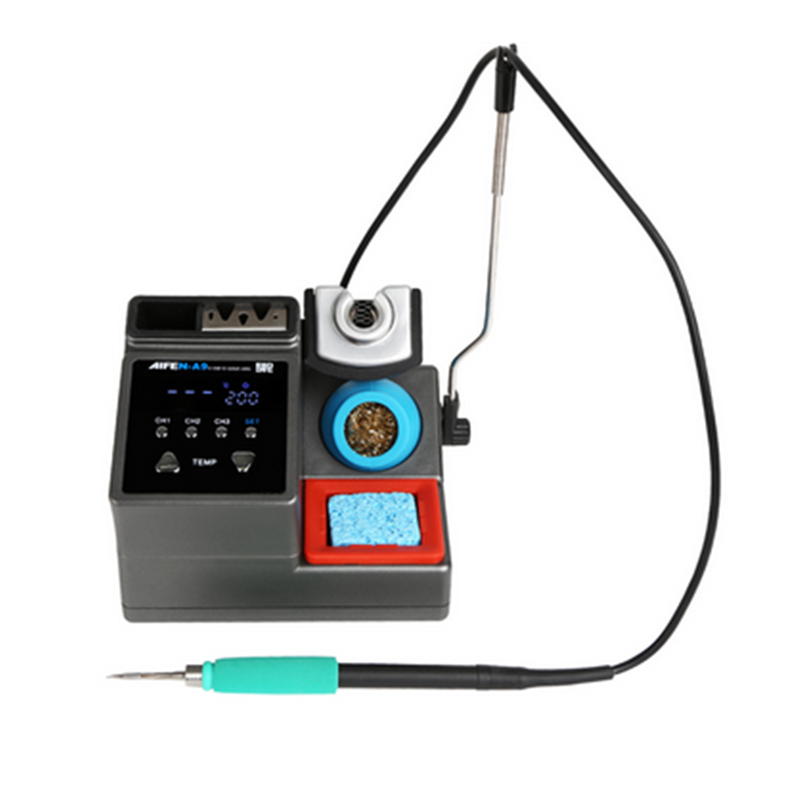

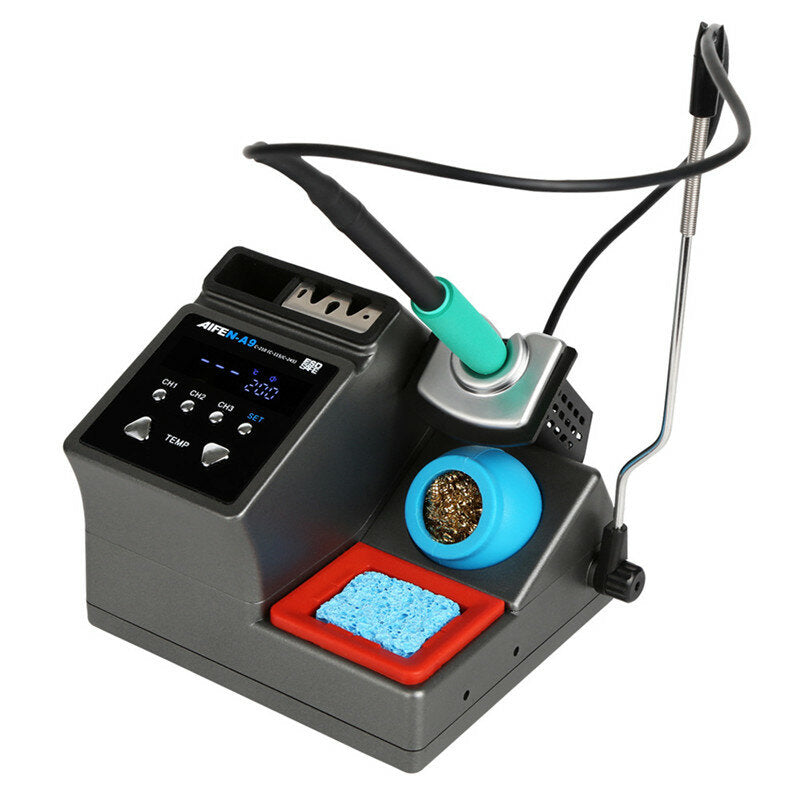

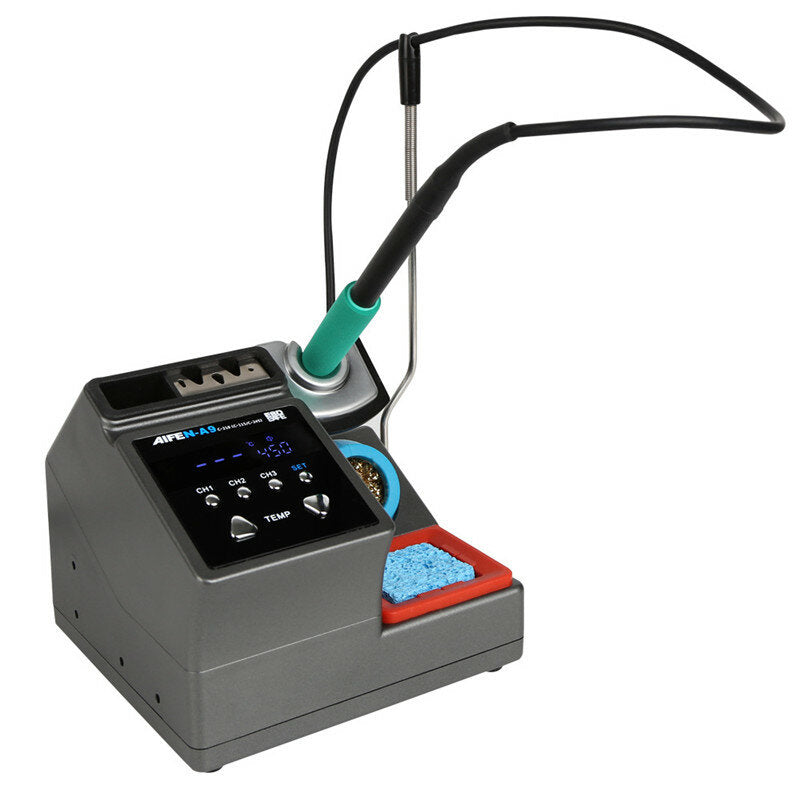

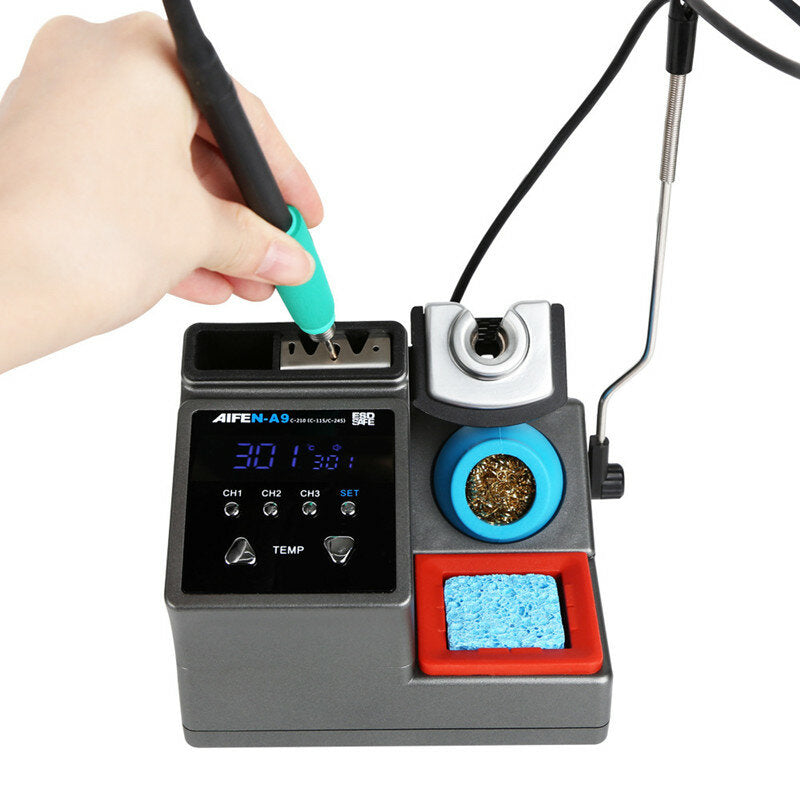

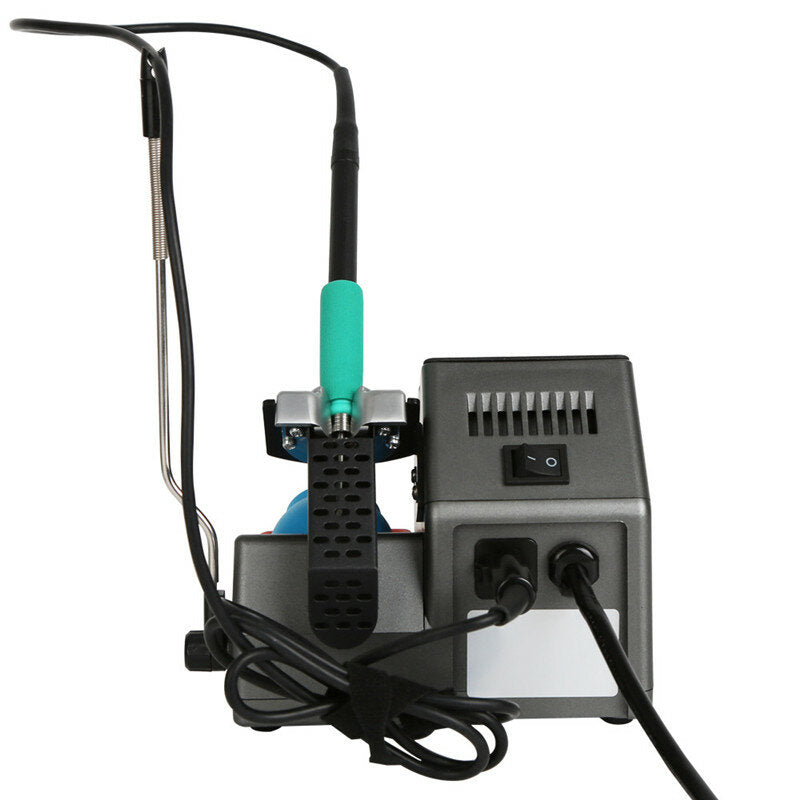

AIFEN-A9 is an intelligent soldering station compatible with C115/C210/245. The handle has a dormant metal ring. When the handle is inserted into the stand, it will automatically enter sleep mode. The soldering station is equipped with three soldering iron tips (I, IS, K). The temperature of the soldering station is controlled by the chip program, which is different from the traditional soldering station that uses AC voltage to control the temperature, and the heating speed is fast and accurate.
Preset 4 sets of standby temperature (0,150,180,200), "0" is closed, and it can be used when it is lifted.
Software program control, hang up instantly.
Powerful function, with 3 groups of preset memory temperature, short press for one second to read, long press for three seconds to store.
Celsius/Fahrenheit (C/F) conversion
Temperature compensation function，the temperature of the soldering iron tip is automatically compensated during the welding process, so that the soldering iron tip is always kept at the set temperature.
Key lock/open
Buzzer on/off
The protective cover of the soldering iron stand provides effective safety protection. Short-circuit reminder function, when the soldering iron tip is short-circuited, the machine will automatically remind you.
Specification：
|
Power |
120W |
|
Input voltage |
AC220V/AC110V |
|
Frequency |
50-60Hz |
|
Temperature range |
100°C-450°C/212°F-842°F |
Function:
Temperature compensation function:
The temperature of the soldering iron tip is automatically compensated during the welding process, so that the soldering iron tip is always kept at the set temperature.
Automatic sleep function:
Controlled by the software program, the soldering iron tip is inserted into the bracket, and it is on standby for an instant, and the temperature rises quickly when it is pulled out.Equipped with bracket protection cover, safer to use.
Short-circuit reminder function:
When the hot core of the soldering iron is short-circuited, the machine will send out a reminder. Simply pull out the soldering iron tip or turn off the machine to avoid damage to the motherboard.
Tip:
After receiving the A9 soldering station, when using a new soldering iron tip for the first time, insert the new soldering iron tip and heat it for 5 minutes, which can effectively improve the temperature stability of the soldering iron tip.
Package Included:
| 1X | Welding machine |
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
