AK70, 70KG servo, HV servo, magnetic induction servo, waterproof servo, brushless digital servo, 1/10 accessories, 1/8 accessories

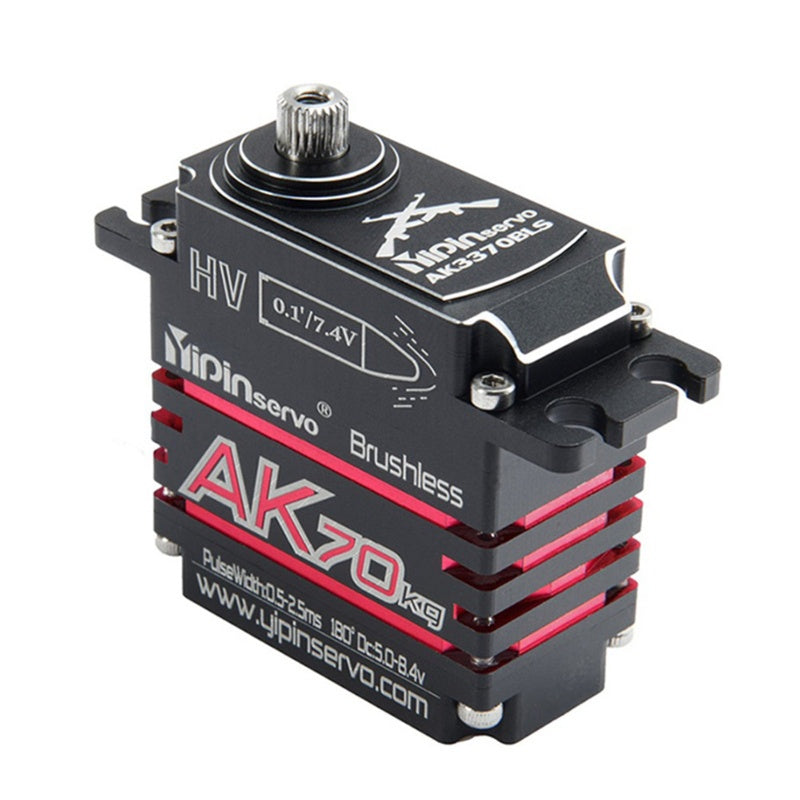

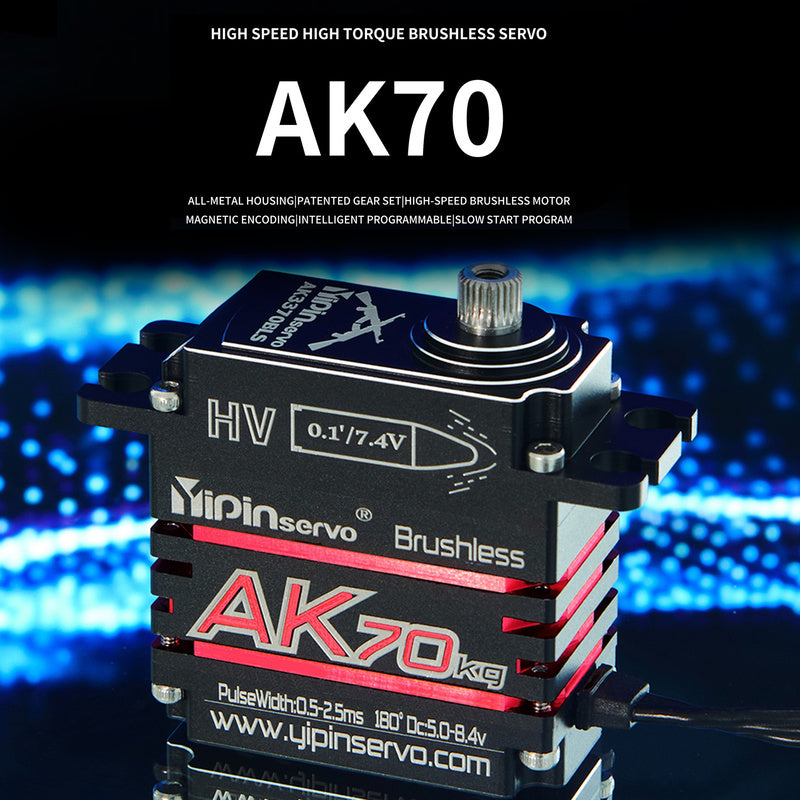

Description: The YIPINServo AK70 is a 70KG high-voltage brushless digital servo with 180° magnetic induction. It is waterproof and serves as a replacement for 1/10 and 1/8 scale accessories. Offers reliable performance and durability.
Specifications:
Item: Digital Servo
Control System pwm Pulse width modulation contrd1520uS/333Hz
Optrating Voltage 5.0-8.4V
Temperature -20C°~+60C°
PMW Volts 3.3-5Vadvised 5V
Puise Width Angle : 500-2500us180°/ 270°
180Customizable or default180
Direction Anticlockwise : 500-2500us
the opposite rotation is customizable
Motor Brushless
Dead band 2 usec

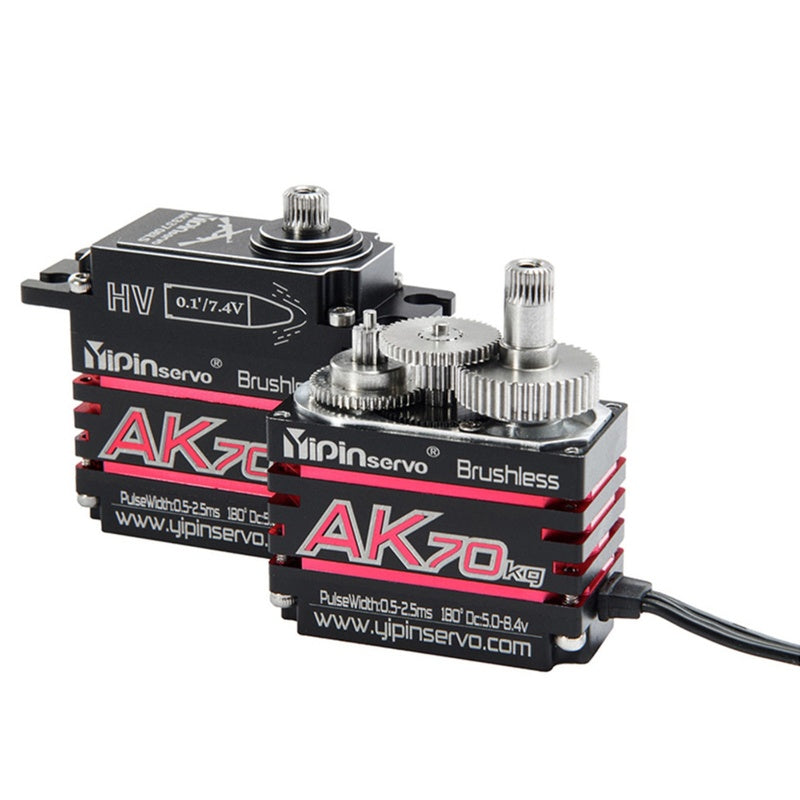

Gears Inside 416+304Stainless Steel Gears416+304 25
Angle sensor Magnetic coding

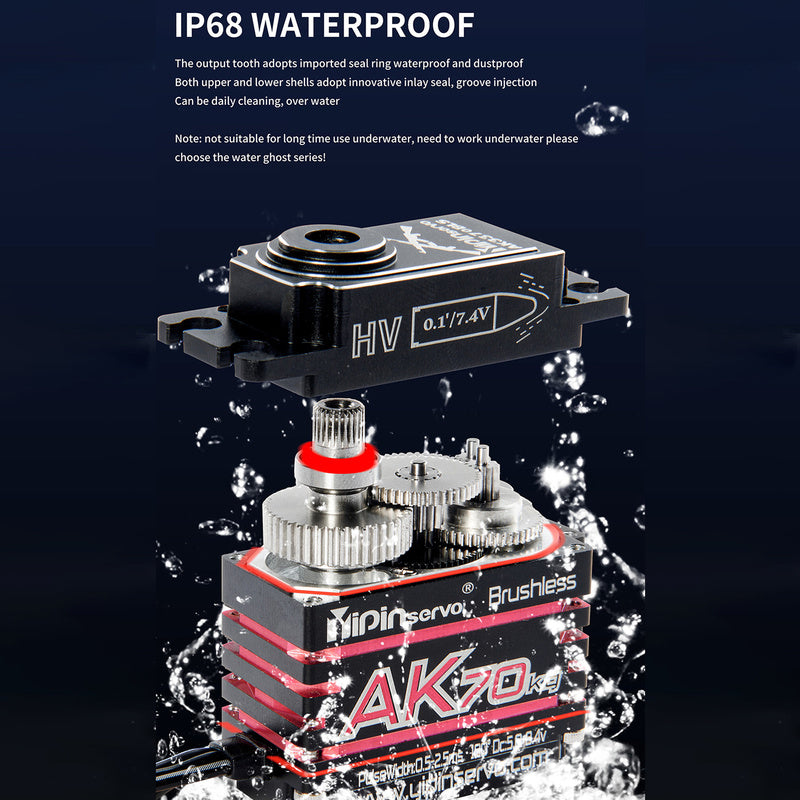

Waterproo IP68 551
Signal Digital 8
Programmable support
Net Weight 81g (no inclidong accessory)
40x20x41mm Wire length JR300mm
Net Weight: Bearing Double ball bearings 81g
Intermediate positive electrode negative pole
Package information:
Package Size: 8*5*3cm
Package Weight: 101g
Gift Box Package

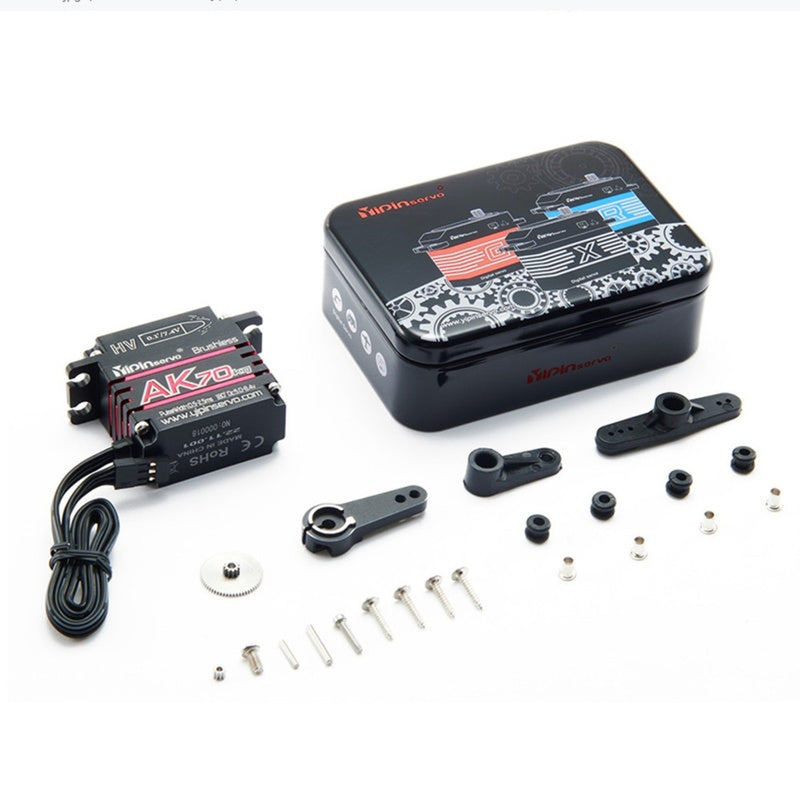

Packing List:
1 *70kg Digital Servo
1* Some Fittings
