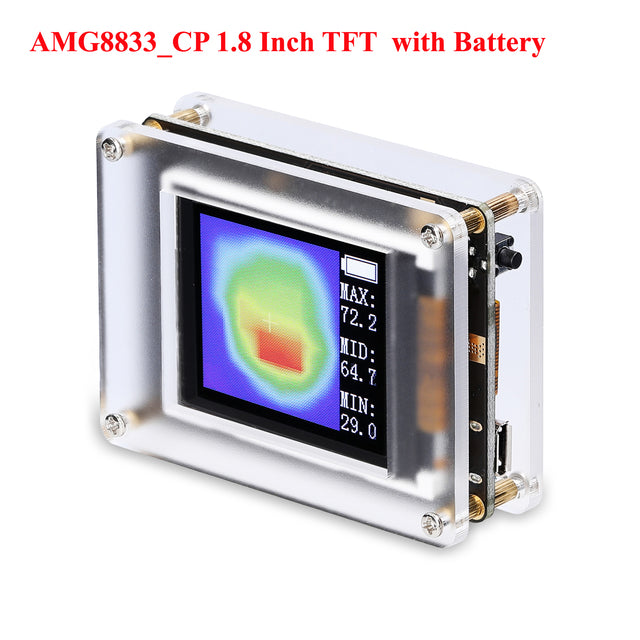

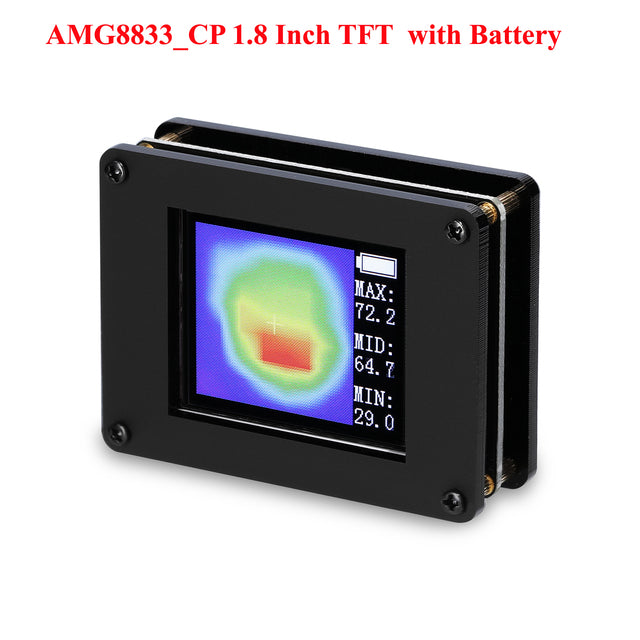

Features:

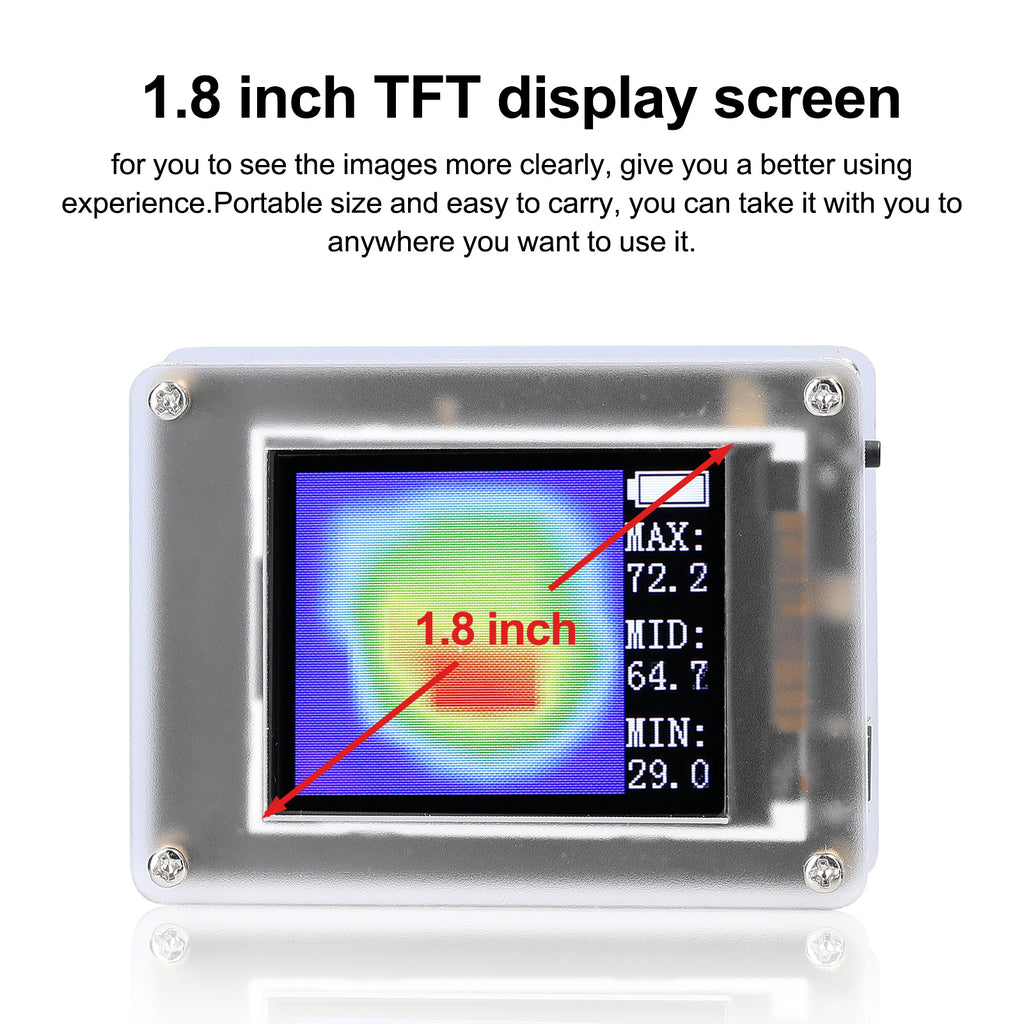

1.8 inch TFT display screen for you to see the images more clearly, give you a better using experience.

Temperature measurement ranges is 0~80℃ that can meet your most needs.

Portable size and easy to carry, you can take it with you to anywhere you want to use it.

It can be applied to check electronic products and has a wide applications.

Built-in lithium battery, so you can recharge in time when there is no electricity, no need to worry about the sudden power failure affecting the use.

Specifications:

Material: PCB

Resolution: 8*8

Temperature measurement ranges: 0℃~80℃

Measurement accuracy: ±3.5℃(Central point, 20~50℃)

Operate temperature : 10℃~50℃

Operate humidity: ≤70%

Refresh rate: 10Hz

FOV: 60°*60°

Power port: USB 5V

Battery: 1 * lithium battery, 200mAh (included)

Item size: 60 * 46.0 * 18mm / 2.4 * 1.8 * 0.7in

Item weight: 37g / 1.3ounce

Package size: 85 * 60 * 30mm / 3.3 * 2.4 * 1.2in

Package weight: 52g / 1.8ounce

Packing list:

1 * Simple Infrared Thermal Imager

 Type 3

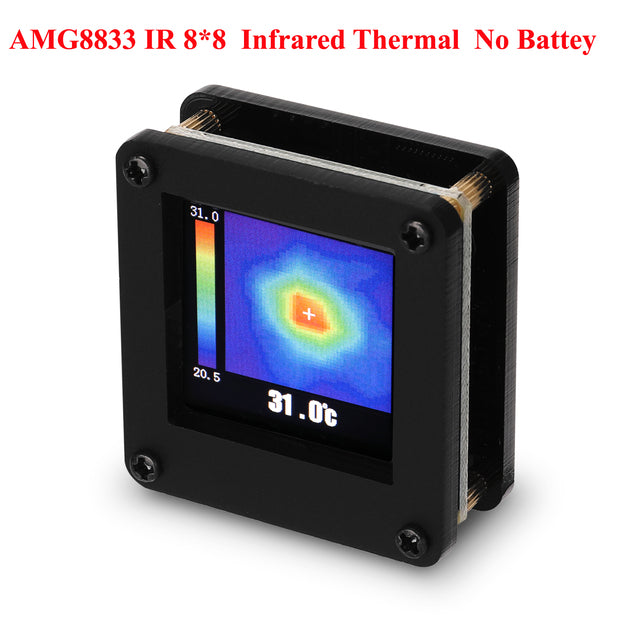

 Features:

The module can be powered directly by USB 5V to produce infrared images.

Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.

It can be applied to check electronic products.

Portable and compact, high performance, easy to use.

Specifications:

Material: PCB

Temperature accuracy:

High performance type high gain: typical ±2.5℃ ±4.5℉

High performance type low gain: typical ±3.0℃ ±5.4℉

Human detection distance: 7m or less (reference value) 22.966 ft

NETD:

Typ. 0.05℃ 32.900℉ 1Hz

Typ. 0.16℃ 32.288℉ 10Hz

Viewing angle: typical 60°

Optical axis gap: within typical ±5.6°

Current consumption:

Typical 4.5mA (normal mode)

Typical 0.2mA (sleep mode)

Typical 0.8mA (stand-by mode)

Setup time:

Typical 50ms (time to enable communication after setup)

Typical 15s (time to stabilize output after setup)

Number of pixel: 64 (vertical 8 * horizontal 8 matrix)

External interface: 1²C (fast mode)

Frame rate: typical 10 frames/sec or 1 frame/sec

Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)

Output mode: temperature output

Calculate mode: no moving average or twice moving average

Temperature output resolution: 0.25℃ / 32.45℉

Number of sensor address: 2 (1²C slave address)

Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)

Thermistor output resolution: 0.0625℃ / 32.1125℉

Item size: 38 * 36 * 17mm / 1.5 * 1.4 * 0.7in

Item weight: 17g / 0.6ounce

Package size: 90 * 80 * 20mm / 3.5 * 3.1 * 0.8in

Package weight: 19g / 0.7ounce

Packing List:

1 * AMG8833 Thermal Imager with Housing
