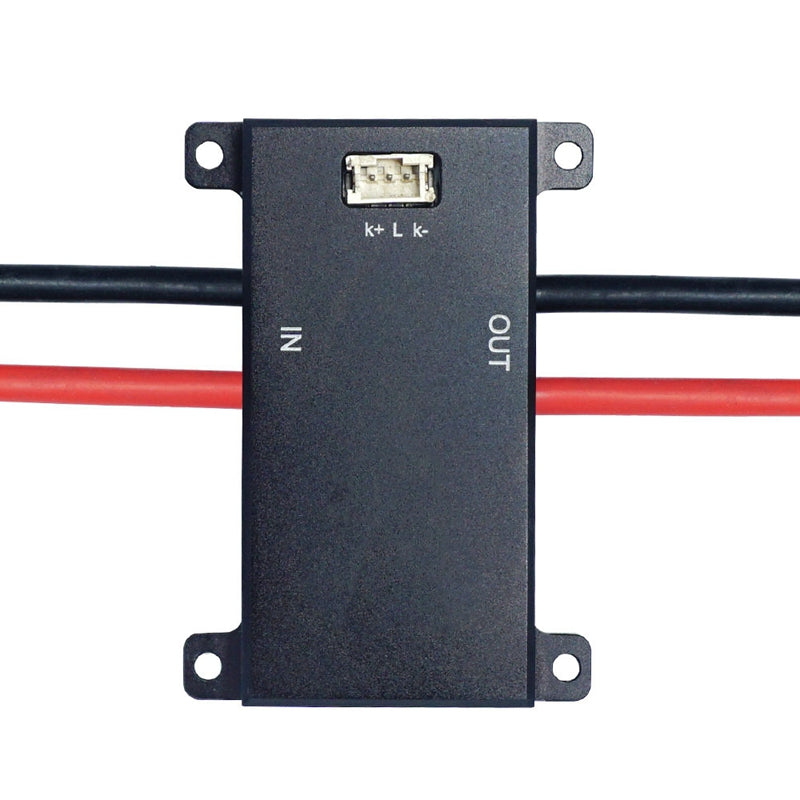

Anti Spark Switch Aluminum Pcb Board 300A For Electric Skateboard /Ebike/ Scooter/Robots For Flipsky

              MOS fets: use 10x10 large package MOS , with better overcurrent and heat dissipation performance

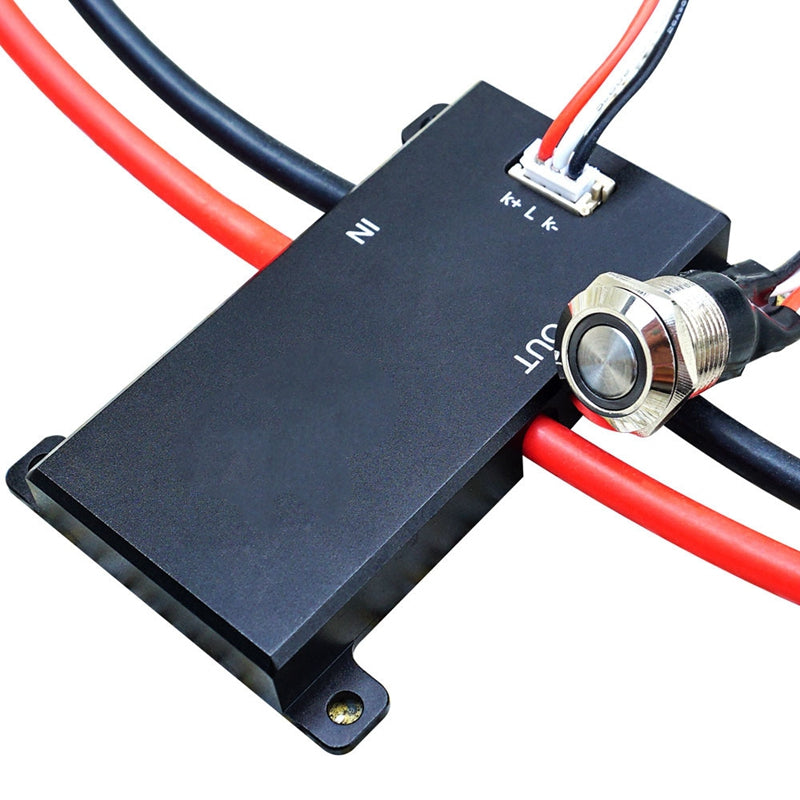

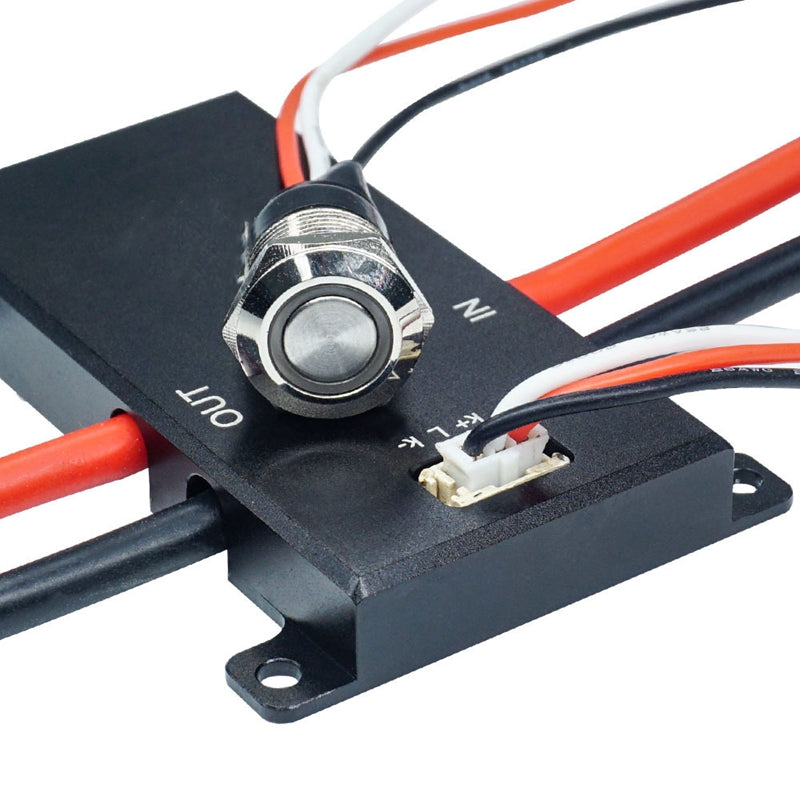

Control mode: lock key control switch mode; press the lock button to lock it to open, and the LED light will light up at the same time, press the lock button again to bounce it to turn off, and the LED light turn off at the same time.

The function of the product: the aluminum substrate fire-proof spark switch efficiently and safely protects the power contacts from being burnt and oxidized by the electric spark, effectively protecting the electronic components of the integrated circuit from breakdown and damage, preventing the occurrence of electric sparks that may cause an explosion, and more effectively extending the electronics Product life.

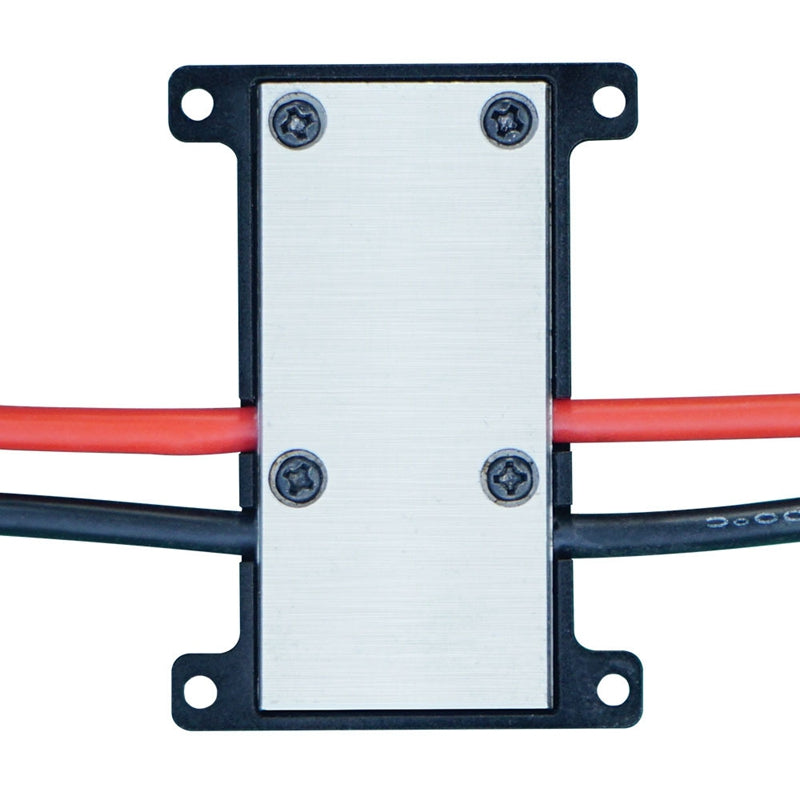

Aluminum base plate has better heat dissipation performance. It is more convenient to add a larger heat sink for continuous large current output. The heat sink and the heat sink are connected with thermally conductive silicone grease, which has a better heat conduction effect.

Warnings:

Do not peel off the heat shrink.There's no screw to lock the heatsink and PCBA, Only the heat-transfer silicon pad is naturally sticky to heatsink and PCBA.

No short circuit protection, DO NOT short circuit output!

No reverse polarity protection. DO NOT plug in backwards.

Recommended to keep output capacitance under 6,000 uF. Proper operation cannot be guaranteed at higher capacitances.

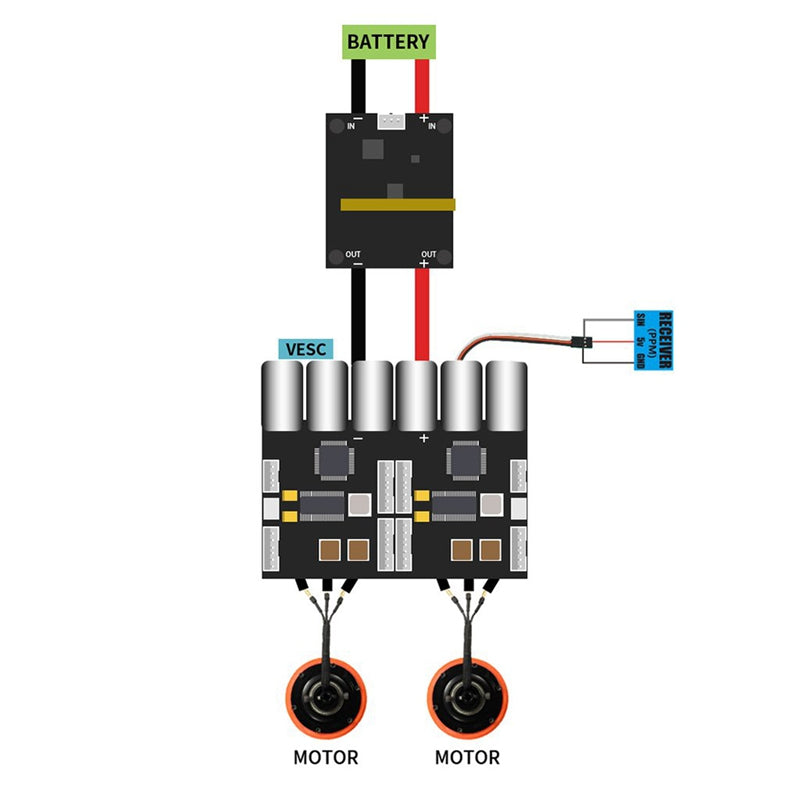

Do not Hot-Swap. Try to make sure everything is off before connecting and removing. If need be, unplug from battery first, wait for ESCs to turn off, then unplug ESCs. Do the reverse for plugging in, plug in ESCs first before plugging the switch into the battery.

Engineers have thoroughly tested prototypes; however, this is still a new design and a first production run, please exercise extreme caution (as one would normally do with any electric vehicle) when using this device.

Do not attempt to reprogram the MCU unless otherwise advised.

Spec:

Hardware: V1.0

Max voltage: 20S (90V,safe for 80V)

Continuous Current: 150A , Max Current: 300A

LED button diameter:12mm

colour: as shown

Material: composite material

Package Contents:

1 x Anti Spark Switch Aluminum pcb board 300A

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
