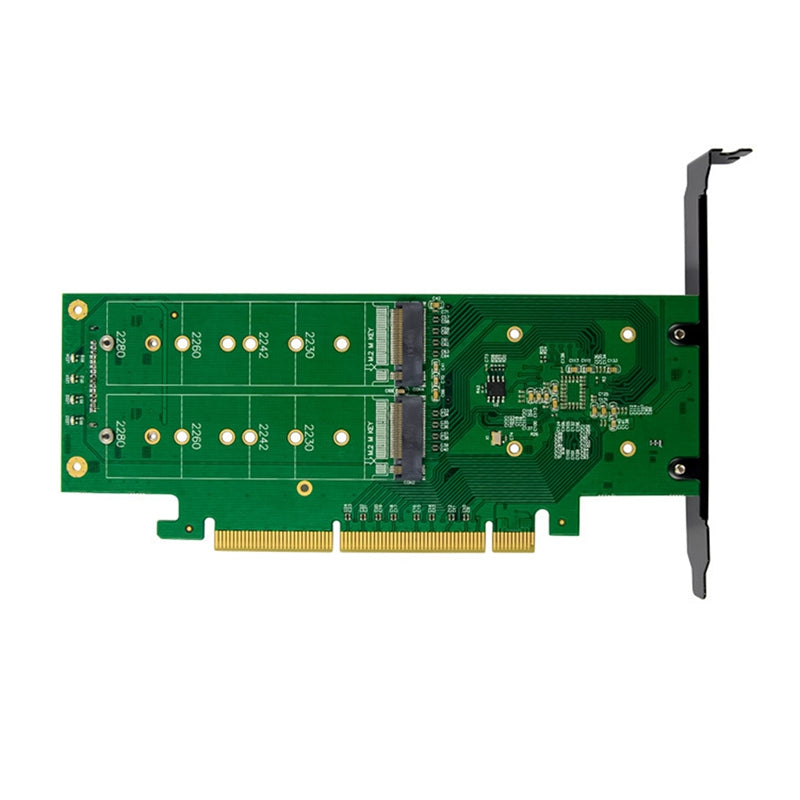

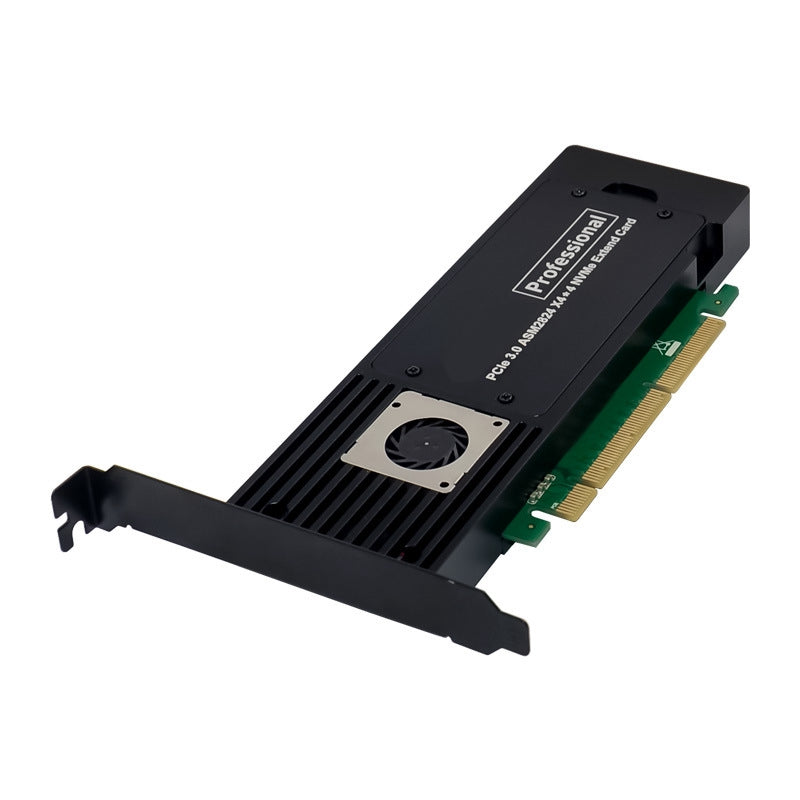

SE-M.2A2824A-4MK PCI Express 3.0 X8X16 to X4 x 4 NVMeM.2 M KEY SSD adapter card adopts high performance ASMedia ASM2824 chipset, it is a low latency, low cost and low power consumption 24 channel, supports Four-port x4-lane M.2 device.
With upstream PCIe Gen3x8 bandwidth, it enables users to build various high-speed I/O systems, including servers, system storage or communication platforms.
Support hot swap, drive-free, plug and play.
Supports quad-port x4-lane M.2 Key M NVMe SSD devices.
Support M.2 SSD module size: 2230, 2242, 2260, 2280.
Specification:
Chipset: ASMedia/ASM2824
Bus type: PCIe 3.0 X8X16
Media Interface: 4 x M.2 M KEY NVMe SSD
Module size: M.2 Key M NVMe SSD devices supporting 2230, 2242, 2260, 2280
Compliant with PCI Express Specification Revision v3.0
Backward compatible with PCIe 2.0 and PCIe 1.0
Support for NVM Express (NVMe), M.2 Specification Revision 0.9
Supports quad-port x4-lane M.2 Key M NVMe SSD devices
Support M.2 SSD module size: 2230, 2242, 2260, 2280
Supports M.2 "M" keys and "B+M" keys via PCIe protocol
Automatically detect channel configuration at startup
Support L1 sub-state deep power saving mode
Support wakeup function in S3/S4
Operating temperature range: 0~85°C
System requirements: Win 7/ Win 8/ Win 8.1/ Win 10 32 or 64 bit, Linux kernel 3.17 or higher
One available PCI Express X8X16 slot
Material: PCB
Color: Green + Black

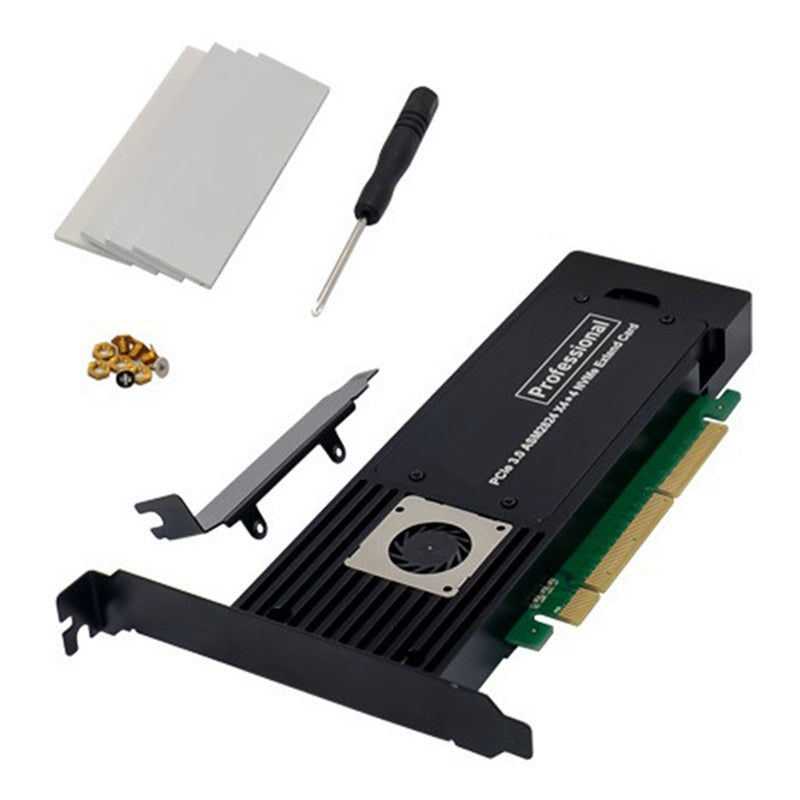

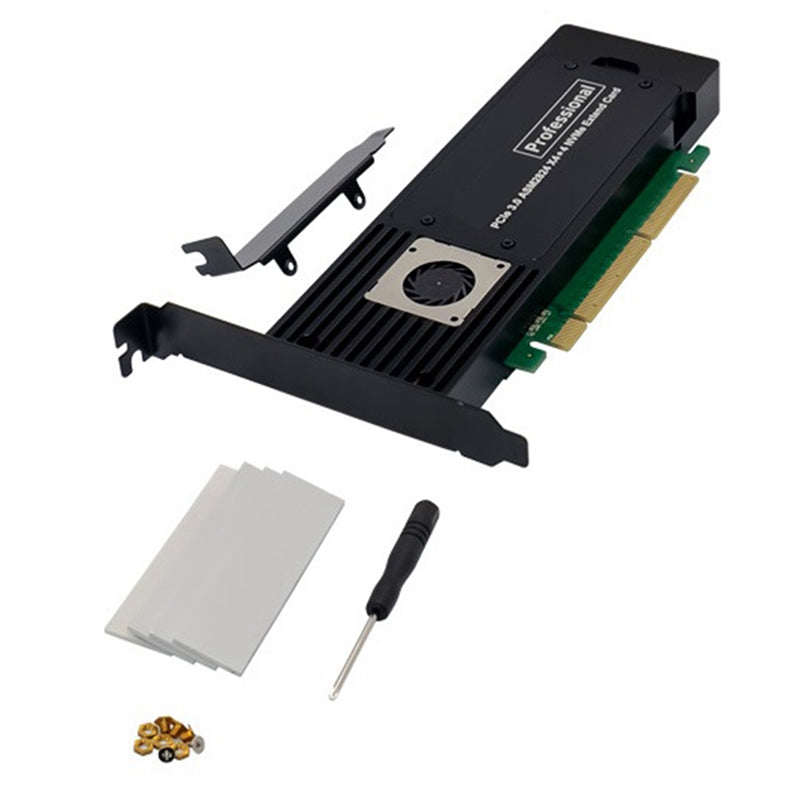

Package Contents:
1 x Expansion card
1 x Bracket (Random color, don't accept the specified color.)
4 x Silicone Pad
4 pair Screw
1 x Screwdriver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
