Features:

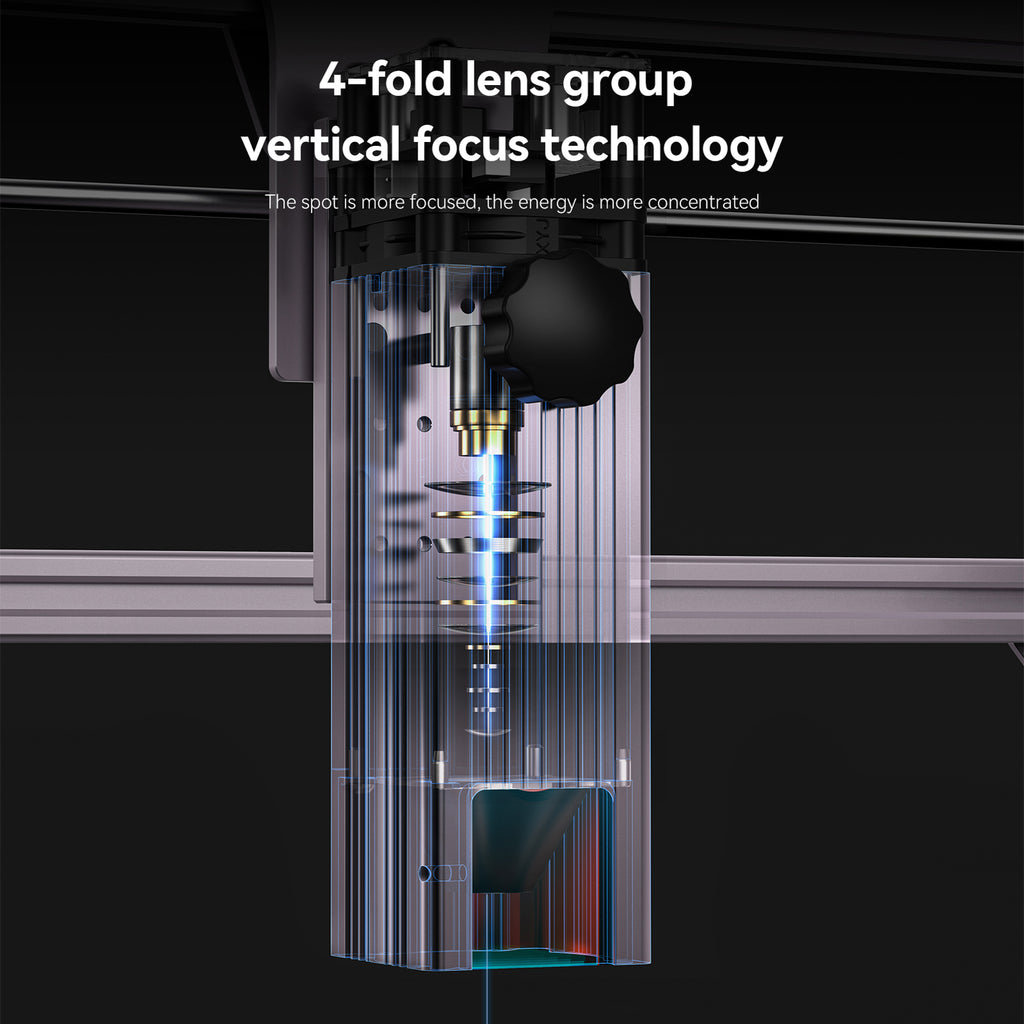

 Newly upgraded ultra-fine laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5.5W, and the laser focus area is reduced to 0.02mm². The high-density laser can easily cut 15mm thick wooden boards, 12mm black acrylic; can directly engrave mirror stainless steel metal and ceramics.

 Powerful Engraving Performance: The real 5.5W laser can easily cut through 15mm thick wood and 12mm acrylic, and engraver large areas of metal and wood. The metal engraving speed boost 200% and the engraving effects obviously improved.

 Modular Design: Easy to replace or upgrade the parts and achieve more functions. Spiral button is more convenient for height adjustment.

 Specifications:

 Model: ATOMSTACK A5 PRO Upgrade

 Working Area: 410*400mm

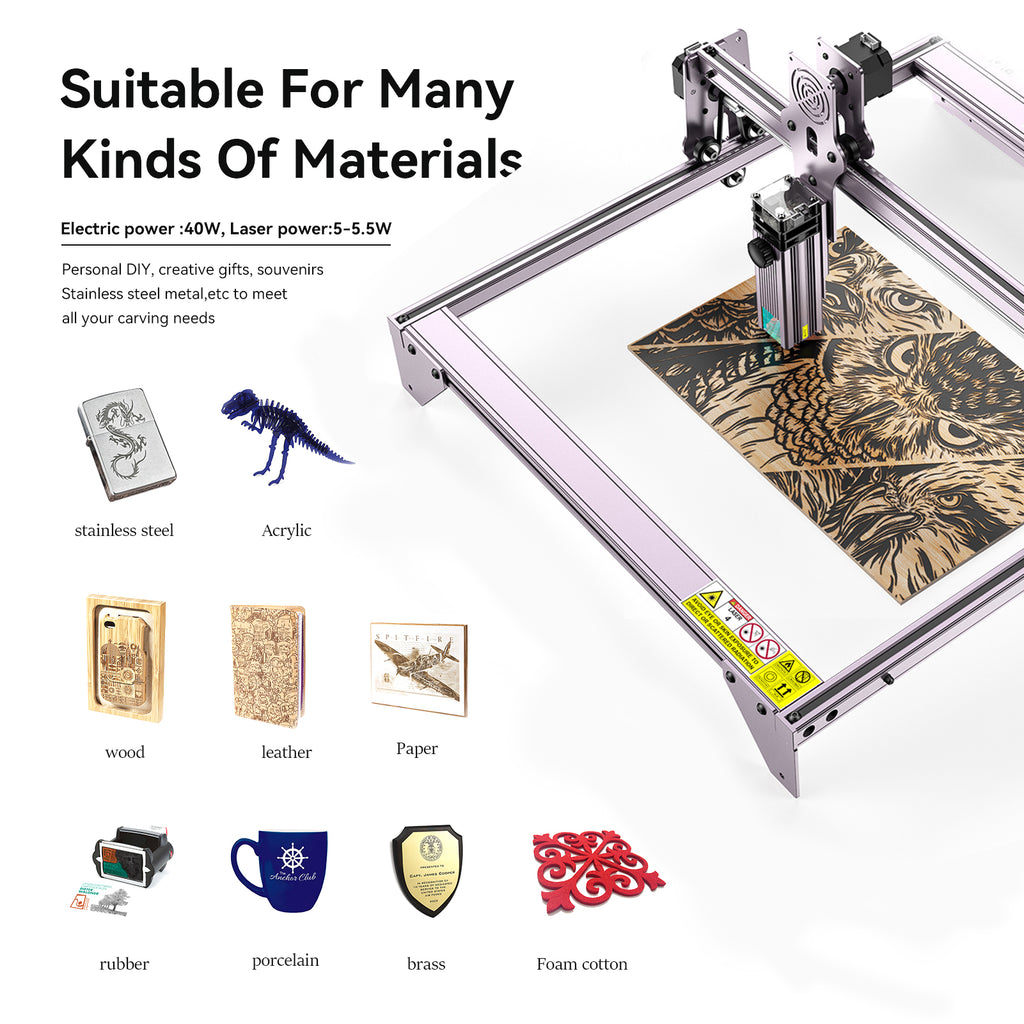

 Support Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

 Support Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;

 Machine Working Power: 40W

 Laser Output Power: 5-5.5W

 Wave Length: 445 ± 5nm

 Engraving Accuracy: 0.01mm

 Focusing Method: Fixed focus laser, no need to focus

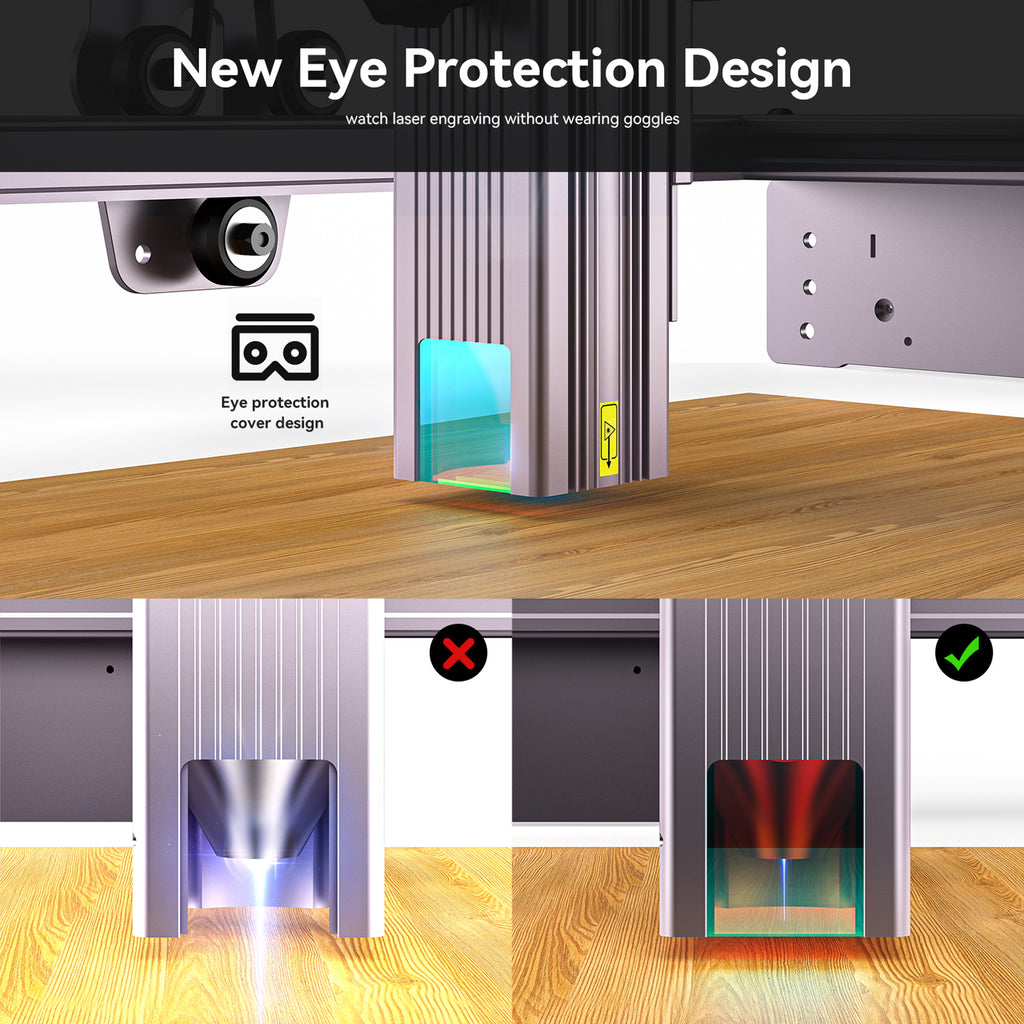

 Laser Protective Cover: Panoramic filter glass

 Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system.

 Input Format: NC, BMP, JPG, PNG, DXF, etc.

 Data Transmission Method: USB connection.

 Input Voltage: AC100-240V, 50/60Hz

 Output Voltage: DC12V, 5A

 Machine Weight: 3.5kg/ 7.7lbs

 Machine Size: 57*60*27cm/ 22*23.6*10.6in

 Package Weight: 5623g/12.4lbs

 Package Size: 59.5*35*13cm/ 23*13.8*5.1in

 Note:

 - When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

 - Please do not touch the laser emitter with your hand, or it may burn your hand.

 - Please avoid strong impact on the machine.

 - Children under 14 are not allowed to use this product and children over 14 need adult supervision.

 - The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

 Packing List:

 1* Machine Kit

 1 * Control Box

 1 * Goggles

 1 * Power Supply

 1 * USB Cable
