Feature:

 1. Useful Tester: Used to evaluate FTTx, access construction and maintenance, can also identify optical fiber breakpoints, measure optical cable length, and calculate relative optical power loss.

 2. Better Design: Comes with 3.97in touch screen to largely facilitate the operation, while the USB date interface enables easier further processing on data and analysis, very convenient and efficient.

 3. Reliable Work: Supports up to 4 groups of wavelength of 1310/1550nm, 1310/1550nm, 1550nm and 1610nm, the OTDR meter ensures a long measurement range of 0-60km, very high in accuracy and reliability.

 4. Practical Use: Allows for wide application in testing Ethernet cable distance, rj45 Ethernet cable sequence, LED light and so on, the optical tester will surely satisfy your various working needs.

 5. Easy Carrying: Light in weight and compact in size as well, the optic fiber tester is very simple to carry for both indoor and outdoor works.

     Specification:

     Item Type: Optical Time Domain Reflectometer

 Model: AUA 280U

 Joint Type: UPC

 OPM: -70~+10dBm

 Material: ABS

 Wavelength: 1310/1550nm (24/22dB), 1310/1550nm (26/24dB), 1550nm (20dB), 1610nm (20dB)

 Product Voltage: 100-240V

 Input Voltage: 8.4V 0.5-1A

 Dynamic Range: 24/22dB, 26/24dB, 20dB

 Measuring Distance: Approx. 0 ~ 60000m / 0 ~ 196850.39ft

 Fibre Optic Connector Type: 9/125 μm SM

 Test Type: FC/PC; SC/PC（FC SC -Optional）

 Unit: meter, inch, mile.

 Reflection Blind Area: Approx. 2m / 6.56ft

 Data Storage: 200 Groups

 Display: 3.97in

 Resolution: 800 x 480 pixels IPS touch screen.

 Power Supply: 7.4V 4400mAh lithium ion battery, shipped with built in battery, can be used for more than 5000 times.

 Visual Fault Locator:

 Wavelength: 650nm

 Output Power:>=10mW

 Mode: CW, 1Hz, 2Hz

 Optical Fibre Type: SM, MM

 Optical Power Meter:

 Measuring Range: - 70~+10dBm

 Wavelength Range: 800-1650nm

 Calibration Wavelength: 850/1300/1310/1490/1550/1625

 Detection Type: InGaAs

 Connector: Replaceable FC/PC SC/PC (ST as Optional).

 Optical Light Source:

 Emitter: FP-LD

 Wavelength: 1310/1550nm

 Connector: FC/PC (SC/ST as Optional)

 Output Power: ≥ -5dBm

 Fibre Type: SM

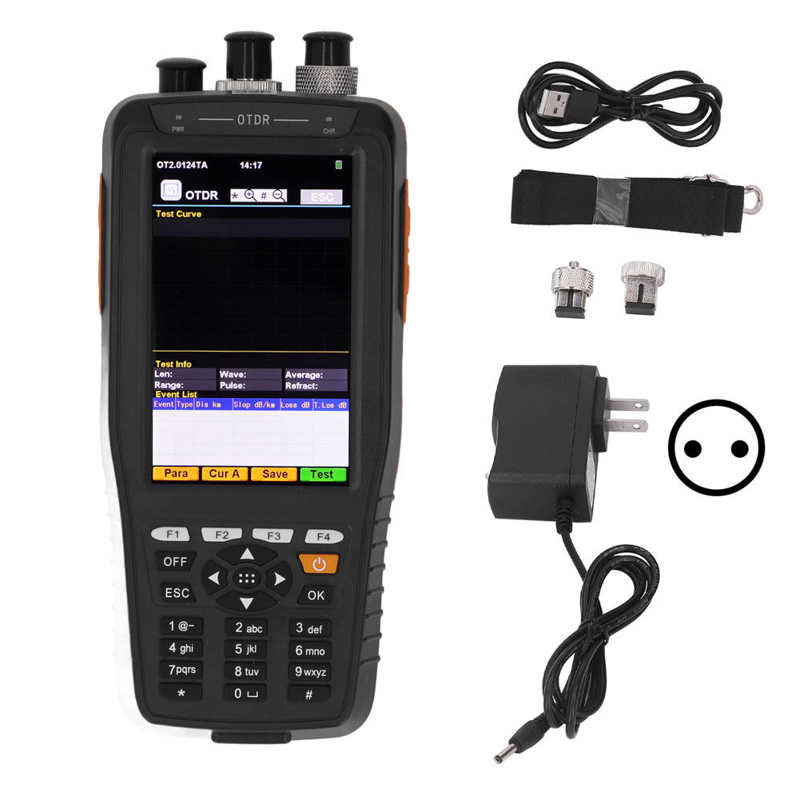

     Package List:

 1 x Optical Time Domain Reflectometer     3 x User Manual

     1 x Cleaning Swab Pack

     1 x CD

     1 x Lanyard

     1 x SC Connector

     1 x FC Connector

     1 x USB Cable

     1 x Power Cord

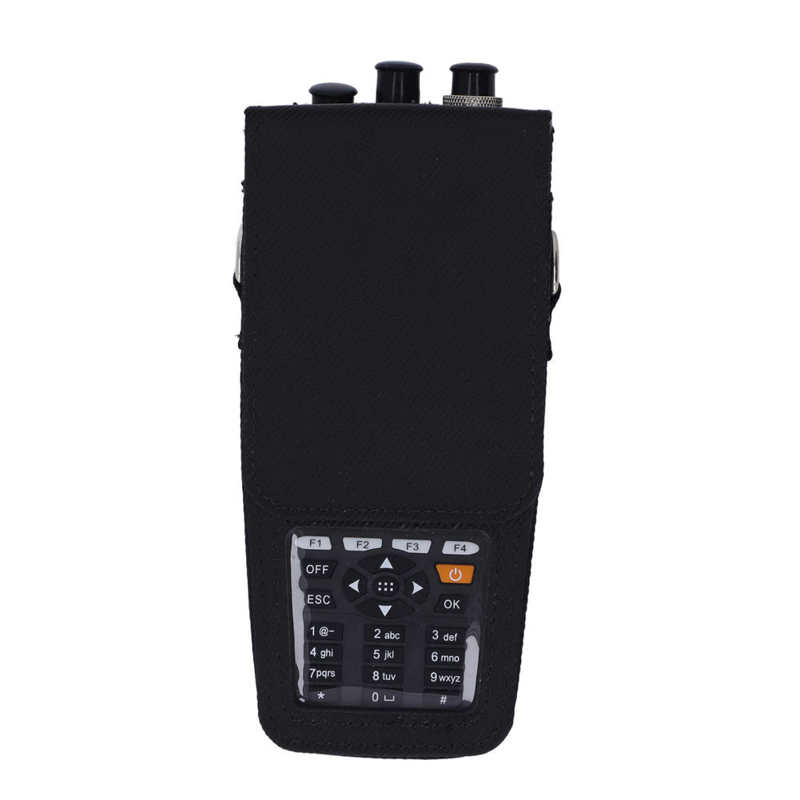

     1 x Storage Bag
