Specifications:

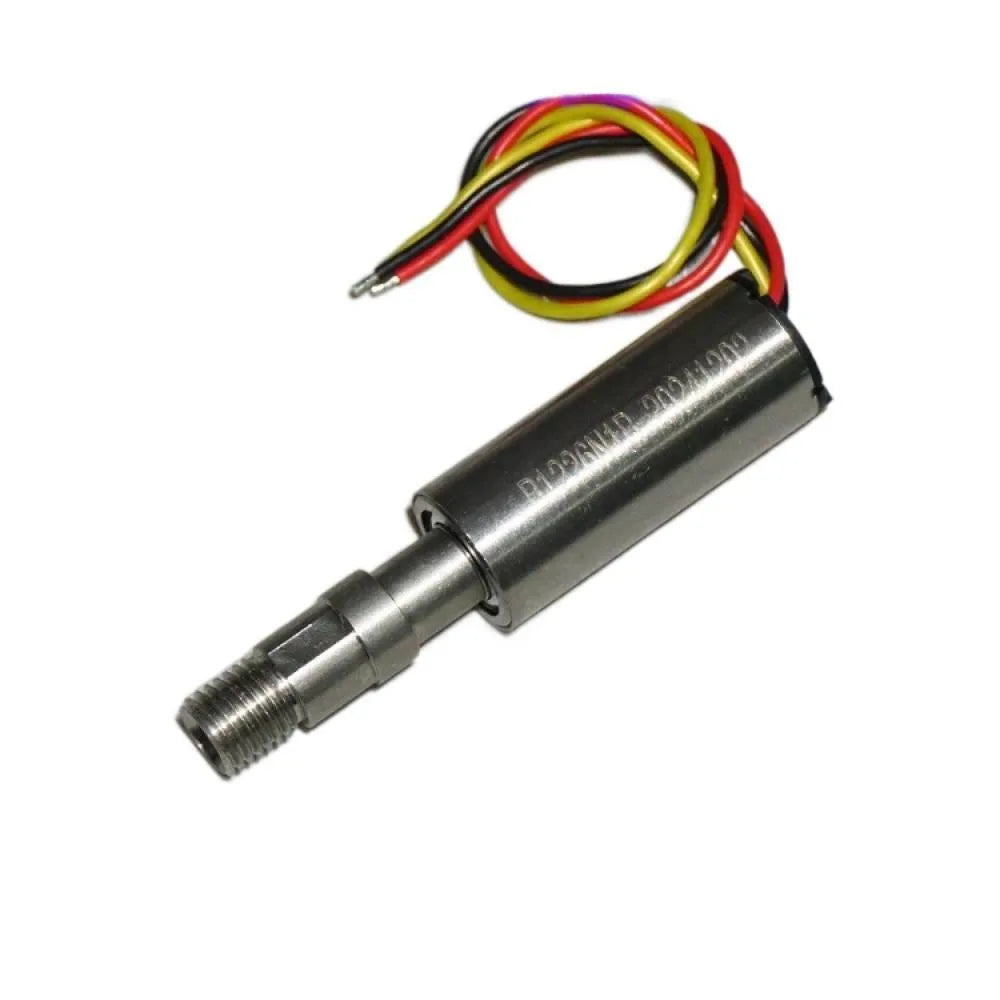

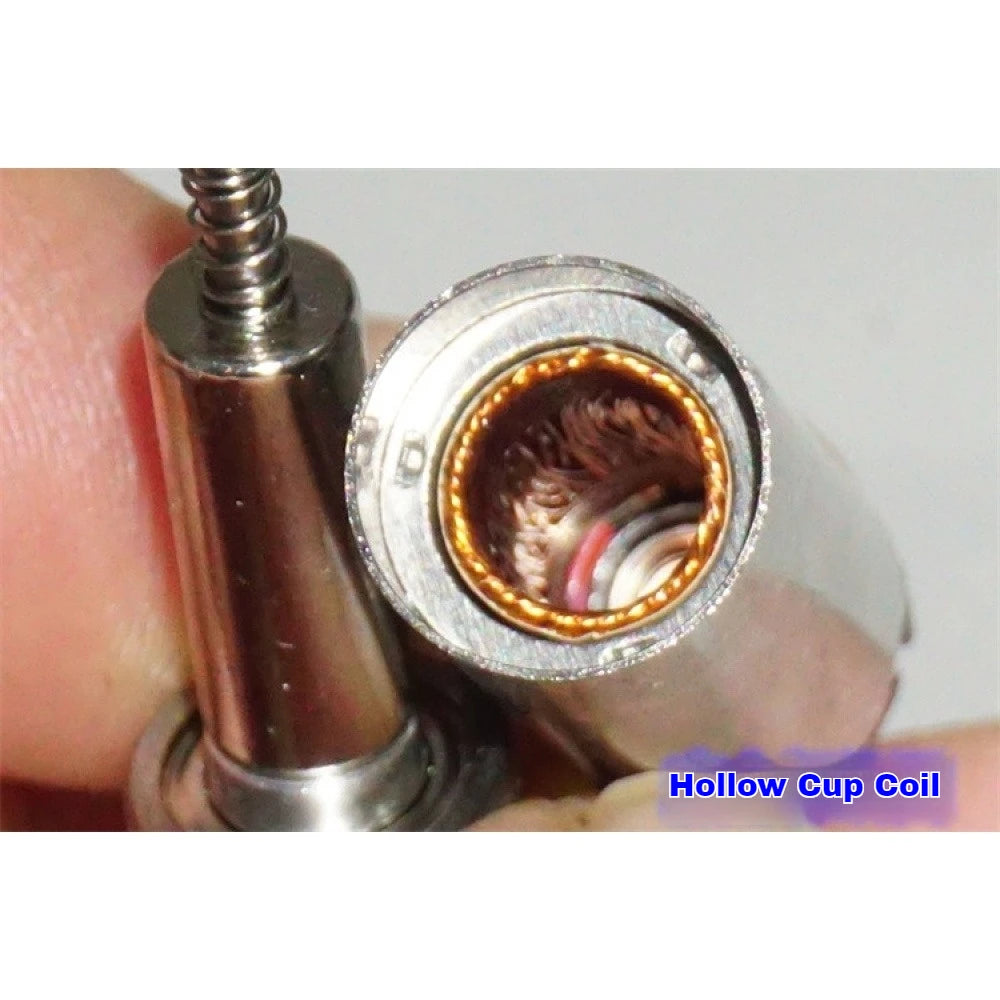

B1226 Neodymium strong magnetic inner rotor hollow cup brushless motor, non-horizontally mounted brushless motor, motor diameter 12mm, front and rear ball bearings, neodymium strong magnetic inner rotor, hollow cup coil, motor KV value approximately 7000, suitable for working voltage 3.7 - 7.4V.
This brushless motor does not come with a driver, it needs to be equipped with a non-hall driver for operation by yourself. It is best to use a brushless ESC (Electronic Speed Controller) or other high-speed type drivers. The motor is mainly designed as a miniature high-speed type. At a 7.4V voltage, the no-load speed is over 50,000 revolutions per minute. During high-speed operation, the noise is not very loud. The motor generates a relatively large amount of heat during operation, so proper heat dissipation needs to be considered. The output leads of the motor are approximately 9cm in length.
The motor weighs approximately 19g
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package includes:
1x Brushless Motor
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
