MATX(245*245mm) /ITX(170*170mm) ( I/O frame crossing ≤6mm)
Power Supply:
ATX (length limit 140-170mm), SFX, SFX-L (Pay attention to the conflict
between graphics card length and power supply)
Hard Drives:
The rear panel can support 3.5"*1 HDD (ITX motherboard) or 2.5"*1-2 SSD or
bottom side mounted 3.5"*3 HDD or 2.5"*6 SSD or side mounted 3.5"*1+2.5"*1
hard drives or bottom horizontal mounted 3.5"* 1
Graphics Card:
3-slot GPU with a maximum size 340*142*78mm (including rear panel)
(Notice: Supports most 4090 and other 40 series GPU. When the power length
is ≤140mm, the graphics card is limited to 340mm in length. When the powerlength is>140mm but ≤170mm, the GPU length limit is 270mm and thickness
≤55mm with a fan or with a horizontal HDD )
CPU Cooling and Water Cooling Pump:
High tower height limit 135mm(Notice: The fan near the memory of the twin
towers may protrude due to the height of the memory, please be careful not to
exceed the height of the middle 140 fan) Internal cooling pump height ≤ 70mm
Front interface: 10G/Type-C * 1

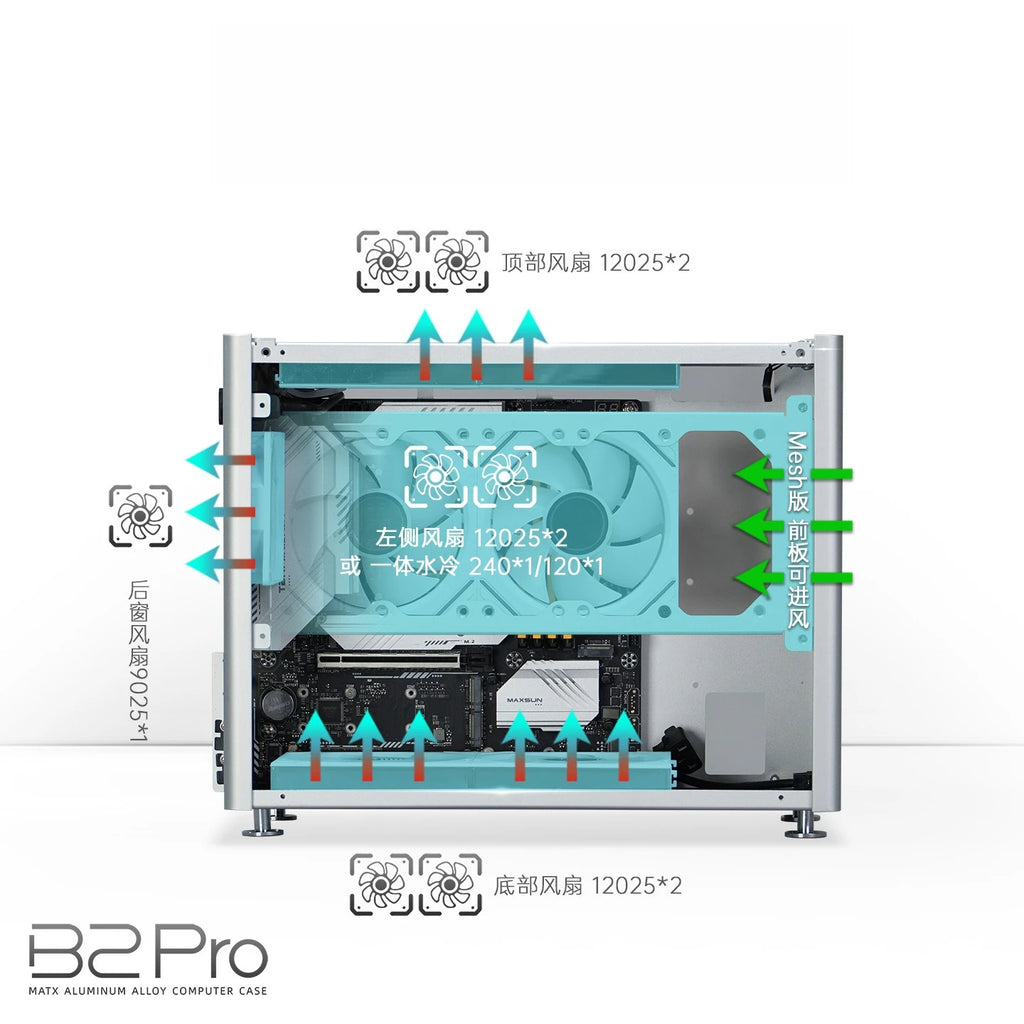

Fans:
Top fan 12025*2
Rear window fan 9025*1
Bottom fan 12025*2
Side support 2*120-25 fans
(CPU radiator height is within 105mm without water cooling)
Water Cooling:
240/120 integrated water cooling*1 (length≤ 283mm, pump height≤70mm)
* water cooling length limit within 278mm (rear window can fit 90-25 fans)
* water cooling length limit 285mm (rear window can fit 90-15 fans)
Attention should be paid to placing the water-cooled tube on the side of the
power supply(SFX/SFXL) during installation
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
