ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING--Adopt intelligent lithium cell management IC for fast and safe charging
BALANCING CHARGING EXTENDS BATTERY LIFE--With balance charging to balance the characteristic of each battery in battery pack and prolong battery life

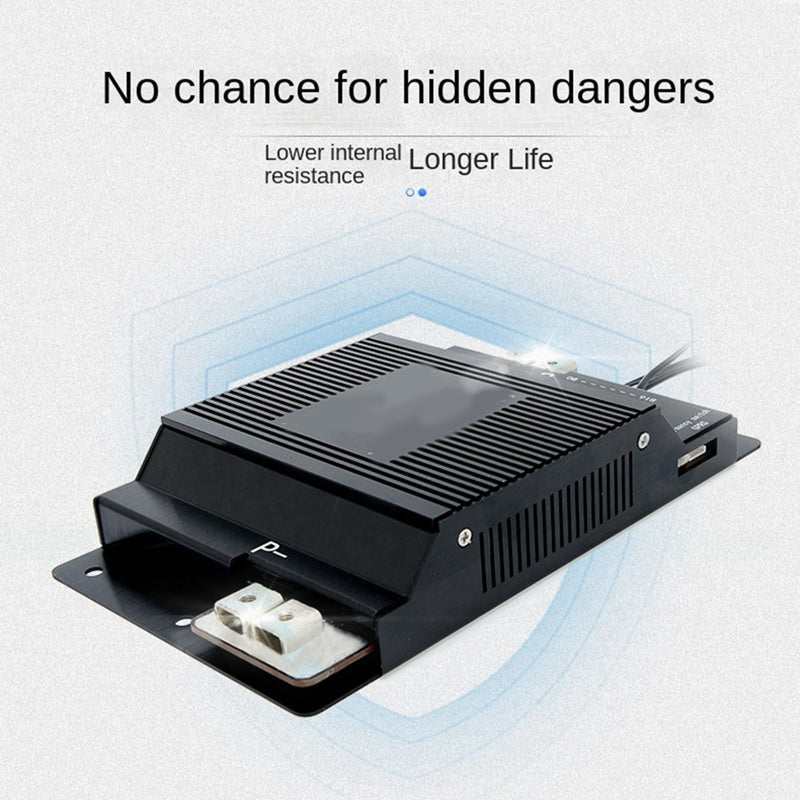

MULTI-OVER PROTECTION ENSURES SAFETY USE--Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection

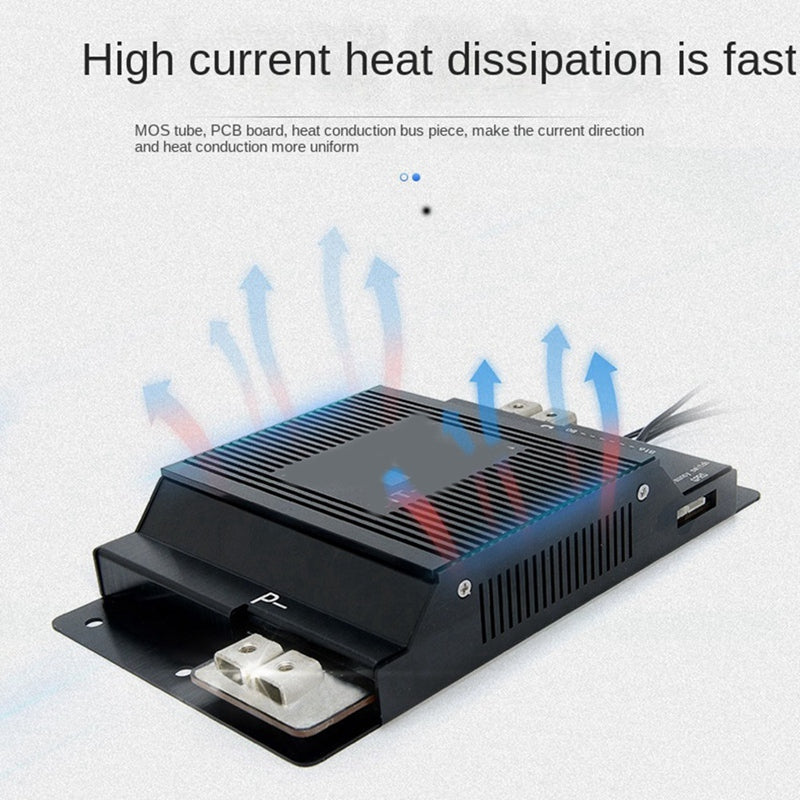

EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION--Equipped with thickened aluminum fin to achieve quick heat dissipation
MANY TIMES TESTING ENSURES HIGH QUALITY--This product has gone through load and aging test for quality assurance

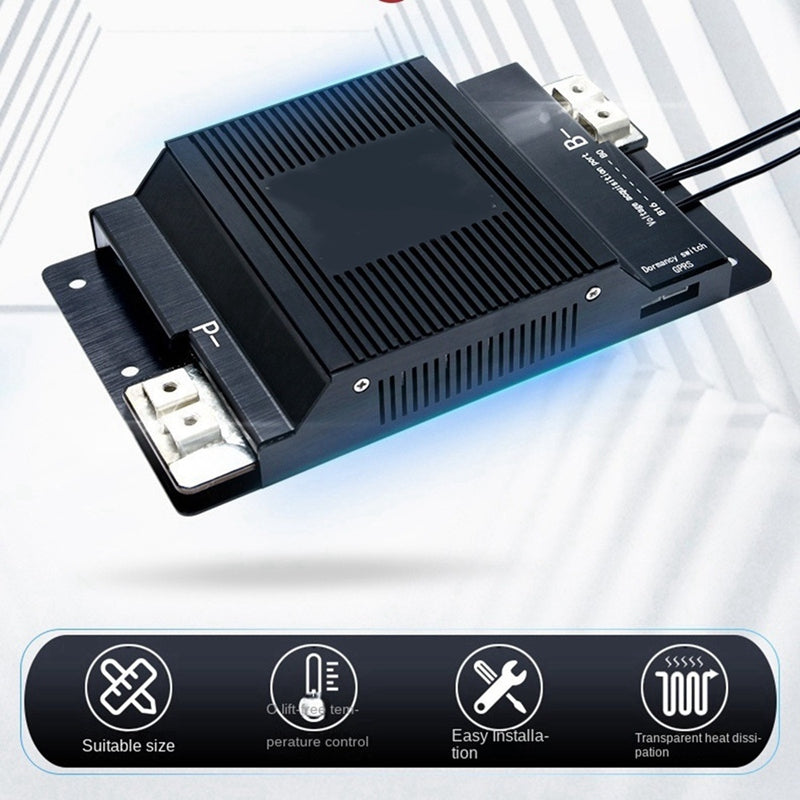

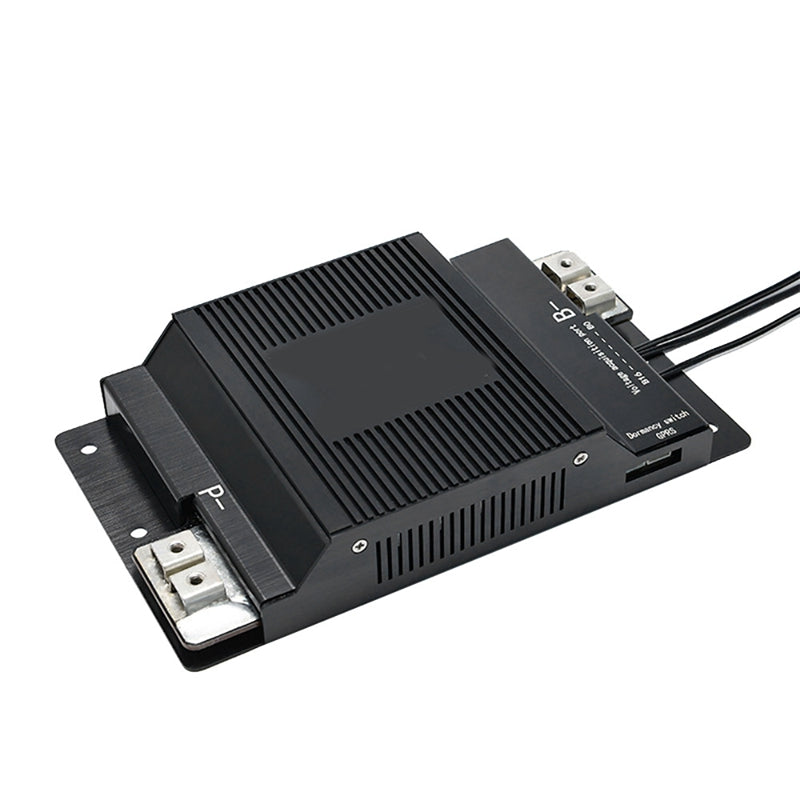

Name: 8s lithium battery protection system
Use a single battery voltage: 3.65V (can be set)
Continuous current: 200A/300A
Charging voltage: 58.4V
Overcharge Protection:
Detection voltage: 4.25V +/- 0.05V
Detection delay: 1s
Release voltage: 4.15V +/- 0.05V
Over discharge protection:
Detection voltage: 2.7V +/- 0.1V
Detection delay: 1s
Release voltage: 3.0V +/- 0.1V
Overcurrent Protection:
Detection voltage: continuous current x 2.5 times
Detection delay: 1s
Release condition: disconnect the load
Voltage equalization:
Detection voltage: more than 4.18V
Release voltage: less than 4.18V
Current consumption: 30mA +/- 5mA
Short circuit protection:
Trigger condition: external load short circuit
Detection delay: 700us
Release condition: disconnect the load
Temperature control protection:
Charging working temperature: -20℃~55℃
Discharge working temperature: less than or equal to 70℃
Release voltage: recovery within operating temperature
Self-consumption:
Working power consumption: 80uA
Sleep/overdischarge power consumption: 30uA
colour: black
Material: aluminum
Size: 227x132mm
Package Contents:
1 x bms battery charging protection boardon: 30uA
colour: black
Material: aluminum
Size: 227x132mm
Package Contents:
1 x bms battery charging protection board
