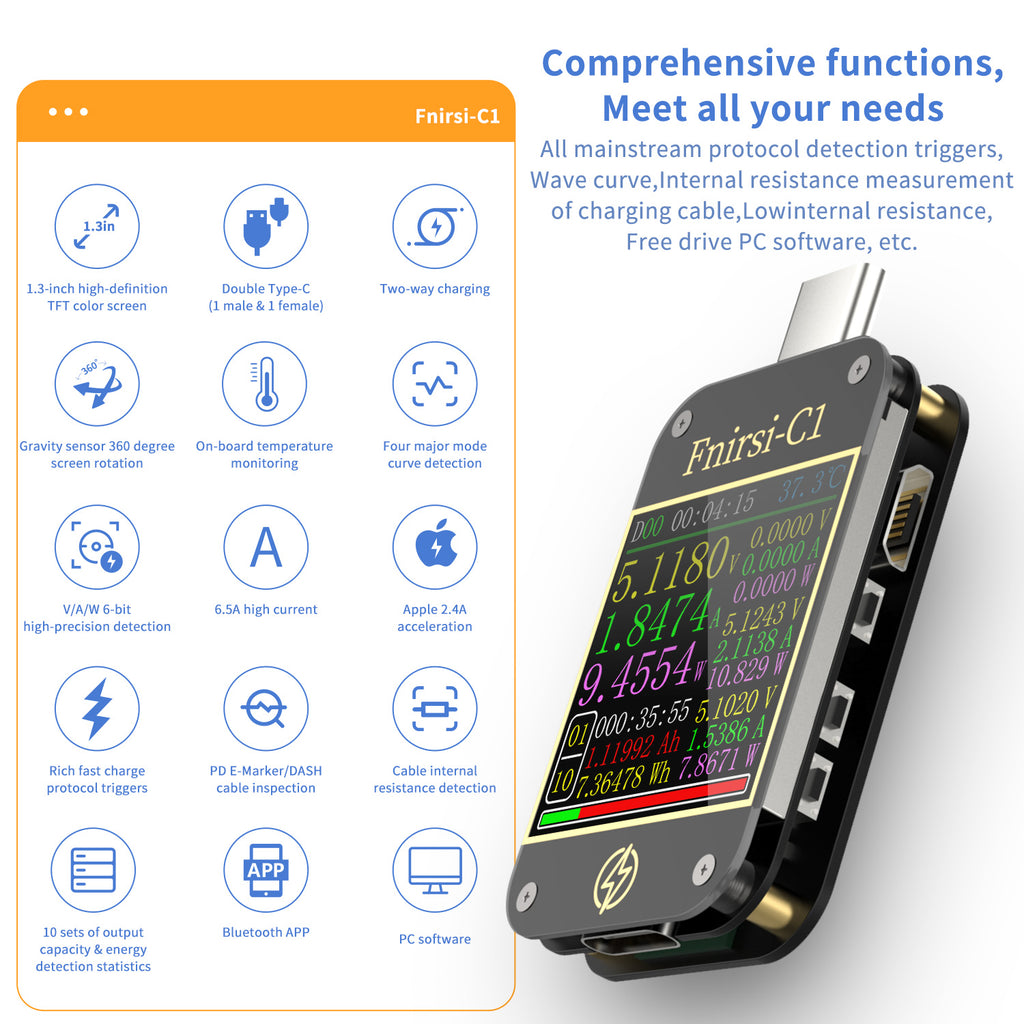

C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank Tester With PC Software
Specifications:
Monitoring voltage: 4~24V
Monitor voltage resolution: 0.00001V
Monitoring voltage accuracy: ±(0.2‰+2)
Monitoring current: 0~6.5A
Display current resolution: 0.00001A
Monitoring current accuracy: ±(0.5‰+2)
Display power: 0~130W
Display current resolution: 0.00001W
Monitoring current accuracy: ±(0.5‰+2)
Load equivalent resistance: 0~9999.9Ω
Load equivalent resistance resolution: 0.0001Ω
Load equivalent resistance accuracy: ±(0.5‰+2)
Capacity: 0~9999.99Ah
Use energy: 0~9999.99Wh
Cable resistance: 0~9999.9Ω
D+/D- voltage: 0~3.3V
D+/D- voltage resolution: 0.001V
D+/D- voltage accuracy: ±(1.0%+2)
Equipment temperature: ℃/℉
Package size: 50*25*8mm / 1.97* 0.98 * 0.31in
Package weight: 47g / 1.66oz
Compatibility Issues:
①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.
②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
④Please do install and test the APP if you use Samsung mobile phone.
Package Included:
1*C1 Type-C Voltmeter Ammeter Fast Charging Protocol Test
