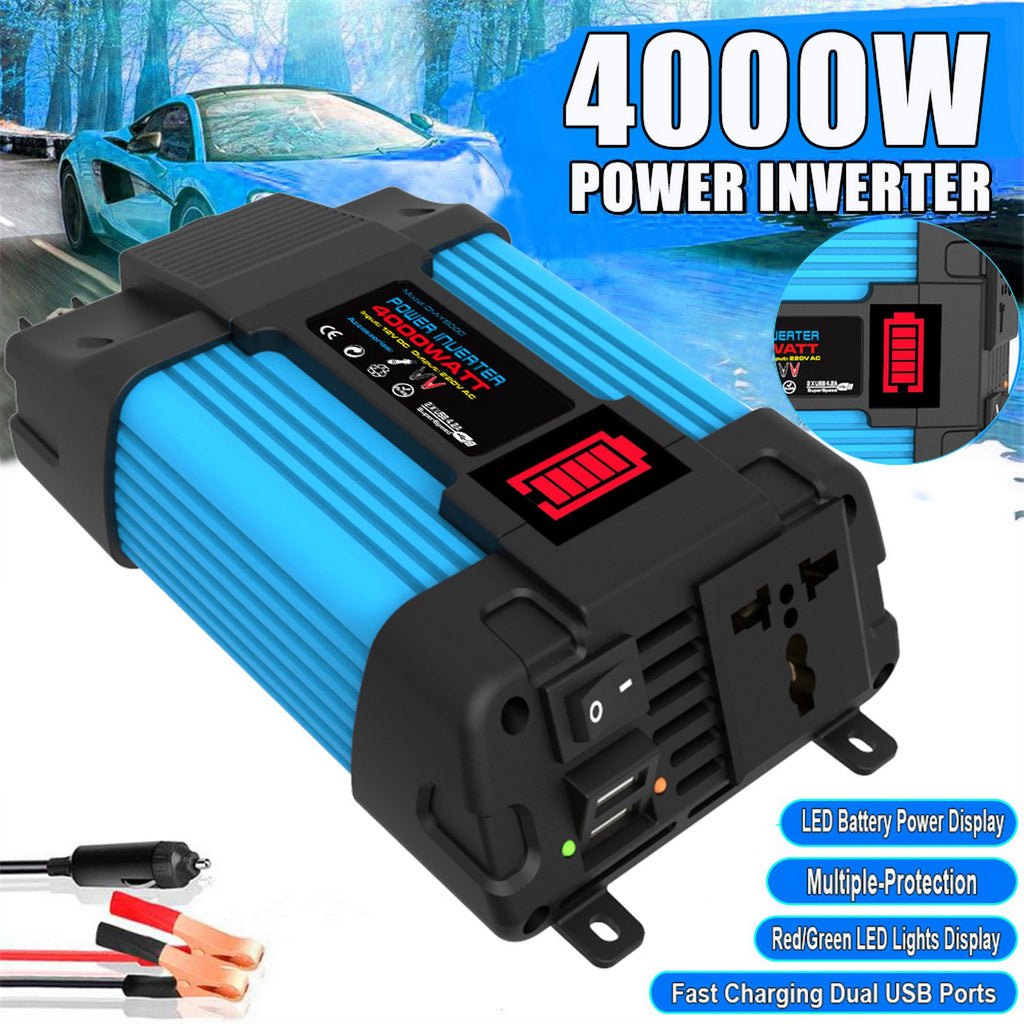

Features:

  1.Power inverter: With dual USB ports and universal socket. Comes with plug cable and 2pcs battery clips, providing 300watt continuous power, 4000watt peak power (Please make sure that the total rated power of the connected devices is ≤ 300W).

  2.Green/red work light: When inverter work normal, the green light work and tell you it is working well. When it is on protection status, such as low voltage, high voltage, over temperature, or over load, the red light will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.

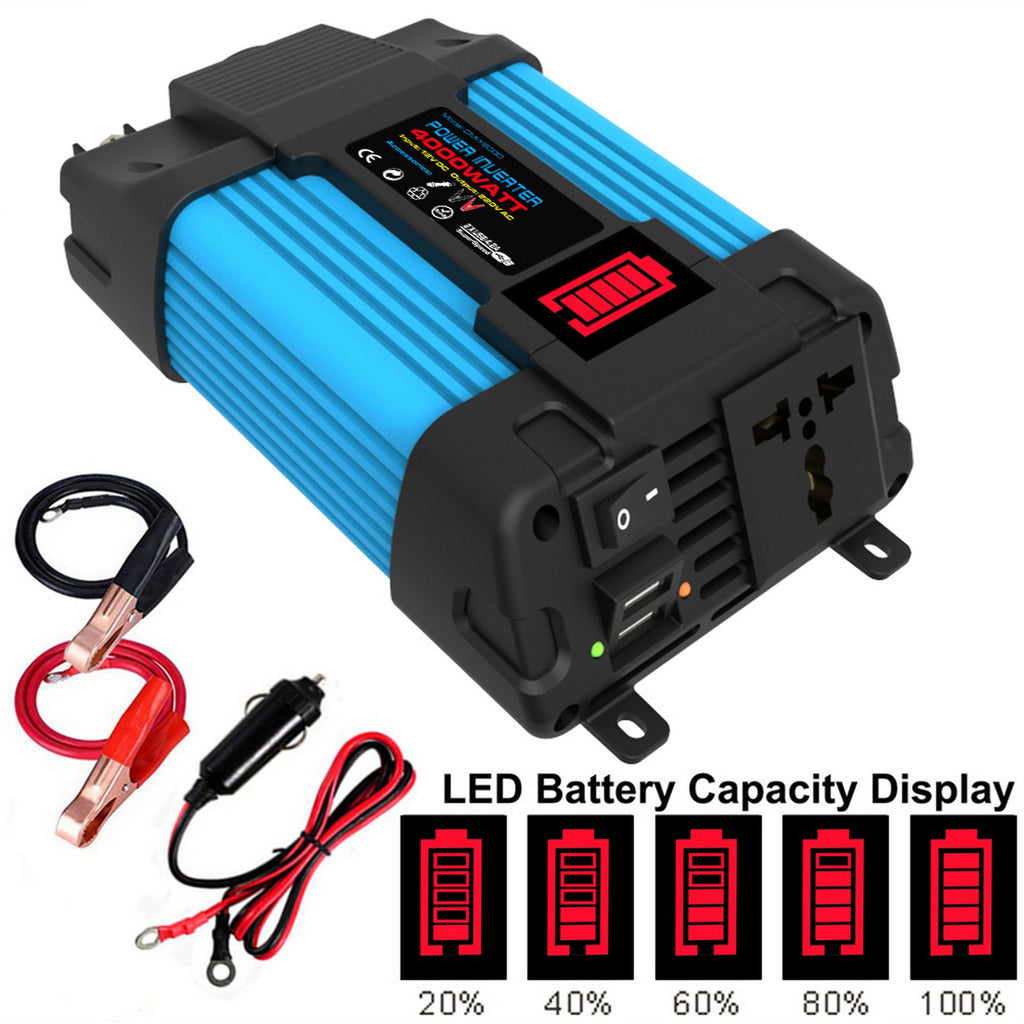

  3.Battery capacity display: LED display shows the battery capacity, which can remind you that when your battery no power. When connect the battery with inverter, LED screen work and show the real-time capacity of battery. Each lattice represents 20% of the battery power.

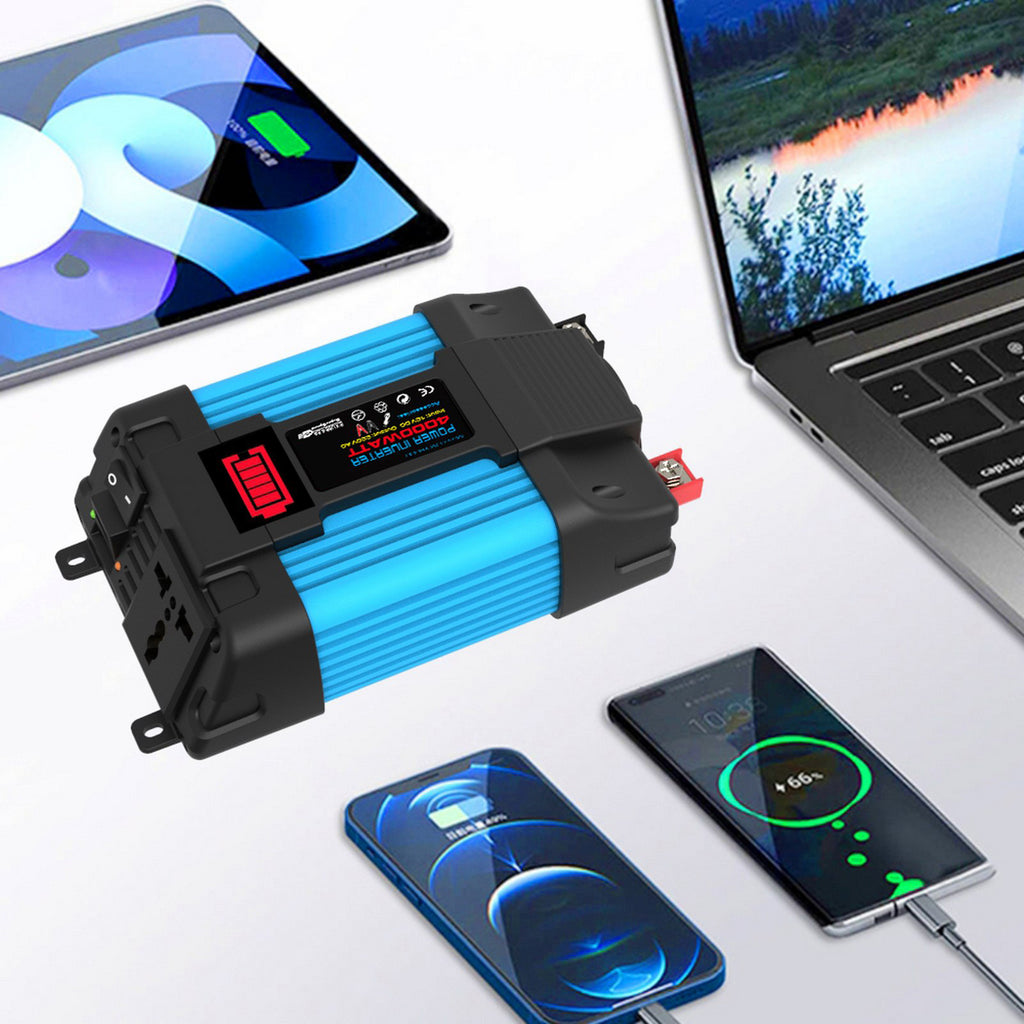

  4.Fast charging dual USB ports: One AC outlets and two USB ports can offer fast charging for mobile phones, computers, rescue device, emergency equipment etc, can be as a emergency power supply.

  5.Multi protection: Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat, saving power and energy. over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.

  6.Lightweight design: Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.

  Specifications:

  Name: Car power inverter 4000W

  Model: Y4000-Blue

  Peaks power: 4000W

  Rated power: 300W

  Input voltage: DC 12V(Voltage range: 10.5V~15V)(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection.)

  Output voltage : AC 110V /220V for your choice

  Output frequency is: 50Hz for 220V model /60Hz for 110V model.

  Output waveform: Modified sine wave.

  Dual USB interface: 5VDC/2.1A

  No-load current: ≤0.5A

  Conversion efficiency: greater than 90%

  Product size: 205mmX117mmX58mm/8.07in*4.60in*2.28in

  Product weight:0.6kg/21.16 oz

  Package size: 220mm*100mm*145mm/8.66in*3.93in*5.70in

  Package weight: 0.8kg/28.21 oz

  Application suggestion for Y4000 Model:

  Applicable loads for rated power under 300W:

  5W Cell phone. 5W Breast pump. 10W Digital electronics(Car navigation/Digital camera). 10W Game console. 5W-10W Electric shaver. 20W LED lamp. 25W Walkie talkie. 50-100W Laptop.60W Compact fluorescent Lamp. 60W Incandescent lamp. 60W-Mechanical electric fan. 60W-150W TV . 80W VCR. 180W Desktop computer.

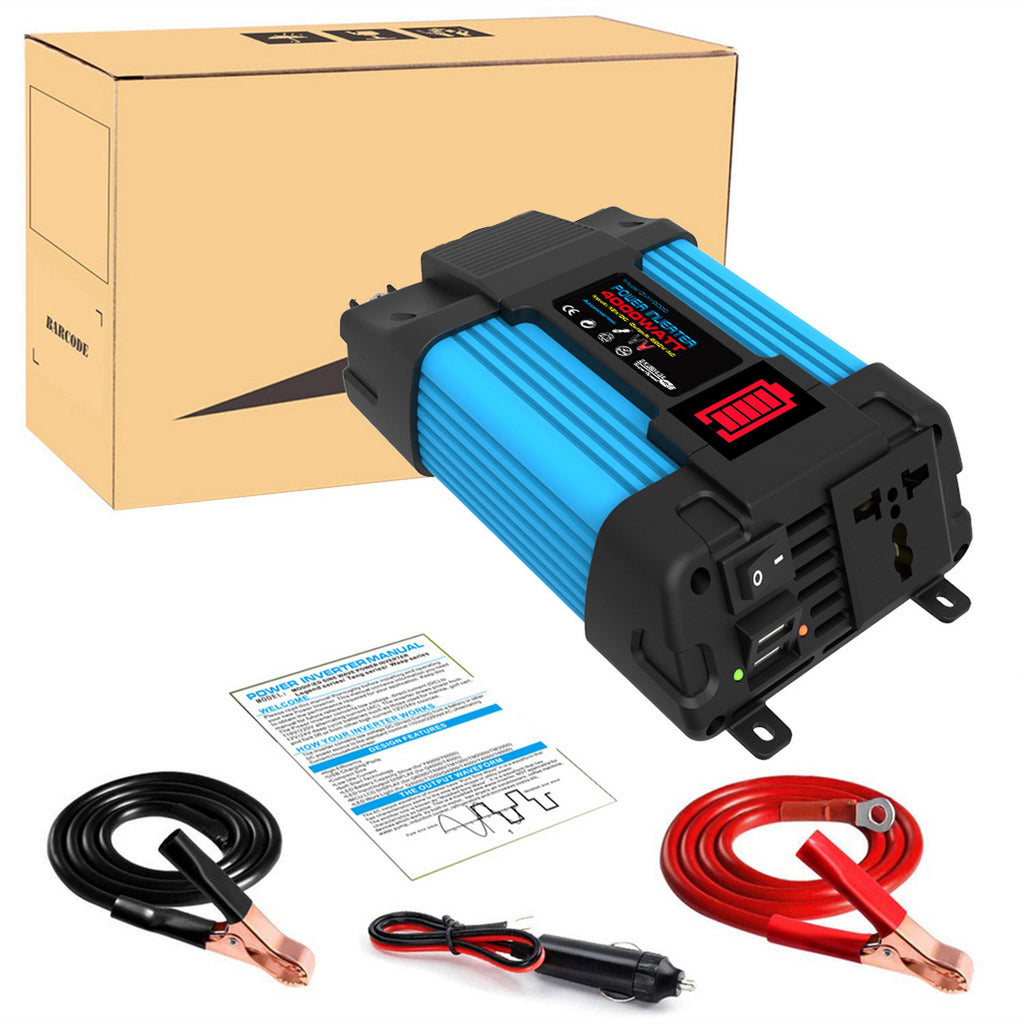

  Packaging and Accessories:

  1*Packing box

  1*Inverter

  2*Battery clips

  1*Plug cable

  1*English manual

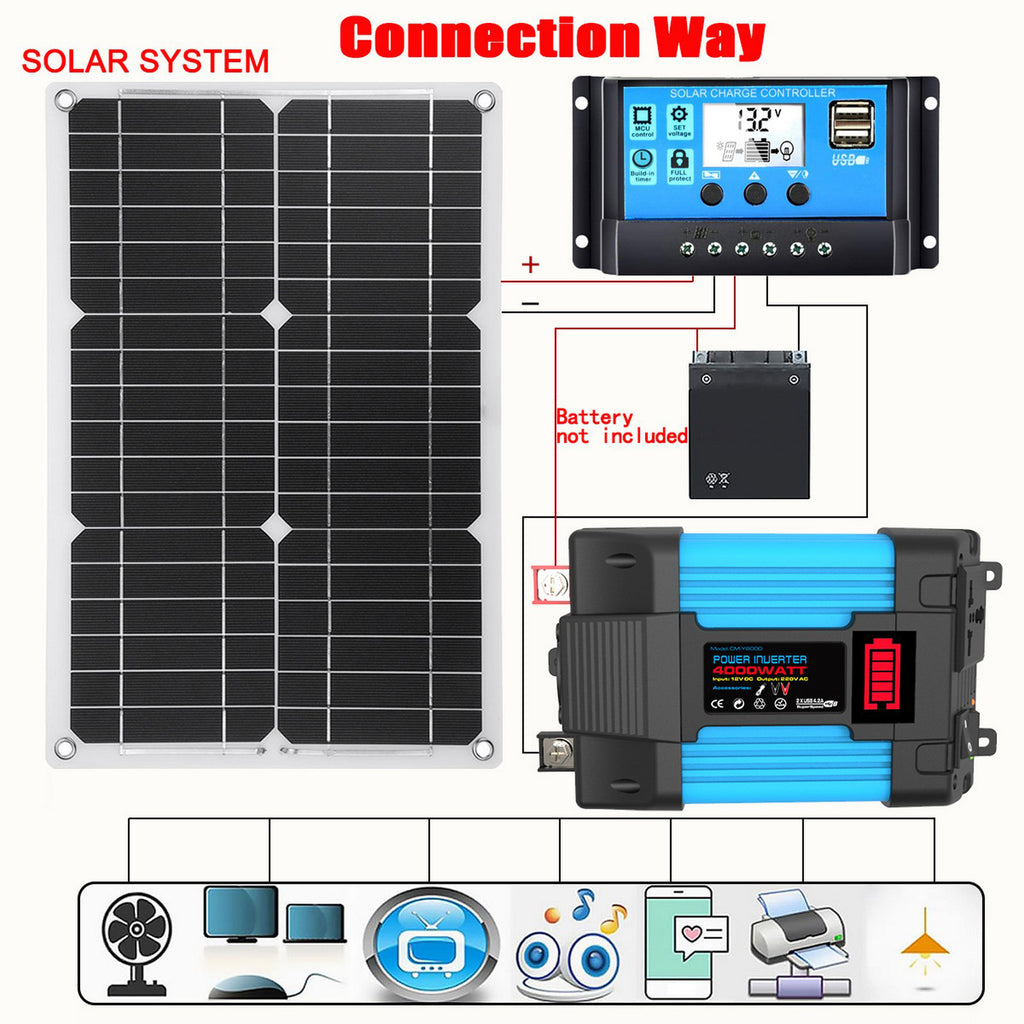

  Note: The solar panel, solar controller and battery are for display use only, not in the package.

  Caution:

  1.This is a modified sine wave inverter,NOT applicable for devices which work by built-in motor, hair dryers,air conditioners, coffee machine,water pump, induction cooker,refrigerators and microwave ovens etc.Make sure that the total rated power of the connected devices is ≤ 400W.

  2.Tighten the Positive (+) and Negative (-) terminals when the car converter is in use.

  3.If the converter is directly connected with the plug cable. The highest out put power must be under 150W. If higher than 150W,we strongly recommend you using the Crocodile Clips to a battery ,because car cigarette lighter might not afford power over 150W.

  4.The car converter suitable for DC12V and Car ONLY, not applied for DC 24V and airplane.

  5.Please do not leave the inverter in the ON position before car start.It's easy to damage the inverter before connected to the battery.The correct operation is connect to the battery first and then turn on the inverter switch.

  6.It's normal for the inverter to become warm while you are using it.In order to get the best using results, please put the inverter on the flat surface.

  The working place should meet the following criteria:

  1. Keep dry, should not let the inverter contact the water or other liquids, keep the inverter away from moisture or water.

  2. Cool environment, keep the temperature between 0 Celsius degrees and 40 Celsius degrees. Do not put the inverter next to heat vents or other devices. Try to keep the inverter not be shined directly by the sunshine.
