Products Description
Overview:

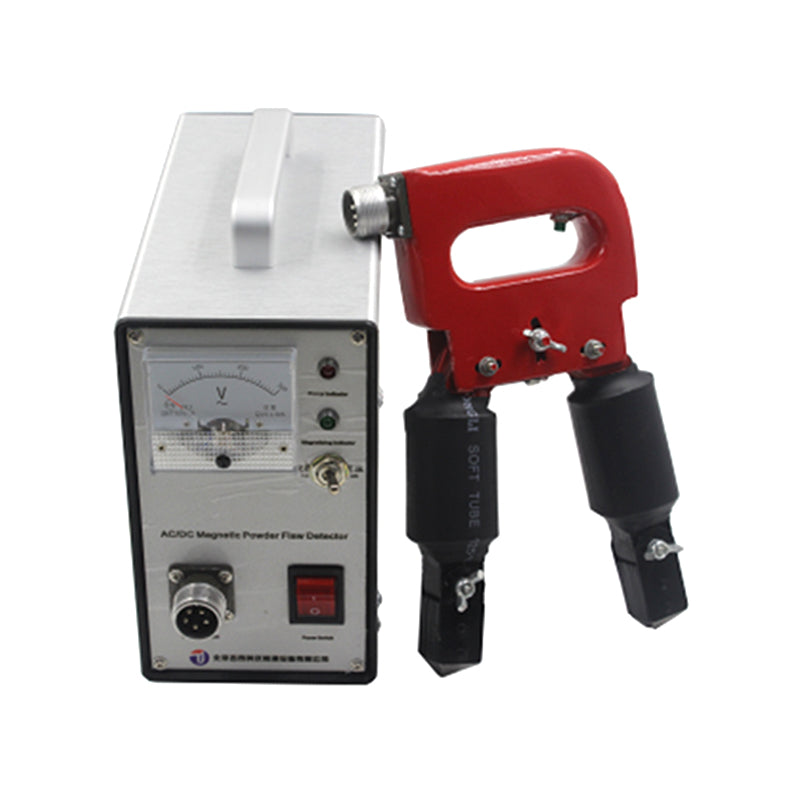

CDX-III Portable Magnetic Particle Flaw Detector adopts the controlled silicon non-contacting switch, it is low noise, long
lifetime and simple operation, suitable for on-site and laboratory use.
Function:
Mainly used to detect ferromagnetic workpiece surface and near surface crack, DC magnetization can detect the deep cracks. Drying or wetting detection is all applicable.
Industry Applications:
Boiler pressure vessel, steel structure, forging, casting, aviation standard parts, machining parts.
Main Engine Technical Parameters:
Power supply: AC220V±10% 50HZ
Sensitivity: show clear in A(15/100)standard test piece
Detection speed: more than 6 m/min
Test frequency: 2 seconds on, 2 seconds off.
Overall dimension: 300*140*200mm
Weight: the main engine is 9kg

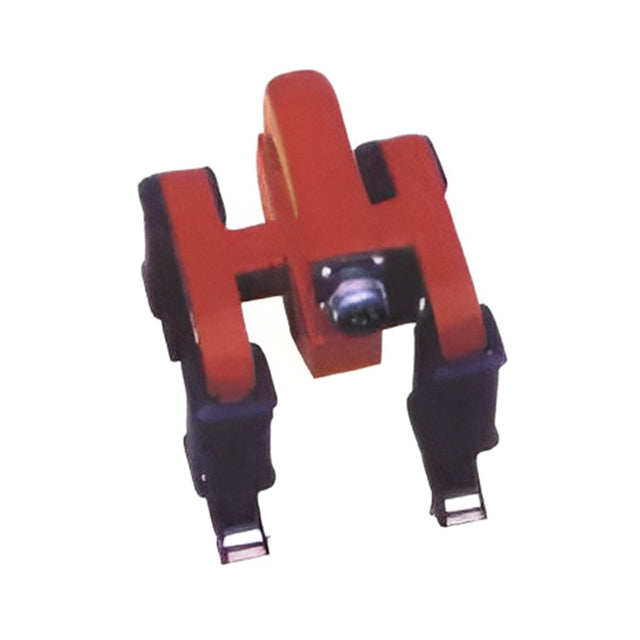

Probe Parameters:
TypeDProbe
Lifting Power: AC≥5Kg DC≥18Kg (no joint)
Pole Pitch: 50-200mm(adjustable)
Working Current: ≥8A
Working Voltage: AC=38V,DC=9V
Weight: 2.5Kg
TypeAProbe
Lifting Power:AC≥4.5Kg DC≥18Kg
Pole Pitch:20-160mm(adjustable)
Working Voltage: AC=38V,DC=9V
Weight: 2.0Kg
TypeOProbe
Center Magnetic Intensity: 180Oe
Working Current:AC=38V
Inner Diameter:150mm
Weight:2.5Kg
TypeEProbe
Lifting Power:≥12Kg
Pole Pitch:110mm
Working Current:≥7A
Detection Speed:6 m/min
Working Voltage: 38V*2
Weight: 3.0Kg

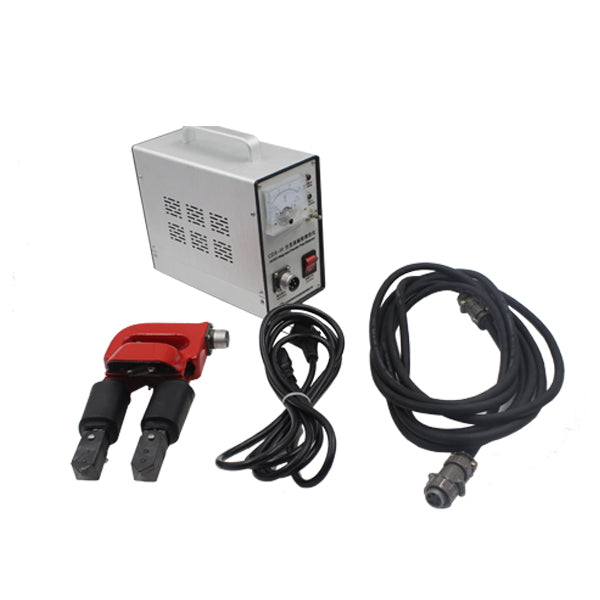

Standard Configuration:
Host * 1 pcs
A Probe * 1pcs
Calibration tablets * 5 pieces
School zero matrix * 1 pcs
Battery * 2 cells
Instruction manual * 1 copy
Warranty card * 1pcs
Instrument case * 1 pcs
（D Magnetic Yoke Probe ，O Probe ，E Probe is optional
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
