1) Default Configuration: 1D+2D + Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store
2) NFC, RFID are optional

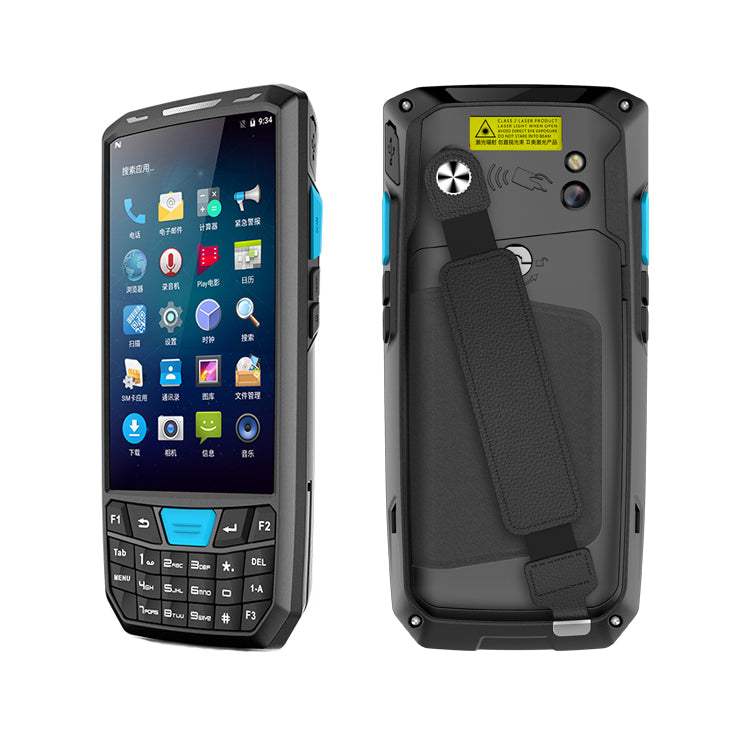

3) Compact And Portable Ergonomic Design With Wrist Strap
4) Safedroid OS (Android 8.1) Highly Optimized Android Operating System.
5) 8.0M Mega Pixel Camera.
6) High Capacity 4200mAh Large Capacity Battery For Critical Requirements;

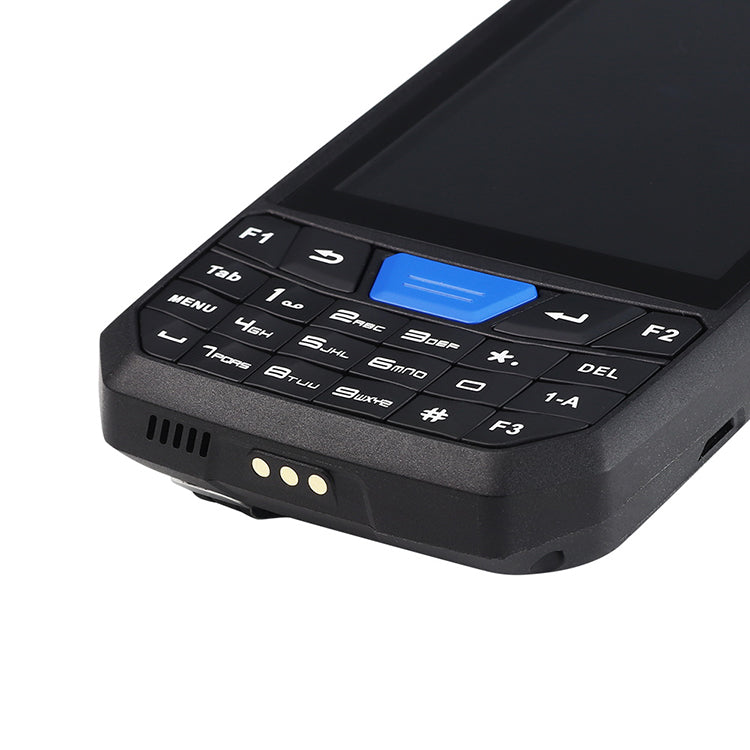

7) Pogo Pin Interface For Convenient Charging With Optional Charge Cradle.
| Basic Parameter | |
| Dimensions | 166mm(L)X77.5mm(W)X22mm(D) |
| Weight | <500g |
| Display Screen | 4.5inch IPS 480*854 px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface |
Type-C USB |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh |
| Frequency | 8ohm 1W speaker |
| Key | Silicone keyboard |
| Performance Parameter | |
| OS | Android 8.1 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 2.0G |
| RAM | 2G |
| Flash ROM | 16G |
| micro SD/TF port (Max up to 128G) | |
| Data Communication | |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B7,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Standard Modules | |
| Camera | 8MP autofocus camera with flash |
| GPS | Support A-GPS |
| Operating Environment | |
| Operating | -20°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP66 |

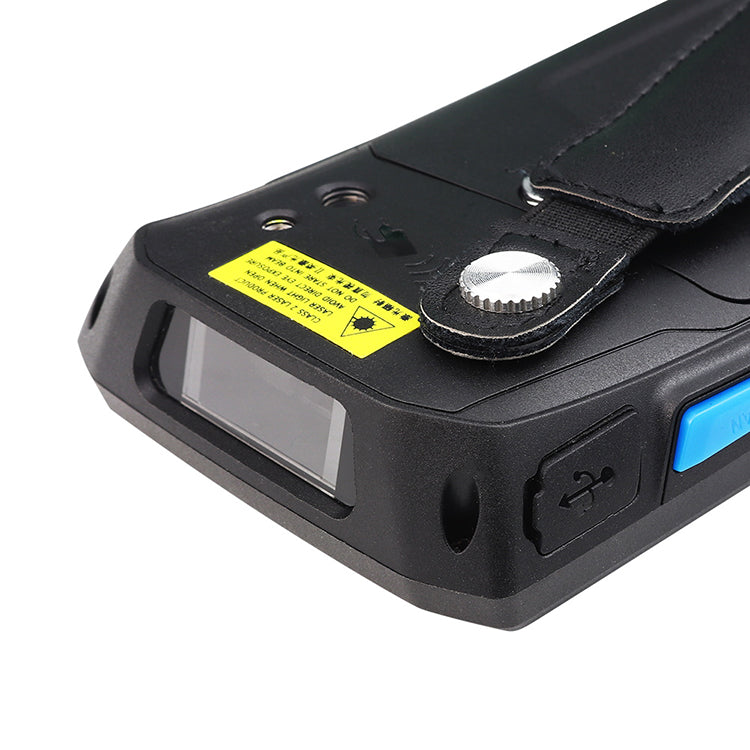

| 1D Laser Scanner (OPTIONAL) | |
| 1D Laser Scanner | Symbol 955, HoneywellN4313,Mingde966 |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (OPTIONAL) | |
| CMOS Scanner | Honeywell N6603,NewLand 3096 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
Logistics information
