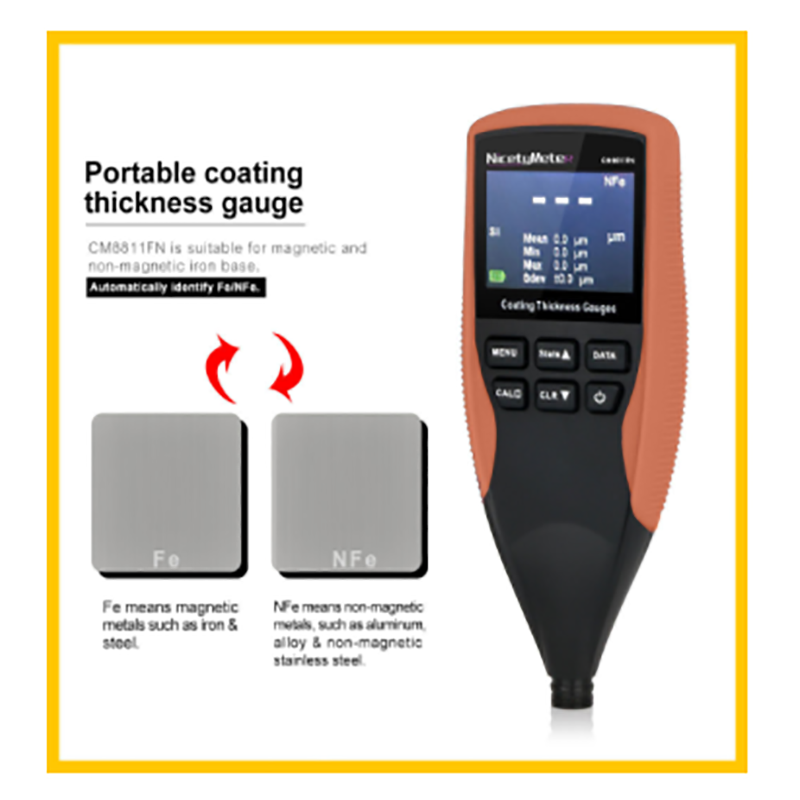

Specifications:
*Two measurement modes can be selected: single measurement (SI) and continuous measurement (Co)
*Large TFT dot matrix LCD color display
"Display the real-time measured value, maximum measured value, minimum measured value, average measured value and error value
*Conversion of two measurement units of mil.um
*LCD display can flip 180 ° * store 99 groups of measured values
*Automatic startup

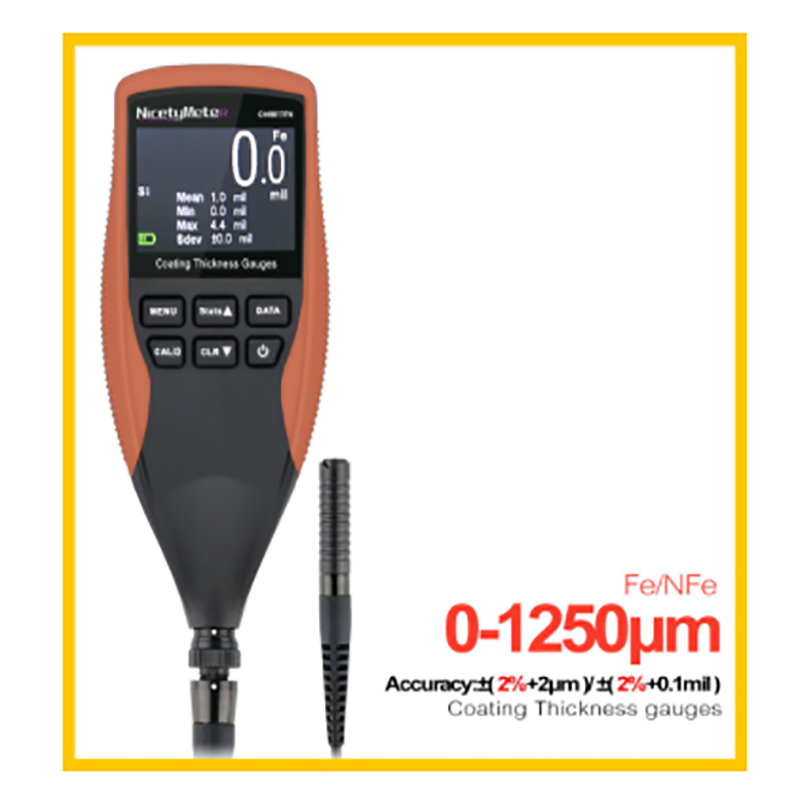

Measuring range: 0~1250um, O~50mil
Resolution: 1um, 0.1mil
Accuracy: ± (3%+2um)
Minimum thickness of substrate: 0.3mm
Minimum radius of curvature: 5mm (convex), 25mm (concave)
Minimum area of substrate: 6mm
Product size: 100 * 52 * 29mm
Product weight: 450g
Power supply: 1.5V (AAA), 2 No. 7 batteries
Standard accessories: one iron base, one aluminum base, five standard pieces, one instruction manual, one tool box, and one box cover
