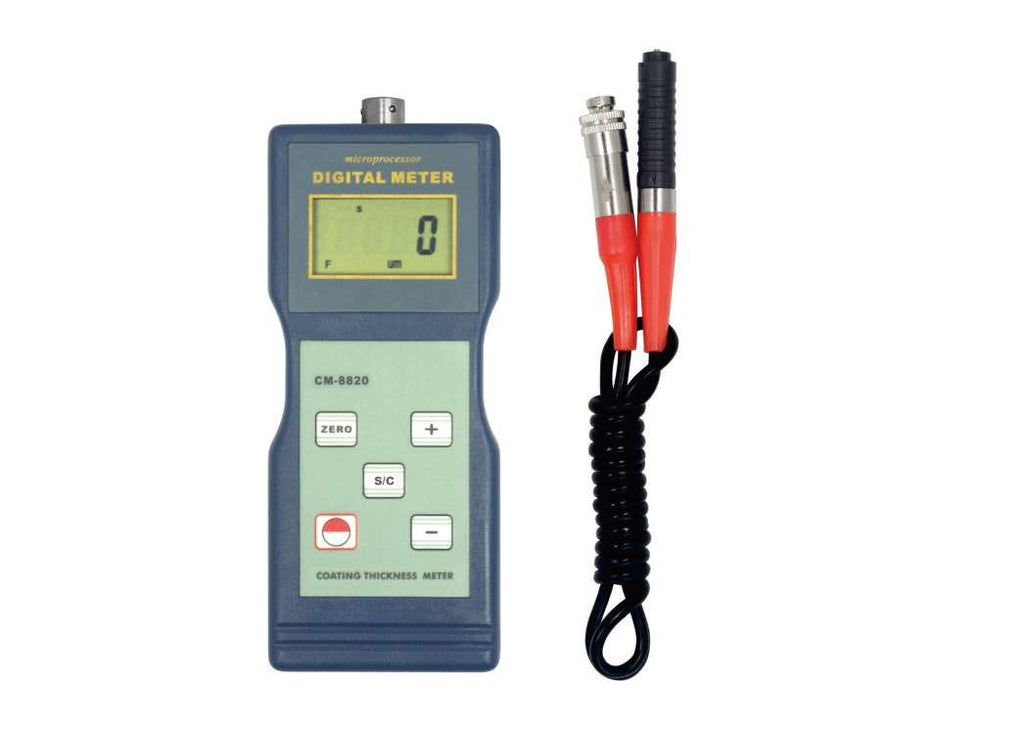

Applications:

Widely used to measure the thickness of non - magneticmaterials ( e.g.paint, plastic, porcelain enamel,

 copper, zinc, aluminium, chrome etc .) on magnetic

 materials (e.g. iron,nickle etc.). Often used to m

easure the thickness of plating layer,lacquer layer,p

orcelain enamel layer, phosphide layer, coppertile,

 aluminiumtile, some alloy tile,paper etc.

Features:

* It meets the standard of ISO2178. Suitable for the laboratory amd for use in harsh field conditions.

* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.

* Wide measuring range and high resolution.

* Digital display gives exact reading with no guessing or errors.

* The use of durable,long-lasting compone-nts,including a strong,light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.

Principle：

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back travel path, and then multiplied by the velocity of sound in the material.

Specifications:

               Display

            4 digits , 10mm LCD

                Principle

            F Magnetic Induction

                Resolution

            0 ~ 2000µm / 0 ~ 80 mil

                Range

            0.1µm (0 ~ 99.9µm)

                1µm (over 100µm)

                Accuracy

            ±5%n or 5.0µm

                Operating Condition

            Temp : 0 ~ 40°C

                Humidity : < 80%

                Power supply

            4 x 1.5 AA(UM-3) battery

                Size

            161 x 69 x 32 mm

                Weight

            About 260 g (including batteries)

                Standard Accessories

            Mian Unit

                Probe (F Type)

                Calibration Base (F)

                Calibration Foils

                Carrying Case

                Operation Manual
