Adopts international D/8, SCI measuring conditions, easy to handle with highly reflective samples. APP mass storage of data records, USB data transmission, supports software in the computer.
The portable spectrocolorimeter can be widely used in color matching instruction and color separation measurement of plastic, paint, printing, packaging, automobile, textiles, food and more industries.
Stick the self-adhesive magnetic base on the desktop, and then easily place the colorimeter with charging and calibrating base on it. Easy for reach and use, better protects the colorimeter.
Smart color meter can be managed and analyzed on the APP after you connected the color meter with mobile phone, PC or computer.
Built in with 3000mAh large capacity battery, easy to charge it via Type-C USB interface. Please prepare a 5V 2A adapter for charging to prevent damage.

Specifications:
Material: ABS

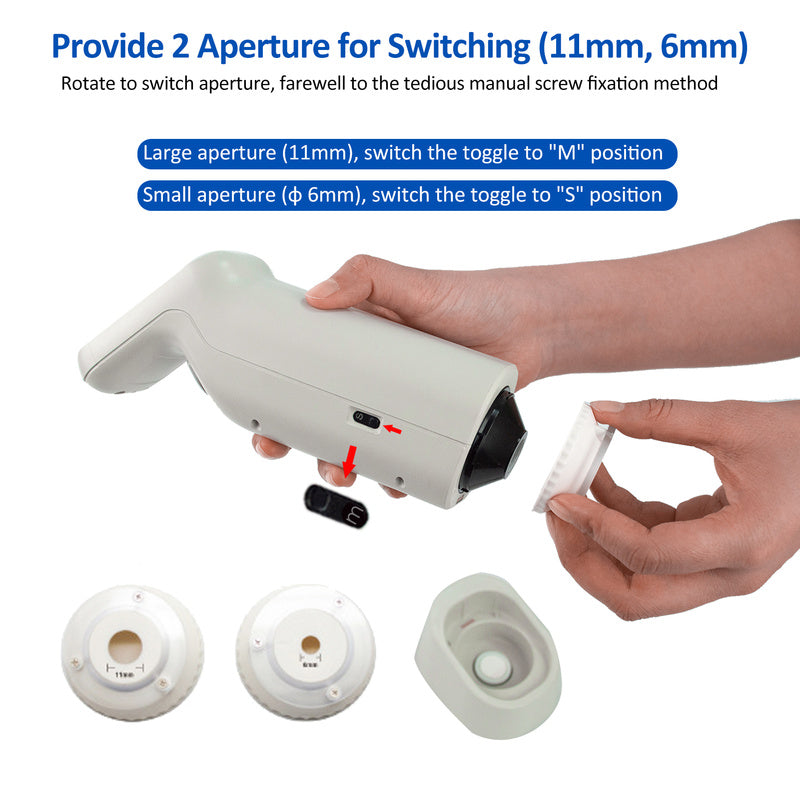

Measurement Area/ Aperture Size: MA-V: φ11mm+SAV:6 φmm

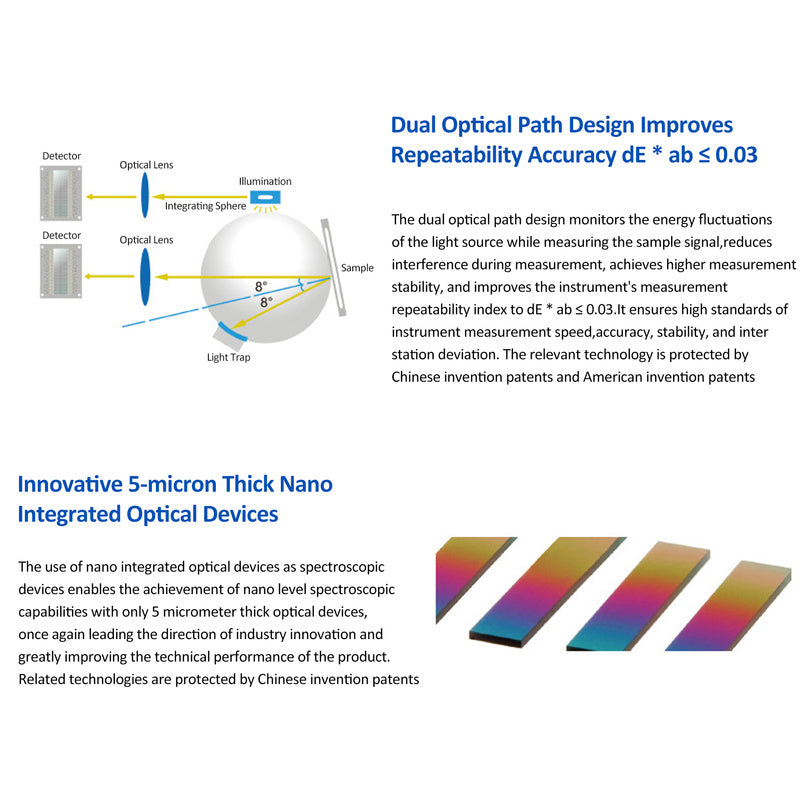

GeoMetry and Angle: d/8 (diffused illumination, 8 degree viewing)
SCI (specular component included)
Standards Compliant: Conform to standard CIE No. 15, GB/T 3978, GB 2
GB/T 18833, IS07724-1, ASTM E1164, DIN5033 Teil7

Sensor: CMOS sensor
Color Value: Reflectance
CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB
ColorDifference(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00)
WI(ASTM E313-00,ASTM E313-73,CIE/ISO


Tin-t(ASTM E313-00),Color Density(CMYK(A,T,E,M)),Milm
Munsell,Opacity,ColorStrength
Integrating Sphere Diameter: 40mm
Lighting Source: LED (Full band balanced LED light source)
Wavelength Interval: 10nm
Wavelength Range: 400-700nm
Reflectance Measurement Range: 200%
Reflectance Resolution: 0.01%
Measurement Accuracy: 0.01
Repeatability: △E*ab ≤0.03
Measurement Time: About 1S
Interface: USB, BT
Illuminants: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Observer Angle: 2°, 10°

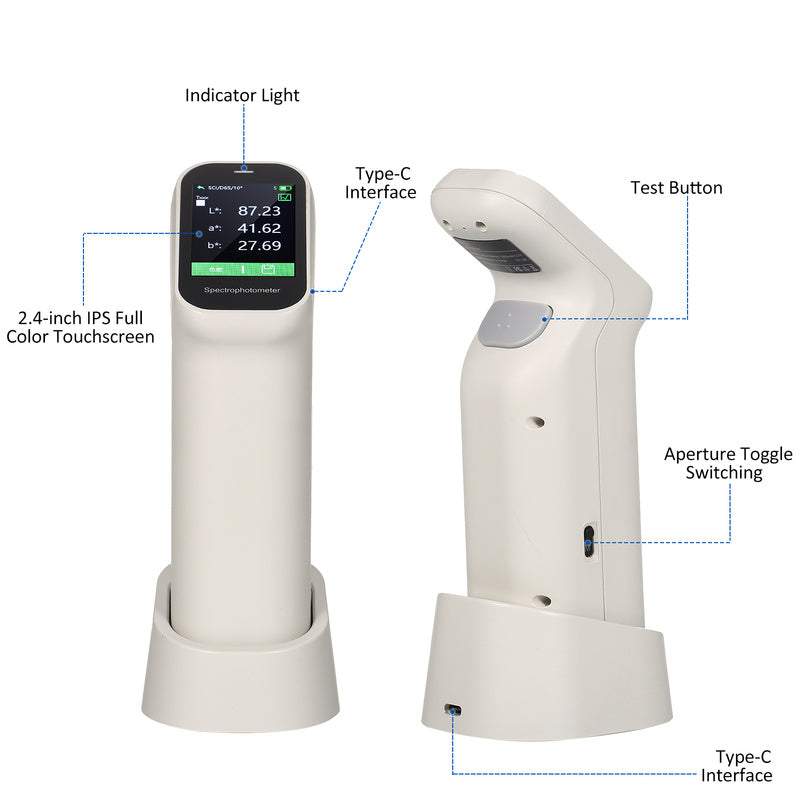

Screen: IPS full color screen, 2.4 inches
Battery: Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh
Light Source Lifetime: 10 years, 3 million tests
Language: Chinese, English
Calibration: Automatic
Software support: Android/iOS/Wins/WeChat applet
Pass Metrology: Yes

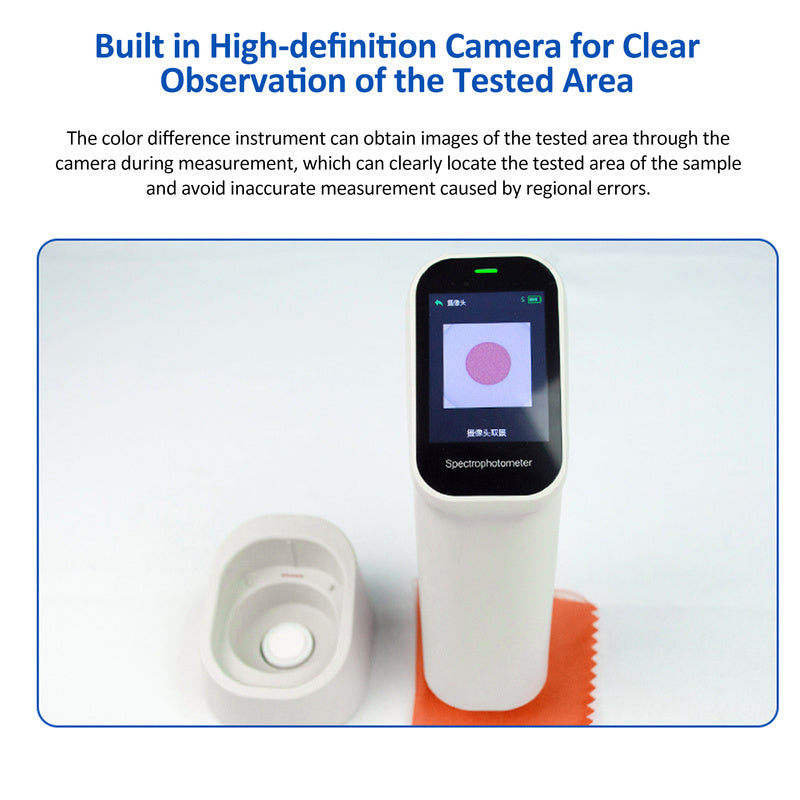

Camera: Yes
Storage: App mass storage
Built-in Battery: 3.7V 3000mAh battery

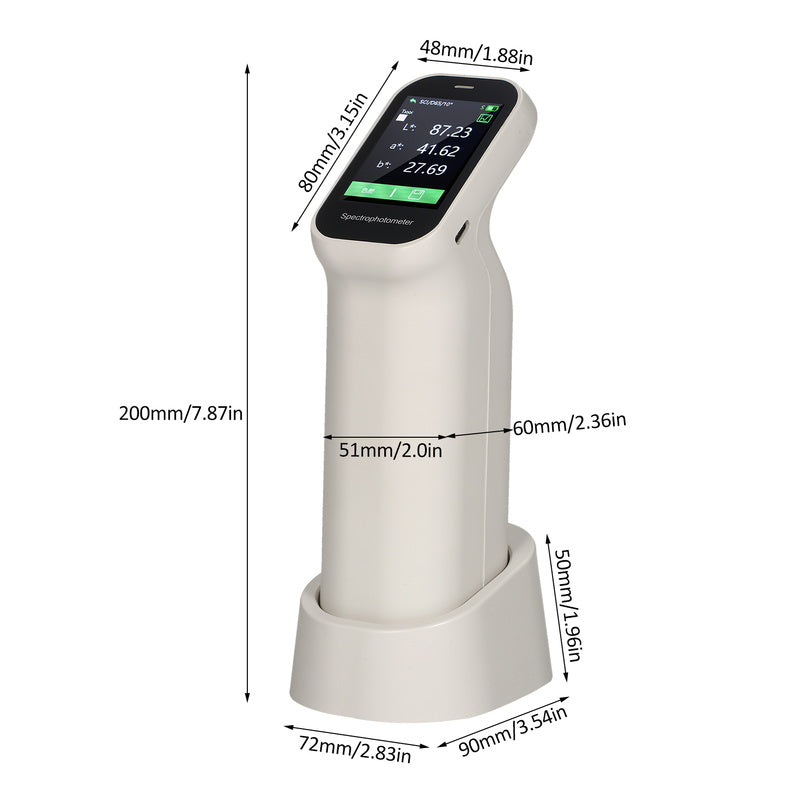

Base Size: 90 * 72 * 50mm / 3.54 * 2.83 * 1.97in
Item Size (without base): 185 * 75 * 52mm / 7.28 * 2.95 * 2.05in
Item Weight(with base): 371g / 0.82lb
Package Weight: 1046g / 2.31lb
Package Size: 29 * 28 * 10cm / 11.42 * 11.02 * 3.94in
