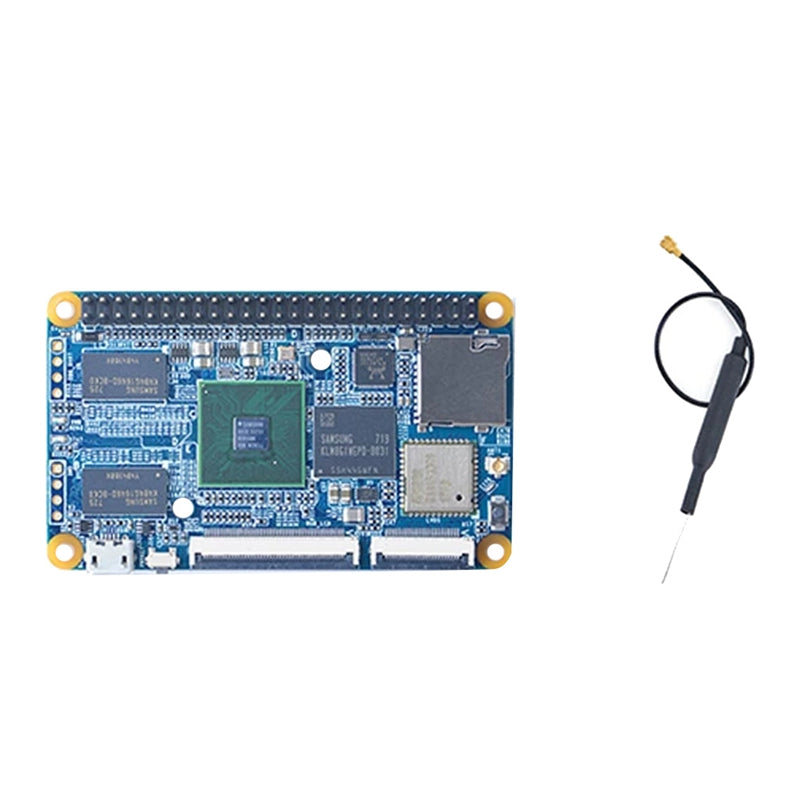

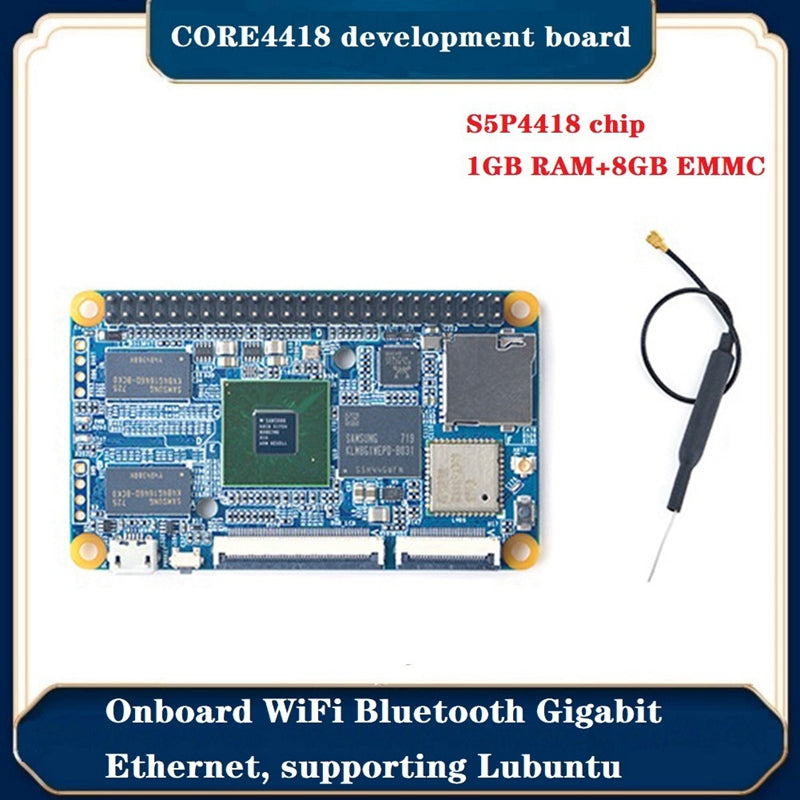

CORE4418 Development Board+Antenna S5P4418 Quad-Core 1GB+8GB EMMC Wifi BT4.0 Gigabit Network Interface Supports Lubuntu

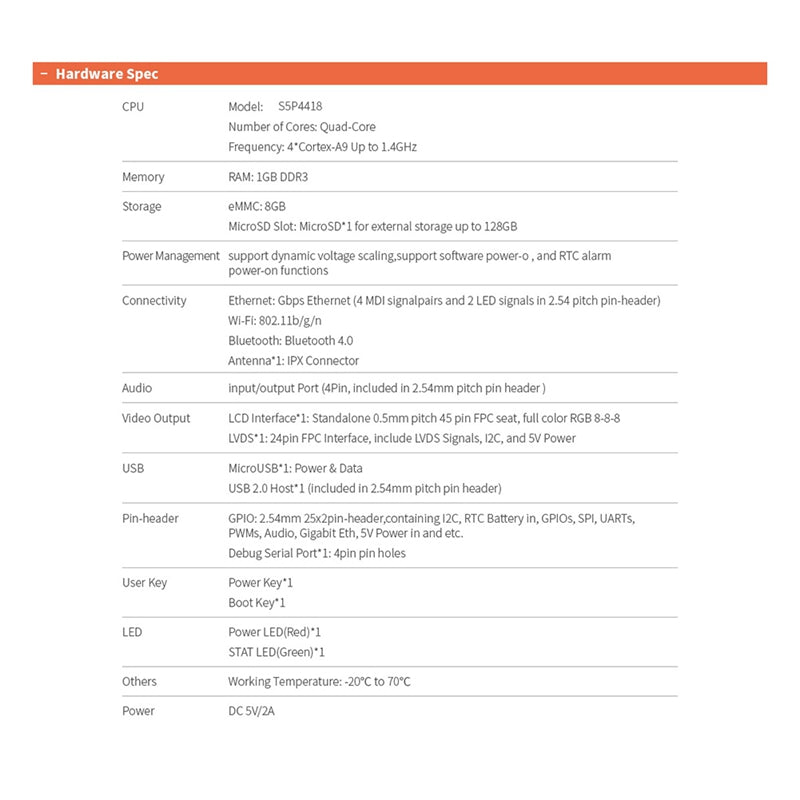

CPU:Model: for Samsung S5P4418,Number of Cores: Qcta-core,Frequency: 4*cortex-A9 Up to 1.4GHZ
Memory:RAM:1GB DDR3
Storage:EMMC:8GB;Microsd Slot: MicroSD*1 for external storage up to 128GB
Power Management:support dynamic voltage scaling, support software power-on, and RTC alarm power-on functions
Connectivity:Ethernet : Gbps Ethernet (4 MDI signalpairs and 2 LED signals in 2.54 pitch pin-header
Wi-fi:802.11b/g/n
Bluetooth:Bluetooth 4.0
Antenna*1:IPX Connector
Audio:input/output Port (4pin,included in 2.54mm pitch pin header

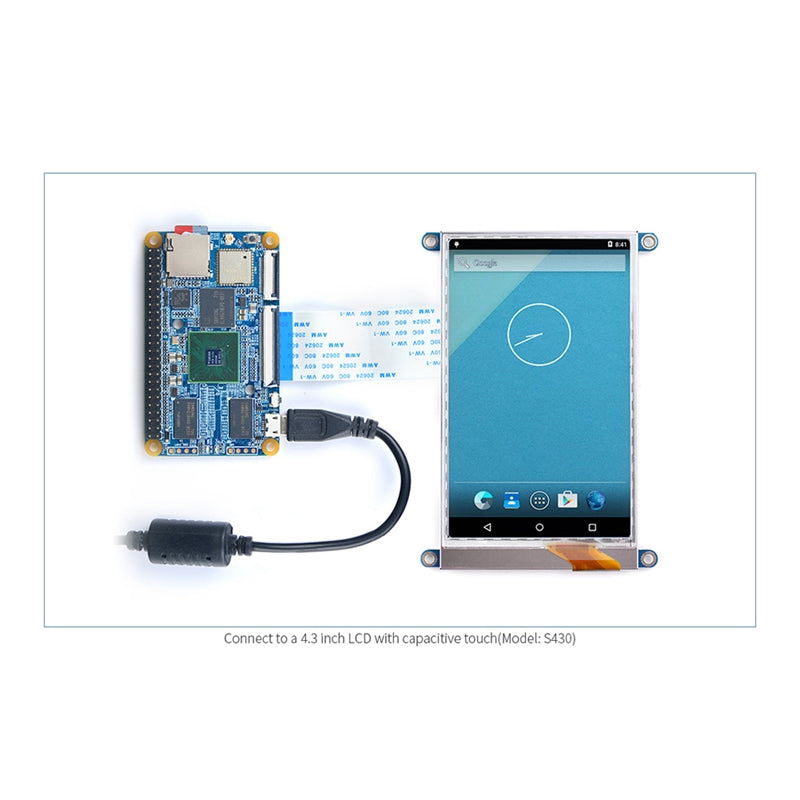

Video Output:LCD Interface*1:Standalone 0.5mm pitch 45 pin FPC seat,full color RGB 8-8-8
LVDS*1:24pin FPC Interface,include LVDS Signals,I2C,and 5V Power
USB:MicroUSB*1: Power&Data
USB 2.0 Host*1(included in 2.54mm pitch pin header)
Pin-header:GPIO:2.54mm 25x2pin-header,containing I2C,RTC Battery in,GPIOS, SPL, UARTS, PWMS, Audio, Gigabit Eth, 5V Power in and etc.Debug Serial Port*1: 4pin pin holes
User Key:Power Key*1;Boot Key*1
LED:Power LED(Red)*1;STAT LED(Green)*1
Others:Working Temperature:-20℃ to 70℃
Power:DC 5V/2A
OS Support:Friendlycore(based on Ubuntucore-16.04), Lubuntu
Kernel version:Linux-4.14-LTS,U-boot-2017.11
PCB:Six Layer

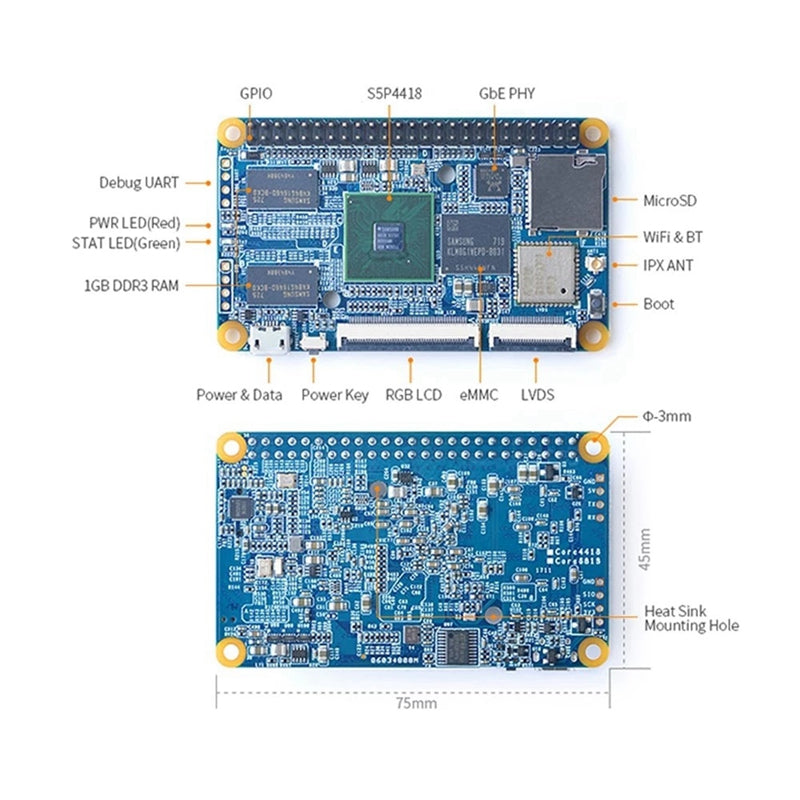

Dimension:75 x 45mm
color:Blue
Material:PCB
Package Contents:
1 x CORE4418 development board
1 x Antenna
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
