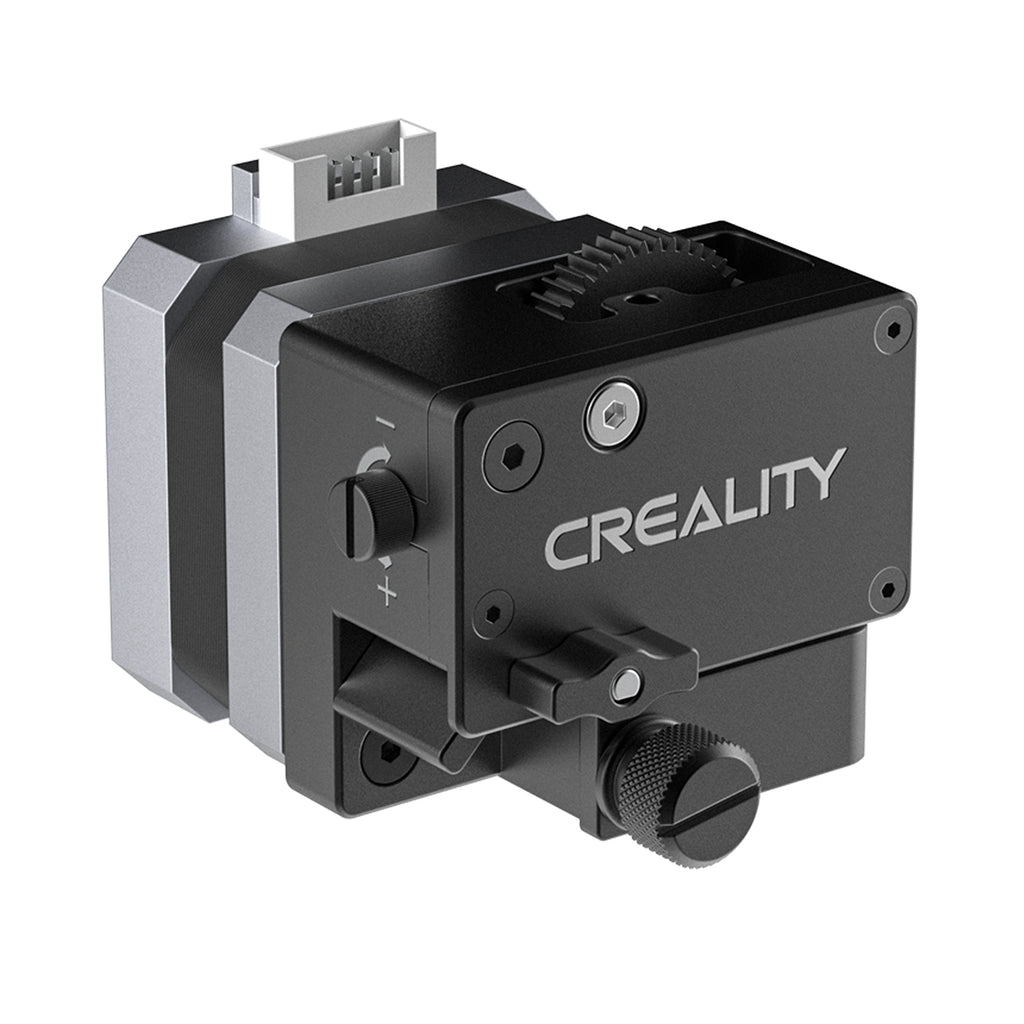

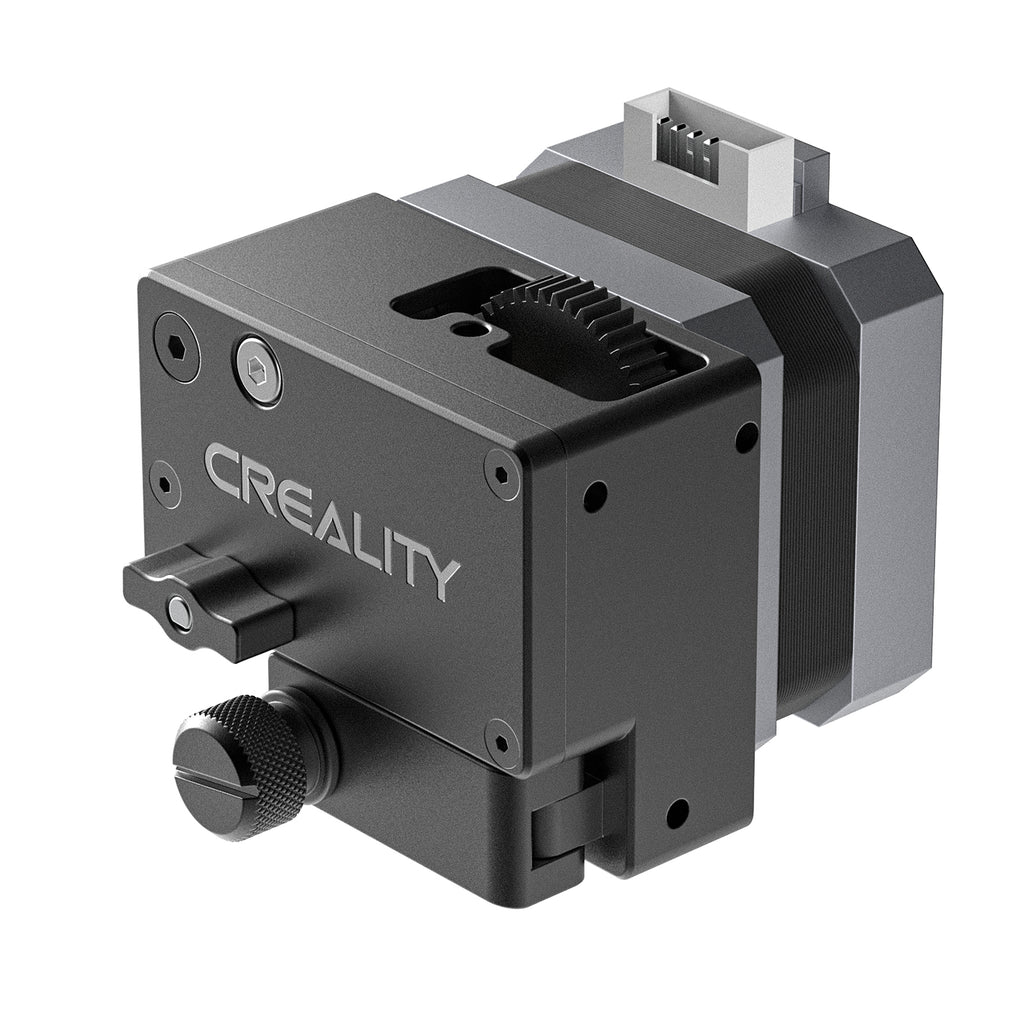

Features:

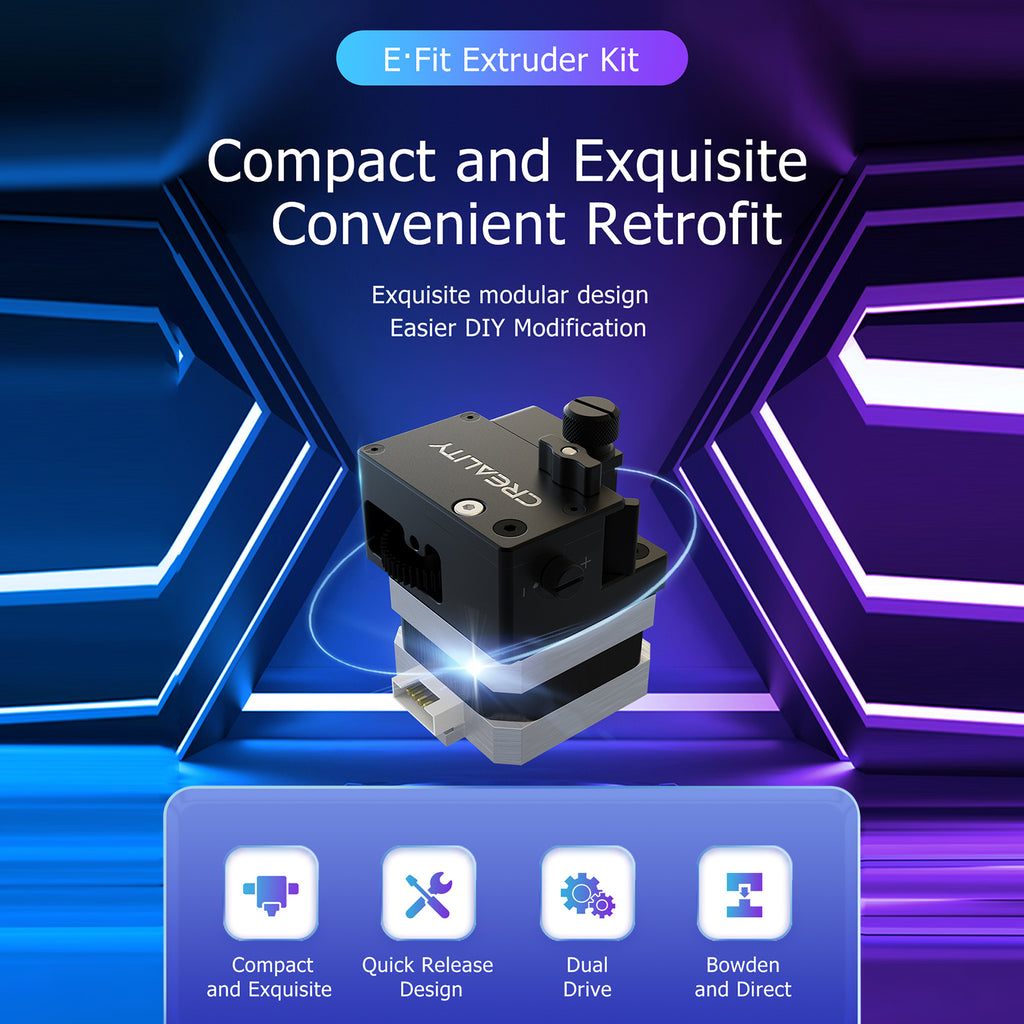

Compact Size: Size about 48x42x25mm and 102g lightweight. It is suitable for Creality 3D Printers Ender-3/Ender-3 V2/ Ender-3 Pro /Ender-3 S/CR-10 S/CR-10/CR-10 S5/CR-10 S4/CR-10 Mini/CR-20/CR-20 Pro; And compatible with most FDM 3D printers on the market as well.
Easy Replacement: Both push-type and knob-type filament replacement are available. Quick release design, more efficient disassembly and installation, and hotend can be replaced quickly.
High Torque: Adopt 3:1 gear ratio, dual gear meshing structure, more reliable and stable feeding and printing.

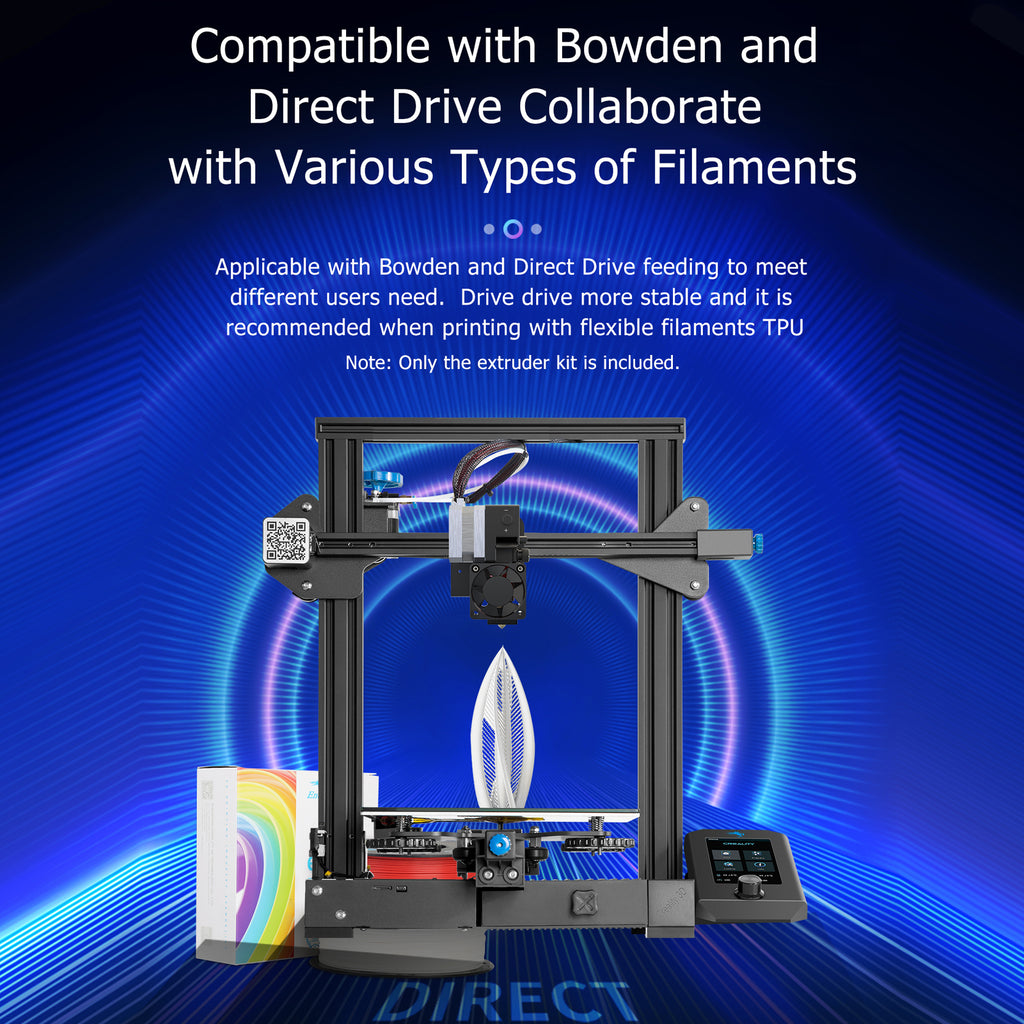

Wide Compatibility: Applicable with Bowden and Direct Drive feeding to meet different users need. Driver drive more stable and it is recommended when printing with flexible filaments TPU.

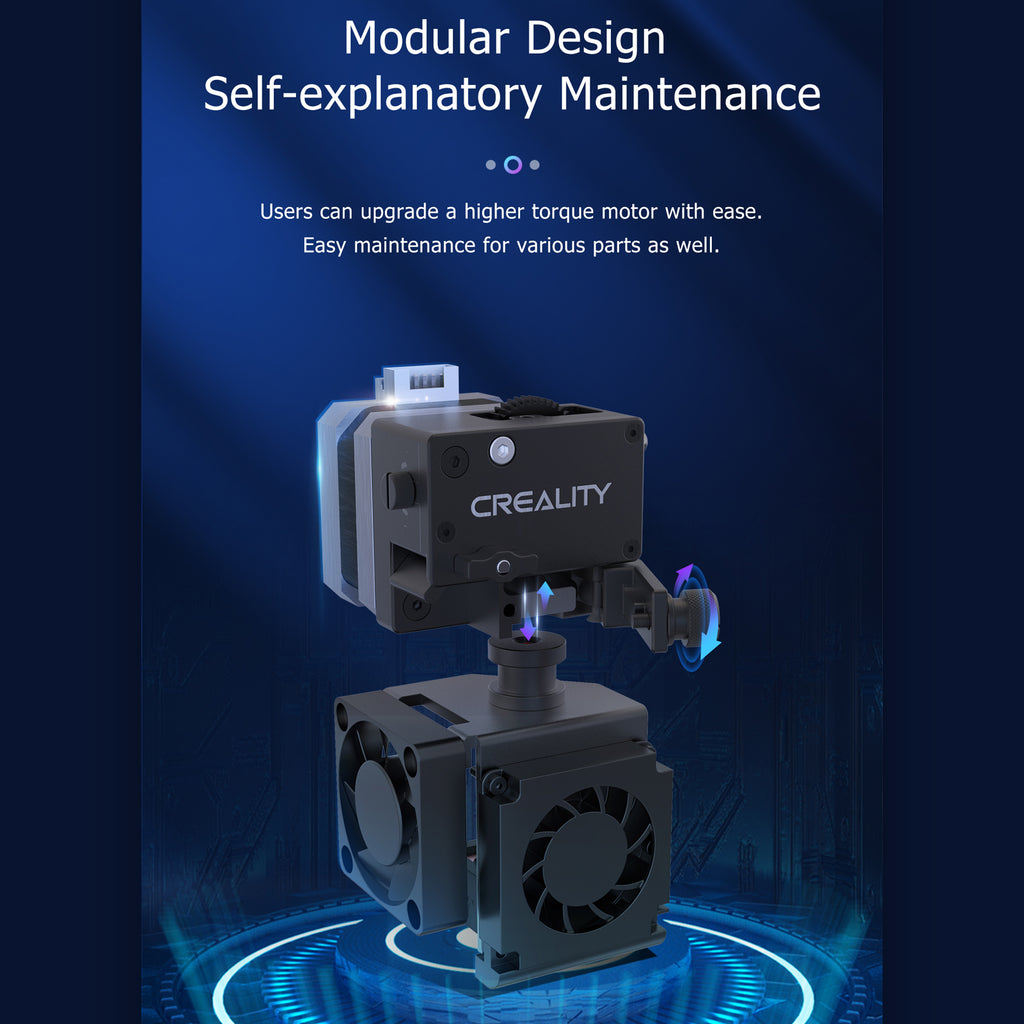

Modular Design: Users can upgrade to a higher torque motor with ease. Easy maintenance for various parts as well.
Adjustable Spring: Adjust the spring pressure base on different filaments for more stable retraction, which results in more beautiful model.
Specification:
Model: E·Fit
For: Most FDM 3D printers on the market; Creality 3D Printer Model Ender-3/Ender-3 V2/ Ender-3 Pro /Ender-3 S/CR-10 S/CR-10/CR-10 S5/CR-10 S4/CR-10 Mini/CR-20/CR-20 Pro
Product Size: (LxWxH) 48x42x25mm (without motor and accessories)
Drive: Dual gear drive
Gear parameters: Module: 0.5, Number of teeth: 48
Material: Carbon steel
E-STEP: 405 (can be fine-tuned according to actual printing conditions)
Applicable filament: 01.75+0.05mm
Packing Size: 115x75x90mm /4.5x2.9x3.5in
Packing Weight: 300g/10.5oz
Packing List:
1 x E·Fit Extruder
1 x Backplate
1 x Fan adapter plate
1 x Cable ties
2 x Wrench
1 x Air guide part
1 x Screw Kit
1 x Connector
1 x Silicone pad
1 x Tube
1 x Motor cable
